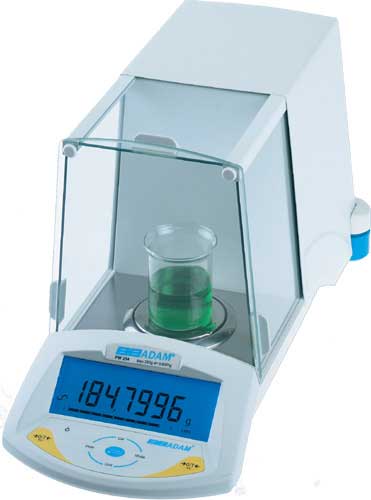

PW Analytical Balances
The PW series of Analytical Balances are designed to meet the needs of Laboratories, Schools, Industry and commercial users offering a wide range of applications
Features
Applications
Technical Specifications | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Model |
|
|
|
||||||||||||||||
Maximum capacity | 120g | 180g | 250g | ||||||||||||||||
Readability | 0.0001g | 0.0001g | 0.0001g | ||||||||||||||||
Tare range | Full | Full | Full | ||||||||||||||||
Repeatability (S.D.) | 0.00015g | 0.0002g | 0.0002g | ||||||||||||||||
Linearity (+/-) | 0.0002g | 0.0002g | 0.0002g | ||||||||||||||||
Pan size | 3.5inch / 90mm |
General Specifications | |||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Units of measurement | Gram (g), Milligram (mg), Carat (ct), Ounce (Oz), Dram (d), Grain (GN), Troy Ounce (Ozt), Pennyweight (dWt), Momme (MM), Taels Hk. (TL.H), Taels S. (TL.S), Taels T. (TL.T), Tical (ti), Newton (N), Tola (T), Custom unit | ||||||||||||||||||
Interface | Bi-directional RS-232 (Standard) | ||||||||||||||||||
Calibration | Calibration with internal mass. Alternatively the user can chose to calibrate using an external mass | ||||||||||||||||||
Display | Backlit LCD with dual digits (24 mm high) and capacity tracker | ||||||||||||||||||
Power supply | 15 VDC, 50/60 Hz, 800 mA (Input Voltage 100-240 V, 50/60 Hz) | ||||||||||||||||||
Housing | Die cast aluminium housing with glass weighing chamber | ||||||||||||||||||
Draught shield | Supplied as standard (factory fitted) | ||||||||||||||||||
Draught shield dimensions | 202 x 158 x 215mm | ||||||||||||||||||
Overall dimensions (wxdxh) | 10.1 x 20.6 x 10.8 inch / 256 x 524 x 275mm |
