JCH Models:
Heavy duty lines man cable puller designed to lift, lower, stretch or pull heavy loads
-
1-1/2 and 2 ton capacities available
-
Drop forged hooks with safety latches standard
-
Handle bends, before puller is dangerously loaded, acting as overload protection
-
Complies with ANSI/ASME B30.21 standards

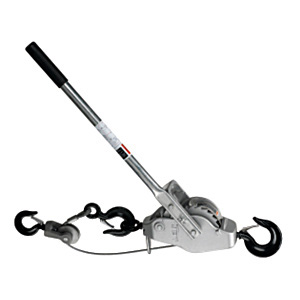

JCP Models:
-
General purpose cable puller designed to lift, lower, stretch or pull heavy loads
-
1 ton to 4 ton capacities
-
Lightweight zinc plated steel construction to resist corrosion
-
Double solid cast aluminum ratchet wheel brake system hold load securely in any position
-
Concealed spring lever control prevents accidental release
-
Drop forged hooks with safety latches standard
-
Aircraft quality 3/16 cable
-
Snatch block included with JCP-2 and JCP-4 models
-
Complies with ANSI/ASME B30.21 standards
|
Specifications
|
|
Part Number
|
180410
|
180420
|
180440
|
|
Capacity
|
1 ton
|
2 ton
|
4 ton
|
|
Lever Ratio
|
18:1
|
36:1
|
36:1
|
|
Max Lift Height
|
12 '
|
6 '
|
6 '
|
|
Lever Length
|
16-1/2"
|
16-1/2"
|
17-1/8"
|
|
Minimum Distance Between Hooks
|
17"
|
21"
|
22"
|
|
Model Number
|
JCP-1
|
JCP-2
|
JCP-4
|
|
Brand
|
Jet
|
Jet
|
Jet
|
|
Height
|
5 inch
|
5.4 inch
|
29.2 inch
|
|
Width
|
3.6 inch
|
25.3 inch
|
6.2 inch
|
|
Length
|
25.3 inch
|
4.2 inch
|
4.3 inch
|
|
Net Weight
|
8.55 pound
|
9.05 pound
|
13.1
|
Caution: Before installation read owners manual for additional warnings and precautions. Improper use and overloading can result in injury. Do not exceed rated
capacity. Do not use to lift people or loads over people. Not for use in an explosive environment. Read and follow all instructions.
