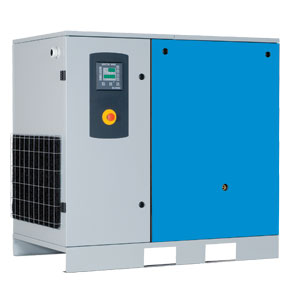

BelAire rotary screw air compressor

At a Glace
Details
Specifications
ES3000 contoller
More Information

THE QUIET COMPRESSED AIR SYSTEM

Ideal for automotive repair and body shops, the BelAire line of rotary screw compressors are built to provide reliable and efficient compressed air in a compact design. BelAire rotary screw compressors allow for 100% duty in a extremely quiet, user friendly package.

BELT DRIVE ROTARY SCREW AIR COMPRESSORS 5 TO 15 HP

FEATURES:

Low Sound Enclosure
150 psig Standard
(125 psig available 10-15 hp)
Continuous Operating Capability
Space Saving Design, <12 ft²
Across-The-Line Motor Starter
ASME/CRN Receiver Tank
(5 – 7.5HP - 60 Gal, 10 – 15HP - 120 Gal)
Tri-Voltage, TEFC Motor
UL and UL-C Approved Control Panel

BELT DRIVE ROTARY SCREW AIR COMPRESSORS 20 TO 30 HP

FEATURES:

Low Sound Enclosure
100 -175 psig
Continuous Operating Capability
Space Saving Design, <12 ft²
Maintenance < 15 minutes
Wye-Delta, Reduced Voltage Start
Electronic Microprocessor Control
Tri-Voltage, TEFC Motor
Load/No Load With Intelligent Shutdown

Models
BR5 TM-3	5 HP 60 Gallon 150 PSI Screw Compressor, 16.6 CFM at MAX/150 PSI, 208-230/460V 3Ph, 62 dBA
BR5 TM-1	5 HP 60 Gallon 150 PSI Screw Compressor, 16.6 CFM at MAX/150 PSI, 230v/1ph, 62 dBA
BR5 TMD-3	5 HP 60 Gallon 150 PSI Screw Compressor w/Dryer, 16.6 CFM at MAX/150 PSI, 208-230/460V 3Ph, 62 dBA
BR5 TMD-1	5 HP 60 Gallon 150 PSI Screw Compressor w/Dryer, 16.6 CFM at MAX/150 PSI, 230v/1ph, 62 dBA
BR7.5 TM-3	7.5 HP 60 Gallon 150 PSI Screw Compressor, 21.2 CFM at MAX/150 PSI, 208-230/460V 3Ph, 64 dBA
BR7.5 TM-1	7.5 HP 60 Gallon 150 PSI Screw Compressor, 21.2 CFM at MAX/150 PSI, 230v/1ph, 64 dBA
BR7.5 TMD-3	7.5 HP 60 Gallon 150 PSI Screw Compressor w/Dryer, 21.2 CFM at MAX/150 PSI, 208-230/460V 3Ph, 64 dBA
BR7.5 TMD-1	7.5 HP 60 Gallon 150 PSI Screw Compressor w/Dryer, 21.2 CFM at MAX/150 PSI, 230v/1ph, 64 dBA
BR10 TM-3	10 HP 132 Gallon 125 PSI Screw Compressor, 37 CFM at MAX/125 PSI, 208-230/460V 3Ph, 66 dBA
BR10 TM-3	10 HP 132 Gallon 150 PSI Screw Compressor, 33 CFM at MAX/150 PSI, 208-230/460V 3Ph, 66 dBA
BR10 TMD-3	10 HP 132 Gallon 125 PSI Screw Compressor w/Dryer, 37 CFM at MAX/125 PSI, 208-230/460V 3Ph, 66 dBA
BR10 TMD-3	10 HP 132 Gallon 150 PSI Screw Compressor w/Dryer, 33 CFM at MAX/150 PSI, 208-230/460V 3Ph, 66 dBA
BR15 TM-3	15 HP 132 Gallon 125 PSI Screw Compressor, 52 CFM at MAX/125 PSI, 208-230/460V 3Ph, 68 dBA
BR15 TM-3	15 HP 132 Gallon 150 PSI Screw Compressor, 47 CFM at MAX/150 PSI, 208-230/460V 3Ph, 68 dBA
BR15 TMD-3	15 HP 132 Gallon 125 PSI Screw Compressor w/Dryer, 52 CFM at MAX/125 PSI, 208-230/460V 3Ph, 68 dBA
BR15 TMD-3	15 HP 132 Gallon 150 PSI Screw Compressor w/Dryer, 47 CFM at MAX/150 PSI, 208-230/460V 3Ph, 68 dBA
BRM20 TM-3	20 HP 132 Gallon 125 PSI Screw Compressor, 62.7 CFM at MAX/125 PSI, 208-230/460V 3Ph, 63 dBA
BRM20 TM-3	20 HP 132 Gallon 150 PSI Screw Compressor, 59.9 CFM at MAX/150 PSI, 208-230/460V 3Ph, 63 dBA
BRM20 TMD-3	20 HP 132 Gallon 125 PSI Screw Compressor w/Dryer, 62.7 CFM at MAX/125 PSI, 208-230/460V 3Ph, 63 dBA
BRM20 TMD-3	20 HP 132 Gallon 150 PSI Screw Compressor w/Dryer, 59.9 CFM at MAX/150 PSI, 208-230/460V 3Ph, 63 dBA

Accessories
2200902300	Rotary Screw 2000 Hour Kit 3-7.5 HP
2200902301	Rotary Screw 4000 Hour Kit 3-7.5 HP
2200902399	Rotary Screw 8000 Hour Kit 5-7.5 HP (Starting with CAI464231)
2200902302	Rotary Screw 8000 Hour Kit 3/5/7.5 HP
2200902356	Rotary Screw 2000 Hour Kit 10-20 HP
2200902354	Rotary Screw 4000 Hour Kit 10-20 HP
2200902355	Rotary Screw 8000 Hour Kit 10-20 HP
6215714000	Rotair Oil 5 Liter 2000 Hour
6215714100	Rotair Oil 20 Liter 2000 Hour
1630144405	Rotair Plus Oil 5 Liter 4000 Hour
1630144420	Rotair Plus Oil 20 Liter 4000 Hour
6215714800	Rotair Extra Oil 5 Liter 8000 Hour
1630203200	Rotair Extra Oil 20 Liter 8000 Hour
4116091336	Single-Stage Pump (1-2 HP)
4116091337	Single-Stage Pump (1.5-3.5 HP)
1609402495	Two Stage Pump (3-5 HP)
1312101035	Two-Stage Pump (3-5 HP)
1312101036	Two-Stage Pump (5-7.5 HP)
4116090137	Two-Stage Pump ( 5 HP)
1312100706	Two-Stage Pump ( 5-7.5 HP) w/o Aftercooler
1312202800	Two-Stage Pump ( 5-7.5 HP) w/Aftercooler
1312202700	Two-Stage Pump ( 7.5-10 HP)
8092320533	10 HP Kit to Increase Unload Pressure to 175 PSI
8092320574	15 HP Kit to Increase Unload Pressure to 175 PSI
8092320616	20 HP Kit to Increase Unload Pressure to 175 PSI


All 3~ Rotary compressors are standard with tri-voltage motors that can be connected for 208v, 230v or 460v.
Fuses and terminal bridges are supplied with each 3 phase compressor to make the voltage conversion.
Conversion instructions are included in the Instruction Manual.
Single-phase 230v units w/ dryer require a 230v single-phase electrical supply for the compressor and a separate 115v single-phase electrical supply for the dryer.
Integrated dryer, 3phase units require a 3 phase electrical supply for the compressor and a separate 1 phase, 115v electrical supply for the dryer.
Single phase compressor is not suitable for 208V operation
Freight is prepaid in lower 48 (add $110 if liftgate or residential delivery needed

Click on the desired highlighted part number below and you will be re-directed to the bottom portion of this page with the available pricing.

All Belaire Compressors on this page has Free Freight to any Commercial Address or Freight Terminal within the Lower 48 States. ***Add $110.00 for Liftgate Service and / or Residential Deliveries

Model	HP	TANK (gal.)	DRYER	PSI	ELECTRICALS
BR5503	5	60	-	150	208-230/460V, 60Hz, 3 Ph
BR5503D	5	60	Included	150	208-230/460V, 60Hz, 3 Ph
BR5501	5	60	-	150	230V, 60Hz, 1 Ph
BR5501D	5	60	Included	150	230V, 60Hz, 1 Ph
BR75503	7.5	60	-	150	208-230/460V, 60Hz, 3 Ph
BR75503D	7.5	60	Included	150	208-230/460V, 60Hz, 3 Ph
BR75501	7.5	60	-	150	230V, 60Hz, 1 Ph
BR75501D	7.5	60	Included	150	230V, 60Hz, 1 Ph
BR10253	10	120	-	125	208-230/460V, 60Hz, 3 Ph
BR10503	10	120	-	150	208-230/460V, 60Hz, 3 Ph
BR10253D	10	120	Included	125	208-230/460V, 60Hz, 3 Ph
BR10503D	10	120	Included	150	208-230/460V, 60Hz, 3 Ph
BR15253	15	120	-	125	208-230/460V, 60Hz, 3 Ph
BR15503	15	120	-	150	208-230/460V, 60Hz, 3 Ph
BR15253D	15	120	Included	125	208-230/460V, 60Hz, 3 Ph
BR15503D	15	120	Included	150	208-230/460V, 60Hz, 3 Ph
BR20253D	20	120	Included	125	208-230/460V, 60Hz, 3 Ph
20-30HP Standard Pressure Setting is 125 psi, Voltage is 208-230V/3. Optional Pressure Settings: 100, 150 & 175 psi. 460V Available--Specify at time of order

ES3000 Controller

With its simple design and easy-to-read indicator lights, the ES3000 is one of the finest controllers for light and medium-duty rotary screw compressors. Whether the compressor is remotely monitored or being used to control up to five (5) additional compressors, the ES3000 will provide real-time feedback on maintenance times, operating conditions and compressor performance.

FEATURES:

Bright LEDs display running hours, pressure, flow and temperatures
Red-Yellow-Green lights indicate compressor condition
- Blinking = condition in progress
- Solid = condition has occured
Maintenance indicators automatically illuminate
Remote monitoring capability
Signals any eventual malfunction in progress
Stops the compressor due to alarm in progress
Networking capability for 6 compressors
- At least 3 must be equipped with ES3000
- Another 3 can be other microprocessor-based controllers
