CST Magna-Trak 200 Series Locator

200 and 202 series locactor

Magna-Trak 200 Series Magnetic Locator
(Best Seller)

Magna-Trak 202 Series Magnetic Locator
(Best Seller)

Magna-Trak
100 Series Magnetic Locator
Magna-Trak
101 Series Magnetic Locator

Magna-Trak
102 Series

Magnetic Locator

Note: The Locators with the "HARD CASES" are no longer available - Soft Cases only

All the features needed in a magnetic locator, ergonomically designed for complete one-handed operation; so your other hand is free to use other equipment. Locate ferrous objects underground, underwater, or in snow; PK Nails, Iron Pipes, Valve Covers, Masonry Nails, Manhole Covers, Cast Iron Water and Gas Lines, Surveyors Markers and More.

Object Depth. Depth Reception various on ground surface and mass of object.

  • Small Masonry Nail: up to 6 inches
  • Large Masonry Nail: up to 8 inches
  • Valve Box: up to 8 feet
  • Manhole Cover: up to 8 feet
  • 5" Iron Pipe: up to 8 feet

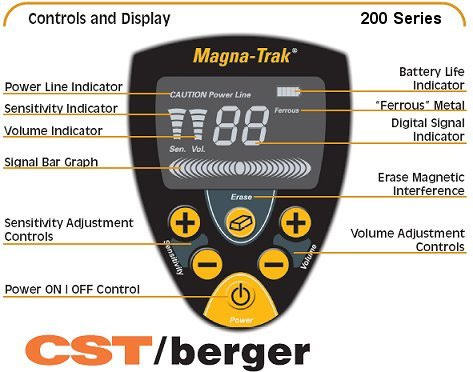

Large Iron Tank: up to 15 feetLarge LCD Display

  • Digital readout and bar graph allow you to locate visually
  • Used with audio tone allows for pinpoint accuracy, even in congested search areas
  • Segmented battery level indicator means no power loss surprises
  • Indicator cautions when detecting a power line

Erase Function (MT202 Only)

  • Lets you block out interference from a magnetic disturbance (such as a nearby fence)

Membrane Switch

  • Lets you adjust volume and sensitivity with the same hand that holds the locator
  • No mechanical controls, membrane is sealed from dust and moisture

Magnetic Speaker

  • Enhanced to produce a richer tone for easier locating.

Engineered Body

  • Lightweight (only 3 lbs.)
  • Water-resistant housing permits use in the rain
  • Ergonomic handle with textured grip

7 Year Manufacturers Warranty.

Product Specifications:

  • Six "AA" 11/2 Volt Batteries, 100 hours of intermitten operation (with alkaline batteries), Approximately 2 lbs with batteries, 4' - 2 3/4" Length.
s-h alt

Magna-Trak 100 Magnetic Locator

Improved water resistance and mechanical life are provided by the new direct contact switching with the PC board. Enjoy enhanced functioning, reliability, and maintenance for all CST locators.

Locate ferrous objects under ground, under snow, or in water! With their advanced technology, low price, and five year warranty, the Magna-Trak Series gives you the best value in the industry.

Magna-Trak magnetic locators take technology one step into the future by including a multitude of convenience features you won't find anywhere else; features like an LCD visual display and/or audio tone, a lightweight, easy-grip design, and water resistant cases.

Magna-Trak locators also feature easy battery access and outstanding battery life, and they're backed by a 5-year warranty! Plus, a patented electronic balancing procedure allows balancing to be done quickly and efficiently and all of our manufacturing is done right here at CST to ensure quality control.

The latest technology doesn't have to cost a lot. Get the best performance and the best value with a Magna-Trak Magnetic Locator.

The Magna-Trak 100's LCD indicator offers a digital bar graph display, in addition to a standard audio tone, to precisely identify the target object, especially in noisy, congested areas. An additional feature is a visual reminder when batteries are low.

The lightweight Magna-Trak 100 features simple, waterproof, push-button membrane pad operation with an ergonomic design. The Magna-Trak 100 offers easy battery access and outstanding battery life, and is backed by a five-year warranty.





Magna-Trak 101 Magnetic Locator

Improved water resistance and mechanical life are provided by our new direct contact switching with the PC board. Enjoy enhanced functioning, reliability, and maintenance for all CST locators.

Locate ferrous objects under ground, under snow, or in water! With their advanced technology, low price, and five year warranty, the Magna-Trak® Series gives you the best value in the industry.

Magna-Trak magnetic locators take technology one step into the future by including a multitude of convenience features you won't find anywhere else; features like an LCD visual display and/or audio tone, a lightweight, easy-grip design, and water resistant cases.

Magna-Trak locators also feature easy battery access and outstanding battery life, and they're backed by a 5-year warranty! Plus, a patented electronic balancing procedure allows balancing to be done quickly and efficiently and all of our manufacturing is done right here at CST to ensure quality control.

The latest technology doesn't have to cost a lot. Get the best performance and the best value with a Magna-Trak locator.

The Value-Priced Standard! The low-cost Magna-Trak 101 magnetic locator provides excellent field performance at a budget price! It features quick-action, control knob operation to adjust sensitivity and volume.

The Magna-Trak 101 magnetic locator is a streamlined version of the Magna-Trak 100. The Magna-Trak 101 features all the same components as the 100, minus the LCD meter display and membrane switch. The operation of this locator is dependent upon only two rotary control knobs: sensitivity and volume.





Magna-Trak 102 Magnetic Locator

Improved water resistance and mechanical life are provided by our new direct contact switching with the PC board. Enjoy enhanced functioning, reliability, and maintenance for all CST locators.

Locate ferrous objects under ground, under snow, or in water! With their advanced technology, low price, and five year warranty, the Magna-Trak Series gives you the best value in the industry.

Magna-Trak magnetic locators take technology one step into the future by including a multitude of convenience features you won't find anywhere else; features like an LCD visual display and/or audio tone, a lightweight, easy-grip design, and water resistant cases.

Magna-Trak locators also feature easy battery access and outstanding battery life, and they're backed by a 5-year warranty! Plus, a patented electronic balancing procedure allows balancing to be done quickly and efficiently and all of our manufacturing is done right here at CST to ensure quality control.

The latest technology doesn't have to cost a lot. Get the best performance and the best value with a Magna-Trak locator.

Feature-Packed for Versatility! The Magna-Trak 102 magnetic locator provides the same basic performance features as the Magna-Trak 100. However, with the addition of our push-button "erase" feature, greater flexibility is achieved and performance is enhanced.

When a magnetic disturbance, such as a metal fence, is confronted, simply press the "erase" button and the disturbance is erased for continued searching without interference. No need to reduce the sensitivity; the Magna-Trak 102 always returns to perfect magnetic balance when the "erase" button is pressed.

The Magna-Trak 102 locator also includes a power line indicator feature. The LCD panel visually indicates that a power line is present. (CAUTION: This feature is an aid only and is not intended for locating buried power lines.)



CST Berger Magna-Trak Magnet Locators
CST Berger 200 and 202 Series Locator
Note: The Locators with the "HARD CASES" are no longer available - Soft Cases only
19-200SC 19-200SC  MT200 LOCATOR (SOFT CASE)
19-202SC 19-202SC  MT202 LOCATOR W/ERASE FUNC (SOFT CASE)  ** Best Seller
CST Berger 100, 101 and 102 Serier Magna-Trak Locators
19-550 19-550  MT100 LOCATOR (SOFT CASE)
19-555 19-555  MT101 (SOFT CASE)
19-557 19-557  MT102 W/ERASE FUNC (SOFT CASE)



s-h alt

19-200SC
MT200 LOCATOR W/SOFT CASE
Mfg. item #: 19-200SC
BER19-200SC
FREE SHIPPING ANYWHERE in lower 48 states21
$570.57

389   2
19-202SC
*** MT202 LOCATOR W/SOFT CASE
LIMITED TIME OFFER - FREE 32-400 MEASURING WHEEL WITH THE PURCHASE OF A 19-202SC LOCATOR
Mfg. item #: 19-202SC
BER19-202SC
FREE SHIPPING ANYWHERE in lower 48 states21
$599.95

389   1
19-550
MT100 LOCATOR W/SOFT CASE
Mfg. item #: 19-550
BER19-550
FREE SHIPPING ANYWHERE in lower 48 states21
$530.67

389
19-555
MT101 LOCATOR W/SOFT CASE
Mfg. item #: 19-555
BER19-555
FREE SHIPPING ANYWHERE in lower 48 states21
$477.47

389
19-557
MT102 LOCATOR W/SOFT CASE
Mfg. item #: 19-557
BER19-557
FREE SHIPPING ANYWHERE in lower 48 states21
$597.17

389
