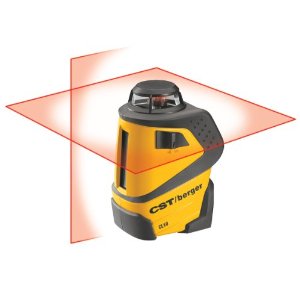

CST Berger CL10 Self Leveling 360 degree Cross Line Laser





CST Berger CL10 Self Leveling 360 degree Cross Line Laser



This NEW Cst Berger CL10 Laser Level hits a low price point with all the features and quality that professionals want.  Great for use while installing cabinets, installing door frames and also has many uses for drywall installers.  This Cross Line Laser Level can also be used for tiling applications and hanging and alignment for pictures, mirrors and wall decorations.  Another use is when you need to use the laser in a angled applications like for use in intalling railing for staires.  There are to many uses to list for this CST CL10 while still being easy on your wallet.

CST CL10 Laser Level Highlights :

  • Comfortable Soft Grip Handle area that allows for non-slip grip and ergonomic handeling.
  • Standard 1/4-20 tread will fit many poles and tripod accessories
  • 360-Degree Horizontal Laser - Provides full room leveling coverage
  • 120-dgree Vertical Laser - Projects along floor, up the wall and across the ceiling for perfect alignment
  • 3-Mode Projection - Choose between horizontal, vertical or cross line modes
  • Lock Mode - Allows user to manually control laser for angled installation (ie aligning staircase railings)
  • Convenient Multi-Mount - Increases job-site versatility with height adjustment, wall mount function and 1/4-20 tripod thread

Highlights

  • 360-degree horizontal line plus 120-degree vertical line for many leveling and alignment applications
  • Three laser line modes (cross line, vertical and horizontal) project bright lines together or independently
  • Manual mode lock projects lines at any angle
  • Pendulum leveling system quickly self-levels and indicates out-of-level condition

Other features

  • Ergonomic soft-grip area for sure grip and comfort
  • Convenient 1/4-20 tripod thread mount for more versatility

Applications

  • Tiling and wall decorations
  • Aligning walls, partitions and cabinets
  • Aligning any angled installation
CL10 CL10 CL10

Tecnical data

  • Laser diode: Class 2 630-670nm, < 1mw
  • Operating temperature: 41 - 104
  • Storage temperature: -4 - 158
  • Laser class: 2
  • Working range with target plate: 65.0
  • Levelling accuracy: in. 0,125
  • Self-levelling range: up to +/- 4 degrees
  • Power supply: 4 x AA batteries
  • Operating duration, max.: 12.0
  • Tripod connection: 1/4-20
  • Tripod thread: 1/4-20

Scope of delivery

  • Laser; Multi-Mount; Soft Carrying Case; Batteries

CST Berger CL10 Specifications :

Laser Diode Class 2  -  630-670nm  -  < 1mw
Horizontal Laser Range - Diameter Up to 65 feet
Vertical Laser Range Up to 30 feet
Operating Temerature 41 to 104 degrees Farenheit
Storage Temperature -4 to 158 degrees Farenheit
Laser Class 2
Working Range with Red Target 213 feet
Leveling Accuracy Up to 1/8 inch at 20 feet
Self Leveling Range +/- 4 degrees
Power Supply 4 x AA batteries
Operating duration 12.0 hours
Tripod Connection 1/4-20 thread
Tripod thread 1/4-20 thread
Dimensions inches 4.9 inch x 3.4 inches x 2.8 inches

CST CL10 Laser Level Kit includes :

  • CL10 Laser Level, Multi- Mount Base, Soft Carrying Case, Batteries

CST Berger CL10 Self Leveling 360 degree Cross Line Laser

CL10 CL10 360 DEGREE HZ & 120 DEGREE VT CROSS LINE LASER

CST/berger is a brand that belongs to the Robert Bosch Tool Corporation, and utilizes the Bosch Service Center network throughout North America.

Effective January 1, 2011

Limited Warranty Program

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all CST/berger laser tools and optical instruments will be free from defects in material or workmanship for a period of one (1) year from date of purchase. Bosch will extend warranty coverage to two (2) years when you register your product within eight (8) weeks after date of purchase. Product registration card must be complete and mailed to Bosch (postmarked within eight weeks after date of purchase), or you may register on-line at www.cstberger.us/na/productregistration. If you choose not to register your product, a one (1) year limited warranty will apply to your product.

30 Day Money Back Refund or Replacement

If you are not completely satisfied with the performance of your laser or optical instrument, for any reason, you can return it to your CST/berger dealer within 30 days of the date of purchase for a full refund or replacement. To obtain this 30-Day Refund or Replacement, your return must be accompanied by the original receipt for purchase of the laser or optical instrument product. A maximum of 2 returns per customer will be permitted.

SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Center. To make a claim under this Limited Warranty, you must return the complete laser, optical instrument or CST/berger product, transportation prepaid, to any BOSCH Factory Service Center or Authorized Service Center. Please include a dated proof of purchase with your tool. For locations of nearby service centers, please use our on-line service locator or call 1-877-267-2499.

THIS WARRANTY PROGRAM DOES NOT APPLY TO POLES AND PRISMS. Robert Bosch Tool Corporation ("Seller") warrants these items for a period of one (1) year from date of purchase.

THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS TRIPODS, RODS, HAND LEVELS, FIELD SUPPLIES, TAPES, MOUNTING DEVICES AND OTHER RELATED ITEMS. THESE ITEMS RECEIVE A 90 DAY LIMITED WARRANTY.

NOTE: CST/berger Magnetic Locators receive a five (5) year limited warranty.

To make a claim under this Limited Warranty, you must return the complete product, transportation prepaid. For details to make a claim under this Limited Warranty please visit www.cstberger.com or call 1-877-267-2499.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., AND SOME CANADIAN PROVINCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S., AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., OR PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL BOSCH DEALER OR IMPORTER.

ONE YEAR SERVICE PROTECTION PLAN

Within one year of date of purchase, we will perform free of charge electrical, safety and performance checks, lubrication and replacement of parts worn under normal use. Performed at factory service centers only, transportation and freight are the responsibility of the customer.

For warranty information on tools purchased prior to January 1, 2011 call 1-800-435-1859.

CST/berger is a registered trademark of Robert Bosch Tool Corporation.



CL10
CL10 360 DEGREE HZ & 120 DEGREE VT <
THIS CST BERGER ITEM HAS BEEN DISCONTINUED AND THERE IS NO REPLACEMENT
Mfg. item #: CL10
BERCL10
