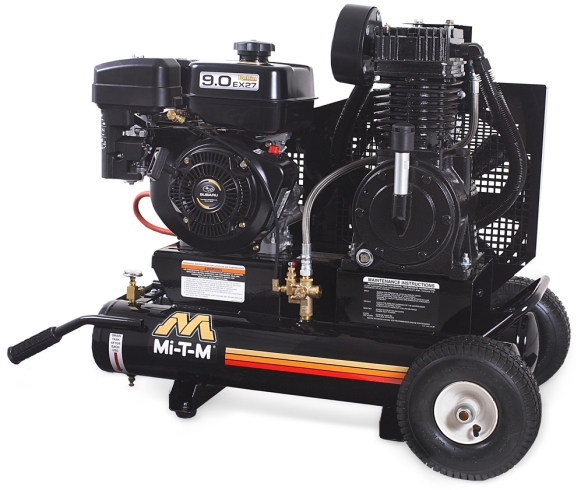

Mi-T-M 8 Gal Gasoline Two Stage Air Comp
View Product Sheet
-
Compressor Pump: Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure, Stainless-steel braided discharge hose,
Splash lubricated cast iron crankcase to extend the hours of performance, Cast iron head and cylinder for extended durability, Large canister intake filter
-
Engine: Industrial Subaru OHC engine, Pneumatic idle control to conserve fuel, Engine oil drain
-
Frame: Powder coated 8-gallon twin tank receivers, 3/16-inch base plate to reduce vibration, 14-gauge powder coated two-piece belt guard with 1/4-turn release for
quick access to belts, Convenient lifting handles, Two pneumatic tires with tubes and steel hubs
-
Components: Regulator and two gauges for tank and outlet pressure, Manual drain valves for proper maintenance, 16.5-inch flywheel for extra cooling and longer life,
Quality pilot valve unloader, Belt tightening system pulls engine straight to ensure constant belt alignment
Specifications
|
Model
|
AM2-PR09-08M
|
CFM @ 100 PSI
|
17.2
|
Displacement/Engine
|
265cc Subaru OHC
|
Net Weight
|
260 lbs.
|
Shipping Weight
|
330 lbs.
|
Length
|
44 in.
|
Width
|
26 in.
|
Height
|
31 in.
|
WHEELBARROW-17.2 CFM @ 175 PSI 9.0
Mfg. item #: AM2-PR09-08M
MTMAM2-PR09-08M
Call for freight quote on this item or we will confirm freight charges before shipping.1
