Jet JWDS Drum Sanders

CALL 1-800-458-3687 FOR FREE FREIGHT

Some conditions may apply but never surprise handling charges when ordering

Open Stand


JWDS-1020 Benchtop Drum Sander	JWDS-1632 Drum Sander With Stand	JWDS-1632OSC Oscillating Drum Sander With Stand	JWDS-1836 Drum Sander With Stand


JWDS-2244 Drum Sander With Stand	JWDS-2550 Drum Sander With Open Stand	JWDS-2244OSC Oscillating Drum Sander With Closed Stand	JWDS-2550 Drum Sander With Closed Stand

Click image to enlarge

models
10-20 Sander
16-32 sander
JWDS-1632OSC
1836 Sander
2244 sander
2550 sanders
Warranty

Models and Accessories
JWDS-1020 & JWDS-1632
723510	JWDS-1020 Benchtop Drum Sander
723520K	JWDS-1632 16-32 Drum Sander Kit
723525	JWDS-1632OSC Oscillating Drum Sander With Stand
723521	Infeed / Outfeed tables for JWDS-1632
98-0130	Casters for JWDS-1632

60-6036	Ready-To-Wrap Abrasives, 36 Grit, 4-Wraps in Box (fits 16-32)
60-6060	Ready-To-Wrap Abrasives, 60 Grit, 4-Wraps in Box (fits 16-32)
60-6080	Ready-To-Wrap Abrasives, 80 Grit, 4-Wraps in Box (fits 16-32)
60-6100	Ready-To-Wrap Abrasives, 100 Grit, 4-Wraps in Box (fits 16-32)
60-6120	Ready-To-Wrap Abrasives, 120 Grit, 4-Wraps in Box (fits 16-32)
60-6150	Ready-To-Wrap Abrasives, 150 Grit, 4-Wraps in Box (fits 16-32)
60-6180	Ready-To-Wrap Abrasives, 180 Grit, 4-Wraps in Box (fits 16-32)
60-6220	Ready-To-Wrap Abrasives, 220 Grit, 4-Wraps in Box (fits 16-32)

JWDS-1836
723530K	JWDS-1836 18-36 Drum Sander Kit
723521	Infeed / Outfeed tables for JWDS-1836
98-0130	Driving swivel wheels (Set of 4 pcs.), Braked

60-18036	Ready-To-Wrap 18 inch - 36G (4 wraps in a box)
60-18060	Ready-To-Wrap 18 inch - 60G (4 wraps in a box)
60-18080	Ready-To-Wrap 18 inch - 80G (4 wraps in a box)
60-18100	Ready-To-Wrap 18 inch - 100G (4 wraps in a box)
60-18120	Ready-To-Wrap 18 inch - 120G (4 wraps in a box)
60-18150	Ready-To-Wrap 18 inch - 150G (4 wraps in a box)
60-18180	Ready-To-Wrap 18 inch - 180G (4 wraps in a box)
60-18220	Ready-To-Wrap 18 inch - 220G (4 wraps in a box)

JWDS-2244
723540OSK	JWDS-2244 DRUM SANDER W/OPEN STAND
723544OSCK	JWDS-2244OSC Oscillating Drum Sander With Closed Stand
723541	Folding Infeed/Outfeed Tables for JET JWDS-2244
723551	Folding Infeed/Outfeed Tables for JET JWDS-2244OSC / JWDS-2550
723552	DRO, Digital Readout for JWDS-2244 and JWDS-2550
723553	Depth Stop Assembly for JWDS-2244 and JWDS-2550
98-0130	Driving swivel wheels (Set of 4 pcs.), Braked
60-0322-P	Powerfeed Belt 22 inch- 120G

60-2036	22-44, 36 Grit, 3-Wraps in Box
60-2060	22-44, 60 Grit, 3-Wraps in Box
60-2080	22-44, 80 Grit, 3-Wraps in Box
60-2100	22-44, 100 Grit, 3-Wraps in Box
60-2120	22-44, 120 Grit, 3-Wraps in Box
60-2150	22-44, 150 Grit, 3-Wraps in Box
60-2180	22-44, 180 Grit, 3-Wraps in Box
60-9036	Premium Ready-To-Cut, 36 Grit
60-9060	Premium Ready-To-Cut, 60 Grit
60-9080	Premium Ready-To-Cut, 80 Grit
60-9100	Premium Ready-To-Cut, 100 Grit
60-9120	Premium Ready-To-Cut, 120 Grit
60-9150	Premium Ready-To-Cut, 150 Grit
60-9180	Premium Ready-To-Cut, 180 Grit
60-9220	Premium Ready-To-Cut, 220 Grit

JWDS-2550
723550OSK	JWDS-2550 DRUM SANDER W/OPEN STAND
723544CSK	JWDS-2550 DRUM SANDER W/CLOSED STAND
723551	Folding Infeed/Outfeed Tables for JET JWDS-2550
723552	DRO, Digital Readout for JWDS-2244 and JWDS-2550
723553	Depth Stop Assembly for JWDS-2244 and JWDS-2550
98-0130	Driving swivel wheels (Set of 4 pcs.), Braked

60-25036	JWDS-2550, 36 Grit, 3-Wraps in Box
60-25060	JWDS-2550, 60 Grit, 3-Wraps in Box
60-25080	JWDS-2550, 80 Grit, 3-Wraps in Box
60-25100	JWDS-2550, 100 Grit, 3-Wraps in Box
60-25120	JWDS-2550, 120 Grit, 3-Wraps in Box
60-25150	JWDS-2550, 150 Grit, 3-Wraps in Box
60-25180	JWDS-2550, 180 Grit, 3-Wraps in Box
60-25220	JWDS-2550, 220 Grit, 3-Wraps in Box

The compact JWDS-1020 benchtop sander from JET packs a powerful 1HP motor that will sand boards up to 3 inch thick and 20 inch wide. The innovative patented dust hood ensures dust is funneled to the 4 inch dust port that easily connects to a Dust Collector. Adjusting the table back to parallel is convenient with just the turn of a dial. The self-cooling extruded aluminum sanding drum protects the sanding surface from heat damage, preventing waste.

JWDS-1020 Benchtop Drum Sander

Heavy duty die-cast aluminum and steel body provides rigidity for consistent quality
Patented dust hood incorporates an integrated channel that directs dust to a 4 inch collection port.
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Infinitely variable-speed control allows the user to choose the optimal feed rate
Open ended design allows for up to 20 inch of sanding capacity with 2 passes

Extruded aluminum drum is designed to dissipate heat and protect wood from heat-damage
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
Toolless abrasive take-up fasteners make changing abrasives quick and easy
Precision-flattened reinforced steel conveyor bed supports the boards passing under the sanding drum
Control system with integrated circuit breaker protects motor from over heating

Detailed Specifications
Style (Type)	Benchtop
Drum Length (In.)	10
Drum Speed (RPM)	1,725
Drum Diameter (In.)	5
Conveyor Motor	Totally Enclosed DC
Conveyor Speed (FPM)	0 - 10
Maximum Board Thickness (In.)	3
Maximum Board Width (In.)	20
Minimum Board Length (In.)	2-1/4
Minimum Board Thickness (In.)	1/32
Dust Collection Minimum CFM Required (CFM)	550
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1
Motor Phase (PH)	1
Motor Voltage (V)	115 (prewired)

Introducing the newly redesigned JET JWDS-1632 Drum Sander from JET. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JWDS-1632 Drum Sander delivers everything you need for an effortless finish.

Jet 16-32 Drum Sander with Stand has a 5 Year warranty

Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Toolless abrasive take-up clips make changing abrasives quick and easy
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
Separate feed and drum motors provide independent control, optimizing the performance of the sander
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Integrated on/off switch and variable speed control knob are conveniently located
Stand features a 20 x 37 inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life

Detailed Specifications
Style (Type)	Open Stand
Drum Length (In.)	16
Drum Speed (RPM)	1,720
Drum Diameter (In.)	5
Drum Bearing Diameter (In.)	1
Conveyor Motor	43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM)	0 - 10
Maximum Board Thickness (In.)	3
Maximum Board Width (In.)	32 (two passes)
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-1/2
Motor Phase (PH)	1
Motor Voltage (V)	115 only
Motor Amps	14
Recommended Circuit Size (Amps.)	20
Weight	182.0000

The JET 1632 Oscillating Drum Sander produces an unbeatable sanding finish, with its exclusive variable speed oscillating drum moving from left to rightâminimizing visual scratch patterns in workpieces and increasing the lifespan of abrasive paper. Its patent-pending hood design extracts 97% of the dust that the sander creates. Additional features such as Sandsmartâ¢ feed control technology, tool-less parallelism adjustment, and Heavy Duty Steel Stand make this popular sander the most innovative in its class.

Features:

Self-Cooling Drum
Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 in. collection port
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and has 3/4 inch of oscillating stroke
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Toolless abrasive take-up clips make changing abrasives quick and easy
Separate feed and drum motors provide independent control, optimizing the performance of the sander
Dust hose hanger for added ease of use

Specifications
Stock Number	JT9-723525
Conveyor Speed (FPM)	0 to 10
Drum Bearing Diameter (In.)	1
Drum Diameter (In.)	5
Drum Length (In.)	16
Drum Speed (RPM)	1725
Dust Port Outside Diameter (In.)	4
Maximum Board Thickness (In.)	3
Maximum Board Width (In.)	16
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Model Number	JWDS-1632OSC
Motor Amps	14
Motor Power (HP)	1-1/2
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20
Style (Type)	Drum Sander
Warranty	5 Year
Weight (Lbs.)	191
Gross Weight	227.0
Net weight	227.0

Introducing the newly designed 1836 Drum Sander from JET. The 1.75 horsepower motor delivers plenty of power to handle just about any sanding task. The innovative tool-less parallelism system keeps adjustments simple. The worktable is easily positioned by a turn of the parallelism dial. The variable-speed rate permits you to choose the optimal feed rate for a full range of projects, while the Sandsmart feature continuously monitors the load on the drum motor to prevent an overload situation. The mirrored design of the dust hood optimizes dust collection preventing chips and dust from getting between your work-piece and the finish. The JET 1836 Drum Sander delivers everything you need for an effortless finish.

18-36 Drum Sander with Stand. shown with optional infeed outfeed tables

1836 Drum Sander with Stand has a 5 Year warranty

Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
The relative depth scale on the handwheel allows the user to reset and measure the depth for every project
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Toolless abrasive take-up clips make changing abrasives quick and easy
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
Separate feed and drum motors provide independent control, optimizing the performance of the sander
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Integrated on/off switch and variable speed control knob are conveniently located
Stand features a 20 x 37 inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life

Detailed Specifications
Style (Type)	Open Stand
Drum Length (In.)	18
Number of Sanding Drums	1
Drum Speed (RPM)	1,720
Drum Diameter (In.)	5
Drum Bearing Diameter (In.)	1 inch
Conveyor Motor	43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM)	0 - 10
Maximum Board Thickness (In.)	3
Maximum Board Width (In.)	36 (two passes)
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Dust Collection Minimum CFM Required (CFM)	500
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-3/4
Motor Phase (PH)	1
Motor Voltage (V)	115 only
Motor Amps	15
Recommended Circuit Size (Amps.)	20
Height	25.0000
Length	39.0000
Weight	190.0000
Width	22.5000

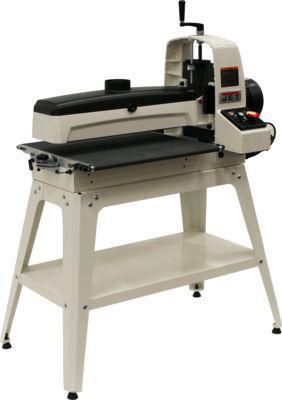

JWDS-2244 Drum Sander With Stand
has a 5 Year warranty

Sandsmart control continuously monitors the load on the drum motor and
automatically regulates the speed of the conveyor motor to maintain the highest feed
rate without overload
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the
bed - no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat
position
Dust hood includes an integrated channel that mirrors the shape of the drum and
directs chips and dust to the 4 inch collection port
Precision-machined and dynamically balanced extruded aluminum drum is designed
to dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of
pushing
One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
The relative depth scale on the handwheel allows the user to reset and measure the
depth for every project
Infinitely variable speed control of up to 10 feet per minute allows the user to choose
the optimal feed rate
Toolless abrasive take-up clips make changing abrasives quick and easy
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply
downward pressure to the workpiece
Separate feed and drum motors provide independent control, optimizing the
performance of the sander
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Integrated on/off switch and variable speed control knob are conveniently located
Stand features a 23-1/4 x 41-3/4 inch footprint to increase stability and has a storage
shelf and pre-drilled holes for casters
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life
Dust hose hanger for added ease of use
CSA c/us

Specifications
Style (Type)	Floorstanding Model
Drum Length (In.)	22
Drum Speed (RPM)	1,720
Drum Diameter (In.)	5
Conveyor Motor	43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM)	0 - 10
Maximum Board Thickness (In.)	4
Maximum Board Width (In.)	44 (two passes)
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-3/4
Motor Phase (PH)	1
Motor Voltage (V)	115
Motor Amps	15
Height	30.6900
Length	44.3100
Weight	242.0000
Width	27.0000

Introducing the JET re-designed 2550 drum sanders. Engineered to deliver a superior finish while providing the operator with a healthier sanding experience, the 2550 are the latest additions to our drum sanding line.

Here are some of the features of the New 2550 Drum Sander:

Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward pressure to the workpiece
Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
Dust hood includes an integrated channel that mirrors the shape of the drum and directs chips and dust to the 4 inch collection port
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed - no tools required
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Separate feed and drum motors provide independent control, optimizing the performance of the sander
One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the optimal feed rate
Open Stand features a 23-1/4 x 41-3/4 inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters
Full range of Sand Paper available in 36, 60, 80, 100, 120, 150, 180 and 220 grit.
Swing away depth stop gauge for repetitive depth sanding
Choice of a Closed Mobile Cabinet featuring a heavy duty 45 x 24 inch footprint to increase stability and has a door to keep items stored securely, or an Open Stand featuring a 42 x 24 inch footprint to increase stability and has a storage shelf and pre-drilled holes for casters

JWDS-2550 Drum Sander With Open Stand has a 5 Year warranty

Sandsmart control continuously monitors the load on the drum motor and automatically
regulates the speed of the conveyor motor to maintain the highest feed rate without overload
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed -
no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Dust hood includes an integrated channel that mirrors the shape of the drum and directs
chips and dust to the 4 inch collection port
Precision-machined and dynamically balanced extruded aluminum drum is designed to
dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
The relative depth scale on the handwheel allows the user to reset and measure the
depth for every project
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the
optimal feed rate
Toolless abrasive take-up clips make changing abrasives quick and easy
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward
pressure to the workpiece
Separate feed and drum motors provide independent control, optimizing the performance
of the sander
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Integrated on/off switch and variable speed control knob are conveniently located
Stand features a 24 x 50 inch footprint to increase stability and has a storage shelf and
pre-drilled holes for casters
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life
Dust hose hanger for added ease of use
CSA c/us

Specifications
Style (Type)	Floorstanding Model
Drum Length (In.)	25
Drum Speed (RPM)	1,720
Drum Diameter (In.)	5
Conveyor Motor	43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM)	0 - 10
Maximum Board Thickness (In.)	4
Maximum Board Width (In.)	50 (two passes)
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-3/4
Motor Phase (PH)	1
Motor Voltage (V)	115
Motor Amps	15
Height	30.6900
Length	51.8100
Weight	260.0000
Width	27.0000

JWDS-2550 Drum Sander With Closed Stand has a 5 Year warranty

Sandsmart control continuously monitors the load on the drum motor and automatically
regulates the speed of the conveyor motor to maintain the highest feed rate without
overload
Conveyor bed parallelism is easily adjusted by turning the dial on the outside of the bed -
no tools required
Parallelism adjust dial features a stop to quickly return the conveyor bed to a flat position
Dust hood includes an integrated channel that mirrors the shape of the drum and directs
chips and dust to the 4 inch collection port
Precision-machined and dynamically balanced extruded aluminum drum is designed to
dissipate heat and protect the work surface from heat-damage
Precision-flattened reinforced steel conveyor bed
Redesigned conveyor system pulls the workpiece through the sander instead of pushing
One rotation of the top-position handwheel adjusts the drum height by 1/16 inch
The relative depth scale on the handwheel allows the user to reset and measure the
depth for every project
Infinitely variable speed control of up to 10 feet per minute allows the user to choose the
optimal feed rate
Toolless abrasive take-up clips make changing abrasives quick and easy
Snipe is virtually eliminated thanks to the adjustable tension rollers that apply downward
pressure to the workpiece
Separate feed and drum motors provide independent control, optimizing the performance
of the sander
Conveyor belt TRACKERS reduce the need for manual belt adjustments
Integrated on/off switch and variable speed control knob are conveniently located
Closed Stand features a 17-1/2 x 38-1/2 inch footprint to increase stability and has a solid
door for access to closed storage and has integrated wheels for mobility
Drum is easily removable
Drum utilizes sealed and permanently lubricated ball bearings for longer life
Dust hose hanger for added ease of use
CSA c/us

Specifications
Style (Type)	Floorstanding Model
Drum Length (In.)	25
Drum Speed (RPM)	1,720
Drum Diameter (In.)	5
Conveyor Motor	43 in.-lbs. torque, direct drive, dc
Conveyor Speed (FPM)	0 - 10
Maximum Board Thickness (In.)	4
Maximum Board Width (In.)	50 (two passes)
Minimum Board Length (In.)	2-3/8
Minimum Board Thickness (In.)	1/32
Dust Port Outside Diameter (In.)	4
Motor Power (HP)	1-3/4
Motor Phase (PH)	1
Motor Voltage (V)	115
Motor Amps	15
Height	54.3100
Length	51.8100
Weight	302.0000
Width	27.0000

s-h alt

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JetÂ® tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
