Baileigh AP-5 Sheet Metal Forming 5 Ton

Arbor Press AP-3R

Arbor Press AP-5

3 Ton Arbor Press AP-3R 5 Ton Arbor Press AP-5



AP-0 - 1/2-Ton Arbor Press AP-0 - 1/2-Ton Arbor Press

Our AP-0 arbor press has 1/2 tons of force. A great value, this arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.

Features:

  • 1/2-ton arbor press has a 3-1/8” throat opening and can handle material up to 4.75” high.
  • Solid, case-hardened square 3/4” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 1/2-ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.

specifications subject to change without notice

Specifications
Stock Number BA9-1232697
Anvil Diameter (In.) 3-1/2
Approx. Pressure (Tons) 1/2
Arbor Press Height (In.) 10-3/8
Capacity Over Table (In.) 4-3/4
Diameter of Work (In.) 6-5/8
Model Number AP-0
Ram Bore (In.) 3/8
Travel of Ram (In.) 4-3/4
Warranty 1 Year
Weight (Lbs.) 19
Cylinder Movable No

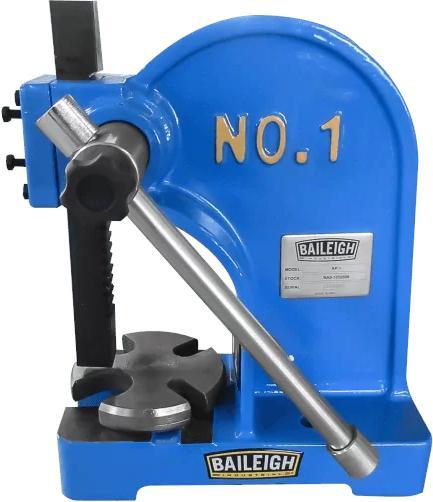

AP-1 - 1 Ton Arbor Press AP-1 - 1 Ton Arbor Press

Our AP-1 arbor press has 1 ton of force. A great value, this arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.

Features:

  • 1-ton arbor press has a 4” throat opening and can handle material up to 5” high.
  • Solid, case-hardened square 1” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 1-ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.
Specifications
Stock Number BA9-1232698
Anvil Diameter (In.) 3-1/2
Approx. Pressure (Tons) 1
Arbor Press Height (In.) 12
Capacity Over Table (In.) 5
Diameter of Work (In.) 8
Max. Work Height (In.) 5-1/8
Model Number AP-1
Prop 65 Cancer and Reproductive Harm
Ram Bore (In.) 3/8
Size of Ram (In.) 1 x 9-1/8
Travel of Ram (In.) 5-4/5
Warranty 1 Year
Weight (Lbs.) 27
Cylinder Movable No





AP-2 - 2 Ton Arbor Press AP-2 - 2 Ton Arbor Press

Our AP-2 arbor press has 2 tons of force. A great value, this arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.

Features:

  • 2 ton arbor press has a 5.375” throat opening and can handle material up to 9” high
  • Solid, case-hardened square 1.25” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 2 ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.
Specifications
Stock Number BA9-1232699
Anvil Diameter (In.) 6-11/16
Approx. Pressure (Tons) 2
Arbor Press Height (In.) 16-1/4
Capacity Over Table (In.) 7-1/2
Diameter of Work (In.) 10-3/4
Model Number AP-2
Prop 65 Cancer and Reproductive Harm
Ram Bore (In.) 1/2
Travel of Ram (In.) 9
Warranty 1 Year
Weight (Lbs.) 68
Cylinder Movable No



AP-3 - 3 Ton Arbor Press AP-3 - 3 Ton Arbor Press

Our AP-3 arbor press has 3 ton of force. A great value, this arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.

Features:

  • 3 ton arbor press has a 5.675” throat opening and can handle material up to 12.5” high.
  • Solid, case-hardened square 1.5” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 3 ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.
Specifications
Stock Number BA9-1232700
Anvil Diameter (In.) 6-11/16
Approx. Pressure (Tons) 3
Arbor Press Height (In.) 18-1/8
Capacity Over Table (In.) 11-1/2
Diameter of Work (In.) 11-3/8
Model Number AP-3
Prop 65 Cancer and Reproductive Harm
Ram Bore (In.) 1/2
Travel of Ram (In.) 12-3/5
Warranty 1 Year
Weight (Lbs.) 108
Cylinder Movable No





Arbor Press AP-3R

Arbor Press AP-3R

The AP-3R is a 3 ton arbor press that has a heavy duty cast iron frame. This sheet metal forming arbor press machine is a ratchet leverage machine that allows the operator to get the most leverage out of each pull of the handle using a ratchet actuator.

There is a rapid transfer flywheel that allows you to lift or lower the ram with great speed and it allows for small motions as well for set up before pressing the items at hand. There is a machined 4 position bottom plate that is perfectly perpendicular to the ram that has the proper opening for most broaches to push through.

This arbor press has a solid, case hardened ram for perfect presses every time and offers years of profitable duty at full capacity. All Baileigh arbor presses can be bench or pedestal mounted. The AP-3R arbor press has a 5 inch throat opening and can handle material up to 11 inches high. For inquiring minds, please call for further information on any of our metal forming arbor presses. Baileigh arbor presses are a great value and are typically in stock.


Specifications
Model AP-3R
Ram Size 1.5 inch
Throat Depth 5 inch
Maximum Material Height 11 inch
Capacity 3 tons
Power Manual
Shipping Weight 132 lbs.
Shipping Dimensions 18 x 9 x 25 inch

specifications subject to change without notice







Arbor Press AP-5

Arbor Press AP-5

The AP-5 arbor press can produce up to 5.6 tons of force. It has a heavy duty frame work that is a machined cast iron housing that uses a thick 2 X 2 inch case hardened ram. This is the perfect tonnage for any fabrication or machine shop for pressing bearings, bushings, or broaching keyways into items as well.

As standard this 5.6 ton arbor press comes with a heavy duty 4 position bottom plate that is perfect for various sizes of broaches. This plate can also be removed for pressing other items directly on the massive frame work.

Like all Baileigh arbor presses, this one can be pedestal or bench mounted. Call for further details and to check on inventory levels which are typically at desirable levels for immediate satisfaction. Baileigh arbor presses are built for decades of profitable use.


Specifications
Model AP-5
Ram Size 2 x 2 inch
Throat Depth 8.89 inch
Maximum Material Height 15.75 inch
Capacity 5.6 tons
Maximum Arbor Height 2.75 inch
Power Manual
Shipping Weight 365 lbs.
Shipping Dimensions 30 x 15 x 37.5 inch



AP-5HD - 5 Ton Arbor Press AP-5HD - 5 Ton Arbor Press

Our AP-5HD arbor press has 5 tons of force. A great value, this heavy duty arbor press will offer decades of profitable duty at full capacity. Order this heavy-duty arbor press from Baileigh Industrial.

Features:

  • 5 ton arbor press has a 8.5” throat opening and can handle material up to 18” high.
  • Solid, case-hardened square 2” ram executes precise presses every time.
  • Slideway allows for adjustment of tension and gap.
  • Machined 4-position die plate, perpendicular to the ram, lets you precisely secure the workpiece.
  • The bottom die plate includes the proper openings for most broaches to push through.
  • Rigid cast-iron frame avoids flex and maintains accuracy.
  • You can easily mount the press to a bench or pedestal.
  • We typically keep this industrial arbor press in stock for fast shipments.
  • 5 ton arbor press comes with a 1-year warranty, backed by Baileigh.
  • Our knowledgeable representatives will provide unlimited technical support.

Specifications
Stock Number BA9-1232701
Anvil Diameter (In.) 9-3/4
Approx. Pressure (Tons) 5
Arbor Press Height (In.) 27
Capacity Over Table (In.) 17
Diameter of Work (In.) 17
Model Number AP-5HD - 5 Ton Arbor Press
Prop 65 Cancer and Reproductive Harm
Ram Bore (In.) 1/2
Size of Ram (In.) 2 x 27-1/2
Warranty 1 Year
Weight (Lbs.) 262
Cylinder Movable No





No additional accessories

Call for price. BAIBA9-1232697
Call for price. BAIBA9-1232698
Call for price. BAIBA9-1232699
Call for price. BAIBA9-1232700
BA9-1000260
AP-3R; MANUALLY OPERATED 3 TON RATCHETING ARBOR PRESS. 11 MAXIMUM OPENING **SHIPS LTL FREIGHT TRUCK, WGT = 170 LBS & MADE IN CHINA
Mfg. item #: BA9-1000260
BAIAP-3R
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1054
$699.00

55
BA9-1000264
AP-5; MANUALLY OPERATED 5 TON ARBOR PRESS. 15-3/4 X 8-3/4 MAXIMUM OPENING (HEIGHT X DIAMETER) **SHIPS LTL FREIGHT TURCK, WGT = 440 LBS & MADE IN CHINA

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM ALSO FREE LTL FREIGHT,& FREE RESIDENTIAL, LIFTGATE AND DELIVERY APPOITMENT SERVICES AND NO HANDLING FEE
Mfg. item #: BA9-1000264
BAIAP-5
See freight charges if any at checkout. ALWAYS FREE Residential and Liftgate when Requested.1056
$1,399.00

55
Call for price. BAIBA9-1232701
