Baileigh Horizontal and Vertical Bandsaws

baileigh Portable Metal Cutting Band Saw - BS-127P

baileigh Portable Metal Cutting Band Saw BS-128M

baileigh Metal Cutting Band Saw BS-712M

baileigh Mitering Horizontal and Vertical Band Saw BS-712MS
 BS-127P Portable
Metal Cutting Bandsaw
 BS-128M 5 x 6 inch
Portable Metal Cutting Bandsaw
 BS-712M 7 x 10 inch
Metal Cutting Bandsaw
 BS-712MS 7 x 10 inch Mitering
Horizontal and Vertical Bandsaw

baileigh bs-210m single miter bandsaw

baileigh bs-250m single miter bandsaw

baileigh bs-916M bandsaw

Baileigh bs-300M bandsaw

BS-210M Single Miter 7 inch
Round Stock Bandsaw
BS-250M single miter 9 inch
Round Stock Bandsaw
BS-916M 9 x 13 1/2 inch
Bandsaw
BS-300M  10 x 16-1/2 inch
Bandsaw

baileigh BS-260M Mitering gear head bandsaw

baileigh bs-350m dual mitering head bandsaw

baileigh bs-330M H.d. metal cutting bandsaw

baileigh BS-20M-DM Dual Mitering Band Saw
BS-260M 10-1/2 x 4-1/2 inch
Mitering Gear Head Bandsaw
 BS-350m 9 x 14 inch
Dual Mitering Bandsaw
BS-330M  13 x 19 inch
HD Metal Cutting Bandsaw
 BS-20M-DM 13 x 18 inch
Dual Mitering Bandsaw



Models and Accessories
BS-127P-1.0 110 VOLT PORTABLE METAL CUTTING BAND SAW. 5 ROUND CAPACITY at 90 DEGREES.
BS-128M 110V METAL CUTTING BAND SAW WITH VERTICAL CUTTING OPTION. 5 ROUND CAPACITY at 90 DEGREES
BS-712M
BS-712M
110 VOLT METAL CUTTING BAND SAW WITH VERTICAL CUTTING OPTION. MITERING VICE. 3/4 BLADE WIDTH
BS-712MS 110 VOLT METAL CUTTING BAND SAW WITH VERTICAL CUTTING OPTION. MITERING HEAD. 3/4 BLADE WIDTH.
BS-210M 110 VOLT METAL CUTTING BAND SAW. MITERING HEAD. 3/4 BLADE WIDTH.
BS-250M 110 VOLT METAL CUTTING BAND SAW. MITERING HEAD. 1 BLADE WIDTH.
BS-916M 220 VOLT SINGLE PHASE METAL CUTTING BAND SAW. MITERING VICE. 1 BLADE WIDTH.
BS-300M 220V 1PHASE METAL CUTTING BAND SAW. MITERING VICE. 1 BLADE WIDTH.
BS-260M 220 VOLT SINGLE PHASE DUAL MITERING METAL CUTTING BAND SAW
BS-350M 220 VOLT SINGLE PHASE DUAL MITERING METAL CUTTING BAND SAW
BS-350SA 220V 1 PHASE DUAL MITERING SEMI-AUTOMATIC METAL CUTTING BAND SAW. VARIABLE SPEED (66-280 FPM)
BS-330M 220 VOLT 3 PHASE METAL CUTTING BAND SAW. MITERING VICE AND HEAD. 1-1/4 BLADE WIDTH
BS-20M-DM 220V 3 PH 13 MANUAL DUAL MITERING BAND SAW



 Portable Metal Cutting Band Saw - BS-127P

Portable Metal Cutting Band Saw - BS-127P

Made in Taiwan

The BS-127P from Baileigh Industrial is a high quality portable band saw that will give any shop years of profitability.  The BS-127P is 110 volt so it can work in any setting and its driven by an inverter that allows the operator to adjust the blade speed from 75 to 246 feet per minute, to achieve the best cut possible, as well as increase blade life.

This 5 inch round capacity band saw will also miter to 60 degrees right via the swivel head of the saw instead of the vise.  This will make for more accurate cuts and doesnt compromise the holding power of the vise.

Adjustable blade guides, trigger handle and stop rod are also included in this great package.  For more information contact a Southern-Tool representative today.





Specifications
MODEL BS-127P
Return Manual
Miter Adjustment Swivel Head
Miter Angle 0 - 60 degree
Capacity Rectangular 90 x 45 degree 5.31 x 5 inch / 3 x 6.75 inch / 1.65 x 2.9 inch
Capacity Round 90 x 45 degree 5 / 3 / 1.65 inch
Capacity Square 90 x 45 degree 5 / 3 / 1.65 inch
Blade Size (H x W x L) 0.5 / 0.025 / 56.69 inch
Blade Speed (fpm) 75 - 246 Variable
Drive Gear
Power Requirements 110V
Shipping Weight 56 lbs.
Shipping Dimensions 28 x 15 x 18 inch
specifications subject to change without notice

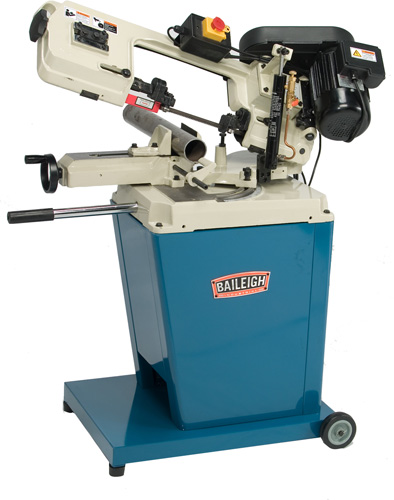

Portable Metal Cutting Band Saw BS-128M

Portable Metal Cutting Band Saw BS-128M

The BS-128M bandsaw from Baileigh Industrial is perfect for the home shop or hobbyist.  But, just because this is an economical saw, doesnt mean it is short on features.  The BS-128M can either be run as a standard horizontal pivot style bandsaw or as a vertical bandsaw, by lifting the head 90 degrees and locking it into that position.  This becomes extremely important when trying to do intricate designs and the best part you only need one machine to do it.  Hydraulically controlled descent, 60 degree mitering head, bearing blade guides and an easily portable working stand are also part of the package.

The BS-128M bandsaw is no slouch ion the capacity department either, it can cut up to 5 inch round stock at 90 degrees and up to 6 inch rectangle, plus a number of other profiles and shapes.   It also allows for the choice of three blade speeds via a step pulley a feature not seen on other saws in this price range.

The BS-128M is typically in stock for quick shipments, give a Southern-Tool representative a call for more information.

Specifications
Model BS-128M
Return Manual
Miter Adjustment Swivel Head
Miter Angle 0 to 45 Degrees
Motor 0.75 hp
Capacity Rectangular 90 x 60 x 45 5 x 6 x 1.75 x 2.19 x 3 x 3.7 inch
Capacity Round 90 x 60 x 45 degrees 5 x 1.75 x 3.75 inch
Blade Size (H x W x L) .50 x .023 x 64.48 inch
Blade Speed (fpm) 78 x 154 x 200
Descent Control Hydraulic
Drive Belt
Power Requirements Pneumatic / Manual
Shipping Weight 319 lbs.
Shipping Dimensions 38 x 22 x 25 inch
specifications subject to change without notice.



Metal Cutting Band Saw BS-712M

Metal Cutting Band Saw BS-712M

Made in Taiwan

Have limited space but need a lot of versatility out of your band saw?  Take a look at the BS-712M from Baileigh Industrial, this compact band saw can be run in the traditional horizontal position for general cut offs or in a vertical position, by just lifting the bow and locking it in place, for doing precise shape cutting.  Powered by 110 volts this do all machine can be used anywhere and include wheels for portability.  But, just because it is portable doesn mean that it cant cut large capacity, the BS-712M has a 7 inch OD round and a 7ft x 10-1/4 inch rectangle capacity.  Mitering can also be done easily on the BS-712M just by loosening the vise and rotating it to the proper angle.

The head and bow of the BS-712M are made from heavy duty cast iron that has been precisely machined to exacting tolerances top ensure proper alignment is maintained during the cutting process.  A pair of adjustable guides attached to the heavy duty head along with eight sealed ball bearings to help align the blade, help increase the life of the blade.  Add a chip removal brush and a flood coolant system to the BS-712M manual band saw and you have one great package.

For more information on the BS-71M contact a Shouthern-Tool representative and remember that it is typically in stock for fast deliveries.





Specifications
Model BS-712M
Return Manual
Miter Adjustment Vise
Miter Angle 0 - 45 degree
Motor 1 hp
Capacity Rectangular 90 x 45 x 45L 7 x 10.23 x 4.72 x 4.13 inch
Table Height 22 inch
Capacity Round 90 x 45 degree 7 x 4.33 inch
Blade Guide Roller
Blade Size (H x W x L) 0.75 x 0.035 x 92.91 inch
Blade Speed (fpm) 125 x 215 x 270
Descent Control Hydraulic
Drive Gear
Power Requirements 110 volt
Shipping Weight 450 lbs.
Shipping Dimensions 51 x 18 x 42 inch
specifications subject to change without notice



Horizontal and Vertical Band Saw BS-712MS

Horizontal and Vertical Band Saw BS-712MS

Made in Taiwan

Add a chip removal brush and a flood coolant system to the BS-712MS manual band saw and you have one great package

The BS-712MS is one of the most versatile horizontal bandsaws on the market.  The design is based off of the BS-712M, but add a heavy duty cast iron swivel head to do its mitering instead of the vise.  This feature allows for faster production times and less waste.   The BS-712MS horizontal bandsaw is powered by 110 volts, allowing it to be used just about anywhere.  It also features wheels to make it portable.

Like the BS-712M, the BS-712MS can be run in the traditional horizontal position for general cut offs or in a vertical position, by just lifting the bow and locking it in place, for doing precise shape cutting.  This is extremely important when space is at a premium in a shop, basically you are getting two saws for the price of one. The best part is that in the horizontal position, the BS-712MS has a 7in OD round and a 7in x 10-1/4in rectangle capacity.

Like all Baileigh Industrial band saws the BS-712MS is built from the highest quality components. The head and bow of the BS-712MS are made from heavy duty cast iron that has been precisely machined to exacting tolerances top ensure proper alignment is maintained during the cutting process.  A pair of adjustable guides attached to the heavy duty head along with eight sealed ball bearings to help align the blade, help increase the life of the blade.  Add a chip removal brush and a flood coolant system to the BS-712MS manual band saw and you have one great package.

Typically in stock for fast deliveries the BS-712MS is a great choice for shop or for home.  To get more information on the BS-71M contact a Southern-Tool representative.

  • Recommended for any shop, home or work, where space is at a premium.
  • Powered by 110-volt single-phase power, so you can run it just about anywhere.
  • Capacity of 7 inch OD round and 7 x 10-1/4 inch rectangle in horizontal position (for traditional cutoffs) at 90 degree.
  • Accepts standard .75 inch  wide blades.
  • Choose from 3 cutting speeds: 125, 215, and 270 fpm.
  • Cast iron head and bow, machined to exacting tolerances, ensure proper alignment during the cutting process and help the saw last for years.
  • Operate the machine in vertical position (for precise shape cutting) just by lifting the bow and locking it in place.
  • Swivel head for mitering allows for faster production times and less waste than you’d get with a moving vise.
  • Pair of adjustable blade guides, attached to the saw head along with 8 sealed ball bearings, maintain alignment and increase the life of the blade.
  • Fully-welded steel plate framework keeps the machine stable and gives it the structural strength to tackle its maximum capacity.
  • Wheels on the base make this saw easy to move and store.
  • Comes standard a flood coolant system, often considered an upgrade by other brands, and a chip removal brush.
  • We cover this metal-cutting band saw with a 1-year parts warranty.
  • Includes lifetime technical support by phone. Whenever you need troubleshooting, you can call our team of experienced reps.
  • We typically keep the saw and replacement parts in stock for fast deliveries.
Specifications
Model BS-712MS
Return Manual
Miter Adjustment Swivel Head
Miter Angle 0 - 45 degree
Motor 1 hp
Capacity Rectangular 90 x 45 x 45L 7 x 10.23 x 4.72 x 4.13 inch
Table Height 23 inch
Capacity Round 90° x 45° 7 x 4.33 inch
Blade Guide Roller
Blade Size (H x W x L) 0.75 x 0.035 x 92.91 inch
Blade Speed (fpm) 125 x 215 x 270
Descent Control Hydraulic
Drive Gear
Power Requirements 110 / 220V, 1-phase
Shipping Weight 665 lbs.
Shipping Dimensions 51 x 23 x 43 inch
Dimensions L x W x H 51 x 23 x 43 inch
specifications subject to change without notice



Horizontal Bandsaw BS-210M

Horizontal Bandsaw BS-210M

Made in Taiwan

Horizontal and Vertical Band Saw Catalog

The BS-210M horizontal bandsaw from Baileigh Industrial will be a great performer in your shop and will quickly become one of your favorite tools to use.  A good mix of features and benefits plus an outstanding price make this saw a winner.  Since it only requires 110V to operate, it can be used anywhere, small to large machine shops or even in the garage at home.  The BS-210M has a maximum capacity of 6-3/4 inch round at ninety degrees and has a head that can miter to 60 degrees.

Some of the key features on the BS-210M include, infinitely variable speed from 66 to 280 FPM through he use of an AC inverter.  This will allow the operator to gain cut quality and blade life.  The BS-210M also has an option for the operator to control the descent one of two ways; manually using a trigger switch and handle where the operator controls the descent, or it can be switched over to utilize a hydraulic descent feature normally seen on more expensive models. When using the hydraulic descent feature you can control the descent pressure for perfect cuts and can walk away from the machine that will automatically stop the blade once the metal is finished being cut.

The best part is that the BS-210m horizontal bandsaw is almost always in stock for fast deliveries.  Contact a  Southern-Tool representative for more information.

Specifications
Model BS-210M
Return Manual
Miter Adjustment Swivel Head
Miter Angle 0 – 60 degree
Motor High Torque .75Kw (AC)
Motor Hp 1
Table Height 35 inch
Capacity Rectangular 90 x 45 degree 8.26 x 6.69 inch
Capacity Round 90 x 45 x 60 degree 7 x 4.72 x 2.75 inch
Capacity Square 90 x 45 x 60 degree 7 x 4.33 x 2.36 inch
Blade Guide Carbide x Roller
Blade Size (H x W x L) 0.75 x 0.035 x 83 inch
Blade Speed (fpm) 66–280 Variable
Descent Control Hydraulic
Drive Gear
Power 110V
Shipping Weight 444 lbs.
Shipping Dimensions 60 x 44 x 48 inch
specifications subject to change without notice



Mitering Band Saw BS-250M

Mitering Band Saw BS-250M

Made in Taiwan

Horizontal and Vertical Band Saw Catalog

The BS-250M horizontal band saw from Baileigh Industrial is a great saw for any fabrication shops that cut a variety of material and profiles.  The BS-250M is a inverter driven variable speed band saw that allows the operator to precisely adjust the speed for the proper blade and material, increasing the life of the blade and decreasing expensive blade costs.  The inverter drives a 3 hp motor through a gearbox so there are no pulleys to adjust or belts to break.

The BS-250M horizontal band saw is a single miter band saw capable of cutting up to 9 inch round metal stock and can miter up to 60 degrees.  Changing the miter angle takes seconds and the best part is the vise stays in place.  Like all Baileigh Industrial band saws, the BS-250M includes a powerful industrial grade coolant pump that washes away chips before and after the cutting area. This cools the blade teeth, lubricates the blade, and removes the metal chips from the blade making the blade last longer.

Another nice feature of the BS-250M is there are two ways to operate it, using the pull down arm and trigger switch to activate the blade and coolant, or if youre in more of a production run, you can switch the machine over to cut metal using the hydraulic descent feature that will cut through the metal using the pressure you determine and will shut down the blade and coolant when completed.

Baileigh Industrial's horizontal band saws are designed and built to offer decades of precision metal sawing service. To find out more about this quality metal cutting band saw, please call your Southern-Tool representative.

Specifications
Model BS-250M
Return Manual
Miter Adjustment Swivel Head
Miter Angle 0 - 60 degree
Motor High Torque 1.1Kw (AC)
Motor Hp 2
Table Height 35 inch
Capacity Rectangular 90 x 45 degree 10.23 x 4.33 inch
Capacity Round 90 x 45 x 60 degree 8.93 x 5.9 x 3.54 inch
Capacity Square 90 x 45 x 60 degree 8.66 x 5.7 x 3.34 inch
Blade Guide Carbide x Roller
Blade Size (H x W x L) 1 x .035 x 96.85 inch
Blade Speed (fpm) 66–280 Variable
Descent Control Hydraulic
Drive Gear
Power 110V
Shipping Weight 475 lbs.
Shipping Dimensions 60 x 44 x 48 inch



Horizontal Band Saw BS-916M

Horizontal Band Saw BS-916M

Made in Taiwan

The BS-916M horizontal band saw is based off of the BS-300M, but with a little smaller footprint for those shops that have limited space.  The BS-916M is modeled after the American style saw that has been around for decades and carries over many of those saws traits.   Like all Baileigh industrial bandsaws the BS-916M is built to last, with a full cast iron bed and fully welded base it can take punishment.  An easy to access control panel located on top of the bow makes operation on the BS-916M a breeze.  An automatic shut off feature at the end of the cut, coolant system, and a blade tension device are also included.  Baileigh Industrial designed this saw to take abuse and stay working hard.

The powerful 1-1/2 hp motor is powered by 220 volt single phase power and features 4 blade speeds ranging from 82 to 235 feet per minute. With its 8-3/4 inch round capacity at 90 degrees the BS-916M is big enough to get most jobs done.

Baileigh Industrial typically keeps this the BS-300M band saw in stock for quick deliveries. For further information contact a representative.





Specifications
Model BS-916M
Return Manual
Miter Adjustment Vise
Miter Angle 0 - 45 degree
Motor 1.5 hp
Capacity Rectangular 90 x 45 x 45L 8.85 x 13.5 x 8.85 x 6.5 inch
Table Height 35 inch
Capacity Round 90° x 45° 8.85 x 6.5 inch
Capacity Square 90° x 45° 8.85 x 6.5 inch
Blade Guide Roller
Blade Size (H x W x L) 1 x .035 x 119.48 inch
Blade Speed (fpm) 82 x 132 x 170 x 235
Descent Control Hydraulic
Drive Belt x Pulley
Power Requirements 220V / 1-phase
Shipping Weight 700 lbs.
Shipping Dimensions 68 x 30 x 43 inch



Horizontal Band Saw BS-300M

Horizontal Band Saw BS-300M

Made in Taiwan

The BS-300M is the perfect bandsaw for those shops that like the look and operation of an old time American style band saw.  It is the perfect cutoff saw for those shops that cut many different shapes and profiles of metal.  With its 9-3/4 inch round capacity at 90 degrees the BS-300M can handle almost anything that you can throw at it. The BS-300M runs a heavy duty 2hp motor on 220 volt single phase power, which will allow any shop to be able to get the benefits of this great saw. The BS-300M is also variable speed allowing the operator to fine tune the saw for better cut quality.

Like all Baileigh industrial bandsaws the BS-300M is built to last, with a full cast iron bed and fully welded base it can take punishment.  An easy to access control panel located on top of the bow makes operation on the BS-300M a breeze.  An automatic shut off feature at the end of the cut, coolant system, and a blade tension device are also included.

Baileigh Industrial typically keeps this the BS-300M band saw in stock for quick deliveries. For further information contact a representative.





Specifications
Model BS-300M
Return Manual
Miter Adjustment Vise
Miter Angle 0 - 45 degree
Motor 2 hp
Capacity Rectangular 90 x 45 x 45L (in) 9.84 x 16.33 x 9.84 x 7.50
Table Height 30.7 inch
Capacity Round 90 x 45 degree 9.84 x 7.5 inch
Capacity Square 90 x 45 degree 9.84 x 7.5 inch
Blade Guide Roller
Blade Size (H x W x L) 1 x .035 x 129.92 inch
Blade Speed (fpm) 66 x 131 x 167 x 233
Descent Control Hydraulic
Drive Belt x Pulley
Power Requirements 220V / 1-phase
Shipping Weight 850 lbs.
Shipping Dimensions 69 x 44 x 48 inch



Gear Driven Band Saw BS-260M

Gear Driven Band Saw BS-260M

Made in Taiwan

Over the years the BS-260M dual mitering band saw has gone through a number of changes.  Once again we have improved it and made it even better.  Gone is the day of the DC driver board to adjust the blade speed, now the BS-260M has an AC inverter for even better control and reliability, the best part is that it still is powered by only 220V single phase so it can be used just about anywhere.

The gear driven BS-260M is a 9 inch Band Saw is the perfect saw for cutting at 90 degrees or miter angles. This saw has a dual angle head capable of cutting 0-60 degrees (R) and 0-45 (L), making it one of the most versatile saws on the market. Quick releases head lock allows the operator to change the miter angle in seconds.

The BS-260M band saw is made form only the best materials for long production life.  The saw bow and pivot is made from solid cast iron to ensure the straightest of cuts with little to no vibration.  A total of eight precision ball bearings are provided to keep the blade in line as well.  The BS-260M also has a powerful coolant system and a broken blade tensioning device that shuts down the machine if the blade breaks for safety.

Operation of the BS-260M is easy as well; there are two mode of operation depending on you preference. 1- Manual descent for small production runs. The operator simply turns on the machine via a trigger switch in the descent handle, and manually guides the band saw blade through the material this mode is perfect for the small or medium sized fabricators needs.  2- Hydraulic descent for larger production runs increases blade life and reduces operator fatigue. The hydraulic descent has a down feed adjustment for feed pressure.

For more information on the BS-260M band saw, contact a Southern Tool  Industrial representative.





Specifications
Model BS-260M
Return Manual
Miter Adjustment Dual Swivel Head
Miter Angle 0 - 60, 45L degrees
Motor 2 hp
Capacity Round 90 x 45 x 60 x 45L 8.91 x 5.9 x 3.54 x 4.33 inch
Table Height 35 inch
Capacity Rectangular 90 X 45 X 45L inch 10.59 x 4.33 x 7.87 x 4.92 6.3 x 4.33
Capacity Square 90 X 45 X 60 X 45L inch 8.66 x 5.7 x 3.34 x 4.33
Blade Guide Carbide x Roller
Blade Size (H x W x L) inch 1 x .035 x 96.85
Blade Speed (fpm) 66 - 280 Variable
Descent Control Hydraulic
Drive Gear
Power Requirements 220V
Shipping Weight 948 lbs.
Shipping Dimensions inch 69 x 44 x 48



Dual Miter Band Saw BS-350M

Dual Miter Band Saw BS-350M

Made in Taiwan

Have a job that requires multiple angles in both left and right direction?  If so the BS-350M horizontal band saw might just be the right choice for you.  This dual mitering saw has a full cast iron head and bow that swivels 60 degrees right and 45 degrees left.  The BS-350M has a 90 degree round capacity of 10-1/2 inch, making this the perfect saw for any fabrication shop.

The BS-350M features a 3hp motor which is driven by an AC inverter built to deliver the reliability that most shops demand.  The best part is that the power requirement is still only 220V single phase.

The BS-350M is built to make the straightest, highest quality cuts on the market.  This is achieved through the use of the best materials, full cast iron that is machined to exacting tolerances as well as precision ball bearing guides, which provide the most accurate cuts and long blade life.  A full flood coolant system is also standard on the BS-350M.

Operation of the BS-350M is easy as well; there are two mode of operation depending on you preference. 1- Manual descent for small production runs. The operator simply turns on the machine via a trigger switch in the descent handle, and manually guides the band saw blade through the material this mode is perfect for the small or medium sized fabricators needs.  2- Hydraulic descent for larger production runs increases blade life and reduces operator fatigue. The hydraulic descent has a down feed adjustment for feed pressure.

The best part is that the BS-350M horizontal band saw is typically in stock for fast deliveries.  If you would like more information on the BS-350M band saw, contact a Southern Tool Industrial representative.

Resources: Click on a link to download resources.

pdf logo  Horizontal and Vertical Band Saw Catalog





Specifications
Model BS-350M
BS-350SA
Return Manual
Miter Adjustment Dual Swivel Head
Miter Angle 0 - 60 degree, 45 degree L
Motor High Torque 1.5Kw (AC)
Motor Hp 2
Capacity Round 90 x 45 x 60 x 45L 10.63 x 9.45 x 6.3 x 8.28 inch
Table Height 35 inch
Capacity Rectangular 90 X 45 X 45L 13.77 x 8.66 x 9.45 x 6.3,  7.3 x 4.33 inch
Blade Guide Carbide x Roller
Blade Size (H x W x L) 1 x .035 x 124.5 inch
Blade Speed (fpm) 66 - 280 Variable
Descent Control Hydraulic
Drive Gear
Power 220V / 1-phase
Shipping Weight 948 lbs.
Shipping Dimensions 69 x 30 x 48 inch



Metal Cutting Bandsaw BS-330M

Metal Cutting Bandsaw BS-330M

Made in Taiwan

pdf logo  Horizontal and Vertical Band Saw Catalog

The BS-330M manual bandsaw from Baileigh Industrial has been a mainstay in our lineup since it was introduced in 2005.  This saw will provide years of trouble free use in any environment.  The BS-330M has a maximum capacity of 13 inch OD round, but can cut up to 13 inch x 18 1/2 inch rectangle when stood upright.

The Blade speed on the BS-330M is variable form 82 to 270 feet per minute.  This allows the operator to set the speed at the perfect fpm for the material being cut.  The 3 hp motor on the BS-330M is powered by 220 volt 3 phase power for more reliability and efficiency over single phase.

The BS-330M bandsaw features a mitering head that can go to 45 degrees.  Like most bandsaws from Baileigh Industrial, the mitering head and bow are made from heavy duty cast iron to reduce vibrations during the cutting process.  A large 1-1/4 inch blade runs through tungsten carbide blade guides for a more precise cut, both are standard issue on the BS-330M.

Operation of the BS-330M manual band saw is also very easy and features a hydraulic descent feature for larger production runs that increases blade life and reduces operator fatigue. The blade will also stop running when the saw gets to the bottom of the cut to promote safety.

The BS-330M is almost always in stock for quick deliveries.  Contact a Southern Tool Industrial representative for more information.





Specifications
Model BS-330M
Return Manual
Miter Adjustment Swivel Head and Vise
Miter Angle 0 - 45 degree
Motor 3 hp
Capacity Rectangular 90 x 45 x 45L inch 13 x 18.9 x 11 x 10.04
Table Height 30.5 inch
Capacity Round 90 x 45 degrees (inch) 13 x 8.86
Capacity Square 90 x 45 degrees (inch) 13 x 8.86
Blade Guide Carbide x Roller
Blade Size (H x W x L) inch 1.25 x .043 x 161.4
Blade Speed (fpm) 82 - 270
Descent Control Hydraulic
Drive Belt x Pulley
Power Requirements 220V / 3-phase
Shipping Weight 1,826 lbs.
Shipping Dimensions inch 90 x 37 x 61



Dual Mitering Band Saw BS-20M-DM

Dual Mitering Band Saw BS-20M-DM

Made in Taiwan

Do you need to replace your current band saw because your shop has out grown it or just looking for a new one to increase production?  Then look at the BS-20M-DM dual mitering bandsaw from Baileigh Industrial.  The BS-20M-DM has evolved form the original BS-20M to what you see here, an easy to use dual mitering band saw.  The BS-20M-DM is a dual mitering saw with capabilities to miter 45 degree left and 60 degree right with just flick of the wrist and a push or pull of the head.  The BS-20M-DM band saw also incorporates a heavy duty in feed table and out feed table to help save strain on the operator.

The BS-20M-DM is available in 440V, 50Hz, 3-Phase and uses a 1-1/4 inch blade for speed and accuracy.  This is a big improvement over the original.  Baileigh Industrial has changed the drive system on the BS-20M-DM, it now uses an inverter drive that allows for infinite blade speed adjustments from 69 to 306 feet per minute.  The inverter along hydraulic descent pressure allows the operator to select the proper speed to increase cut quality and blade life.

The Baileigh Industrial BS-20M-DM dual mitering bandsaw is built to the highest quality standards on the market and will offer any fabrication or machine shop decades of precision sawing. Call a Southern Tool Industrial representative to find out more about this and all the other band saws we offer.





Specifications
Model BS-20M-DM
Return Manual
Miter Adjustment Dual Miter Swivel Head
Miter Angle 0 – 60 degree, 45 degree L
Motor 3 hp
Table Height 30.5 inch
Capacity Rectangular 90 x 45 x 60 degree 13 x 18 x 13 x 11 x 10 x 6.3 inch
Capacity Rectangle 90 degree 13 x 18 / 13 x 10.6 / 12.4 x 7.7 inch
Capacity Round 90 x 45 x 60 degree 13 x 12 x 8.5 inch
Capacity Square 90 x 45 x 60 degree 13 x 12 x 8.5 inch
Blade Guide Carbide / Roller
Blade Size (H x W x L) 1.25 x .042 x 162.6 inch
Blade Speed (fpm) 60 - 306 Inverter Driven
Descent Control Hydraulic
Drive Inverter Direct
Power 220V, 60Hz, 3-Phase
Shipping Weight 2,156 lbs.
Shipping Dimensions 88.6 x 35.5 x 61.4 inch



American Made Band Saw Blades

We have been manufacturing band saw blades sine 1926!

bandsaw blades Order custom bandsaw blades here - We have been manufacturing Since 1926!

BA9-1018561
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-127P-1.0; 110V PORTABLE METAL CUTTING BANDSAW, 5 ROUND CAPACITY, 90 DEGREE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1018561
BAIBS-127P-1.0
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$855.00

8
BA9-1001095
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-128M; 5X6 PORTABLE MITERING BAND SAW 3/4HP, 110V, SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001095
BAIBS-128M
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$1,459.00

8
BA9-1001680
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-712M; 7 X 10 GEARED HEAD HORIZONTAL/VERICAL BAND SAW 1HP, 110/220V, SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001680
BAIBS-712M
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$2,599.00

8
BA9-1001684
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-712MS; 7 X 10 GEARED HEAD MITERING HORIZONTAL/VERTICAL BAND SAW 1HP, 120V, SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001684
BAIBS-712MS
lease to own for as little as:$56 per month!
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$3,161.85

8
BA9-1001309
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-210M; 6.69 VARIABLE SPEED MITERING BANDSAW 1HP, 110V, SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001309
BAIBS-210M
lease to own for as little as:$63 per month!
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$3,609.00

8
BA9-1001396
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-250M; METAL CUTTING 8.6 GEARED HEAD BAND SAW MITERING HEAD 2HP, 110V, SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001396
BAIBS-250M
lease to own for as little as:$86 per month!
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$4,929.00

8
BA9-1001740
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-916M; 9 X 16 HORIZONTAL BANDSAW 1-1/2HP, 240V 1PH
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001740
BAIBS-916M
lease to own for as little as:$92 per month!
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$5,269.00

8
BA9-1001492
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-300M; 9.8 HORIZONTAL BANDSAW 2HP, 240V 1PH
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001492
BAIBS-300M
lease to own for as little as:$106 per month!
ADD TO CART To See Freight Charges, if any. All TRUCK FREIGHT Deliveries Include Residential, Lift-gate & Call Ahead Services at No Extra Charge.1057
$5,999.00

8
BA9-1001432
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-260M; 8.66 GEARED HEAD DUAL MITERING BAND SAW 1-1/2HP, 220V SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001432
BAIBS-260M
lease to own for as little as:$120 per month!
CALL NOW: 800-458-3687 OR email salesdept@southerntool.com For The BEST FREIGHT Rate Available Anywhere.1062
$6,799.00

8
BA9-1001557
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-350M; 10-1/2 VARIABLE SPEED DUAL MITERING BANDSAW 2HP, 220 V, SINGLE PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001557
BAIBS-350M
lease to own for as little as:$150 per month!
CALL NOW: 800-458-3687 OR email salesdept@southerntool.com For The BEST FREIGHT Rate Available Anywhere.1062
$8,519.00

8
BA9-1001570
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-350SA; 10.63 SEMI-AUTO VARIABLE SPEED DUAL MITERING BANDSAW 2HP, 220V 1 PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001570
BAIBS-350SA
lease to own for as little as:$212 per month!
CALL NOW: 800-458-3687 OR email salesdept@southerntool.com For The BEST FREIGHT Rate Available Anywhere.1062
$11,999.00

8
BA9-1001517
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-330M; 13 VARIABLE SPEED BANDSAW 3HP, 220V, 3 PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001517
BAIBS-330M
lease to own for as little as:$256 per month!
CALL NOW: 800-458-3687 OR email salesdept@southerntool.com For The BEST FREIGHT Rate Available Anywhere.1062
$14,699.00

8
BA9-1001292
CALL NOW 800-458-3687 FOR EXPERT ADVISE
BS-20M-DM; 13 VARIABLE SPEED DUAL MITERING BANDSAW 3HP,220V 3 PHASE
OR ADD TO CART FOR YOUR BEST BROTHER-IN-LAW DEAL ON THIS BAILEIGH ITEM, LIMITED QUANTITY AVAILABLE, SALE ENDS 12/31/2024, PC CODE: BAHO2024
Mfg. item #: BA9-1001292
BAIBS-20M-DM
lease to own for as little as:$319 per month!
CALL NOW: 800-458-3687 OR email salesdept@southerntool.com For The BEST FREIGHT Rate Available Anywhere.1062
$18,509.00

8
Copyright © 2024 Smith-Hamilton, Inc
0.011 241213 14:04
