GMC Series Heavy Duty Hydraulic Shears

GMC Heavy Huty Industrial Hydraulic Shears
HS-0410E	GMC HEAVY DUTY HYDRAULIC SHEARS -4ft x 10Ga, 7.5 HP with 36 inch SIKO power back gauge (Non Stock Item - 12 Weeks Delivery)
HS-0425E	GMC HEAVY DUTY HYDRAULIC SHEARS - 4' x 1/4", w/ 24" SIKO power back gauge and 60" Squaring arm, 10 HP,220V, 3 PH TAIWAN
HS-0625E	GMC HEAVY DUTY HYDRAULIC SHEARS - 6' x 1/4 inch, 10 HP, 220V, 3 ph, with 24 inch SIKO power back gauge TAIWAN

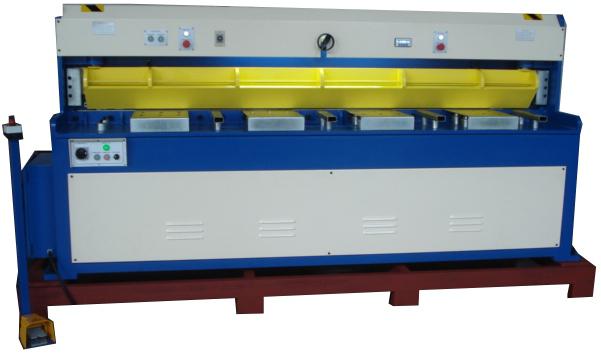

HS-0808E	GMC HEAVY DUTY HYDRAULIC SHEARS - 8ft X 8GA, 10 HP 220V 3PH WITH 24 inch' SIKO POWER BACK GAUGE
HS-0825E	GMC HEAVY DUTY HYDRAULIC SHEARS -8ft x 1/4 inch , 15 HP with 36 inch go to power back gauge
HS-1025E	GMC HEAVY DUTY HYDRAULIC SHEARS -10ft x 1/4 inch, 15 HP with 36 inch go to power back gauge
HS-1010M	GMC HEAVY DUTY HYDRAULIC SHEARS -10ft x 10Ga, 10 HP with 36 inch Manual back gauge TAIWAN

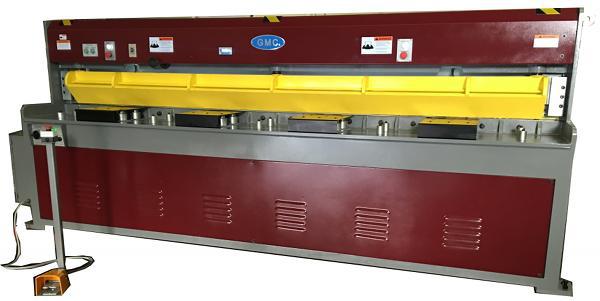

HS-1010E	GMC HEAVY DUTY HYDRAULIC SHEARS -10ft x 10Ga, 10 HP with 36 inch SIKO power back gauge TAIWAN
GMC Heavy Duty Hydraulic Deluxe Shears
HS-0410MD	4ft x 10 GA., 5 1/2 HP, 220V, 3 ph, with 24 inch manual back gauge TAIWAN
HS-0610MD	6ft x 10GA., 5 1/2 HP, 220V, 3 ph, with 24 inch manual back gauge TAIWAN
HS-0810MD	8ft x 10GA., 7.5 HP, 220V, 3 ph, with 24 inch manual back gauge TAIWAN

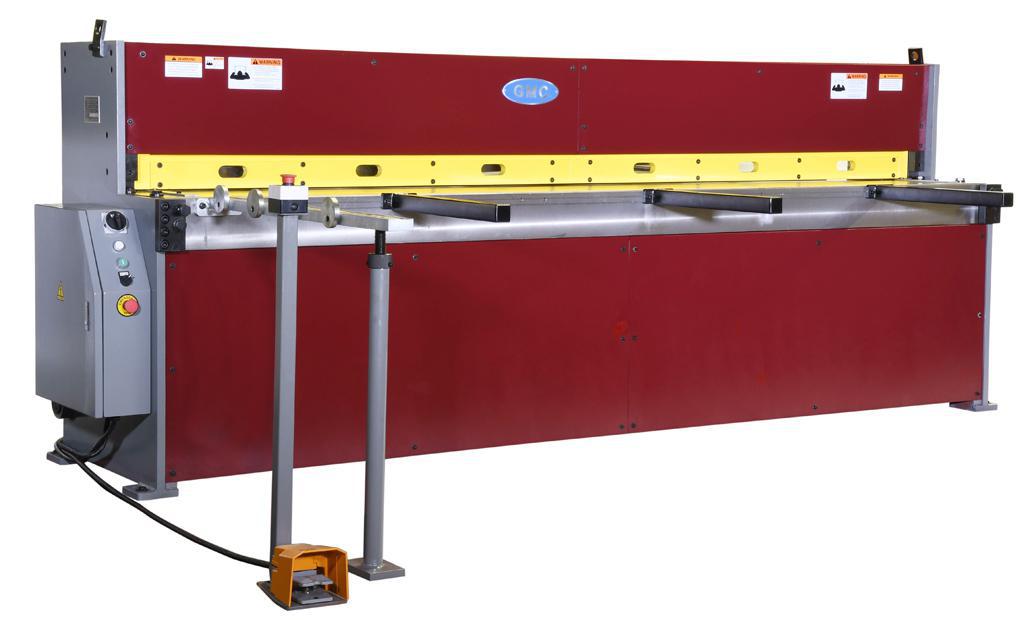

HS-1010MD	10ft x 10GA., 10 HP, 220V, 3 ph, with 24 inch manual back gauge TAIWAN

Standard Features:

ISO 9001 certified
24 inch German SIKO Front Operated power back gauge w/ micro adjustment 0.004 inch , inch / metric digital display for E models only
CE standard OMERO electric control system
Meet OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easy loading workpiece
Well balanced and sturdy all steel machine frame
German made Hydraulic logic system centrally located and quiet
Hydraulic hold-downs with anti-mar neoprene
Shear blades are high grade carbon/chrome alloy steel and hardened
to 60 HRC, 2-edge indexable upper blade and 4-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected and low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
Made in Taiwan

Central Control Panel

Central Control Panel

Heavy Duty Power Back Gauge

Heavy Duty Power Back Gauge

Power Back Gauge Control

Power Back Gauge Control

German SIKO Power Back Gauge Digital and Micro-adjustment

German SIKO Power Back Gauge Digital and Micro-adjustment

GMC HEAVY DUTY INDUSTRIAL HYDRAULIC SHEAR
Specifications:	HS-0425E	HS-0625E	HS-0808E	HS-0825E	HS-1025E	HS-1010E
Cutting capacity:
mild steel	4ft x 1/4in	6ft X 1/4in	8ft X 8 Ga	8ft x 1/4 in	10ft x 1/4 in	10ft x 10 Ga
stainless steel	4ft x 10Ga.	6ft X 10 Ga	8ft x 11 Ga	8ft x 3/16 in	10ft x 3/16 in	10ft x 12 Ga
Blade length	4 ft 4 in	6 ft 6 in	8 ft	8 ft 3 in	10 ft	10 ft
Strokes per minute	12 - 20	10 - 17	10 - 17	10 - 15	10 - 12	10 - 15
Throat depth	18 in
Worktable height	34-1/2 in
Front support arm	24 in
Back gauge for M model	24 in Manual Back Guage
Back gauge for E model	24 inPower Back Guage			36 in go to NC B.G.		36 in power B.G.
blade rake angle	2 Degrees
oil tank cap.	15 Gal.	25 Gal		25 Gal	30 Gal	25 Gal
Main motor	10 HP	10 Hp		15 Hp	15 Hp	15 Hp
Power B.G. motor	3/4 HP	1 Hp		1 Hp	1 Hp	1 Hp
Machine weight	5,380 LBS	7,650 lbs	8,150 lbs	9,850 lbs	10,850 lbs	10,350 lbs
Machine dimensions (in)	74x86x63	102 x 87 x 63	132 x 87 x 63	157 x 99 x 65	181 x 99 x 65	181 x 99 x 65

Standard Features:

ISO 9001 certified
HD all steel construction for maximum rigidity
German logic quiet hydraulic system
Spring hold-downs
Adjustible stroke from 16-20 strokes per minute
60 inches long squaring arm with inch / mm scale
High grade carbon/chrome alloy steel blades and hardened to 62 hrc, 2-edge indexable upper blade and 4-edge indexable bottom blade
Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single or continuous auto operation modes
Work light with shadow line
One year warranty for parts

Standard Equipment for Hydr. Shears # HS Series:

26 inch Manual back gauge with inch/metric dual scale and one side operated hand wheel
60 inch long squaring arm with inch / mm scale
2 each 24 inch front support arms
2 each 14 inch Side gauges with inlaid inch/metric dual scale
Spring independent hold-downs
Full length finger guard
Removable safety foot pedal control
Tool box
One set blades

GMC Deluxe Hydraulic Shears
Specifications:	HS-0412MD HS-0412MD-1	HS-0410MD	HS-0610MD	HS-0810MS	HS-1014MD	HS-1010MD
Cutting capacity:
mild steel	4 FT x 12 Ga.	4 FT x 10 Ga	6 FT x 10 Ga	8 FT x 10 Ga	10 FT x 14 Ga	10 FT x 10 Ga
stainless steel	4 FT x 16 Ga.	4 FT x 14Ga.	6 FT x 14 Ga	8 FT x 14 Ga	10 FT x 18 Ga	10 FT x 14 Ga
Blade length	52 in	52 in	6 ft 6 in	8 ft 2 in	10 ft	10 ft
Strokes	16-20	16-20	16-20	14-18	14-18	14-18
Throat depth	16 IN
Work height	30-1/2 IN
Front spt arm	24 IN
Back gauge	26 IN manual
blade rake angle	1.5 degree
oil tank cap.	15Gal.	15 Gal.	20 Gal	20 Gal	20 Gal	25 Gal
Main motor	3 HP, 3Ph (3HP, 1 Ph HS0412MD-1)	5-1/2 HP	5-1/2 HP	7-1/2 HP	5-1/2 Hp	7-1/2 Hp
Voltage	220V / 440V - 3 Phase
Weight	1,950 LBS	3,050 LBS	4150 lbs	5650 lbs	5200 Lbs	6350 lbs
Dimensions (in)	68x33x51	68x35x52	98x35x52	118x35x52	139x35x52	139x35x52
