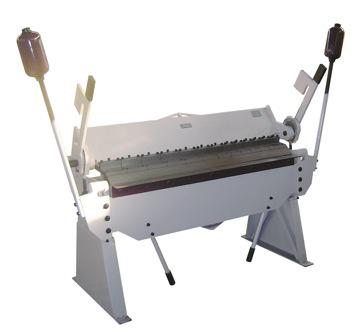

GMC Heavy Duty Manual Box and Pan Brakes
Features
-
ISO 9002 certified
-
Large 1-9/16 inch beam opening, adjustable
-
1 inch beam adjustment ( front and back )
-
Standard 2 , 3 , 4, 5 and 6 inch wide fingers
-
Stop rods for repeat bends
-
All steel heavy body construction with extra heavy tie rod for minimum deflection
-
One year warranty for parts
|
Specifications
|
|
Model
|
BB-412-6HD
|
BB-612-6HD
|
|
Bending capacity in mild steel
|
12gauge
|
12 gauge
|
|
Bending capacity in stainless steel
|
16 gauge
|
16 gauge
|
|
Max. box depth
|
6 inch
|
|
Bending length capacity
|
4 ft
|
6 ft
|
|
Bending angle , degree
|
0-135
|
|
Beam adjustment, front and back
|
1 inch
|
|
Minimum reverse bend
|
1/2 inch
|
|
Manual clamping
|
standard
|
|
Beam opening
|
1 9/16 inch
|
|
Net weight, LBS
|
1,450 lbs
|
2,850 lbs
|
|
Dimensions, inch
|
72x35x45 inch
|
98x35x45 inch
|
|
Specifications
|
|
Model
|
BB-812-6HD
|
BB-1014-6HD
|
|
Bending capacity in mild steel
|
12gauge
|
14 gauge
|
|
Bending capacity in stainless steel
|
16 gauge
|
18 gauge
|
|
Max. box depth
|
5-1/2 inch
|
|
Bending length capacity
|
8 ft
|
10 ft
|
|
Bending angle , degree
|
0-135
|
|
Beam adjustment, front and back
|
1 inch
|
|
Minimum reverse bend
|
1/2 inch
|
|
Manual clamping
|
standard
|
|
Beam opening
|
1 9/16 inch
|
|
Net weight, LBS
|
3,850 lbs
|
4,150 lbs
|
|
Dimensions, inch
|
120 x 32 x 36 inch
|
144 x 32 x 36 inch
|
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS GMC:
GMC MANUAL BOX & PAN BRAKE, 4X12GA
Mfg. item #: BB-412-6HD
GMCBB-412-6HD
lease to own for as little as:$74 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS GMC:
GMC MANUAL BOX & PAN BRAKE, 6X12GA
Mfg. item #: BB-612-6HD
GMCBB-612-6HD
lease to own for as little as:$148 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS GMC:
GMC MANUAL BOX & PAN BRAKE, 8X12GA
Mfg. item #: BB-812-6HD
GMCBB-812-6HD
lease to own for as little as:$167 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
CALL 800-458-3687 FOR EXPERT ADVICE ON THIS GMC:
GMC MANUAL BOX & PAN BRAKE, 10X14GA
Mfg. item #: BB-1014-6HD
GMCBB-1014-6HD
lease to own for as little as:$187 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
