Huthbender Model 2600 Heavy Duty Bender

pdf logo  Huth Bender Operations Manual

pdf logo  Huth Segment Set Silhouette Charts

pdf logo  Huth O-Ring Silhouette Charts

pdf logo  Huth Bender Hydraulic Parts Breakdown

pdf logo  Huth Controlled Wrinkle Die

The 2600 is designed for production work and bending heavier materials up to 3 inch OD. It meets the standards set by our other models for precise bending and end finishing.

The 2600 provides 85,000 lbs. of bending force in comparison to 58,000 lbs. produced by our other models. It comes standard with a 7-1/2 HP motor. A 3 inch tube bent to 90-degree in the automatic mode can be completed in 16 seconds.

The ergonomically designed knee control allows the operator hands-free control for quick tube location and securing of the tube. It is also invaluable for prototyping.

The smart automatic mode features an adjustable return-to-home position control. This unique, time saving feature increases efficiency by assuring fast and easy transitions between multiple bends. The automatic depth-of-bend selector ensures precise bending control through the use of an easy-to-read, easy-to-adjust depth-of-bend plate. This feature assures accuracy and repeatability.

The swager/expander gives you complete end-finishing capabilities. The swager end accommodates 1 to 3 inch tubing. The expander end allows for expansions from 1 to 5-1/2 inch. With Huths Accu-Sizer bulls-eye expanding system, you can dial in precise expansions every time.

Control Wrinkle Die 5531 now available for this model to bend 304 Stainless Steel.

* Available without swager/expander Model 2601



Features:

  • 85,000 lbs of bending force
  • Reinforced bending gates and frame
  • Large volume reservoir
  • Elevated center of bend
  • 7-1/2 HP motor
  • Heavy-duty swager/expander
  • Push button controls
  • Easy-to-use knee control for forward/reverse
  • Automatic depth-of-bend selector
  • Bending die retainer
  • Rugged I-Beam construction
  • Exclusive safety guard package
  • Front swivel caster w/o brakes
  • 220 volt, 60-hz operation
    * Single-phase req. 50-amp service
    * Three-phase req. 30-amp service
  • High voltage and high speed options available.

End Forming Wizardry With The Swage Box:

Most Huth and Ben Pearson benders have a long unique looking contraption on one end known as the swage box... It is also featured on our popular 1673 expander/reducer/swaging machine as well. Swage (pronounced swedge) is an uncommon word, and it most commonly refers to forming different shapes with metal tube. The swage box is an extremely handy device for many tube end forming techniques… some think of it as almost magical in that it allows the operator to fabricate a myriad of end-forms.

huth-swage-box

In the swage box, you can do Solid-Tool Expansion with a swage die. The advantage of solid tool expansion is controlled uniformity around the perimeter of the expansion (a segmented expander has microscopic indentations between the expander fingers).

Tube Diameter Reduction is possible in a swage box. This allows fabrication slip fits where one tube is slid inside the other in a way that appears practically seamless from the outside.

Creating Flanges And Flares can be done in the swage box with flange and flare tooling. Want a flange that goes 90 degrees out from the tube end? Simple. Use a 45 degree flare tool to create the 1st 45 degrees, then spin the tool around and push it the remaining 45 degrees until it sticks out perpendicularly from the tube end.

Doming And Both Male And Female Ball Joint Ends are possible in the swage box. Ball joint connections can be used to help hold two tubes together in a way that allows some movement at the joint.

One of the keys to forming in the swage box is holding the tube firmly with the collets and collet holder. The forces required to form the new metal shapes are great… 25,000 lbs of force exerted across just a few inches of diameter. We have created a cool time-saving accessory… the dead stop system… to help people locking in the length when making repeated parts.

On the other end of the swage box is the expanding cylinder. Using segmented tooling and Huth’s unique AccuSizer system, you can quickly and efficiently create slip fits, flares, ball joint connections, AND MORE! Custom Solutions Available Upon Request.

Let us know how we can help you create end-forming magic with your own swage box!

controlled wrinkle dies

Controlled Wrinkle Dies
No. DESCRIPTION MODEL
4112W 4 inch RADIUS DIE, 1-1/2 inch  ALL
5112W 5 inch RADIUS DIE, 1-1/2 inch  ALL
5158W 5 inch RADIUS DIE, 1-5/8 inch  ALL
3134W 3 inch RADIUS DIE, 1-3/4 inch  ALL
4134W 4 inch RADIUS DIE, 1-3/4 inch  ALL
5134W 5 inch RADIUS DIE, 1-3/4 inch  ALL
3200W 3 inch RADIUS DIE, 2 inch  ALL
4200W 4 inch RADIUS DIE, 2 inch  ALL
5200W 5 inch RADIUS DIE, 2 inch  ALL
4414W 4 inch RADIUS DIE, 2-1/4 inch  ALL
5414W 5 inch RADIUS DIE, 2-1/4 inch  ALL
4409W 4 inch RADIUS DIE, 2-1/2 inch  ALL
5412W 5 inch RADIUS DIE, 2-1/2 inch  ALL
5534W 5 inch RADIUS DIE, 2-3/4 inch  ALL
5578W 5 inch RADIUS DIE, 2-7/8 inch  ALL
5530W 5 inch RADIUS DIE, 3 inch  ALL
5531* 5 inch RADIUS DIE, 3 inch 2600
*Used on 2600 Heavy Duty Bender Only - Call for information regarding additional sizes and wrinkle dies best suited for your Model
No. CORRESPONDING BACKSHOE SIZE
1112 Back Shoe 1-1/2 inch (2 Required)**
1112 Back Shoe 1-1/2 inch (2 Required)**
1158 Back Shoe 1-5/8 inch (2 Required)**
1134 Back Shoe 1-3/4 inch (2 Required)**
1134 Back Shoe 1-3/4 inch (2 Required)**
1134 Back Shoe 1-3/4 inch (2 Required)**
1200 Back Shoe 2 inch (2 Required)**
1200 Back Shoe 2 inch (2 Required)**
1200 Back Shoe 2 inch (2 Required)**
4211 Back Shoe 2-1/4 inch (2 Required)**
4211 Back Shoe 2-1/4 inch (2 Required)**
4412 Back Shoe 2-1/2 inch (2 Required)**
4412 Back Shoe 2-1/2 inch (2 Required)**
1234 Back Shoe 2-3/4 inch (2 Required)**
1378 Back Shoe 2-7/8 inch (2 Required)**
1350 Back Shoe 3 inch (2 Requried)**
1350* Back Shoe 3 inch (2 Requried)**
*Used on 2600 Heavy Duty Bender Only
**(4) #855 Pins Required

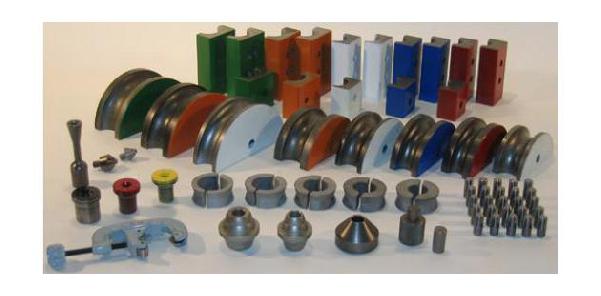

010 die package

010 Die Package Tooling
Radius Dies
No. Radius Size
5200 * 5 in 2 in
5414 5 in 2-1/4 in
5412 5 in 2-1/2 in
4112 4 in 1-1/2 in
4134 4 in 1-3/4 in
4200 4 in 2 in
4414 4 in 2 1/4 in
3200 3 in 2 in
Back Shoes
No. Pcs. Size
1112 2 1-1/2 in
1134 2 1-3/4 in
1200 2 2 in
4211 2 2-1/4 in
4412 2 2-1/2 in


Half shoes
No. Size
1038 1-1/2 in
1040 1-3/4 in
1045 2 in
4416 2-1/4 in
4410 2-1/2 in
Collet Sets
No. Size
1712 1-1/2 in
1734 1-3/4 in
1720 2 in
1725 2-1/4 in
1750 2-1/2 in
Ball Joint Tooling
No. Size
555 1-3/4, 1-7/8, 2 in Female
556 2-1/4, 2-1/2 in Female
Arbor
No. Size
508 1-1/2 to 4 in
498 Tip: 1-1/2 to 1-3/4 in
499 Tip: 1-3/4 to 4 in
Segment Sets
No. Size
473 1-1/2 to 1-3/4 in
474 1-3/4 to 2-1/8 in
475 2-1/8 to 2-1/2 in
Accessories
No. Description
815 Die Holder
816 Die Holding Pin
835 Tube Cutter
853 1-1/2 to 3-1/2 in - Flaring/Flanging Tool
855 Die pins (25)



011 die package

011 Die Package Tooling
Radius Dies
No. Radius Size
5530 * 5 in 3 in
5200 * 5 in 2 in
5414 * 5 in 2 1/4 in
5412 5 in 2-1/2 in
4134 4 in 1-3/4 in
4200 4 in 2 in
4414 4 in 2 1/4 in
4409 4 in 2-1/2 in
3112 3 in 1-1/2 in
3134 3 in 1-3/4 in
3200 3 in 2 in
* Requires 41041 retainer
Back Shoes
No. Pcs. Size
1112 2 1-1/2 in
1134 2 1-3/4 in
1200 2 2 in
4211 2 2-1/4 in
4412 2 2-1/2 in
1350 2 3 in
Half shoes
No. Size
1038 1-1/2 in
1040 1-3/4 in
1045 2 in
4416 2-1/4 in
4410 2-1/2 in
Three-Quarter shoes
No. Size
1046 2 in
4413 2-1/4 in
Swage Dies
No. Size
112 1-1/2 in
134 1-3/4 in
178 1-7/8 in
120 2 in
125 2-1/4 in
150 2-1/2 in
Collet Sets
No. Size
1712 1-1/2 in
1734 1-3/4 in
1720DF 2 in
1725 2-1/4 in
1750 2-1/2 in
Ball Joint Tooling
No. Size
555 1-3/4, 1-7/8, 2 in Female
556 2-1/4, 2-1/2 in Female
Ball Joint Segments
419 2 in
420 2-1/4 in
421 2-1/2 in
Flaring Tool
No. Size
518 2 in Double Flare and
1-1/2 in Flat Flare
Arbor
No. Size
508 1-1/2 to 4 in
498 Tip: 1-1/2 to 1-3/4 in
499 Tip: 1-3/4 to 4 in
Segment Sets
No. Size
473 1-1/2 to 1-3/4 in
474 1-3/4 to 2-1/8 in
475 2-1/8 to 2-1/2 in
476 2-1/2 to 3 in
Accessories
No. Description
825 Quick Disconnect Kit
835 Tube Cutter
853 1-1/2 to 3-1/2 in - Flaring/Flanging Tool
855 Die pins (25)
996 Rotation Dial
950 Program Card System
or
980 Program Card System in Electronic Format





013 die package

013 Die Package Tooling
Radius Dies
No. Radius Size
5112 * 5 in 1-1/2 in
5134 * 5 in 1-3/4 in
5820 * 5 in 2 in 180 deg
5824 * 5 in 2 1/4 in 180 deg
5412 * 5 in 2-1/2 in
5530 * 5 in 3 in
4112 4 in 1-1/2 in
4134 4 in 1-3/4 in
4200 4 in 2 in
4414 4 in 2 1/4 in
4409 4 in 2-1/2 in
3112 3 in 1-1/2 in
3134 3 in 1-3/4 in
3200 3 in 2 in
3414 3 in 2-1/2 in
* Requires 41041 retainer
Back Shoes
No. Pcs. Size
1112 2 1-1/2 in
1134 2 1-3/4 in
1200 2 2 in
4211 2 2-1/4 in
4412 2 2-1/2 in
1350 2 3 in
Half shoes
No. Size
1038 1-1/2 in
1040 1-3/4 in
1045 2 in
4416 2-1/4 in
4410 2-1/2 in
1352 3 in
Three-Quarter shoes
No. Size
1036 1-3/4 in
1046 2 in
4413 2-1/4 in
4415 2-1/2 in
1351 3 in
Swage Dies
No. Size
112 1-1/2 in
134 1-3/4 in
178 1-7/8 in
130 3 in
* For 2, 2-1⁄4, 2-1⁄2 in IDs use male ball joint tools 550, 552, 553
Collet Sets
No. Size
1712 1-1/2 in
1734 1-3/4 in
1720 2 in
1725 2-1/4 in
1750 2-1/2 in
1730 3 in
Ball Joint Tooling
No. Size
550 1-3/4 in - Male
552 2 in - Male
553 2-1/4 in Male
554 2-1/2 in Male
555 1-3⁄4, 1-7⁄8, 2 in - Female
556 2-1⁄4, 2-1⁄2 in - Female
557 1-3⁄4 to 2-1⁄2 in - Domer
558 2-1⁄2 to 2-3⁄4 in - Domer
Flaring Segments 45 degrees
No. Size
440 1-1⁄2 to 2-1⁄2 in
Arbor
No. Size
508 1-1/2 to 4 in
498 Tip: 1-1/2 to 1-3/4 in
499 Tip: 1-3/4 to 4 in
Segment Sets
No. Size
473 1-1/2 to 1-3/4 in
474 1-3/4 to 2-1/8 in
475 2-1/8 to 2-1/2 in
476 2-1/2 to 3 in
Accessories
No. Description
815 Die Holder
816 Die Holding Pin
825 Quick Disconnect Kit
835 Tube Cutter
852 Blank Plate
853 1-1/2 to 3-1/2 in - Flaring/Flanging Tool
855 Die pins (25)
870 O-Rings-Rubber Assist
892 Collet Holder
996 Rotation Dial
950 Program Card System
or
980 Program Card System in Electronic Format






016 die package

016 Die Package Metric Tooling - Export
Radius Dies
No. Radius Size
5040 5 in 40mm
5042 5 in 42mm
5045 5 in 45mm
5048 5 in 48mm
5050 5 in 50mm
5218 5 in 54mm
5060 5 in 60mm
4040 4 in 40mm
4042 4 in 42mm
4045 4 in 45mm
4048 3 in 48mm
4050 4 in 50mm
4218 4 in 54mm
4060 4 in 60mm
3040 3 in 40mm
3042 3 in 42mm
3045 3 in 45mm
3048 3 in 48mm
3050 3 in 50mm
3218 3 in 54mm
Back Shoes
No. Pcs. Size
1340 2 40mm
1342 2 42mm
1345 2 45mm
1348 2 48mm
1349 2 49mm
1218 2 54mm
1360 2 60mm
Reducing Dies
No. Size
760 50mm to 45mm
761 55mm to 50mm
762 65mm to 60mm
Three-Quarter shoes
No. Size
1540 40mm
1542 42mm
1545 45mm
1548 48mm
1550 50mm
1053 54mm
1560 60mm
Swage Dies
No. Size
140 40mm
142 42mm
145 45mm
148 48mm
149 50mm
128 54mm
160 60mm
Collet Sets
No. Size
1740 40mm
1742 42mm
1745 45mm
1700 48mm
1705 50mm
1728 54mm
1760 60mm
Half Shoes
No. Size
1405 40mm
1425 42mm
1455 45mm
1448 48mm
1450 50mm
1051 54mm
1460 60mm
Ball Joint Segments
No. Size
419 50mm
420 55mm
421 60mm
Arbor
No. Size
508 35 to 101mm ID
498 Tip: 35 to 45mm ID
499 Tip: 40 to 101mm ID
Segment Sets
No. Size
473 35 to 45mm ID
474 45 to 54mm ID
475 54 to 64mm ID
476 64 to 76mm ID
Accessories
No. Description
815 Die Holder
816 Die Holding Pin
825 Quick Disconnect Kit
835 Tube Cutter
853 1-1/2 Flaring/Flanging Tool
855 Die pins (40)
870 O-Rings-Rubber Assist
984 Pipe End Shaper
996 Rotation Dial
91176 Ready Rak II











028 die package

028 Die Package Tooling
Radius Dies
No. Radius Size
5530 * 5 in 3 in
5200 * 5 in 2 in
5414 * 5 in 2-1/4 in
5412 * 5 in 2-1/2 in
4200 4 in 2 in
4414 4 in 2-1/4 in
3112 3 in 1-1/2 in
3134 3 in 1-3/4 in
* Requires 41041 retainer
Back Shoes
No. Pcs. Size
1112 2 1-1/2 in
1134 2 1-3/4 in
1200 2 2 in
4211 2 2-1/4 in
4412 2 2-1/2 in
1350 2 3 in
Half Shoes
No. Size
1038 1-1/2 in
1040 1-3/4 in
1045 2 in
4416 2-1/4 in
4410 2-1/2 in



Ball Joint Tooling
No. Size
550 1-3/4 in Male **
552 2 in Male ***
553 2-1/4 in Male ****
554 2-1/2 in Male *****
555 1-3⁄4 to 2 in Female
556  2-1⁄4 to 2-1⁄2 in Female
Swage Dies
112 1-1/2 in
134 1-3/4 in
** For a 2 in ID Use Male Ball Tool 550
*** For a 2-1⁄4 in ID Use Male Ball Tool 552
**** For a 2-1⁄2 in ID Use Male Ball Tool 553
***** For a 2-3⁄4 in ID Use Male Ball Tool 554
Collect Sets
No. Size
1712 1-1/2 in
1734 1-3/4 in
1720 2 in
1725 2-1/4 in
1750 2-1/2 in




Doming Dies
No. Size
557 2-1/2 in
558 2-3/4 in
Arbor
No. Size
508 1-1/2 to 4 in
498 Tip: 1-1/2 to 1-3/4 in
499 Tip: 1-3/4 to 4 in
Segment Size
No. Size
473 1-1/2 to 1-3/4 in
474 1-3/4 to 2-1/8 in
475 2-1/8 to 2-1/2 in
476 2-1/2 to 4 in
Accessories
853 1-1⁄2 to 3-1⁄2 in Flaring/Flanging Tool
855 Die pins (30)
815 Die Holder
816 Die Holding Pin
870








Note: Individual tooling is availabel call 1-800-458-3687 ext 1 to receive
pricing on individual tooling for this equipment



1992 tooling package

1992 3 in Tooling Package
For use on benders with 700 Series or 1700 Series Collets with a clamp style collet holder.
(Standard on all Huth Bender models from
September 1981 to present.)
No. Description
5530 Radius Die - 3 in
1350 Back Shoe (2) - 3 in
1351 Three-Quarter Shoe- 3 in
1352 Half Shoe -3 in
855 Die Pins (6)
892 Collet Holder - 3 in
1730 Collet
853 Flaring/Flanging Tool 1-1/2 to 3-1/2 in
783 Reducer (3  to 2-1/2 in)
130 Swage Die - 3 in
476 * Segment Set (2-1/2 ID to 3 in ID) *Requires Arbor 508 and Arbor Tip 499 (or) Arbor 573

1993 3 inch tooling package
1993 3inch Tolling Package
For use on benders with 200 series collets with either a cam action or spin close style holder.
(Standard on all Huth Bender models from 1955 to September 1981)
No. Description
5530 Radius Die - 3 in
1350 Back Shoe (2) - 3 in
1351 Three-Quarter Shoe - 3 in
1352 Half Shoe - 3 in
855 Die Pins (6)
508 Arbor 1-1/2 to 4 in
499 Arbor Tip 1-3/4 to 4 in
476 Segment Set (2 1/2 ID to 3 in ID)

  		1995 2-3/4 inch toolling package
1995 2-3/4 inch Tooling Package
For use on benders with 700 Series or 1700 Series Collets with a clamp style collet holder.
(Standard on all Huth Bender models from September 1981 to present.)
No. Description
5534 5 in Radius Die - 2-3/4 in
1234 Back Shoe (2) - 2-3/4 in
1235 Three-Quarter Shoe - 2-3/4 in
1236 Half Shoe - 2-3/4 in
855 Die Pins (6)
1729 * Collet - 2-3/4 in
790 Reducer 3 to 2-3/4 in
129 Swage Die - 2-3/4 in
* Requires 892 Collet Holder
1996 3 inch short tooling package
1996 3 inch Short Tolling Package
No. Description
5530 5 in Radius Die - 3 in
1350 Back Shoe (2) - 3 in
855 Die Pins (4)
Choice of one of the following
1351 Three-Quarter Shoe with Pin
1352 Half Shoe with Pin
476 * Segment Set (2-1/2 in ID to 3 in ID)
* Requires Arbor 580 and Arbor Tip 499 (or) Arbor 573
1997 2-3/4 inch Short Tooling Package
1997 2-3/4 inch Short Tooling Package
No. Description
5534 5 in Radius Die - 2-3/4 in
1234 Back Shoe (2) - 2-3/4 in
855 Die Pins (4)
Choice of one of the following:
1235 Three-Quarter Shoe with Pin
1236 Half Shoe with Pin
476 * Segment Set (2-1/2 in ID to 3 in ID)
* Requires Arbor 508 and Arbor Tip 499 (or) Arbor 573
1988 3 inch end finishing package
1988 3 inch End Finishing Package
Designed for benders which utilize 700 or 1700 series collets to perform 3 inch swaging.
No. Description
892 Collet Holder - 3 in
1730 Collet - 3 in
130 Swage Die - 3 in
783 Reducer (3 to 2-1/2 in)
853 Flaring / Flanging Tool (1-1/2 to 3-1/2 in)

1989 1-7/8 optional package

1989 1-7/8 inch Optional Package
No. Description
4178 4 in Radius Die - 1-7/8 in
178 Swage Die - 1-7/8 in
1178 Back Shoe (2 pcs) - 1-7/8 in
1043 Half Shoe - 1-7/8 in
1778 Collet Set - 1-7/8 in
855 Die Pins (5 pcs)





No listed accessories

2600HD
Mfg. item #: 2600HD
HUT2600HD
lease to own for as little as:$299 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$14,973.06

129
28
Mfg. item #: 28
HUT028
lease to own for as little as:$78 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$3,887.10
10
Mfg. item #: 10
HUT010
lease to own for as little as:$66 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$3,277.80

432
11
Mfg. item #: 11
HUT011
lease to own for as little as:$117 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$5,834.26

432
13
Mfg. item #: 13
HUT013
lease to own for as little as:$161 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$8,028.90

432
16
Mfg. item #: 16
HUT016
lease to own for as little as:$143 per month!
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$7,171.20

432
Copyright © 2024 Smith-Hamilton, Inc
0.007 240814 15:31
