The Jet HBC, Heavy-Duty Beam Clamp
-
For construction, commercial vertical or horizontal rigging operations
-
1-5 ton capacity
-
Mount hoists or lift beams with portable lightweight clamp
-
Adjusts with ease to fit a broad range of wide-flange H or standard I-beams
-
Clamp jaw designed to distribute the load away from beam flange edge
-
Low headroom with built-in suspension rod
-
Proof tested with test certificate
-
Compliance: ANSI/ASME B30.17 and B30.20 standards
|

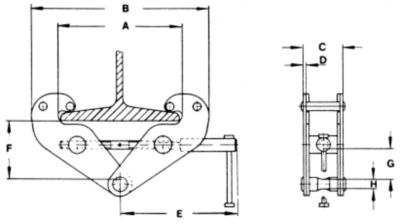

HBC Specifications
|
|
Stock Number
|
202710
|
202720
|
202730
|
202750
|
|
Model Number
|
HBC-1
|
HBC-2
|
HBC-3
|
HBC-5
|
|
Capacity (lbs)
|
2200
|
4400
|
6600
|
11000
|
|
Beam flange W (in)
|
2-15/16 - 8-11/16
|
2-15/16 - 8-11/16
|
3-1/8 - 12-5/8
|
3-9/16 - 12-5/8
|
|
Max A
|
10-1/4
|
10-1/4
|
15-3/16
|
15-3/16
|
|
Min B
|
7-11/16
|
7-11/16
|
9-1/16
|
9-1/16
|
|
Max B
|
14-9/16
|
14-9/16
|
20-1/16
|
20-1/16
|
|
C
|
2-1/2
|
2-15/16
|
4-1/16
|
4-5/16
|
|
D
|
3/16
|
1/4
|
5/16
|
3/8
|
|
E
|
9-1/16
|
9-1/16
|
10-7/8
|
10-7/8
|
|
Max F
|
5-3/8
|
5-3/8
|
8-1/4
|
8-1/4
|
|
Min F
|
3-1/2
|
3-1/2
|
4-7/8
|
4-7/8
|
|
Min G
|
1-3/16
|
1-3/16
|
1-9/16
|
1-9/16
|
|
H
|
7/8
|
7/8
|
15/16
|
1-1/8
|
|
Ship Weight
|
10
|
11
|
21
|
24
|
The Jet JBC, Heavy-Duty Beam Clamp
-
For construction, commercial vertical or horizontal rigging operations
-
1-5 ton capacity
-
Mount hoists or lift beams with portable lightweight clamp
-
Adjusts with ease to fit a broad range of wide-flange H or standard I-beams
-
Clamp jaw designed to distribute the load away from beam flange edge
-
Low headroom with built-in suspension rod
-
Proof tested with test certificate
-
Compliance: ANSI/ASME B30.17 and B30.20 standards
|
HBC Specifications
|
|
Stock Number
|
252710
|
252720
|
252730
|
252750
|
|
Model Number
|
JBC-1
|
JBC-2
|
JBC-3
|
JBC-5
|
|
Capacity (lbs)
|
2200
|
4400
|
6600
|
11000
|
|
Beam flange W (in)
|
2-31/32 - 8-5/8
|
2-31/32 - 8-5/8
|
3-15/16 - 9-5/8
|
4-15/16 - 10-5/8
|
|
Max A
|
9-15/16
|
9-5/8
|
11-5/8
|
11-7/32
|
|
Min B
|
7-1/16
|
7-1/16
|
9-7/16
|
9-5/8
|
|
Max B
|
14-3/16
|
14-3/16
|
17-3/8
|
19-1/16
|
|
C
|
2-3/4
|
2-7/8
|
4-5/8
|
5-1/2
|
|
D
|
3/16
|
1/4
|
5/16
|
3/8
|
|
E
|
9-5/16
|
9-5/16
|
10-1/4
|
10-1/4
|
|
Max F
|
5-5/16
|
5-5/16
|
6-11/16
|
6-15/16
|
|
Min F
|
3-9/16
|
3-9/16
|
4-5/16
|
4-15/16
|
|
Min G
|
1-3/16
|
1-3/16
|
2-3/16
|
2-1/16
|
|
H
|
13/16
|
13/16
|
1
|
1-1/8
|
|
Ship Weight
|
12
|
14
|
27
|
34
|
