AI Industrial Grade Rotary Phase Converter - The AI Industrial was designed specifically for the demands of industrial and agricutural applications. Our AI Industrial digital phase converter is designed with a type 3R enclosure for ultimate protection. AI Industrial can save you thousands of dollars a year over utility and diesel generated power sources. The AI Industrial offers the following features:
|
Please scroll down for additional product information
FREE SHIPPING:AI20 AMERICAN ROTARY INDUSTRIAL 240V 20KVA PAD MOUNT ROTARY PHASE CONVERTER, SHIPPING WEIGHT: 464 LBS Mfg. item #: AI20
AMEAI20
lease to own for as little as:$73 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$3,658.66
129 |
FREE SHIPPING:AI30 AMERICAN ROTARY INDUSTRIAL 240V 30KVA PAD MOUNT ROTARY PHASE CONVERTER, SHIPPING WEIGHT: 542 LBS Mfg. item #: AI30
AMEAI30
lease to own for as little as:$90 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$4,481.86
129 |
FREE SHIPPING:AI40 AMERICAN ROTARY INDUSTRIAL 240V 40KVA PAD MOUNT ROTARY PHASE CONVERTER, SHIPPING WEIGHT: 542 LBS Mfg. item #: AI40
AMEAI40
lease to own for as little as:$109 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$5,469.70
129 |
FREE SHIPPING:AI50 AMERICAN ROTARY INDUSTRIAL 240V 50KVA PAD MOUNT ROTARY PHASE CONVERTER, SHIPPING WEIGHT: 650 LBS Mfg. item #: AI50
AMEAI50
lease to own for as little as:$128 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$6,375.22
129 |
FREE SHIPPING:AI60 AMERICAN ROTARY INDUSTRIAL 240V 60KVA PAD MOUNT ROTARY PHASE CONVERTER, SHIPPING WEIGHT: 710 LBS Mfg. item #: AI60
AMEAI60
lease to own for as little as:$149 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$7,445.38
129 |
FREE SHIPPING:AI75 AMERICAN ROTARY INDUSTRIAL 240V 75KVA PAD MOUNT ROTARY PHASE CONVERTER, SHIPPING WEIGHT: 779 LBS Mfg. item #: AI75
AMEAI75
lease to own for as little as:$165 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$8,268.58
129 |
FREE SHIPPING:AI100 AMERICAN ROTARY INDUSTRIAL 240V 100KVA OUTDOOR RATED PHASE CONVERTER WITH AUTOLINK, SHIPPING WEIGHT: 1300 LBS Mfg. item #: AI100
AMEAI100
lease to own for as little as:$348 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$17,401.51
129 |
FREE SHIPPING:AI150 AMERICAN ROTARY INDUSTRIAL 240V 150KVA OUTDOOR RATED PHASE CONVERTER WITH AUTOLINK, SHIPPING WEIGHT: 1558 LBS Mfg. item #: AI150
AMEAI150
lease to own for as little as:$456 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$22,818.17
129 |
FREE SHIPPING:AI200 AMERICAN ROTARY INDUSTRIAL 240V 200KVA OUTDOOR RATED PHASE CONVERTER WITH AUTOLINK, SHIPPING WEIGHT: 2600 LBS Mfg. item #: AI200
AMEAI200
lease to own for as little as:$696 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$34,803.03
129 |
FREE SHIPPING:AI300 AMERICAN ROTARY INDUSTRIAL 240V 300KVA OUTDOOR RATED PHASE CONVERTER WITH AUTOLINK, SHIPPING WEIGHT: 3116 LBS Mfg. item #: AI300
AMEAI300
lease to own for as little as:$913 per month!
FREE motor freight to commercial address or terminal pickup in lower 48 states. Residential or Export Orders call 800-458-3687.6
$45,636.34
129 |
Click here to download Installation and Data Sheet
Click here to download Specifications
American Rotary has been making premium rotary phase converters for more than 20 years. American Rotary provides industry leading telephone suport for technical, application, and sixing quesitons. American Rotary stands behind its products with the best warranty in the industry. American Rotary uses premium componests to ensure that its products preform for you. American Rotary is a UL Certified Control Panel Builder, and its rotary phase converters are avaliable UL listed to US and Canadian Saftey Standards. American Rotary has partnered with Baldor Electric one of the worlds largest and most respected manufacturers to supplu its custom engineered idler generators. American Rotary is listed with B and B as well as Better Business Bureau, and is committted to high ethical and privacy standards.
American Rotarys Wisconsin based team is dedicated to techincal support customer service and delivering value to its customers. With in house R and D, engineering tech support and manufacturing, American Rotary delivers what you need. Listed with D and B and with the Better Business Bureau, and is committted to providing you with a great buying experience. American Rotary challenges you to compare our warranties to any other manufacturers American Rotary stands behind its units!
AI Industrial Grade Rotary Phase Converter - The AI Industrial was designed specifically for the demands of industrial and agricutural applications.

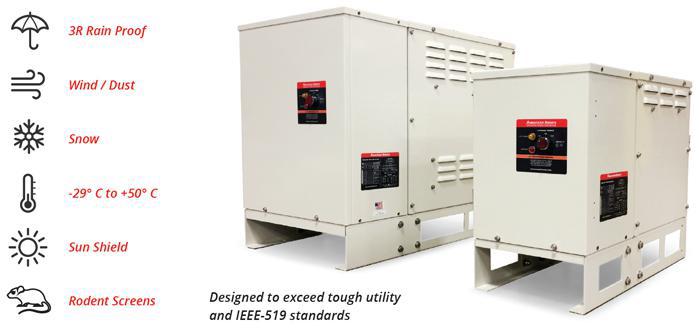

Our AI Industrial digital phase converter is designed with a type 3R enclosure for ultimate protection. AI Industrial can save you thousands of dollars a year over utility and diesel generated power sources.
The AI Industrial offers the following features:
Easy Control Interface - American Rotary's illuminated rotary switch makes it easy to start or stop your unit. The two light indicators are a quick reference on your single phase input and start circuit operation | |
Heavy Duty Mounting Base - American Rotary's heavy duty mounting base is strong and functional. They allow you to easily move the unit with a forklift, mount the device to concrete pad or flooor and keep the unit off the ground and away from any moisture. | |
Fully Enclosed VIT Generator - The American Rotary/Baldor VIT Generator is protected with a ptent pending custom built NEMA 3R enclosure. American Rotary's proprietary design allows for easy plug and play with your three phase equipment. | |
Wash Down Air Filter - Easy to remove and wash down, this filter will protect against dust, dirt and other harmful particles protecting your VIT generator and keeping you runit running at peak effeciences. |
General Specifications | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Model | 20 | 30 | 40 | 50 | 60 | 75 | 100 | 150 | 200 | 300 |
KVA | 10 | 15 | 20 | 25 | 30 | 37.5 | 50 | 75 | 100 | 150 |
Approximate Idle Amps | 2.48 | 3.73 | 4.97 | 6.2 | 7.45 | 9.17 | 12.4 | 18.34 | 248 | 36.68 |
Efficiency | > 98 percent (at power factor of 0.9) | |||||||||
Idel Power Consumption (kW) | 0.6 | 0.90 | 1.2 | 1.5 | 1.8 | 2.1 | 1.5 | 4.2 | 6.0 | 8.4 |
Operating Reliability | MTBF 50,000 | |||||||||
Single Phase Requirements | ||||||||||
Input Voltage | 208 - 250 | |||||||||
Frequecy (Hz) | 50 / 60 | |||||||||
Minimum Wire Size | 6 | 3 | 1 | 1 / O | 2 / O | 4 / O | 1 / O | 4 / O | 1 / O | 4 / O |
Minimum Breaker Size | 60 | 100 | 125 | 150 | 175 | 200 | 150 | 200 | 150 | 200 |
Three Phase Specifications | ||||||||||
Voltage Balance | 0 - 5 percent | |||||||||
Maximum Starting Current | 28amps / 10HP | 42amps / 15HP | 56amp / 20hp | 70amps / 25hp | 84amps / 30hp | 105amps / 37hp | 140amps / 50hp | 210amps / 75hp | 280amps / 100hp | 410amps / 150hp |
Maximum Running Current | 56amps / 20HP | 84amps / 30HP | 112amps / 40hp | 140apms / 50hp | 168amps / 60hp | 210amps / 75hp | 280amps / 100hp | 420amps / 150hp | 560apms / 200hp | 840 amps / 300hp |
Physical Specifications | ||||||||||
Idler Insulation Class | F | |||||||||
Ider RPM | 1750 | |||||||||
Per Unity H x W x D (in) | 28.5 x 20 x 33 | |||||||||
Autolink Panel (in) | 23.5 x 20 x 10 | |||||||||
Panel Style | Nema 3R / Type 3R Indoor | |||||||||
Total Weight (lbs) | 388 | 462 | 554 | 583 | 633 | 689 | 1166 | 1378 | 2332 | 2756 |
We get calls from our customers wondering what the differences are among all the different phase converters on the market. Granted they all do the same basic job of
turning your single-phase power into three-phase power, but the quality of the power and the efficiency isnât always there. With American Rotaryâs industry leading designs and technology, you will
be producing the cleanest and most balanced three-phase on the market and you will be doing it very efficiently and cost effectively as well.
There are a lot of features that set an American Rotary Phase converter apart from the rest. American Rotaryâs team is constantly doing research and development to constantly make sure that our
phase converters are providing our customers with the best alternative three phase solution as well as making sure it is compatible with new equipment. We also take feedback from our customers to
hear on ways the converter would work better for them. Here are just some ways how American Rotary is on the leading edge of phase converter technology.
VIT Generator- American Rotary worked with Baldor directly to design and engineer a custom soft starting idler generator. This idler features Variable Impendence Technology that uses a 1/3 of the
inrush current of a comparable three phase motor of its size. This is a true soft starting feature that will make the phase converter much easier to start on your single-phase utility power. The
idlers are also designed to produce a true three phase sine wave providing your equipment with a true three phase signal. By having a true three phase sine wave, this prevents harmonics from being
in the line that are caused by distorted sine waves. On top of all this, the VIT Generator will run quieter, cooler, and more efficiently than a phase converter that is using a modified three phase
motor as the idler. The custom designed VIT generator will operate at greater than 98 percent efficiency
MicroSmart Controller- The American Rotary Digital Series (AD, ADX, AMP, AI) all feature our patented Digital MicroSmart Controller. This device monitors and controls the voltages across the three legs of power to ensure that clean balanced power is being produce and provided to your equipment. With the having the MicroSmart Controller, the phase converter will produce a three-phase power signal that is at a 5% or greater voltage balance across the three legs compared to standard utility that is typically around 10% balance. This is an ideal feature to have on your equipment, the cleaner the power is that your equipment is being provided, the more efficiently it will run. The more efficiently it runs, the less stress it is under and will last longer. This is an especially important feature to have when running voltage sensitive equipment such as CNC machines, Welders, Compressors, and other computer controls. |
CTR Technology- Featured on the ADX and AI series phase converter the CTR Coil allows higher currents to flow through the phase converter which will produce more torque and still maintain your current and voltage balance. This is an important feature to have when starting high torque or high inertia loads that have a hard start. This can be seen on air compressors, vacuum motors, elevators, and hoists just to name a few. With CTR Technology and allowing the more current to flow, this will help shorten the start time of your equipment which in turn puts less strain on your equipment. |
Expandable Design- With American Rotary phase converters you have the option to expand if your needs change. As time goes on and our businesses grow so does the number of machines required to run your business. With an American Rotary phase converter, we have designed the units so that you can expand your phase converter as your needs change. |
Customer support- One of the most important features that American Rotary has to offer is our industry leading support. During the sizing process one, of our
Application Engineers will help guide you through finding which American Rotary phase converter will work best for your needs. But it doesnât stop there, American Rotary stands behind our products
with the best warranties in the industries. You are able to reach a member of the American Rotary team during our after-hours support should any questions arise. American Rotary is available to our
customers through many different channels; phone, email, social media, and online chat just to name a few.
As you can tell, there are many benefits with choosing American Rotary for your three-phase power needs. These are features that will make for an easy buying process for your phase converter, easy
hook up, easy operation, and more importantly run your equipment safely how it is designed to be ran. Give American Rotary a call to see how these features will benefit you and the operation of
your equipment. American Rotary is always here to help you make your American Dreams your Reality.
