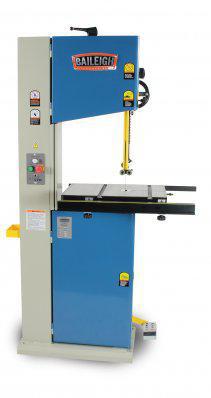

14 inch Wood Working Band Saw WBS-14
1008297
Made in Taiwan
The vertical band saw is a must in any wood working shop and the WBS-14 is the first in the Baileigh Industrial line of industrial wood working saws. This 110
volt 1.5hp bandsaw has a large 13-5/8 inch throat depth and operates on two speeds 2300 or 3250 rpm. A patented blade guide system helps keep the blade perfectly aligned for precise
cuts. A foot brake and quick release blade system round out the running gear of the WBS-14.
The 16 x 20 inch all cast iron table on the WBS-14, has the ability to tilt to 45 degrees. Many accessories such as a heavy duty rip fence and miter gauge are
also included. Contact a Baileigh Industrial representative for more information.
|
Specifications
|
|
Model
|
WBS-14-S
|
|
Dust Collection Port
|
4 inch
|
|
Number of Outlets
|
2
|
|
Table Size (Length)
|
16 inch
|
|
Table Size (Width)
|
20 inch
|
|
Belt/Blade Size
|
112 inch Long x 1/8 inch to 3/4 inch Wide
|
|
Maximum Depth of Cut (Resaw)
|
12 inch
|
|
Max Stock Width
|
13-5/8 inch
|
|
Power
|
110/220V Single Phase(Prewired 110V)
|
|
Length
|
36 inch
|
|
Width
|
24 inch
|
|
Height
|
60 inch
|
|
Horse Power
|
1.5
|
|
Weight (lbs)
|
300
|
specifications subject to change without notice.
