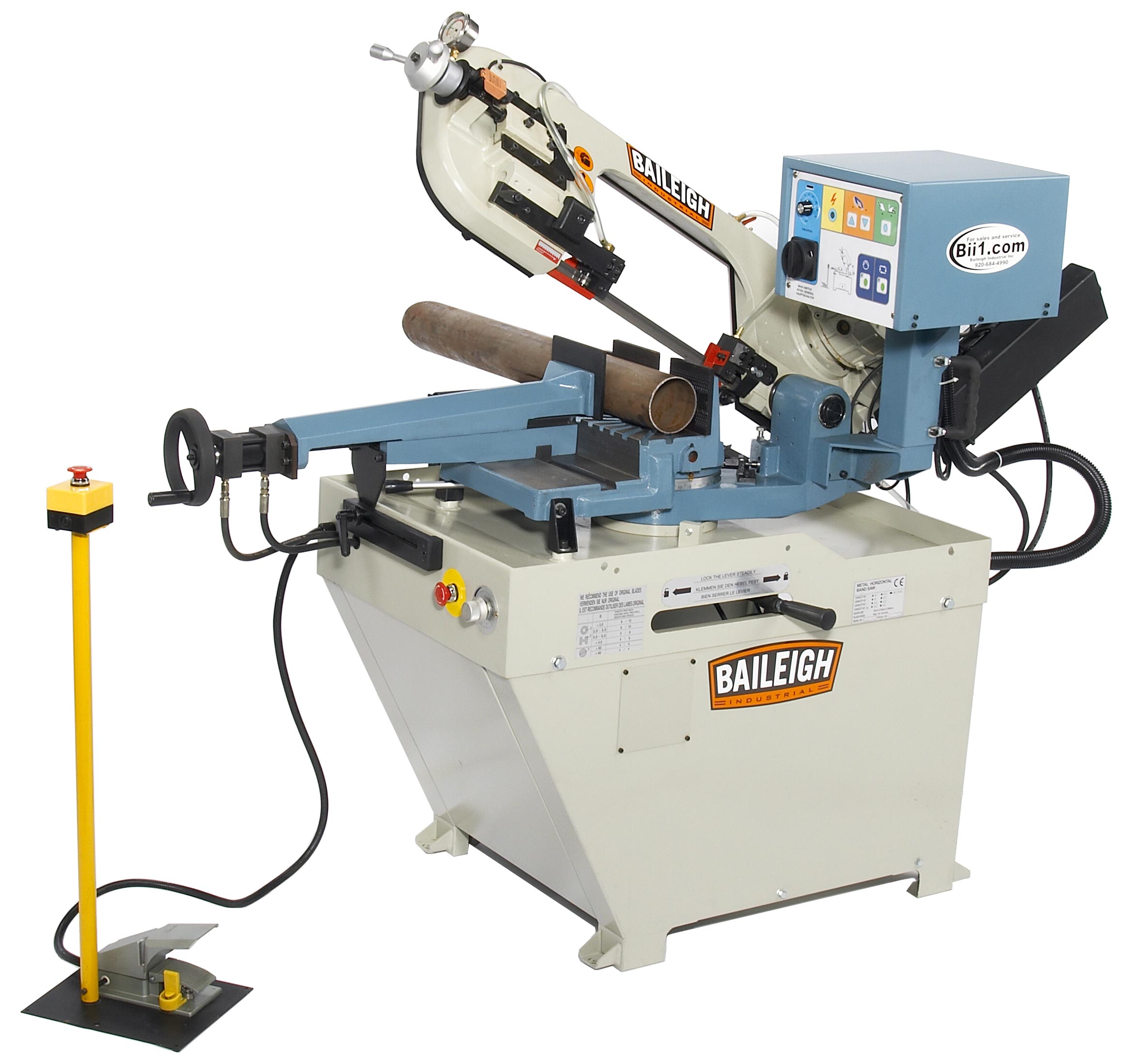

Semi-Auto Bandsaw BS-260SA
Made in Taiwan
Based on the BS-260M the BS-260SA semi-automatic band saw offers more production and faster turnaround times. The reason that a semi-automatic saw is good for
more production runs is that the clamping of the material as well as the raising a lowering of the saw head are automatic and controlled by a foot pedal. This is all controlled by a
industrial grade hydraulic system that runs on 220 Volt Single phase power.
The BS-260SA is a variable speed saw that has an AC inverter to control the speed of the motor. This is big improvement over the old DC driver board set
up. Inverters offer more reliability and longer life.
The gear driven BS-260MSA is a 9 inch Band Saw is the perfect saw for cutting at 90 degrees or miter angles. This saw has a
dual angle head capable of cutting 0-60 degrees (R) and 0-45 (L), making it one of the most versatile saws on the market. Quick releases head lock allows the operator to change the miter angle in
seconds.
Built rock solid the BS-260SA has a full cast iron bow and pivot head and heavy duty reinforced sheet metal base. When combined these features make for an
extremely rigid platform that will ensure the straightest cuts. A coolant system and hydraulic blade break switch are also standard on the BS-260SA
The BS-260SA semi-automatic band saw will give you years of productivity on any condition. For more information on the BS-260SA band saw, contact a Southern
Tool Industrial representative.
Resources Click on a link to download resources.
Horizontal and Vertical Band Saw Catalog
-
|
Specifications
|
|
Return
|
Hydraulic
|
|
Miter Adjustment
|
Dual Swivel Head
|
|
Miter Angle
|
0 - 60 degree, 45 degree L
|
|
Motor
|
High Torque 1.1Kw (AC)
|
|
Motor Hp
|
1.5
|
|
Capacity Round 90 x 45 x 60 x 45L
|
8.93 x 5.9 x 3.54 x 4.33 inch
|
|
Table Height
|
35 inch
|
|
Capacity Rectangular 90 X 45 X 45L
|
10.59 x 4.33 x 7.87 x 4.92 x 6.3 x 4.33 inch
|
|
Capacity Square 90 x 45 x 60 degree
|
8.66 x 5.7 x 3.34 x 4.33 inch
|
|
Blade Guide
|
Carbide x Roller
|
|
Blade Size (H x W x L)
|
1 x .035 x 96.85 inch
|
|
Blade Speed (fpm)
|
66 - 280 Variable
|
|
Descent Control
|
Pressure Assist Hydraulic
|
|
Drive
|
Gear
|
|
Power
|
110 / 220V, 1-phase
|
|
Shipping Weight
|
890 lbs.
|
|
Shipping Dimensions
|
62 x 44 x 63 inch
|
specifications subject to change without notice.
