Birmingham Bench Box and Pan Brake



NU-4816 Birmingham Bench Box and Pan Brake Nu stand
NU-4816-C Box and Pan Optional Stand for NU

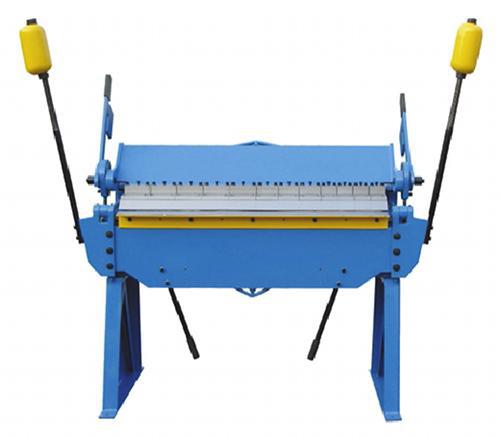

v-412-6c Birmingham Bench Box and Pan Brake

v-812-6c Birmingham Bench Box and Pan Brake

v-412-6 birmingham box and pan brake

v-812-6 birmingham box and pan brake

Standard Equipment

  • NU-4816-C is Bench Type
  • Heavy Duty construction welded frames made from steel plate
  • Heavy counter weights are used to assist lifting the apron
  • with segment bending blade for the bending of box section
Specifications
Model NU-4816-C V-412-6C V-612-6C V-812-6C V-1014-6C
Bending length (in) 48 48 72 96 120
Cap mild steel 16Ga 12Ga 12Ga 12Ga 14Ga
Bending angle 0-135 deg 0-135 deg 0-135 deg 0-135 deg 0-135 deg
Max box depth (in) 4 4 6 6 6
Finger width (in) 2, 3, 4 3, 4, 25 3, 4, 5, 6, 11 2.5, 3, 4, 5, 6, 12 3, 5, 6, 10, 12
N.W. / G.W. (lbs) 297 / 333 1091 / 1268 2337 / 2580 2700 / 3020 3164 / 3540
Packing size (in) 63 x 18 x 27 67 x 30 x 38 100 x 30 x 40 118 x 30 x 40 142 x 30 x 40

Models with -C represent Chinese versions
CW - Brake with counter weight (as shown)
NU-4816 ** MADE IN TAIWAN

Models
NU-4816-C 48 inch x 16 Ga BOX and PAN BRAKE MADE TYPE, MADE IN CHINA
NU-4816-CT 48 inch x 16 Ga BOX and PAN BRAKE MADE TYPE - WITH COUNTER WEIGHT -, MADE IN CHINA
V-412-6C 4 ft X 12 Ga MANUAL BOX and PAN BRAKE FLOOR TYPE, MADE IN CHINA
V-612-6C 6 ft X 12 Ga MANUAL BOX and PAN BRAKE FLOOR TYPE, MADE IN CHINA
V-812-6C 8 ft X 12 Ga MANUAL BOX and PAN BRAKE FLOOR TYPE, MADE IN CHINA
V-1014-6C 10 ft X 14 Ga MANUAL BOX and PAN BRAKE FLOOR TYPE, MADE IN CHINA
NU-4816-C-ST STAND FOR # NU-4816-C



Floor Type Manual Box and Pan Brakes
Model V-412-6 V-612-6 V-812-6 V-816-6
Bending Capacity Bending Length 48 in 72 in 96 in 96 in
Mild Steel 12GA 12Ga 12Ga 16Ga
Stainless Steel 16GA 16Ga 16Ga 20Ga
Bending Angle 0-135 0-135 0-135 0-135
Bend Adjustment 1 in 1 in 1 in 1 in
Min Reverse Bend 5/16 in 5/16 in 5/16 in 5/16 in
Packing Size 71x34x44 97x34x44 123x34x46 123x34x44
Net Weight (lbs) 2,300 2,800 3,600 3,000
Models
V-416-6 4ft X 16Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-412-6 4ft X 12Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-616-6 6ft X 16Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-612-6 6ft X 12Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-816-6 8ft X 16Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-814-6 8ft X 14Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-812-6 8ft X 12Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN



Floor Type Manual Box and Pan Brakes
Model V-1014-6 V-1016-6 V-1218-6
Bending Capacity Bending Length 120 in 120 in 144 in
Mild Steel 14Ga 16Ga 18Ga
Stainless Steel 18Ga 20Ga 22Ga
Bending Angle 0-135 0-135 0-135
Bend Adjustment 1 in 1 in 1 in
Min Reverse Bend 5/16 in 5/16 in 5/16 in
Packing Size 146x34x44 146x34x44 168x34x47
Net Weight (lbs) 4,000 3,800 6,000
Models
V-1016-6 10ft X 16Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-1014-6 10ft X 14Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-1218-6 12ft X 18Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN
V-4020-6 13ft X 20Ga  - MANUAL BOX and PAN BRAKE FLOOR TYPE ** MADE IN TAIWAN



Standard Finger Assortment, Width and number of Fingers
Size 410-6/412-6 612-6/616-6 810-6/812-6/816-6 1010-6/1014-6/0116-6 1216-6/1218-6 4018-6/4020-6
3 in 3 6 6 6 6 6
2 in 2 3 4 4 6 6
5 in 5 6 10 10 10 10
6 in 1 2   6 9 11
Total 11 17 22 26 26 33



Optional Equipment

  • Radius nose bar
  • Insert bar
  • 24 in manual back gauge with slide and lock

NU-4816-C
48 X 16 GA BOX & PAN BRAKE MADE TYP
CALL 800-458-3687 X 1 OR EMAIL FOR CURRENT PRICE & AVAILABILITY
Mfg. item #: NU-4816-C
