DAKE Dura Press 3 Phase

MODEL: FORCE 40 , 40-TON ELECTRICALLY OPERATED H-FRAME, 220-3 PH  Three Phase Dura-Presses Model Force 70 70 Ton Capacity  Three Phase Dura-Presses Model Force 100 100 Ton Capacity  Three Phase Dura-Presses Model Force 150 150 Ton Capacity  Three Phase Dura-Presses Model Force 200 200 Ton Capacity
Force 40 Force 70 Force 100 Force 150 Force 200

Click an above image to enlarge

dake-make-in-the-usa-logo

DURA PRESSES 3Ph
972003 Force 40 40-ton Electrically Operated H-frame, 220/440-3 ph
972004 Force 70 70-ton Electrically Operated H-frame, 220/440-3 ph
972005 Force 100 100-ton Electrically Operated H-frame, 220/440-3 ph
972016-2 Force 150 150-ton Electrically Operated H-frame, 220/440-3 ph
972017-2 Force 200 200-ton Electrically Operated H-frame, 220/440-3 ph

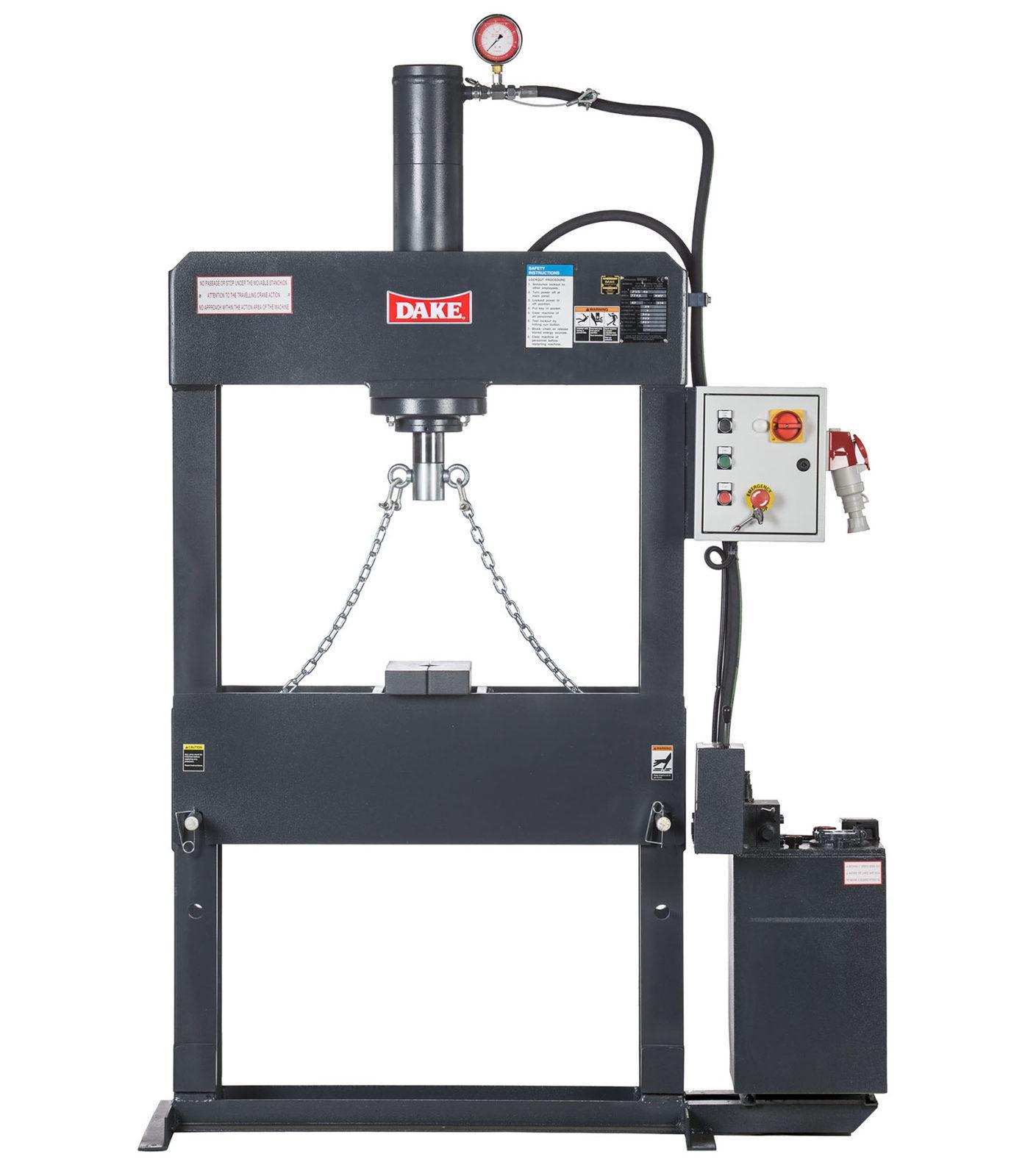

 Three Phase Dura-Presses Model Force 40 40 Ton Capacity

Three Phase Dura-Presses Model Force 40  40 Ton Capacity

40 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.

Features:

  • Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
  • Welded heavy steel plate frame for greater rigidity
  • All electrical controls are low voltage (24V)
  • Preset and factory-sealed relief valve to prevent exceeding pressure capacity
  • Ram has lifting eyes that attach a chain to hydraulically move the table
  • 2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow
  • Smooth, responsive control valve
  • Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made

Standarad equipment

  • Frame
  • 2 Steel Table Plates
  • Lifting Chain
  • Workhead
  • Pressure Gauge
  • Safety Relief Valve
Specifications
Model Number Force 40
Part Number 972003
Capacity (tons) 40
Operation Electric
Horsepower 2
Voltage 220V 3-Phase
Width Between Uprights (in) 35
Width Between Table Channels (in) 8
Minimum Ram To Table (in) 7
Maximum Ram To Table (in) 32
Ram Travel (in) 19
Screw Travel (in) n/a
Horizontal Workhead Travel (in) n/a
Footprint (in) 63 x 37
Height (in) 88
Weight (lbs) 1,210
Base (in) 63 x 37
Ram Advance Speed (in/min) 68
Pressing Speed (in/min) 7
RPM n/a
Air Pressure n/a



 Three Phase Dura-Presses Model Force 70 70 Ton Capacity

 Three Phase Dura-Presses Model Force 70  70 Ton Capacity

70 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.



Features:

  • Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
  • Welded heavy steel plate frame for greater rigidity
  • All electrical controls are low voltage (24V)
  • Preset and factory-sealed relief valve to prevent exceeding pressure capacity
  • Ram has lifting eyes that attach a chain to hydraulically move the table
  • 2 HP submerged motor drives two centrifugal pumps for quiet, steady oil flow
  • Smooth, responsive control valve
  • Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made



Standarad equipment



  • Frame
  • 2 Steel Table Plates
  • Lifting Chain
  • Workhead
  • Pressure Gauge
  • Safety Relief Valve
Specifications
Model Number Force 70
Part Number 972004
Capacity (tons) 70
Operation Electric
Horsepower 2
Voltage 220V 3-Phase
Width Between Uprights (in) 35
Width Between Table Channels (in) 8
Minimum Ram To Table (in) 7-1/4
Maximum Ram To Table (in) 32
Ram Travel (in) 19
Screw Travel (in) n/a
Horizontal Workhead Travel (in) n/a
Footprint (in) 63 x 27
Height (in) 88
Weight (lbs) 1595
Base (in) 63 x 27
Ram Advance Speed (in/min) 42
Pressing Speed (in/min) 4
RPM n/a
Air Pressure n/a




 Three Phase Dura-Presses Model Force 100 100 Ton Capacity

 Three Phase Dura-Presses Model Force 100  100 Ton Capacity

100 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.



Features:

  • Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
  • Welded heavy steel plate frame for greater rigidity
  • 3 HP submerged motor drives 3 centrifugal pumps for quiet, steady oil flow
  • All electrical controls are low voltage (24V)
  • Preset and factory-sealed relief valve to prevent exceeding pressure capacity
  • Ram has lifting eyes that attach a chain to hydraulically move the table
  • Smooth, responsive control valve
  • Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made



Standarad equipment



  • Frame
  • 2 Steel Table Plates
  • Lifting Chain
  • Workhead
  • Pressure Gauge
  • Safety Relief Valve
Specifications
Model Number Force 100
Part Number 972005-2
Capacity (tons) 100
Operation Electric
Horsepower 3
Voltage 220V 3-Phase
Width Between Uprights (in) 41
Width Between Table Channels (in) 10
Minimum Ram To Table (in) 7-7/8
Maximum Ram To Table (in) 35
Ram Travel (in) 19
Screw Travel (in) n/a
Horizontal Workhead Travel (in) n/a
Footprint (in) 75 x 33
Height (in) 90
Weight (lbs) 2,950
Base (in) 75 x 33
Ram Advance Speed (in/min) 52
Pressing Speed (in/min) 3
RPM n/a
Air Pressure n/a

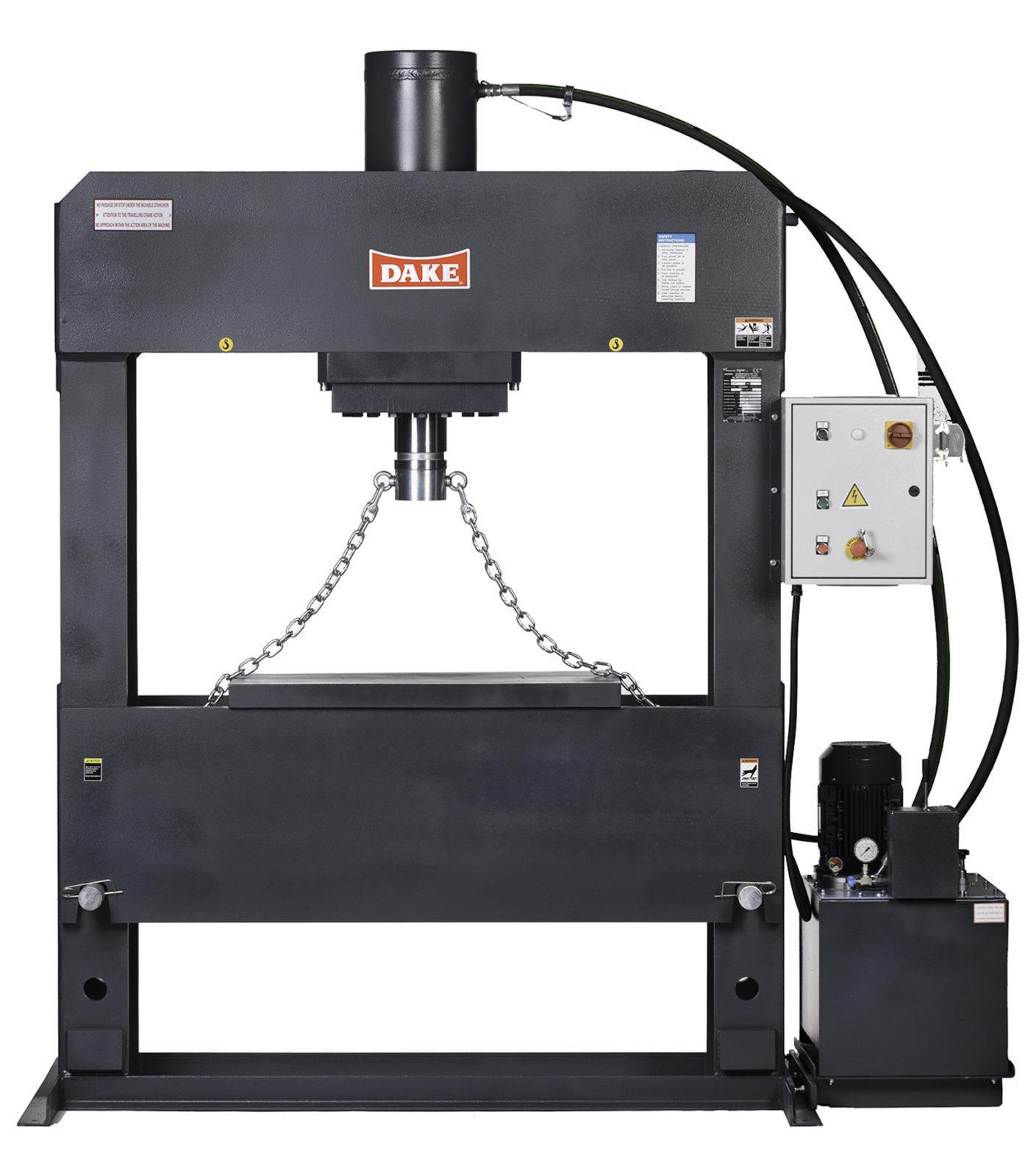

 Three Phase Dura-Presses Model Force 150 150 Ton Capacity

 Three Phase Dura-Presses Model Force 150  150 Ton Capacity

150 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.



Features:

  • Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal.
  • Welded heavy steel plate frame for greater rigidity
  • 4 HP submerged motor drives 3 centrifugal pumps for quiet, steady oil flow
  • All electrical controls are low voltage (24V)
  • Preset and factory-sealed relief valve to prevent exceeding pressure capacity
  • Ram has lifting eyes that attach a chain to hydraulically move the table
  • Smooth, responsive control valve
  • Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made



Standarad equipment

  • Frame
  • 2 Steel Table Plates
  • Lifting Chain
  • Workhead
  • Pressure Gauge
  • Safety Relief Valve
Specifications
Model Number Force 150
Part Number 972016-2
Capacity (tons) 150
Operation Electric
Horsepower 4
Voltage 220V 3-Phase
Width Between Uprights (in) 59
Width Between Table Channels (in) 14
Minimum Ram To Table (in) 14
Maximum Ram To Table (in) 35
Ram Travel (in) 19
Screw Travel (in) n/a
Horizontal Workhead Travel (in) n/a
Footprint (in) 98 x 47
Height (in) 106
Weight (lbs) 5,711
Base (in) 98 x 47
Ram Advance Speed (in/min) 49
Pressing Speed (in/min) 7
RPM n/a
Air Pressure n/a




 Three Phase Dura-Presses Model Force 200 200 Ton Capacity

 Three Phase Dura-Presses Model Force 200  200 Ton Capacity

200 ton double acting hydraulic press for pulling and pressing applications. Adjustable table, pressure preset and lock out so max tonnage can never be exceeded, and rapid ram advance. Joystick operation makes this machine easy to operate. A fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.



Features:



  • Double acting cylinder design with 5-part oil seals for smooth operation and a tight seal
  • Welded heavy steel plate frame for greater rigidity
  • 4 HP submerged motor drives three centrifugal pumps for quiet, steady oil flow
  • All electrical controls are low voltage (24V)
  • Preset and factory-sealed relief valve to prevent exceeding pressure capacity
  • Ram has lifting eyes that attach a chain to hydraulically move the table
  • Smooth, responsive control valve
  • Rapid advance of the ram to the workpiece – speed shifts automatically when contact is made

Standarad equipment

  • Frame
  • 2 Steel Table Plates
  • Lifting Chain
  • Workhead
  • Pressure Gauge
  • Safety Relief Valve
Specifications
Model Number Force 200
Part Number 972017-2
Capacity (tons) 200
Operation Electric
Horsepower 4
Voltage 220V 3-Phase
Width Between Uprights (in) 59
Width Between Table Channels (in) 14
Minimum Ram To Table (in) 9
Maximum Ram To Table (in) 35
Ram Travel (in) 19
Screw Travel (in) n/a
Horizontal Workhead Travel (in) n/a
Footprint (in) 103 x 48
Height (in) 114
Weight (lbs) 8,467
Base (in) 103 x 48
Ram Advance Speed (in/min) 47
Pressing Speed (in/min) 7
RPM n/a
Air Pressure n/a




972003
MODEL: FORCE 40 , 40-TON ELECTRICALLY OPERATED H-FRAME, 220-3 PH
Mfg. item #: 972003
DAKE972003
lease to own for as little as:$211 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$10,571.75

86
972004
MODEL: FORCE 70 , 70-TON ELECTRICALLY OPERATED H-FRAME, 220-3 PH
Mfg. item #: 972004
DAKE972004
lease to own for as little as:$264 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$13,184.35

86
972005
MODEL: FORCE 100 , 100-TON ELECTRICALLY OPERATED H-FRAME, 220-3 PH
Mfg. item #: 972005
DAKE972005
lease to own for as little as:$315 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$15,727.37

86
972016-2
MODEL: FORCE 150 , 150-TON ELECTRICALLY OPERATED H-FRAME, 220-3 PH
Mfg. item #: 972016-2
DAKE972016-2
lease to own for as little as:$764 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$38,217.74

86
972017-2
200-TON ELECTRICALLY OPERATED H-FRAME, 220-3 PH
Mfg. item #: 972017-2
DAKE972017-2
lease to own for as little as:$1,067 per month!
Call for freight quote on this item or we will confirm freight charges before shipping.1
$53,328.84

86
