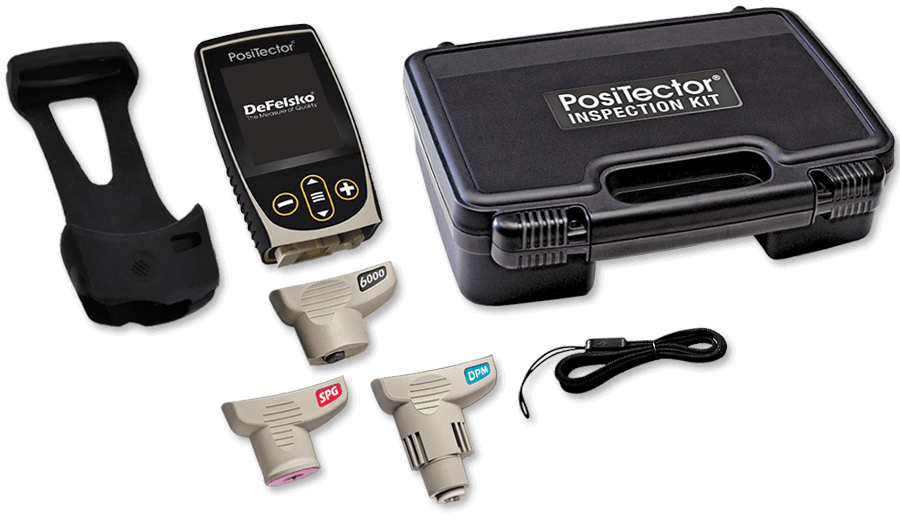

PosiTector Inspection Kits contain a PosiTector gage body (Standard or Advanced) and 3 probes â coating thickness,
environmental and surface profile, as well as, accessories in a convenient hard shell carrying case.
Available with your choice of Standard or Advanced Gage features (see Feature Comparison Chart or click individual order code below). Each PosiTector body accepts the
PosiTector 6000, DPM, and SPG probe included in the kit easily converting from a coating thickness gage to a dew point meter or surface profile gage. Select from 8 pre-configured kits
or build your own custom kit.
Build your own custom kit - add additional probes such as the PosiTector 200 (ultrasonic coating thickness), UTG
(ultrasonic wall thickness) or RTR (replica tape reader).
|
Inspection Kit
(Order Code)
|
Coating Thickness
Probe
|
Surface Profile
Probe
|
Environmental
Probe
|
PosiTector
Body
|
|
KITF1
|
6000-F
(ferrous only)
|
PRBSPG
|
PRBDPM
|
Standard
|
|
KITFS1
|
6000-FS
(ferrous only, with cable)
|
|
KITFN1
|
6000-FN
(ferrous/non-ferrous)
|
|
KITFNS1
|
6000-FNS
(ferrous/non-ferrous with cable)
|
|
KITF3
|
6000-F
(ferrous only)
|
PRBSPG
|
PRBDPM
|
Advanced
|
|
KITFS3
|
6000-FS
(ferrous only, with cable)
|
|
KITFN3
|
6000-FN
(ferrous/non-ferrous)
|
|
KITFNS3
|
6000-FNS
(ferrous/non-ferrous with cable)
|
|
Kits come complete with a gage body (Standard or Advanced), coating thickness probe (user selected), environmental probe, surface profile probe,
precision plastic shims, glass zero plate and metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, 3 instruction manuals, hard shell case, protective lens
shield, 3 Long Form Certificates of Calibration traceable to NIST or PTB, USB cable and 2 year warranty on gage body and probes
Standard and Advanced - Feature Comparison
Inspection Kits are available with your choice of Standard or Advanced Gage features.
|
PosiTector SPG Surface Profile Probe specific features
|
Standard (1)
|
Advanced (3)
|
All features shown on PosiTector SPG overview page
|
|
|
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
|
|
|
Hi-Lo limits audibly and visibly alerts when measurements exceed your specified limits
|
|
|
Reading Storage Capacity
|
250 in
one group
|
100,000 in up to
1000 groups
|
SmartBatch allows entry of user-defined parameters and criteria to comply with various standards and test methods
|
|
|
|
PosiTector DPM Environmental probe specific features
|
Standard (1)
|
Advanced (3)
|
All features shown on PosiTector DPM overview page
|
|
|
Dataset Storage Capacity (1 dataset = RH, Ta, Ts, Td, Ts,Td) Stored readings can be viewed or downloaded
|
2,500 in
one group
|
20,000 in up to
1000 groups
|
Auto Log Mode automatically records all 5 parameters at user selected time intervals. Runs unattended on batteries or continuously via USB.
|
|
|
Unattended battery life (using 3 AAA alkaline batteries)
|
up to 50 hours
|
up to 8 months
|
Stream datasets via USB or Bluetooth wireless at specified Auto Log intervals. Ideal for remote monitoring.
|
|
|
Trend Charts graph readings in real-time
|
|
|
User defined limits for all parameters with visible and audible warnings
|
|
|
|
PosiTector 6000 Coating Thickness probe specific features
|
Standard (1)
|
Advanced (3)
|
All features shown on PosiTector 6000 overview page
|
|
|
Statistics - Instantly calculate average, standard deviation, min/max thickness and number of readings while measuring
|
|
|
FAST mode faster measurement speed for quick inspection
|
|
|
SCAN mode take continuous readings without lifting the probe
|
|
|
Hi-Lo Limits audibly and visibly alerts when measurements exceed your specified limits
|
|
|
Reading Storage Capacity
|
250 in
one group
|
100,000 in up to
1000 groups
|
SSPC PA2 feature set determines if film thickness over a large area conforms to user-specified min/max levels
|
|
|
PSPC 90/10 feature determines if a coating system complies with an IMO performance standard for protective coatings
|
|
|
Multiple stored calibration adjustments for measuring on a variety of substrate conditions
|
|
|
Each PosiTector body accepts the 6000, DPM, and SPG
probes included in the kit easily converting from a coating thickness gage to a dew point meter or surface profile gage. Select from 8 pre-configured kits or
build your own custom kit.
Build your own custom kit - add additional probes such as the PosiTector 200 (ultrasonic coating thickness), UTG
(ultrasonic wall thickness) or RTR (replica tape reader).
Kits come complete with a gage body (Standard or Advanced), coating thickness probe(user selected), environmental probe, surface profile probe, precision plastic
shims, glass zero plate and metal shim, protective rubber holster with belt clip, wrist strap, 3 AAA alkaline batteries, 3 instruction manuals, hard shell case, protective lens shield, 3 Long Form
Certificates of Calibration traceable to NIST, USB cable and 2 year warranty on gage body and probes.
Case Size: 30 cm (l) x 25 cm (w) x 10 cm (d), 12 in (l) x 10 in (w) x 4 in (d)
Weight: 1.3 kg (2.8 lbs.)
Probe Ordering Guide:
F - for ferrous metals (steel and cast iron)
N - for non-ferrous metals (aluminum, copper, titanium, etc.)
FN - for all metal substrates - Automatically recognizes the substrate and takes a measurement
|
Probe Model
|
Substrates
|
Probe Style
|
Measuring Range
|
|
F
|
ferrous
|
removable built-in
|
0 - 60 mils (0 - 1500 um)
|
|
FS
|
ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FXSXtreme
|
ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FRS
|
ferrous
|
90 degree regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
F0S
|
ferrous
|
0 degree microprobe
|
0 - 45 mils (0 - 1150 um)
|
|
F45S
|
ferrous
|
45 degree microprobe
|
0 - 45 mils (0 - 1150 um)
|
|
F90S
|
ferrous
|
90 degree microprobe
|
0 - 45 mils (0 - 1150 um)
|
|
FT
|
ferrous
|
removable built-in
|
0 - 250 mils (0 - 6 mm)
|
|
FTS
|
ferrous
|
high-range cabled
|
0 - 250 mils (0 - 6 mm)
|
|
FKS
|
ferrous
|
high-range cabled
|
0 - 500 mils (0 - 13 mm)
|
|
FHXS Xtreme
|
ferrous
|
high-range cabled
|
0 - 400 mils (0 - 10000 um)
|
|
FLS
|
ferrous
|
high-range cabled
|
0 - 1.5 inches (0 - 38 mm)
|
|
N
|
non-ferrous
|
removable built-in
|
0 - 60 mils (0 - 1500 um)
|
|
NS
|
non-ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
NRS
|
non-ferrous
|
90 degree regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
NAS
|
non-ferrous
|
regular cabled
|
0 - 25 mils (0 - 625 um)
|
|
N0S
|
non-ferrous
|
0 degree microprobe
|
0 - 25 mils (0 - 625 um)
|
|
N45S
|
non-ferrous
|
45 degree microprobe
|
0 - 25 mils (0 - 625 um)
|
|
N90S
|
non-ferrous
|
90 degree microprobe
|
0 - 25 mils (0 - 625 um)
|
|
NKS
|
non-ferrous
|
high-range cabled
|
0 - 500 mils (0 - 13 mm)
|
|
FN
|
ferrous / non-ferrous
|
removable built-in
|
0 - 60 mils (0 - 1500 um)
|
|
FNS
|
ferrous / non-ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FNRS
|
ferrous / non-ferrous
|
90 degree regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FNDS (duplex)
|
ferrous / non-ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FNTS
|
ferrous / non-ferrous
|
high-range cabled
|
0 - 250 mils (0 - 6 mm)
|
|
FNGS
|
ferrous / non-ferrous
|
high-range cabled
|
0 - 2.5 inches (0 - 63.5 mm)
|
Probe Details
|
Removable Built-in probes
(F, N, FN, FT)
Ideal for one-handed operation.
|
|
|
|
|
|
Removable
Built-in Probe
|
Probe Model:
|
F
|
N
|
FN
|
FT
|
|
|
|
Range:
|
0 - 60 mils
|
0 -250 mils
|
|
0 - 1500 um
|
0 - 6 mm
|
|
Accuracy*:
|
+ / - (0.05 mils + 1 percent) 0 - 2 mils
+ / - (0.1 mils + 1 percent) > 2 mils
|
+ / - (0.5 mils + 1 percent) 0 - 100 mils
+ / - (0.5 mil + 3 percent) > 100 mils
|
+ / - (1 um + 1 percent)
0 - 50 um
+ / - (2 um + 1 percent)
> 50 um
|
+ / - (0.01 mm + 1 percent)
0 - 2.5 mm
+ / - (0.01 mm + 3 percent)
> 2.5 mm
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
Separate Regular Probes
(FS, NS, FNS, NAS, FTS)
These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.
|
|
|
Regular
|
Probe Model:
|
FS
|
NS
|
FNS
|
NAS
|
FTS
|
|
|
|
Range:
|
0 - 60 mils
|
0 -25 mils
|
0 -250 mils
|
|
0 - 1500 um
|
0 - 625 um
|
0 - 6 mm
|
|
Accuracy*:
|
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mils + 1%) > 2 mils
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (0.5 mils + 1%) 0 - 100 mils
+ (0.5 mil + 3%) > 100 mils
|
+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
+ (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
|
|
*Accuraci
es are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
FXS Xtreme
Uniquely designed for rugged applications. The FXS Xtreme probe with zirconia-toughened alumina wear face is ideal for rough steel surfaces.
Enhanced measuring speed of 50+ readings per minute makes it ideal for measuring large, rough surfaces quickly. Scan mode increases measurement rate to over
100 readings per minute (PosiTector Advanced only).
Compatible with PosiTector bodies with serial numbers greater than 700,000.
|
|
FXS Xtreme
|
|
Range:
|
0 - 1500 um
|
|
0 - 60 mils
|
|
Accuracy*:
|
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mils + 1%) > 2 mils
|
+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
|
Separate 90 degree Regular Probes
(FRS, NRS, FNRS)
Right angle probe for measuring within areas of low headroom.
These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.
|
|
90 Regular
|
Probe Model:
|
FRS
|
NRS
|
FNRS
|
|
|
|
Range:
|
0 - 60 mils
|
|
0 - 1500 um
|
|
Accuracy*:
|
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mils + 1%) > 2 mils
|
+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
Separate 0 degree Microprobes
(F0S, N0S)
With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to
edges.
|
|
The straight F0S and N0S Microprobes have a quick release adapter that makes them constant pressure probes for alignment on
small, flat or curved parts. This adapter is held in place by a spring. If the sleeve is not required, simply pull it off the probe.
|
|
|
|
|
0 Microprobe
|
Probe Model:
|
F0S
|
N0S
|
|
|
|
Range:
|
0 - 45 mils
|
0 - 25 mils
|
|
0 - 1150 um
|
0 - 625 um
|
|
Accuracy*:
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
Separate 45 degree Microprobes
(F45S, N45S)
With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to
edges.
|
|
|
|
|
45 Microprobe
|
Probe Model:
|
F45S
|
N45S
|
|
|
|
Range:
|
0 - 45 mils
|
0 - 25 mils
|
|
0 - 1150 um
|
0 - 625 um
|
|
Accuracy*:
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
Separate 90 degree Microprobes
(F90S, N90S)
Right angle probe for measuring within areas of low headroom.
With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to
edges.
|
|
|
|
|
90 Microprobe
|
Probe Model:
|
N90S
|
|
|
|
Range:
|
0 - 45 mils
|
0 - 25 mils
|
|
0 - 1150 um
|
0 - 625 um
|
|
Accuracy*:
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
High-Range Probes
(FT, FTS, FNTS, FKS, NKS)
Ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more.
|
|
|
|
|
High-Range
|
Probe Model:
|
FT
|
FTS
|
FNTS
|
FKS
|
NKS
|
|
|
|
|
|
Range:
|
0 -250 mils
|
0 -500 mils
|
|
0 - 6 mm
|
0 - 13 mm
|
|
Accuracy*:
|
+ (0.5 mils + 1%) 0 - 100 mils
+ (0.5 mil + 3%) > 100 mils
|
+ (1 mils + 3%)
0 - 500 mils
+ (0.02 mm + 3%)
0 - 13 mm
|
|
+ (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
|
|
FT
|
FTS
|
FNTS,FKS,NKS
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
FHXS Xtreme Measures non-conductive coatings on steel substrates.
FHXS Xtreme probe with Alumina wear face and braided cable for hot or rough surfaces. Hot surfaces up to 250ÃÆââ¬Å¡Ãâð C (500ÃÆââ¬Å¡Ãâð F).
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
|
|
|
|
|
FHXS Xtreme
|
|
Range:
|
0 - 10,000 um
|
|
0 - 400 mils
|
|
Accuracy*:
|
+ (0.1 mils + 3%)
|
|
+ (2 um + 3%)
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
FLS
Measures intumescent paint and other thick protective coatings on steel.
-
Measures up to 38 mm (1.5 inches)
-
Braided stainless steel cable - kink-proof, wear and cut resistant
-
Includes hard shell case and 19 mm (750 mil) shim
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
|
|
|
|
|
FLS
|
|
Probe Weight: 0.7 kg (1.5 lbs)
|
Range:
|
0 - 38 mm
|
|
0 - 1.5 inches
|
|
Accuracy*:
|
+ (0.01 in. + 3%)
|
|
+ (0.2 mm + 3%)
|
|
Minimum Surface Area:
|
3.25 x 3.25 in. (83 x 83 mm)
|
|
Minimum Substrate Thickness:
|
0.1 in. (2.5 mm)
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
FNGS
Measures very thick coatings on ALL metals. Ideal for measuring ship hull coatings and thick intumescent paints.
-
Measures up to 63.5 mm (2.5 inches)
-
Measures non-conductive coatings on both ferrous and non-ferrous metal substrates
-
Braided stainless steel cable - kink-proof, wear and cut resistant
-
Long-lasting, low wear probe face to facilitate scanning of large surfaces
-
Includes a handle for easy one-handed operation
-
Includes a set of traceable coating thickness standards
-
Includes instruction card
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector
SmartLink.
|
|
|
|
|
FNGS
|
|
Probe Weight: 1.8 lbs / 0.8 kg
|
Range:
|
0 - 63.5 mm
0 - 2.5 inches
|
|
Accuracy*:
|
+ (0.01 in. + 3%)
+ (0.2 mm + 3%)
|
|
Minimum Surface
Area:
|
10 x 10 in. (254 x 254 mm)
|
Minimum Substrate
Thickness:
|
0.2 in. (5 mm)
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
Select a Probe (200 B, 200 C or 200 D)
|
*Range limits apply to polymer based coatings only. D probe polyurea range is 50 to 5000 micron (2 to 200 mils)
**For multiple layer applications only. Dependent on material to be tested
|
|
The PosiTector DPM consists of a body (Standard or Advanced) and a probe (built-in or separate).
Select Probe Style (Built-in or Separate)
Built-in Probe
-
Includes built-in air temperature/humidity sensor and thermocouple surface temperature sensor
Separate Probe
-
Includes built-in air temperature/humidity sensor and K-type connector
-
Magnetic surface temperature sensor with armored cable and locking device to prevent accidental disconnection from the instrument during unattended operation
-
Includes magnetic tab to attach the gage body onto steel structures
-

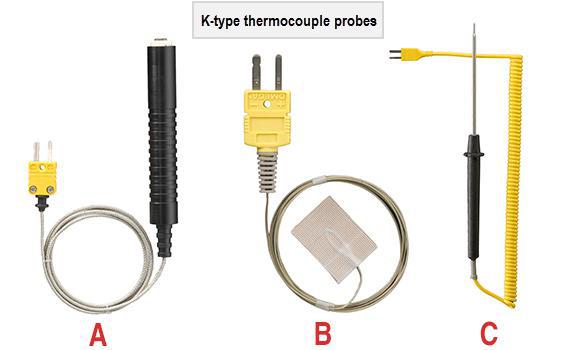

Easily converts to accept other optional K-type probes including:
A) Hand-held Surface Temperature Probe for spot checking hard-to-reach surfaces
B) Self-adhering Surface Temperature Probe sticks to solid materials including aluminum, wood, concrete, etc. Ideal
for unattended monitoring.
C) Liquid Temperature Probe general purpose probe with stainless steel shaft
PosiTector Inspection Kits contain a PosiTector gage body (Standard or Advanced) and 3 probes - coating thickness, environmental and surface profile, as
well as, accessories in a convenient hard shell carrying case.
Available with your choice of Standard or Advanced Gage features (see Feature Comparison Chart or click individual order code below). Each PosiTector body accepts the PosiTector 6000, DPM, and
SPG probe included in the kit easily converting from a coating thickness gage to a dew point meter or surface profile gage. Select from 8 pre-configured kits (build your own - custom kits
also available).
All Inspection Kits come with 3 Quick Guides which summerize the basic functions of each probe. Full instruction manuals provide all the information covered in the quick guide and
more. Both the Quick and Full versions can be downloaded below.
