Coating Thickness Gages for ALL Metal Substrates
All Gages Feature:
Simple
-
Fast measurement speed - 60+ readings per minute. Enhanced FAST mode - 90+ readings per minute for quick inspection.
-
Ready to measure - no adjustment required for most applications
-
NEW Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
-
NEW On-gage help explains menu items at the touch of a button
-
Flashing display - ideal in a noisy environment
-
RESET feature instantly restores factory settings
Durable
-
NEW Weatherproof, dustproof, and water-resistant - IP65-rated enclosure
-
NEW Ergonomic design with durable rubberized grip
-
Wear-resistant probe tip
-
Shock-absorbing, protective rubber holster for added impact resistance
-
Two year warranty on gage body AND probe
Accurate
-
Certificate of Calibration showing traceability to NIST or PTB included
-
Built-in temperature compensation ensures measurement accuracy
-
Hi-RES mode increases displayed resolution for precision applications
-
Conforms to national and international standards including ISO and ASTM
Versatile
-
PosiTector body accepts all PosiTector 6000, 200, DPM, IRT, RTR, SPG, SST, SHD,
BHI, and UTG probes easily converting from a coating thickness gage to a dew point meter, surface profile gage, soluble salt tester, ultrasonic wall thickness gage, or
hardness tester
-
Multiple Calibration adjustment options including 1 point, 2 point, and ISO 19840 correction factors
-
Selectable display languages
-
NEW Auto rotating display with Flip Lock
-
Extended cables available (up to 75 m/250 ft) for underwater or remote measuring
-
Mils/Microns/mm switchable
Powerful
-
Statistics mode continually displays/updates average, standard deviation, min/max and number of readings while measuring
-
NEW Screen Capture - save 100 screen images for record keeping and review
-
HiLo alarm audibly and visibly alerts when measurements exceed user-specified limits
-
NEW Instant-on feature quickly powers up the gage if recently powered down
-
NEW Up to 30 percent longer battery life
-
USB port for fast, simple connection to a PC and to supply continuous power. USB cable included.
-
Every stored measurement is date and time stamped
-
Software Updates via web keep your gage current
-
Software Solutions for viewing, analyzing and reporting data
Step 1: Select a Positector body (Standard or Advanced features)
Standard Models
Includes all features shown on at a glance tab plus...
NEW Storage of 1,000 readings per probe - stored readings can be viewed or downloaded
|
|
Advanced Models
Includes all features shown on the at a glance page plus...
-
NEW Storage of 250,000 readings in up to 1,000 batches and sub-batches
- Live graphing of measurement data
-
NEW Prompted Batch Mode - create pre-defined batches with on-screen text and image prompts for each reading
- 3 Scan Modes - increase measurement speed to 180 + readings per minute
-
Normal - take continuous readings without lifting the probe
-
Statistics - take continuous readings and record average, standard deviation, min/max thickness and number of readings while scanning
-
Limited Count Average - take continuous readings up to a user-specified count. The gage displays and records the average of the readings.
-
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
- Multiple stored calibration adjustments for measuring on a variety of substrate conditions
-
NEW Calibration Adjustment Reporting feature documents calibration adjustments into PosiSoft software reports
-
NEW SSPC-PA 2, ISO 19840, and IMO PSPC 90/10 modes help users
comply with standards by prompting for min/max specifications, displaying the necessary readings, and automatically calculating statistics with a pass/fail result
-
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
-
Bluetooth 4.0 Technology for data transfer to a mobile device running the PosiTector App or optional
portable printer. BLE API available for integration into third-party software
-
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication protocols
-
NEW Connect a Bluetooth barcode scanner or keyboard to instantly annotate readings and batches
|
NEW! Positector Smartlink Compatible
- Wirelessly connect PosiTector 6000 probes to your smart device
- Turns your cell phone or tablet into a virtual PosiTector gage
- Create and share professional PDF reports quickly and easily
- Includes free mobile app
|
|
Step 2: Select a probe
Select from a variety of measurement ranges and probe styles to suit your application. All PosiTector bodies accept all probes.
For probe selection, visit our Probe Details tab

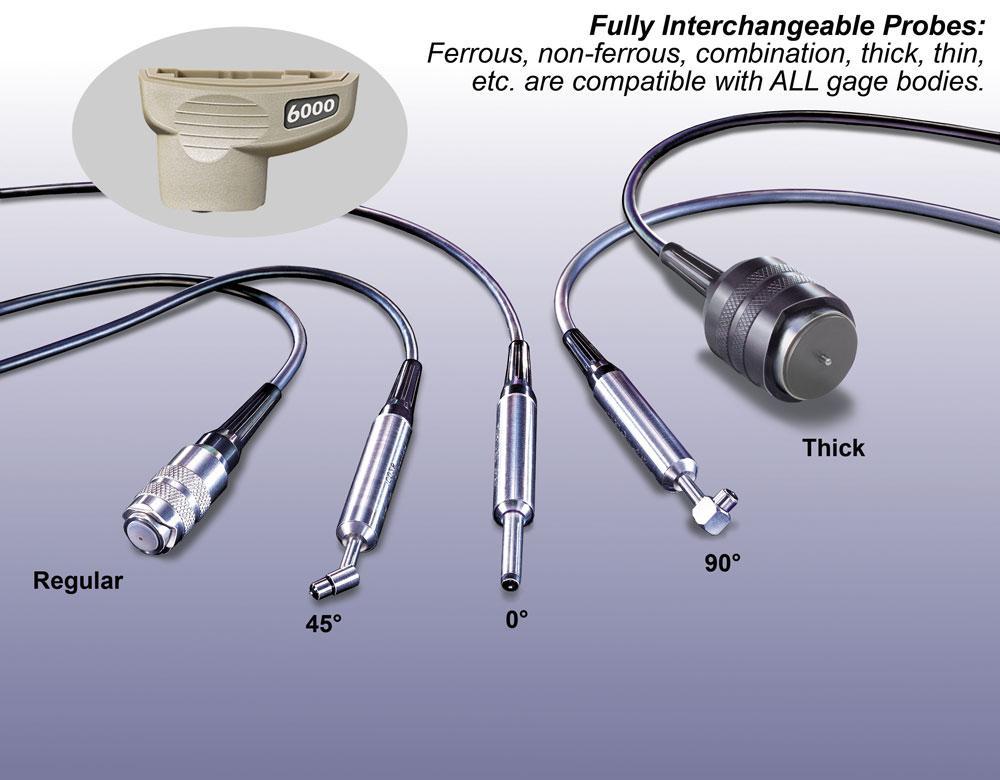

Select from a variety of measurement ranges and probe styles
The PosiTector 6000 consists of a Gage body and a probe. A wide selection of interchangeable probes are available. All Gage bodies accept all probes.
-
Two (2) year probe warranty
-
Heavy-duty, gold-plated locking connector for industrial environments
-
Certificate of Calibration (Long Form) traceable to NIST included with every probe
-
Each probe retains its own unique calibration information (allowing full probe interchangeability)
-
Extended cables available for underwater or remote measuring. Specify length when ordering
-
Probes are PosiTector SmartLink compatible - wirelessly connect PosiTector 6000 probes to your smart device
Probe Ordering Guide:
F - for ferrous metals (steel and cast iron)
N - for non-ferrous metals (aluminum, copper, titanium, etc.)
FN - for all metal substrates - Automatically recognizes the substrate and takes a measurement
|
Probe Model
|
Substrates
|
Probe Style
|
Measuring Range
|
|
F
|
ferrous
|
removable built-in
|
0 - 60 mils (0 - 1500 um)
|
|
FS
|
ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FXSXtreme
|
ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FRS
|
ferrous
|
90 degree regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
F0S
|
ferrous
|
0 degree microprobe
|
0 - 45 mils (0 - 1150 um)
|
|
F45S
|
ferrous
|
45 degree microprobe
|
0 - 45 mils (0 - 1150 um)
|
|
F90S
|
ferrous
|
90 degree microprobe
|
0 - 45 mils (0 - 1150 um)
|
|
FT
|
ferrous
|
removable built-in
|
0 - 250 mils (0 - 6 mm)
|
|
FTS
|
ferrous
|
high-range cabled
|
0 - 250 mils (0 - 6 mm)
|
|
FKS
|
ferrous
|
high-range cabled
|
0 - 500 mils (0 - 13 mm)
|
|
FHXS Xtreme
|
ferrous
|
high-range cabled
|
0 - 400 mils (0 - 10000 um)
|
|
FLS
|
ferrous
|
high-range cabled
|
0 - 1.5 inches (0 - 38 mm)
|
|
N
|
non-ferrous
|
removable built-in
|
0 - 60 mils (0 - 1500 um)
|
|
NS
|
non-ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
NRS
|
non-ferrous
|
90 degree regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
NAS
|
non-ferrous
|
regular cabled
|
0 - 25 mils (0 - 625 um)
|
|
N0S
|
non-ferrous
|
0 degree microprobe
|
0 - 25 mils (0 - 625 um)
|
|
N45S
|
non-ferrous
|
45 degree microprobe
|
0 - 25 mils (0 - 625 um)
|
|
N90S
|
non-ferrous
|
90 degree microprobe
|
0 - 25 mils (0 - 625 um)
|
|
NKS
|
non-ferrous
|
high-range cabled
|
0 - 500 mils (0 - 13 mm)
|
|
FN
|
ferrous / non-ferrous
|
removable built-in
|
0 - 60 mils (0 - 1500 um)
|
|
FNS
|
ferrous / non-ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FNRS
|
ferrous / non-ferrous
|
90 degree regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FNDS (duplex)
|
ferrous / non-ferrous
|
regular cabled
|
0 - 60 mils (0 - 1500 um)
|
|
FNTS
|
ferrous / non-ferrous
|
high-range cabled
|
0 - 250 mils (0 - 6 mm)
|
|
FNGS
|
ferrous / non-ferrous
|
high-range cabled
|
0 - 2.5 inches (0 - 63.5 mm)
|
Probe Details
|
Removable Built-in probes
(F, N, FN, FT)
Ideal for one-handed operation.
|
|
|
|
|
|
Removable
Built-in Probe
|
Probe Model:
|
F
|
N
|
FN
|
FT
|
|
|
|
Range:
|
0 - 60 mils
|
0 -250 mils
|
|
0 - 1500 um
|
0 - 6 mm
|
|
Accuracy*:
|
+ / - (0.05 mils + 1 percent) 0 - 2 mils
+ / - (0.1 mils + 1 percent) > 2 mils
|
+ / - (0.5 mils + 1 percent) 0 - 100 mils
+ / - (0.5 mil + 3 percent) > 100 mils
|
+ / - (1 um + 1 percent)
0 - 50 um
+ / - (2 um + 1 percent)
> 50 um
|
+ / - (0.01 mm + 1 percent)
0 - 2.5 mm
+ / - (0.01 mm + 3 percent)
> 2.5 mm
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
Separate Regular Probes
(FS, NS, FNS, NAS, FTS)
These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.
|
|
|
Regular
|
Probe Model:
|
FS
|
NS
|
FNS
|
NAS
|
FTS
|
|
|
|
Range:
|
0 - 60 mils
|
0 -25 mils
|
0 -250 mils
|
|
0 - 1500 um
|
0 - 625 um
|
0 - 6 mm
|
|
Accuracy*:
|
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mils + 1%) > 2 mils
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (0.5 mils + 1%) 0 - 100 mils
+ (0.5 mil + 3%) > 100 mils
|
+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
+ (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
|
|
*Accuraci
es are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
FXS Xtreme
Uniquely designed for rugged applications. The FXS Xtreme probe with zirconia-toughened alumina wear face is ideal for rough steel surfaces.
Enhanced measuring speed of 50+ readings per minute makes it ideal for measuring large, rough surfaces quickly. Scan mode increases measurement rate to over
100 readings per minute (PosiTector Advanced only).
Compatible with PosiTector bodies with serial numbers greater than 700,000.
|
|
FXS Xtreme
|
|
Range:
|
0 - 1500 um
|
|
0 - 60 mils
|
|
Accuracy*:
|
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mils + 1%) > 2 mils
|
+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
|
Separate 90 degree Regular Probes
(FRS, NRS, FNRS)
Right angle probe for measuring within areas of low headroom.
These constant-pressure, stainless steel probes are hermetically sealed to be totally waterproof - ideal for underwater use.
|
|
90 Regular
|
Probe Model:
|
FRS
|
NRS
|
FNRS
|
|
|
|
Range:
|
0 - 60 mils
|
|
0 - 1500 um
|
|
Accuracy*:
|
+ (0.05 mils + 1%) 0 - 2 mils
+ (0.1 mils + 1%) > 2 mils
|
+ (1 um + 1%) 0 - 50 um
+ (2 um + 1%) > 50 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
Separate 0 degree Microprobes
(F0S, N0S)
With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to
edges.
|
|
The straight F0S and N0S Microprobes have a quick release adapter that makes them constant pressure probes for alignment on
small, flat or curved parts. This adapter is held in place by a spring. If the sleeve is not required, simply pull it off the probe.
|
|
|
|
|
0 Microprobe
|
Probe Model:
|
F0S
|
N0S
|
|
|
|
Range:
|
0 - 45 mils
|
0 - 25 mils
|
|
0 - 1150 um
|
0 - 625 um
|
|
Accuracy*:
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
Separate 45 degree Microprobes
(F45S, N45S)
With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to
edges.
|
|
|
|
|
45 Microprobe
|
Probe Model:
|
F45S
|
N45S
|
|
|
|
Range:
|
0 - 45 mils
|
0 - 25 mils
|
|
0 - 1150 um
|
0 - 625 um
|
|
Accuracy*:
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
Separate 90 degree Microprobes
(F90S, N90S)
Right angle probe for measuring within areas of low headroom.
With our smallest measuring tip and best thin-film accuracy, this instrument is ideal for measuring on small parts, hard-to-reach areas, or close to
edges.
|
|
|
|
|
90 Microprobe
|
Probe Model:
|
N90S
|
|
|
|
Range:
|
0 - 45 mils
|
0 - 25 mils
|
|
0 - 1150 um
|
0 - 625 um
|
|
Accuracy*:
|
+ (0.02 mils + 1%) 0 - 4 mils
+ (0.1 mils + 3%) > 4 mils
|
+ (.5 um + 1%) 0 - 100 um
+ (2 um + 3%) > 100 um
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
High-Range Probes
(FT, FTS, FNTS, FKS, NKS)
Ideal for thick protective coatings such as epoxy, rubber, concrete liners, intumescent fireproofing and more.
|
|
|
|
|
High-Range
|
Probe Model:
|
FT
|
FTS
|
FNTS
|
FKS
|
NKS
|
|
|
|
|
|
Range:
|
0 -250 mils
|
0 -500 mils
|
|
0 - 6 mm
|
0 - 13 mm
|
|
Accuracy*:
|
+ (0.5 mils + 1%) 0 - 100 mils
+ (0.5 mil + 3%) > 100 mils
|
+ (1 mils + 3%)
0 - 500 mils
+ (0.02 mm + 3%)
0 - 13 mm
|
|
+ (0.01 mm + 1%) 0 - 2.5 mm
+ (0.01 mm + 3%) > 2.5 mm
|
|
FT
|
FTS
|
FNTS,FKS,NKS
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
FHXS Xtreme Measures non-conductive coatings on steel substrates.
FHXS Xtreme probe with Alumina wear face and braided cable for hot or rough surfaces. Hot surfaces up to 250ð C (500ð F).
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
|
|
|
|
|
FHXS Xtreme
|
|
Range:
|
0 - 10,000 um
|
|
0 - 400 mils
|
|
Accuracy*:
|
+ (0.1 mils + 3%)
|
|
+ (2 um + 3%)
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
FLS
Measures intumescent paint and other thick protective coatings on steel.
-
Measures up to 38 mm (1.5 inches)
-
Braided stainless steel cable - kink-proof, wear and cut resistant
-
Includes hard shell case and 19 mm (750 mil) shim
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector SmartLink.
|
|
|
|
|
FLS
|
|
Probe Weight: 0.7 kg (1.5 lbs)
|
Range:
|
0 - 38 mm
|
|
0 - 1.5 inches
|
|
Accuracy*:
|
+ (0.01 in. + 3%)
|
|
+ (0.2 mm + 3%)
|
|
Minimum Surface Area:
|
3.25 x 3.25 in. (83 x 83 mm)
|
|
Minimum Substrate Thickness:
|
0.1 in. (2.5 mm)
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
|
|
FNGS
Measures very thick coatings on ALL metals. Ideal for measuring ship hull coatings and thick intumescent paints.
-
Measures up to 63.5 mm (2.5 inches)
-
Measures non-conductive coatings on both ferrous and non-ferrous metal substrates
-
Braided stainless steel cable - kink-proof, wear and cut resistant
-
Long-lasting, low wear probe face to facilitate scanning of large surfaces
-
Includes a handle for easy one-handed operation
-
Includes a set of traceable coating thickness standards
-
Includes instruction card
Compatible with PosiTector bodies with serial numbers greater than 700,000 and the new PosiTector
SmartLink.
|
|
|
|
|
FNGS
|
|
Probe Weight: 1.8 lbs / 0.8 kg
|
Range:
|
0 - 63.5 mm
0 - 2.5 inches
|
|
Accuracy*:
|
+ (0.01 in. + 3%)
+ (0.2 mm + 3%)
|
|
Minimum Surface
Area:
|
10 x 10 in. (254 x 254 mm)
|
Minimum Substrate
Thickness:
|
0.2 in. (5 mm)
|
|
*Accuracies are stated as a fixed value plus a percentage of the gage's actual reading.
|
