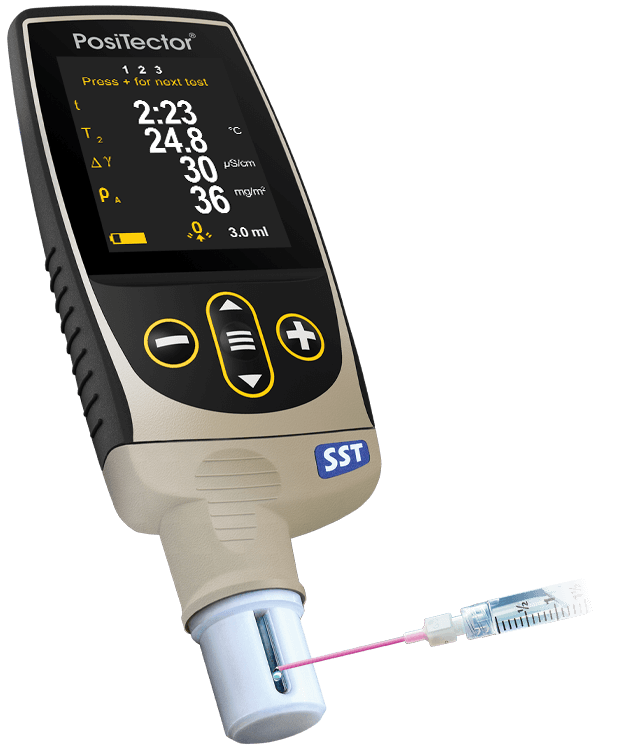

Soluble Salt Tester for measuring the concentration of soluble salts on metal surfaces
Measures the concentration of soluble salts (salt contamination) on metal surfaces in accordance with ISO 8502-6, 8502-9.
-
Conductivity probe specifically designed for ISO 8502-6, 9
-
Displays test duration, sample temperature, conductivity (µS/cm) and surface density (mg/m2 or µg/cm2)
-
Easy 1-2-3 gage interface guides users through the Bresle test method
-
NEW Larger 2.8 inch impact resistant color touchscreen with redesigned keypad for quick menu navigation
-
NEW Weatherproof, dustproof, and water-resistant IP65-rated enclosure
-

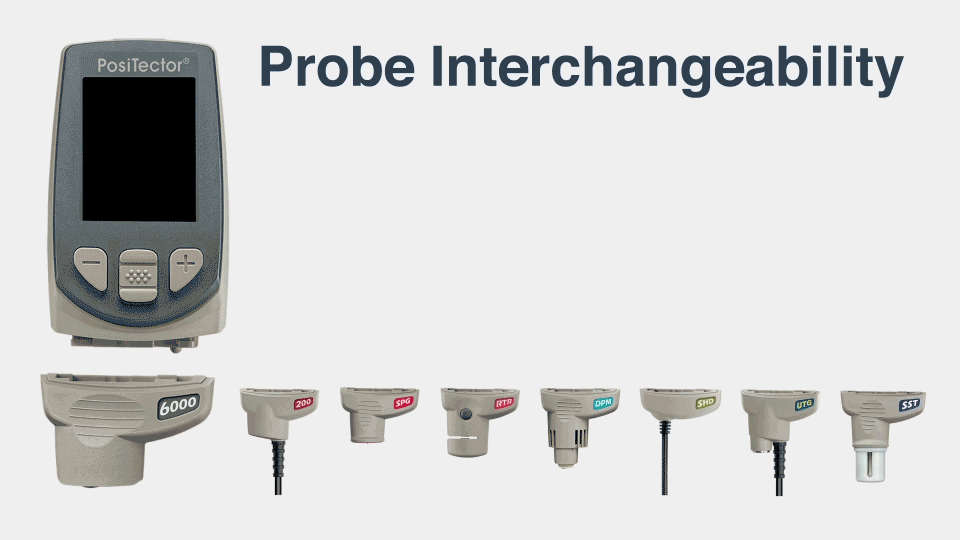

PosiTector interchangeable platform attach any PosiTector probe to a single gage body
-
USB, WiFi, and Bluetooth connectivity to PosiSoft PC, Mac, and Smartphone software
-
Certificate of Calibration showing traceability to NIST included (Long Form)
Conforms to ISO 8502-6/8502-9, US Navy NSI 009-32, US Navy PPI 63101-000, Navy NAVSEA 009-32, AS 3894.6, IMO MSC.215(82), IMO MSC.244(83),
SSPC Guide 15, ISO 11127-6, ASTM D4940
Includes ALL features as shown on left plus...
Includes ALL features as shown on left plus...
-
NEW Storage of 250,000 readings from multiple probes in up to 1,000 batches
-
NEW Touchscreen keyboard for quickly renaming batches, adding notes, and more
-
WiFi technology wirelessly synchronizes with PosiSoft.net and downloads software updates
-
Bluetooth 4.0 Technology for data transfer to a mobile device
running the PosiTector App or optional portable printer. BLE API available for integration into third-party software.
-
Integrate with third-party software, drones, ROVs, PLCs, and robotic devices using several industry-standard communication
protocols
|
Specifications
|
|
Range
|
0 - 1,500 μS/cm
0 - 6,000 mg/m2
0.0 - 600.0 μg/cm2
|
|
Resolution
|
1 μS/cm, 1mg/m2, 0.1 μg/cm2
|
|
Accuracy
|
± 2 μS/cm (0 - 200 μS/cm)
± 10 μS/cm (>200 - 600 μS/cm)
± 20 μS/cm (>600 - 1500 μS/cm)
|
|
Temperature Range (deg)
|
0 - 50 C (32 - 122 F)
|
|
Normalization Temperature (deg)
|
25 C (77 F)
|
|
Test Cell Volume
|
1 ml
|
|
Size
|
127 x 66 x 25.4 mm (5 x 2.6 x 1 inch)
|
|
Weight
|
137 g (4.9 oz.) without batteries
|
Select from 3 DeFelsko Bresle Method Patch options
PosiPatch
|
DeFelsko Adhesive Patch
|
Latex Adhesive Patch
|

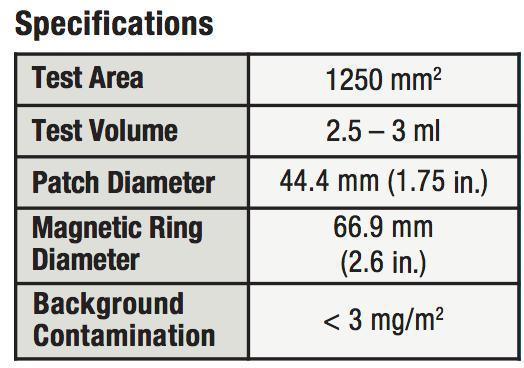

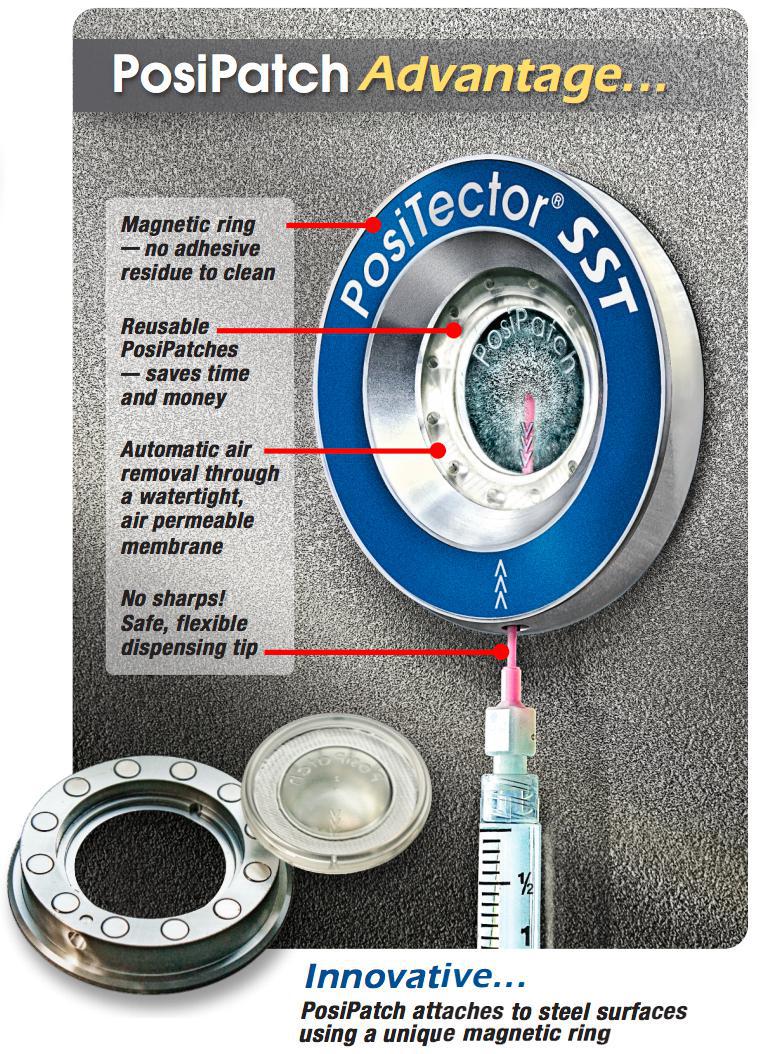

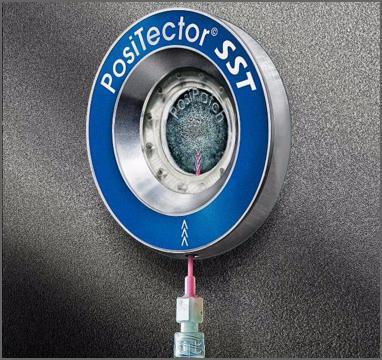

PosiPatch
Reusable flexible patch with magnetic ring
For measuring salt contamination in accordance with ISO 8502-6,9
-
Magnetic ring attaches to steel with no residue to clean â ideal for flat surfaces and diameters in excess of 100 cm (40 in.)
-
Automatic air removal through a watertight, air permeable membrane
-
No sharps, no needles! Safe, flexible dispensing tip mates with PosiPatch
-
Comparable price to latex patches
-
Reusable patent-pending PosiPatch saves time and money
-
Easy-to-use in any orientation
|
|

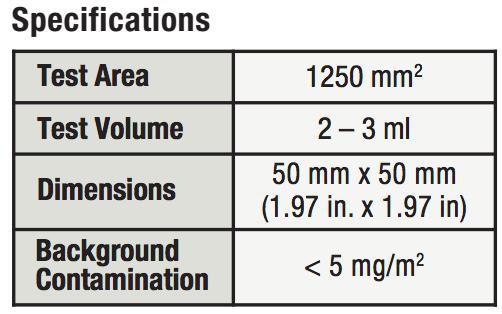

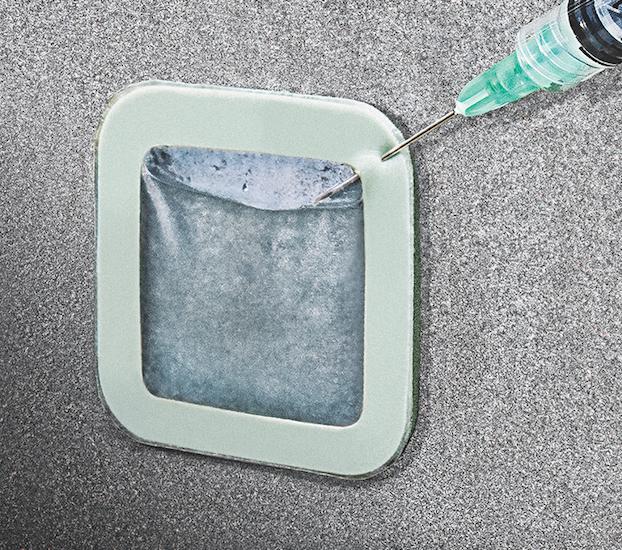

DeFelsko Adhesive Patch
Self-adhesive, polyurethane patches
-
For measuring salt contamination in accordance with ISO 8502-6,9
-
Low-tack adhesive for easy patch removal with no residue to clean
-
Works on nearly any material or surface geometry
-
Latex-free
-
Lower cost than latex patch
-
Easy-to-use in any orientation
|
|

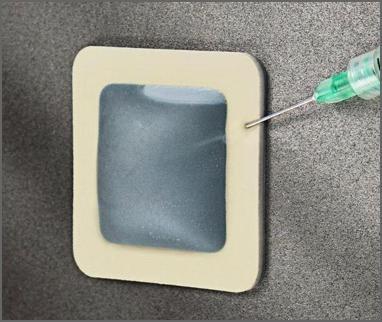

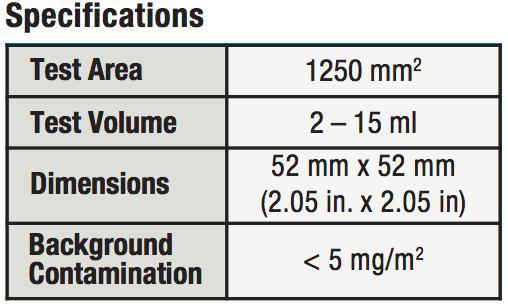

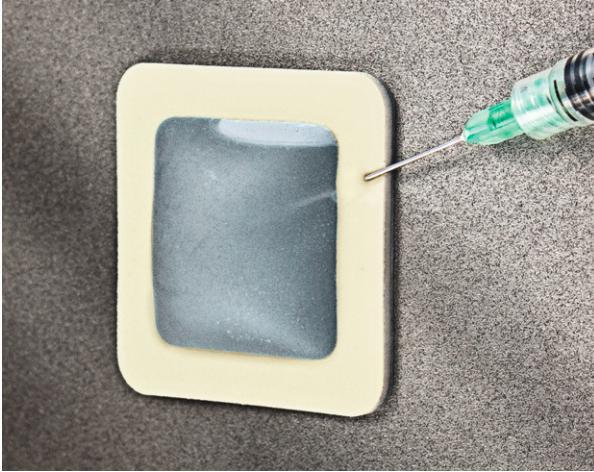

Latex Adhesive Patch
ISO 8502-6 conforming latex patch with easy-open tabs and low-tack adhesive for easy removal.
Q. What is a soluble salt tester?
A. A soluble salt tester measures the quantity of soluble salts on a substrate, prior to painting. To do so, deionized water is
placed against the substrate, allowing any soluble salts to dissolve into it. If soluble salts are present, they will increase the conductivity of the water, allowing electrical current to pass
through easier. The greater the soluble salt contamination on the surface, the higher the conductivity of the water. This increase can be measured, and after some calculation (automatically
performed by the PosiTector SST in accordance with ISO 8502-9), the concentration of soluble salts on the substrate can be established.
Q. Why is salt contamination measurement important?
A. The presence of soluble salts has been shown to have a significant negative effect on coating performance and leads to premature
coating failure. Salts remaining beneath a protective coating create an osmotic force that draws water from the atmosphere through the paint layer. The pressure created by this water underneath
the coating overcomes the adhesive bond between the coating and substrate, resulting in corrosion, osmotic blistering and eventual coating failure. It is therefore critical to ensure that a
substrate is free from soluble salt contamination before painting.
Q. What is measured?
A. The PosiTector SST includes a certified and traceable conductivity probe specifically designed for ISO 8502-6,9.
Included with each probe is a Long Form Certificate of Calibration. The following parameters are measured by the PosiTector SST:
-
Conductivity (µS/cm)
-
Sampling Temperature (C° or F°) normalized to 25°C
-
Test duration
Using the measured conductivity value and the sample test volume (set within the gage menu), the surface density of the salts (mg/m2 or µg/cm2) is automatically calculated
in accordance with ISO 8502-9, saving the gage operator time and eliminating the chance of a calculation error.
Q. What are some typical applications?
A. The PosiTector SST is ideal for:
(a) testing substrates for the presence of soluble salts in accordance with ISO 8502-6,9 (the Bresle Method)
(b) testing blast media in accordance with ASTM 4940 and ISO 11127-6 (determination of water-soluble contaminates in abrasives by conductivity measurement)
(c) testing the conductivity of water within the range of 0-500 µS/cm
Q. What are the available options?
A. The PosiTector SSTSoluble Salt Tester probe can be used with either the Standard or
Advanced PosiTector gage body. In addition to the model feature differences, you have the choice among a variety of Bresle Method patch options.
Bresle Method Patch Options
Select from three Bresle Method patch options to suit your needs or use any commercially available patch.
|
|
|
|
|
PosiPatch
|
Adhesive Patch
|
Latex Adhesive Patch
|
Q. Why choose one patch over another?
A. The PosiPatch is an improved version of commercially available Bresle Patches and is ideal for most users. It
attaches to the substrate using a magnetic ring instead of adhesive for faster set-up and to eliminate cleanup. It contains an air-permeable membrane that automatically removes air from the patch
while water is injected, simplifying the test. It also features a dull dispensing tip designed to mate with the port in the PosiPatch, instead of the sharp needles required for
conventional patches. Finally, it is reusable, reducing the per-test cost.
For users who prefer the familiarity of conventional patches, or who are measuring on non-magnetic or curved surfaces with a diameter less than 100 cm (40 inches), the
DeFelsko Patch is ideal. It is similar to conventional patches, and is intended for customers who prefer an adhesive patch. It features a low-tack adhesive, making it easy to
remove with minimal residue. It is latex-free, and therefore significantly less expensive than conventional patches.
For users who require a patch with latex construction (which can expand to a 15 ml sample size), we offer the DeFelsko Latex Patch. It also features a
low-tack adhesive that leaves minimal residue. Additionally, it features an easy-to-remove tab on the paper backing.

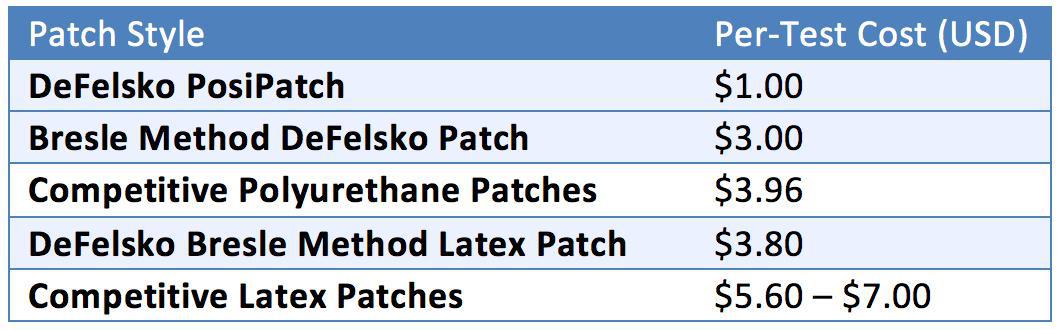

Q. Which Bresle Method Patch option is the most cost effective?
A. When the PosiPatch is reused, it offers the lowest per-test costs of any commercially available Bresle Method Patch. If
performing a single test, Bresle Method DeFelsko Patch has one of the lowest per-test costs in the industry. The below tables compare the per-test costs of various options, using
competitive prices found online.
If performing 10 tests, and reusing the PosiPatch:
Q. How is the PosiPatch reusable?
A. The innovative PosiPatch uses a magnetic ring to hold it against the surface, so no adhesive is required. This means that
the PosiPatch isnât destroyed when removed from the surface, unlike conventional patches. After rinsing with deionized water, the PosiPatch can be used again. Dispose of the
PosiPatch after it becomes worn - typically after many tests.
While a reused patch may be slightly contaminated with salts from previous tests, in our experience this effect is minimal. This effect would cause a high or pessimistic
reading. In many cases, it is only important to ensure that salt contamination levels are below a certain threshold or specification, so a slightly higher reading is no issue. In the event a
reused patch yields a measurement that exceeds specifications, repeat the test with a new PosiPatch in an adjacent location, to determine whether the high reading was caused by
the reused patch.
Q. How many times can the PosiPatch be reused?
A. One of the many innovative features of the PosiPatch is its ability to be reused multiple times by rinsing with DI water between tests.
The PosiPatch can be used repeatedly until water begins to leak through the airâpermeable membrane or the seal against the substrate.
In our tests on freshly blasted steel with a typical 50â100 micron (2â 4 mil) profile, PosiPatches were reused dozens of times with no noticeable wear or leakage. Patch life
will vary depending on useâ if dragged along the substrate, lifespan will be reduced.
We believe that 10 uses is a very conservative estimate of lifespan and still yields the lowest perâtest cost of any commercially available Bresle Method Patch.
Q. Can I purchase a new PosiTector SST probe for my existing PosiTector gage body?
A. Yes. PosiTector SST probes are compatible with all PosiTector Standard gage bodies with a color display, and
PosiTector Advanced gage bodies with serial numbers greater than 730,000. You can simply update their existing PosiTector gage body by following step-by-step instructions at
www.defelsko.com/update

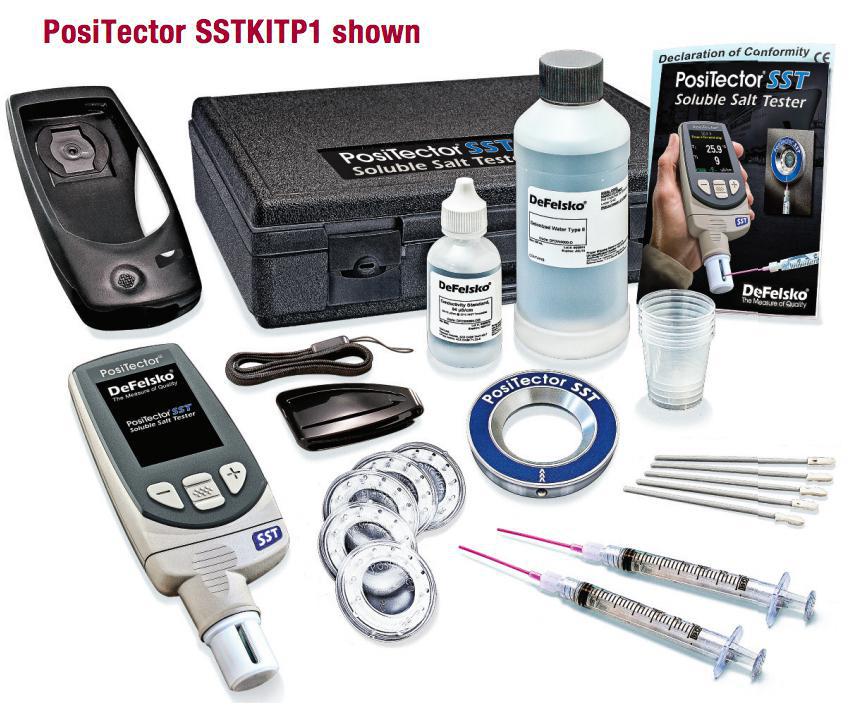

Q. I already have a soluble salt testing kit but would like to try the innovative PosiPatch. Must I buy an entire kit?
A. No. For users who currently own a soluble salt testing kit but would like to use the PosiPatch, we offer the
PosiPatch Starter kit. It includes everything needed to use the PosiPatch with a DeFelsko or competitive soluble salt testing kit. The
PosiPatch Starter Kit includes two syringes, two dispensing tips, five PosiPatch patches and a magnetic ring.
Q. Does the DeFelsko Bresle Method PosiPatch solution work on curved surfaces?
A. Yes. The Bresle Method PosiPatch is ideal for measuring on flat surfaces and curved surfaces with a diameter greater than
100 cm (40 inches). Our Bresle Method DeFelsko Patches are available for measuring on smaller diameter surfaces.
Q. I really like the PosiPatch, but what if I occasionally have to measure on small radiuses?
A. Easy. Get a PosiPatch test kit and a package of Bresle
Method adhesive patches â either the DeFelsko patch or the Latex patch. Each comes with a needle that attaches to our syringe. This economical solution gives you the greatest flexibility to test
on any surface!
Q. Is the new PosiTector SST compatible with PosiSoft solutions?
A. Yes. The PosiTector SST is compatible with the new PosiSoft Desktop v4,
PosiSoft.net and the PosiTector App for Apple and Android. It is not compatible with legacy desktop versions or the PosiTector SmartLink.
Q. How are PosiTector SST probes calibrated at DeFelsko?
A. Each PosiTector SST is calibrated against known conductivity standards traceable to a National Metrology
Lab. A Long Form Certificate of Calibration containing actual measured values is included with every probe.
Q. What is the cost to recertify the PosiTector SST Soluble Salt Tester?
A. The cost to recertify the PosiTector SST is $95 and includes a Long Form Certificate of Calibration.
Turn-around time is usually one day.
Q. How long is the warranty on the PosiTector SST probe?
A. DeFelsko Corporationâs standard 2 year warranty applies to both the PosiTector body and probe.
Q. Does the DeFelsko Bresle Method PosiPatch solution work on curved surfaces?
A. The Bresle Method PosiPatch is ideal for measuring on flat surfaces and curved surfaces with a diameter greater than 100
cm (40 inches). Our Bresle Method DeFelsko Patches are available for measuring on smaller diameter surfaces.
Q. How is the PosiTector SST conductivity probe different than the conventional conductivity meters included with
most other test kits?
A. The PosiTector SST conductivity probe is specifically designed for ISO 8502-6,9 and has a number of features not
found in conventional conductivity meters including . . .
- An onscreen user interface to walk users through the Bresle test method, simplifying the task
- Tracking and reporting of test duration (the total time of contact between the solvent and substrate) as required by ISO 8502-6
- Automatic calculation of surface density with adjustments for different patch volumes â works with ANY Bresle-type patch
- Free software for viewing and reporting data
- Long form certificate of calibration traceable to NIST included at no extra charge. A certificate also comes with the included conductivity standard (calibration solution).
- Automatic 25°C temperature normalization
- Sample temperature recording as required by ISO 8502-9
- Purpose-built, 1 ml test cell is optimized for the range, resolution and test volume of the Bresle Method
- Rugged, stainless steel electrodes â ideal for industrial environments
- Two year warranty
Q. What information does the PosiTector SST save in its memory for each test?
A. The PosiTector SST saves all measured information for each test. All information is also reported in PosiSoft
software.
- Date and time of test
- Test duration (the total time of contact between the solvent and substrate)
- Background sample conductivity (µS/cm)
- Background sample temperature (°C or °F)
- Final sample conductivity (µS/cm)
- Final sample temperature (°C or °F)
- Increase in conductivity between background and final sample (µS/cm)
- Calculated surface density of soluble salts (mg NaCl/m2, mg CL/m2, µg NaCl/cm2, or µg Cl/cm2)
