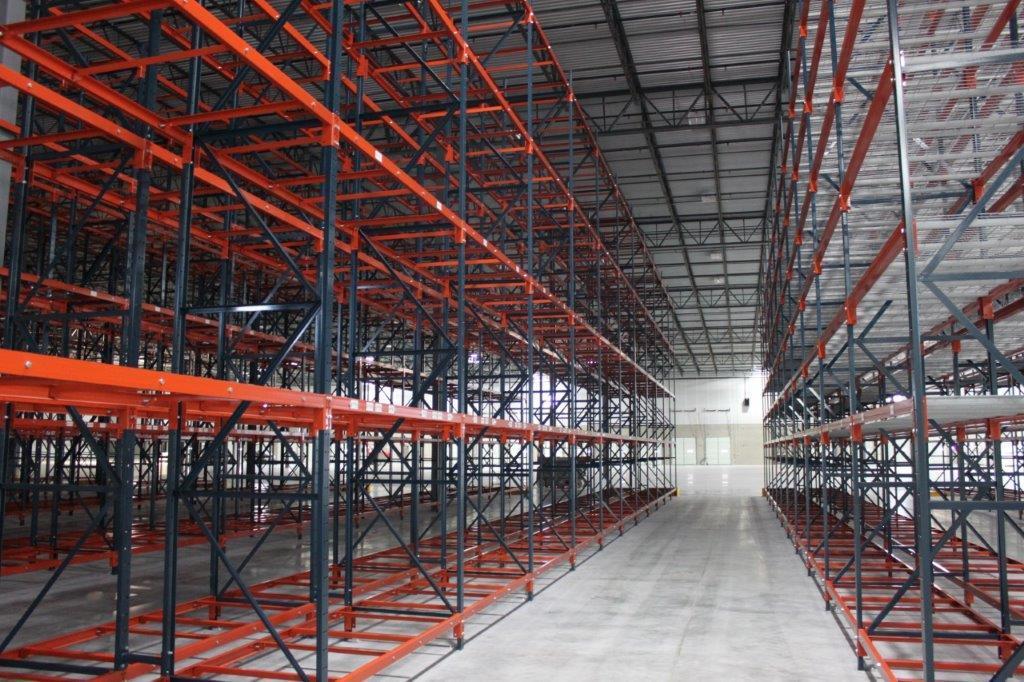

Pallet Racks

Push-Back	Engineered Sysytems	Pallet Flow	Cantilever


Drive-In / Drive-Through	Structural Steel Selective Rack	Selective Storage

At a Glance
safety products
Engineered Products
Stairs
Pallet Racks
why pick modules

Models
BOLLARDS
B4HD	B4HD - BOLLARDS - 4Ã Dia. X 40Ã Tall Heavy Duty (sch. 40) Stock Item (Installation hardware provided) - WEIGHT: 42 LBS / Bright OSHA Yellow Powdercoat Finish
B4SD	B4SD - BOLLARDS - 4Ã Dia. X 40Ã Tall Std. Duty (sch. 10) (Installation hardware provided) - WEIGHT: 25 LBS / Bright OSHA Yellow Powdercoat Finish
B6HD	B6HD - BOLLARDS - 6Ã Dia. X 40" Tall Heavy Duty (sch. 40) Stock Item (Installation hardware provided) - WEIGHT: 81 LBS / Bright OSHA Yellow Powdercoat Finish
B6SD	B6SD - BOLLARDS - 6Ã Dia. X 40Ã Tall Std. Duty (sch. 10) (Installation hardware provided) - WEIGHT: 49 LBS / Bright OSHA Yellow Powdercoat Finish
SAF-T-RAIL COLUMNS
C1	C1 - SAF-T-RAIL COLUMNS - 18Ã Single Rail Column Stock Item (Installation hardware provided) - WEIGHT: 31 LBS / Bright OSHA Yellow Powdercoat Finish
C2	C2 - SAF-T-RAIL COLUMNS - 42Ã Dual Rail Column Stock Item (Installation hardware provided) - WEIGHT: 51 LBS / Bright OSHA Yellow Powdercoat Finish
C3	C3 - SAF-T-RAIL COLUMNS - 42Ã Triple Rail Column (Installation hardware provided) - WEIGHT: 51 LBS / Bright OSHA Yellow Powdercoat Finish
GT03	3'Swing Gate, Single Door (Bolts to C2 Column)
GT04	4'Swing Gate, Single Door (Bolts to C2 Column)
SAF-T-GARD PERSONNEL HANDRAIL
HR2C	HR2C - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã x 4Ã Corner 2 Rail System Stock Item (Installation hardware provided) - WEIGHT: 52 LBS / Bright OSHA Yellow Powdercoat Finish
HR2CE	HR2CE - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã Corner Extension on 2 Rail System Stock Item (Installation hardware provided) - WEIGHT: 23 LBS / Bright OSHA Yellow Powdercoat Finish
HR2E	HR2E - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã Extension 2 Rail System Stock Item (Installation hardware provided) - WEIGHT: 23 LBS / Bright OSHA Yellow Powdercoat Finish
HR2S	HR2S - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã Starter 2 Rail System Stock Item (Installation hardware provided) - WEIGHT: 30 LBS / Bright OSHA Yellow Powdercoat Finish
HR3C	HR3C - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã x 4Ã Corner 3 Rail System Stock Item (Installation hardware provided) - WEIGHT: 68 LBS / Bright OSHA Yellow Powdercoat Finish
HR3CE	HR3CE - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã Corner Extension 3 Rail System Stock Item (Installation hardware provided) - WEIGHT: 30 LBS / Bright OSHA Yellow Powdercoat Finish
HR3E	HR3E - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã Extension 3 Rail System Stock Item (Installation hardware provided) - WEIGHT: 30 LBS / Bright OSHA Yellow Powdercoat Finish
HR3S	HR3S - SAF-T-GARD PERSONNEL HANDRAIL - 4Ã Starter 3 Rail System Stock Item (Installation hardware provided) - WEIGHT: 38 LBS / Bright OSHA Yellow Powdercoat Finish
POST GUARDS
P12HD	P12HD - POST GUARDS - 1/4" Steel 12" High Stock Item ( Installation Hardware NOT Provided ) - WEIGHT: 12 LBS / Bright OSHA Yellow Powdercoat Finish
P12SD	P12SD - POST GUARDS - 3/16" Steel 12" High ( Installation Hardware NOT Provided ) - WEIGHT: 9 LBS / Bright OSHA Yellow Powdercoat Finish
P18HD	P18HD - POST GUARDS - 1/4" Steel 18" High Stock Item ( Installation Hardware NOT Provided ) - WEIGHT: 17 LBS / Bright OSHA Yellow Powdercoat Finish
P24HD	P24HD - POST GUARDS - 1/4" Steel 24' High Stock Item ( Installation Hardware NOT Provided ) - WEIGHT: 21 LBS / Bright OSHA Yellow Powdercoat Finish
P36HD	P36HD - POST GUARDS - 1/4" Steel 36" High Stock Item ( Installation Hardware NOT Provided ) - WEIGHT: 31 LBS / Bright OSHA Yellow Powdercoat Finish
P48HD	P48HD - POST GUARDS - 1/4" Steel 48" High ( Installation Hardware NOT Provided ) - WEIGHT: 41 LBS / Bright OSHA Yellow Powdercoat Finish
SAF-T-RAIL PROTECTIVE GARDRAIL
R10	R10 - SAF-T-RAIL PROTECTIVE GARDRAIL - 10Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 84 LBS / Bright OSHA Yellow Powdercoat Finish
R2	R2 - SAF-T-RAIL PROTECTIVE GARDRAIL - 2Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 20 LBS / Bright OSHA Yellow Powdercoat Finish
R3	R3 - SAF-T-RAIL PROTECTIVE GARDRAIL - 3Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 27 LBS / Bright OSHA Yellow Powdercoat Finish
R4	R4 - SAF-T-RAIL PROTECTIVE GARDRAIL - 4Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 35 LBS / Bright OSHA Yellow Powdercoat Finish
R5	R5 - SAF-T-RAIL PROTECTIVE GARDRAIL - 5Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 43 LBS / Bright OSHA Yellow Powdercoat Finish
R6	R6 - SAF-T-RAIL PROTECTIVE GARDRAIL - 6Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 51 LBS / Bright OSHA Yellow Powdercoat Finish
R7	R7 - SAF-T-RAIL PROTECTIVE GARDRAIL - 7Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 59 LBS / Bright OSHA Yellow Powdercoat Finish
R8	R8 - SAF-T-RAIL PROTECTIVE GARDRAIL - 8Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 67 LBS / Bright OSHA Yellow Powdercoat Finish
R9	R9 - SAF-T-RAIL PROTECTIVE GARDRAIL - 9Ã Rail Stock Item (Installation hardware provided) - WEIGHT: 75 LBS / Bright OSHA Yellow Powdercoat Finish
RACK GUARD
RG42	RG42 - RACK GUARD - 42Ã Rack Guard (Installation hardware provided) - WEIGHT: 55 LBS / Bright OSHA Yellow Powdercoat Finish
RG42L	RG42L - RACK GUARD - 42Ã Rack Guard - Left Side (Installation hardware provided) - WEIGHT: 50 LBS / Bright OSHA Yellow Powdercoat Finish
RG42R	RG42R - RACK GUARD - 42Ã Rack Guard - Right Side (Installation hardware provided) - WEIGHT: 50 LBS / Bright OSHA Yellow Powdercoat Finish
RG48	RG48 - RACK GUARD - 48Ã Rack Guard (Installation hardware provided) - WEIGHT: 60 LBS / Bright OSHA Yellow Powdercoat Finish
RG48L	RG48L - RACK GUARD - 48Ã Rack Guard - Left Side (Installation hardware provided) - WEIGHT: 45 LBS / Bright OSHA Yellow Powdercoat Finish
RG48R	RG48R - RACK GUARD - 48Ã Rack Guard - Right Side (Installation hardware provided) - WEIGHT: 45 LBS / Bright OSHA Yellow Powdercoat Finish
RGA12	RACK ANGLE - Nominal Length 12 Ft
RGA13	RACK ANGLE - Nominal Length 13 Ft
RGA14	RACK ANGLE - Nominal Length 14 Ft
RGA15	RACK ANGLE - Nominal Length 15 Ft
RGA16	RACK ANGLE - Nominal Length 16 Ft
RGA17	RACK ANGLE - Nominal Length 17 Ft
RGA18	RACK ANGLE - Nominal Length 18 Ft
RGA19	RACK ANGLE - Nominal Length 19 Ft
RGA2	RACK ANGLE - Nominal Length 2 Ft
RGA20	RACK ANGLE - Nominal Length 20 Ft
RGA3	RACK ANGLE - Nominal Length 3 Ft
RGA4	RACK ANGLE - Nominal Length 4 Ft
RGA5	RACK ANGLE - Nominal Length 5 Ft
RGA6	RACK ANGLE - Nominal Length 6 Ft
RGA7	RACK ANGLE - Nominal Length 7 Ft
RGA8	RACK ANGLE - Nominal Length 8 Ft
RGA9	RACK ANGLE - Nominal Length 9 Ft
RLO10	10Ã Rail - Lift Out
RLO2	2' Rail - Lift Out
RLO3	3Ã Rail - Lift Out
RLO4	4Ã Rail - Lift Out
RLO5	5Ã Rail - Lift Out
RLO6	6Ã Rail - Lift Out
RLO7	7Ã Rail - Lift Out
RLO8	8Ã Rail - Lift Out
RLO9	9Ã Rail - Lift Out
TRAK ARMOR
TA24HD	TA24HD - TRAK ARMOR - FLOOR MOUNTED - 24Ã Tall Door Track Protection - Hvy. Duty (Installation hardware provided) - WEIGHT: 60 LBS / Bright OSHA Yellow Powdercoat Finish
TA36HD	TA36HD - TRAK ARMOR - FLOOR MOUNTED - 36Ã Tall Door Track Protection - Hvy. Duty (Installation hardware provided) - WEIGHT: 84 LBS / Bright OSHA Yellow Powdercoat Finish
TA42HD	TA42HD - TRAK ARMOR - FLOOR MOUNTED - 42Ã Tall Door Track Protection - Hvy. Duty (Installation hardware provided) - WEIGHT: 92 LBS / Bright OSHA Yellow Powdercoat Finish
TA42SD	TA42SD - TRAK ARMOR - FLOOR MOUNTED - 42Ã Tall Door Track Protection - Std. Duty (Installation hardware provided) - WEIGHT: 89 LBS / Bright OSHA Yellow Powdercoat Finish
TA48HD*	TA48HD* - TRAK ARMOR - FLOOR MOUNTED - 48Ã Tall Door Track Protection - Hvy. Duty (Installation hardware provided) - WEIGHT: 106 LBS / Bright OSHA Yellow Powdercoat Finish
TA48SD	TA48SD - TRAK ARMOR - FLOOR MOUNTED - 48Ã Tall Door Track Protection - Std. Duty (Installation hardware provided) - WEIGHT: 108 LBS / Bright OSHA Yellow Powdercoat Finish
ZG36HD	36Ã Tall Door Track Protection - Hvy. Duty
ZG36SD	36Ã Tall Door Track Protection - Std. Duty
ZG42HD	42Ã Tall Door Track Protection - Hvy. Duty
ZG42SD	42Ã Tall Door Track Protection - Std. Duty
ZG48HD	48Ã Tall Door Track Protection - Hvy. Duty
ZG48SD	48Ã Tall Door Track Protection - Std. Duty

Safety Rails

Safety Rails

10,000-lb load at 5 mph rating
Simple layout with universal column
Easy installation with all hardware included
Bright OSHA yellow finish on columns
Meets OSHA safety rail requirements
Additional specifications:
Columns are 4 x 4 inch square tube manufactured from high-strength steel
Baseplate is 10 x 10 x 5/8 inch thick steel and can be offset if needed
Rails are 11 ga high-tensile steel formed into a two-rib corrugated design with two secondary ribs
Anchors are 5-1/2 inch screw anchors and hardware is A325 1/2 inch
Triple, double and single rail applications available
Lift-out rail available for quick access to equipment
Rails available in lengths from 2â through 10â; special lengths available

Model	Description	Weight (lbs)
R3	3' Rail	27
R4	4' Rail	35
R5	5' Rail	43
R6	6' Rail	51
R7	7' Rail	59
R8	8' Rail	67
R9	9' Rail	75
R10	10' Rail	84

Model	Description	Weight (lbs)
C3	42â Column - Triple Rail	51
C2	42â Column - Dual Rail	51
C1	18â Column - Single Rail	31

heartland-bollards

Bollards

Quick ship program
Protects dock doorways and building passages
Excellent for segregating vehicles from people
40 inch high in 4 in and 6 in diameters
Avaliable in standard duty and heavy duty
1/2 inch x 5 in screw anchors provided
Bright OSHA yellow finish

Model	Description
B4SD	4 inch Standard duty 4 inch tubing
B6SD	6 inch Standard duty 6 inch tubing
B4HD	4 inch Heavy duty 4 in Sch 40 pipe
B6HD	6 inch Heavy duty 6 in Sch 40 pipe

track armor

Overhead Door Track Armor

Eleminates expensive door track repairs and dock downtime
Simple installation mounts securely to floor and wall
Protects yet doesnt interfere with dock operations
Fully integrated base plate
Choose from standard heights of 24, 36, 42, and 48 inches
Base has three 1/2 inch mounting holes for 3/8 inch anchors (indcluded)
Upright installation holes are 7/16 inch for 3/8 inch anchors (not included)
Provided as a set (left hand / right hand)
Bright OSHA yellow power coat finish
Protection for up to 5 inch track

Model	Description
TA24HD	24 inch high
TA36HD	36 inch high
TA42HD	42 inch high
TA48HD	48 inch high

Overhead Door Z - Guard

Eleminates expensive door track repairs and dock downtime
Simple installation mounts securely to the wall, NO FLOOR MOUNT
Protects yet doesnt interfere with dock operations
Fully integrated base plate
Choose from standard heights of 36, 42, and 48 inches
Upright installation holes are 7/16 inch for 3/8 inch anchors (not included)
Provided as a set (left hand / right hand)
Bright OSHA yellow power coat finish
Protection for up to 5 inch track

Model	Description
ZG36HD	36 inch high
ZG42HD	42 inch high
ZG48HD	48 inch high

Rack Guard

Protects sensitive pallet rack row ends
Rack Guard avaliable for both single and double row applications
In double row applications, the spacing between the rack is NOT protected
Heavy duty 1/4 inch steel
3/8 inch x 4 inch sccrew anchors included
Bright OSHA yellow powder coat finish
Seismic guards are available upon request

Model number	Description
RG42	Single row 42 inch upright depth
RG42L	Double row left side, 42 inch upright depth
RG42R	Double row right side, 42 inch upright depth
RG48	Single row 48 inch upright depth
RG48L	Double row left side, 48 inch upright depth
RG48R	Double row right side, 48 inch upright depth

Dimension Table
Part Number	Height (A) (in)	Lenght (B) (in)	Width (C) (in)	ID (D) (in)	Hole Dia (in)
RG42	12	53.50	9.68	3 x 5 x 1/4	0.50
RG42R	12	45	9.68	3 x 5 x 1/4	0.50
RG42L	12	45	9.68	3 x 5 x 1/4	0.50
RG48	12	59.50	9.68	3 x 5 x 1/4	0.50
RG48R	12	51.75	9.68	3 x 5 x 1/4	0.50
RG48L	12	51.75	9.68	3 x 5 x 1/4	0.50

heartland-post-protector heartland-post-protector-diag

Post Protector

Fits all standard rack uprights
Choose from standard heights of 12, 18, 24, 36, and 48 inches
Four 9/16 inch mounting holes for 1/2 inch anchors (not included)
12 inch Post Protector available in standard and heavy duty models
Material thickness is 1/4 inch
Bright OSHA yellow powder coat finish
Hardware not included
Special sizes are available for larger rack

Dimension Table
Part Number	Height (A) (in)	Lenght (B) (in)	Width (C) (in)	ID (D) (in)	Hole Dia (in)
P-3-6HD	6	6.25	4.52	3.25	0.56
P-3-12HD	12	6.25	4.52	3.25	0.56
P-3-18HD	18	6.25	4.52	3.25	0.56
P-3-24HD	24	6.25	4.52	3.25	0.56
P-3-36HD	36	6.25	4.52	3.25	0.56

heartland-pedestrian-safety-gate

Heartland Pedestrian Safety Swing Gate

Provides easy access to protected equipment
Directs personnel to specific locations for safe entry and exiting of aisles used by fork trucks and loading dock areas
Designed to be used with our dual rail safety rail system
Gates are avaliable in 3ft or 4ft wide
Universal mounting for right or left hand to push in or out
Adjustable closing speed and a hold open feature
Bright yellow powder coat finish
Columns must be purchases seperately
C2 Column

Model	Description
GT03	3 ft standard swing gate
GT04	4 ft standard swing gate
C2	42 inch high dual column

Engineered Products

Advanced design technology for fast, accurate structural analysis and load calculations

Work Platforms & Mezzanines

Work Platforms and Mezzanines

Advanced design technology for fast, accurate structural analysis and load calculations
Warehouse mezzanine design
I-beam construction for greater durability and load capacity with fewer columns
Bolted joints for easier assembly and long-term strength
Design for IBC or OSHA codes
The ability to incorporate extreme load capacities and wide clear spans
Coated or uncoated ResinDek, bar grate, concrete ready, diamond plate or wood decking
P.E. seal and calculations for all 50 states, as needed
A wide variety of handrail, gate and stair configurations

Crossover and Catwalks

Crossover and Catwalks

Select from a wide range of configurations and sizes
Custom catwalk building design
Treads available in 3/16 inch black diamond plate up to 36 inch wide or 1/4 inch diamond plate up to 48 inch wide
One-piece stringers are constructed of roll-formed structural channel
Heavy-duty handrails are constructed of 1-1/2 inch steel square tubing; Inner handrails are easily installed with 1-1/4 inch pipe
Includes integrated brackets and landing mounts
Shipped unassembled; No field welding required
Standard safety yellow finish, with no other colors available

stairs

Stairs

Select from a wide range of configurations and sizes
Treads available in 3/16 inch black diamond plate up to 36 inch wide or 1/4 inch diamond plate up to 48 inch wide
One-piece stringers are constructed of roll-formed structural channel
Heavy-duty handrails are constructed of 1-1/2 inch steel square tubing; Inner handrails are easily installed using 1-1/4 inch pipe
Includes integrated brackets and landing mounts
Shipped unassembled; No field welding required
Standard safety yellow finish, with other colors available

Ladders

Ladders

Available in straight, steep ascent and caged units
Side stringers are constructed of 3 inch channel with welded 3/4 inch dia round rungs
Cages are constructed of 1/4 x 2 inch ribs with a bottom loop flared out for easy entry and exit; standard units up to 30 ft available
Standard safety yellow finish
No field welding required

Stairs

Switchback Stairs

SWITCHBACK STAIRS

Straight Run Stairs

STRAIGHT RUN STAIRS

L Shapped Stairs

L SHAPED STAIRS

PALLET RACK

Designed to provide long-term performance and durability,and exceed RMI standards.

push back

PUSH-BACK

Combining SpaceRAK Push-Back rack framework with OEM carts and rails provides the ideal mix of compactness and product accessibility, ensuring maximum storage capacity, exceptional selectivity and improved throughput.

Pallets are loaded on rolling carts that are pushed back as more pallets are added. Gravity brings the next available pallet forward for unloading, keeping the pick face replenished so there's no need to reach or drive into the rack system.

Roll-formed or structural channel frames and beams or a combination.
Variable bay widths: Single or Double wide rows.
Nesting carts store pallets up to six deep, minimizing the number of access aisles required.
Cart assemblies are designed for superior space utilization, strength and durability.
Can be designed to meet any applicable standards and codes.
Hardware included for simple installation

ENGINEERED SYSTEMS

ENGINEERED SYSTEMS

Work with Heartland Steel Products, SpaceRak to create a storage solution designed specifically for your warehouse, distribution center or manufacturing facility. Incorporate multilevel pick modules, catwalk service aisles, conveyor take-away aisles and more.
Every component can be fully fabricated by Heartland Steel Products, SpaceRak in accordance with your specifications.
At Heartland Steel Products, SpaceRAK, we understand that every facility has its own storage needs to fulfill. Weâll deliver a system that meets or exceeds all industry standards, as well as your own.
Meet your specific capacity and layout requirements, as well as all applicable standards and codes
Options include roll-formed with tear-drop punching pattern or bolted structural steel fabrication, light- and heavy-duty frame types, and a wide variety of accessories
Draw upon cantilever, push-back, pallet flow, drive-through and selective storage rack styles
Incorporate a full range of engineered safety products, such as safety gates, track guards, bollards, safety rails and more
Choose from a selection of high-visibility colors

PALLET FLOW

PALLET FLOW

Support first-in/first-out product movement while reducing the need for traffic aisles.
Hardware included for simple installation of racks, rails and accessories
Specifically configured based upon the load weight and type, and the types of pallets used, and pretested with your most challenging pallets
Roll-formed or structural channel steel fabrication
Rail configurations can support a variety of pallet or load flow options, such as deep lane storage and shallow case pick applications
Available in common depths from two- through twelve-deep storage, as well as others as needed

Lane Styles

Full-width lane rollers for inconsistent or odd-size pallets
Skate wheel lane roller for standard wood pallets in shallow lane storage applications

Lane Accessories

Entry guides help align the load
Ramp stops at the exit allow for proper lift truck interaction
Speed controllers create flow separation and prevent runaway pallets in deep lane storage
Can be designed to meet any applicable standards and codes

CANTILEVER

CANTILEVER

Freedom from column interference makes it easier to store and retrieve products of all shapes and sizes, such as tubing, conduit and lumber.

Hardware included for simple installation of arms, bases and bracing.

Wide flange steel is used for columns, bases and arms, all fastened with high-strength bolted connections to ensure strength and durability.

Columns and bases feature heavy-duty W-beam sections.

Arms

Made of S-beam steel in light- or heavy-duty capacity
Can be adjusted on 4 inch centers
Lengths from 24 to 72 inch for varying storage depths
Various angles of incline for load retention
Decked-arm shelves are available to support wire mesh, plywood or specialized steel decking
Uprights up to 25â or higher, depending on arm loading and length
Aisle guidance systems available for down-aisle lift truck traffic in high-volume, heavy-duty applications
Can be designed to meet any applicable standards and codes

DRIVE-IN / DRIVE-THROUGH

DRIVE-IN / DRIVE-THROUGH

Maximize the warehouse cube while keeping aisle space and budgets to a minimum.

Drive-in racks allow vehicles to enter the storage area to place pallets in a backÃ¢â¬âtoÃ¢â¬âfront arrangement. This first in, last out inventory management design requires the operator to back out of the rack after pallet placement. Drive-in systems can also feature double-entry design, for greater density.

Drive-thru racks have two access aisles for loading and retrieval. Lift trucks can pass through the rack bay, placing loads on supporting rails from one side, and exit in the same direction. Drive-through racks are more suited for first in, first out inventory movement.

SpaceRAK drive-in and drive-through racks feature:

Hardware included for simple installation
Available in roll-formed or structural channel steel
Available in single- or double-entry design
Recommended up to ten deep per side
Arms are tapered structural angle for clearance and strength
Entry frames can be enhanced with offset or kant-back style bases
Floor-mount guide angle or rack mounted rub rails for in-bay protection and vehicle guidance

Load rails

Structural angle rails in 3/16 or 3/4 inch
Column sections in 14 ga or 13 ga
Top-mounted to arms

Top ties included for heavier duty systems

Rail support beams included for rear position of all drive-in systems

Horizontal and vertical X-bracing supplied as needed per design requirements and local codes

STRUCTURAL STEEL SELECTIVE RACK

STRUCTURAL STEEL SELECTIVE RACK

A durable choice for high-abuse, high-capacity

Hardware included for simple installation

Channel Beams

Manufactured with a standard two-bolt, four-hole x 8 inch end connector which allows for 2 inch vertical adjustability
Bolted channel: 3 through 8 inch channels available
Available with pinned end connectors to attach to roll-formed frames

Frames

Available in straight, steep ascent and caged units
Side stringers are constructed of 3 inch channel with welded 3/4 inch diameter round rungs
Cages are constructed of 1/4 x 2 inch ribs with a bottom loop flared out for easy entry and exit; Standard units up to 30â available
Standard safety yellow finish
No field welding required

SELECTIVE STORAGE

SELECTIVE STORAGE

Roll-Formed Steel Selective Rack

The industrys leading solution, thanks to versatility and efficiency.

Step Beams

Manufactured with three- or four-pin end connectors, which allow for 2 inch vertical adjustability
Available in various profile heights with a 1-5/8 inch interior step for added strength and versatility.
Available with bolted end connectors to attach to structural channel frames

Frames

Available in 3 and 4 inch wide column sections
Open column design
Steel gauges from 16 ga to 10 ga
Kant-leg or step-back leg base options
Welded column reinforcements available
Oversized base plates
Tear-drop punch on 2 inch vertical increments for boltless beam connection
Accessories include row spacers, wall ties, cross bars and column guards
Can be designed to meet any applicable standards and codes

What You Need to Know About Pick Modules

Pick modules are large and relatively complex structures designed to facilitate storage and order fulfillment of bulk items, such as full and partial pallet loads, and single picks often referred to as eaches. It is this fundamental characteristic of the pick module, the ability to handle a broad diversity of products and order types, that makes it such a unique and integral part of todayâs high-volume distribution center operations. At their core, pick modules are constructed from the most basic pallet racking components, namely uprights and beams that are common to just about every bulk material handling and pallet storage system. A wide variety of subcomponents can be integrated into these basic rack structures and combined with advanced software and control technologies to facilitate the high-speed and accurate product movement, inventory control, and order fulfillment functions essential to todayâs e-commerce world.

While there is no such thing as a standard pick module, they are generally customized for a particular facility or application, there are some common traits between them. A typical pick module is a multi-level structure that takes full advantage of a buildingâs cubic space. Pick modules may contain and handle hundreds and even thousands of SKUs (stock keeping units). Larger distribution centers often have multiple pick modules under one roof, each dedicated to particular product types or to common characteristics of a product set such as their propensity to be ordered (fast movers versus slow movers), their value (commodity items versus higher-priced) their fragility (perishable versus hard goods) and their size.

Pick Module Categories

Most used pick module subcomponent systems:

Case Flow Lanes often called, carton flow lanes, these allow pickers to move and pick one box, case, or individual SKU versus a full pallet.
Pallet Flow Lanes allows pickers to use a full pallet as the base for picking full and partial cartons, all with a full pallet waiting right behind the current one for immediate replenishment.
Reserve Rack âcomponent in a standard rack system which provides reserve product storage.
Push Back Rack allows for dense product storage within reserve racks, while always keeping product available at the pick face.
Pallet Return Lanes usually shallow lane pallet flow allowing for the removal of empty pallets for easy pick up in lift truck aisles.
Conveyor power and gravity are used in combination to aid in the transport of products from their storage location to the packaging and shipping areas, and for refuse removal from the work areas.

Common Problems Solved by Pick Modules

When we think of common problems across warehousing, e-commerce, and manufacturing industries, we often think about about increasing picking percentages, saving space, minimizing labor expenses, and improving worker safety. Pick modules have a role to play in solving all these issues.

How to Maximize Picking Efficiency

While many picking modules are similar, the effectiveness shows in how they're implemented in the space. So, the first step to maximizing picking efficiency is knowing your goals and knowing your space. Pallet flow lanes are an essential choice if you're shipping or storing large products. Whether youre dealing with pallets of flooring, traditional retail products, or building supplies, pallet flow lanes will get your product from storage to loading bay efficiently.

Using Pushback Racks to Save Space

Space is always an issue. Whether it's finding enough space for people and product to move safely or maximizing space to cut walk time and maximized products. With basic pallet picking setups you can gain about 35 percent more space using a six-foot-deep racking system. That's 35 percent more room for more product, expanding production lines, or find space to add an employee work station. To increase space saving more, which means even more space for product and people, push back racks allow for even more storage, eliminating unnecessary lanes when not in use. This extra space will help you keep people safe, expand inventory, and effectively use your space.

Organization To Minimize Labor Expenses

Picking modules are only part of the answer. Whether youre using reserve racks, pallet return lanes, or structural racks, creating a system that works for you with those picking modules is how you save money and time. Labor expenses are almost always the biggest part of a companys budget. So, finding ways for employees to safely spend less time doing tasks means an increase in productivity and a decrease in expenses. For example, any of our picking modules arranged using cellular manufacturing methods will cut walking time for employees and pair like items in easy to find locations.

Best Safety Practices Save People and Money

How your warehouse, manufacturing facility, distribution center, or e-commerce hub is setup makes a difference in worker safety. In locations where workers are often doing physical labor of picking up packages or products, working with and around heavy machinery, using pick modules to safely store products and make them easily accessible is an easy answer to minimizing workplace accidents.
