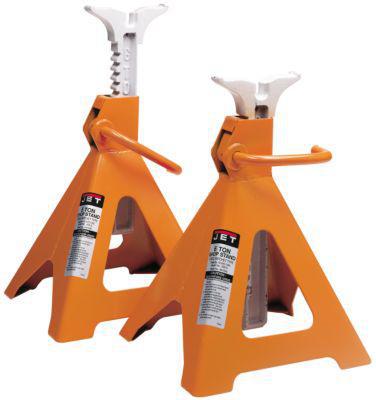

US Jack Jack Stands



3 ton jack stand 6 Ton Jack Stand 10 Ton Jack Stand
3 Ton Jack Stand 6 Ton Jack Stand 10 Ton Jack Stand



GARAGE STANDS FEATURES:

  • Double lock security system utilizes two pawls to engage two teeth on the load bar.
  • Rated capacity is PER PAIR  stands are packaged in PAIRS. U.S. Jack stands are designed to support rated capacity, partial vehicle loads consisting of one end of a vehicle. Use as a matched pair to support one end of a vehicle only.
  • Ten ton features heavy gauge formed steel angle legs, perimeter braced and welded while the 3-ton and 6-ton stands have stamped legs held in position by an outside perimeter ring welded to the legs. All stands have ductile iron load bars.
Specifications
Model D-41609 D-41610 D-41608
Capacity Tons 3 6 10
Low Height (in) 11 16-1/4 19
Max Height (in) 17-3/4 25-1/4 28-1/2
Base Lenght (in) 10 11 13-1/2
Base Width (in) 10 11 13-1/2
Pawl Pad A (in) 4.5 1.25 0.25
Pawl Pad B (in) 5.6 1.36 0.28
Pawl Pad C (in) 6 2 0.36
Shipping Weight (lbs) 17 32 75

pawl pad diag

Models and Accessories
D-41609 Pair of 3  Ton - Rachet Stand  Shipping Weight 17 Lbs
D-41610 Pair of 6  Ton - Rachet Stand  Shipping Weight 31 Lbs
D-41608 Pair of 10  Ton - Heavy Duty Rachet Stand Shipping Weight 79 Lbs



D-41609
3 TON GARAGE/ JACK STANDS (SOLD & RATED PER PAIR) - VEHICLE SUPPORT STANDS (GARAGE/ JACK STANDS) [DOUBLE LOCKING PAWL TYPE] - 100% USA MADE (WGT=17 LBS)
ADD TO CART TO SEE FREE SHIPPING OPTION OR CALL 800-458-3687 X1
Mfg. item #: D-41609
USJD-41609
Ships FREE via UPS to lower 48 states.5
$260.00

566
D-41610
6 TON GARAGE/ JACK STANDS (SOLD & RATED PER PAIR) - VEHICLE SUPPORT STANDS (GARAGE/ JACK STANDS) [DOUBLE LOCKING PAWL TYPE] - 100% USA MADE (WGT=31 LBS)
ADD TO CART TO SEE FREE SHIPPING OPTION OR CALL 800-458-3687 X1
Mfg. item #: D-41610
USJD-41610
Ships FREE via UPS to lower 48 states.5
$285.00

566
D-41608
10 TON HEAVY-DUTY GARAGE/ JACK STANDS (SOLD & RATED PER PAIR) - VEHICLE SUPPORT STANDS (GARAGE/ JACK STANDS) [DOUBLE LOCKING PAWL TYPE] - 100% USA MADE (WGT=79 LBS)
ADD TO CART TO SEE FREE SHIPPING OPTION OR CALL 800-458-3687 X1
Mfg. item #: D-41608
USJD-41608
Ships FREE via UPS to lower 48 states.5
$750.00

566
