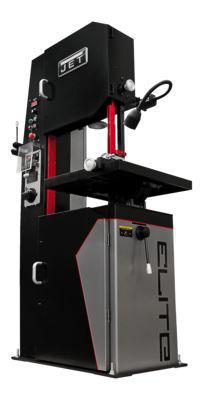

EVBS-20, 20 inch Vertical Bandsaw has a 3 Year Elite warranty
-
Variable speed drivetrain allows operators to fine tune the blade speed fast and easily
-
Precision balanced cast-iron blade wheels transmit speed and torque to the blade
-
Precisely ground, articulating table with 10 deg left and 45 deg right movement for contour cutting at any angle
-
Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
-
Easily adjustable blade guard for increased safety
-
Heavy-duty conpletely enclosed steel frame provides strength and rigidity
-
Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
-
Handwheel with blade tensioning gauge acurately measures blade pressure to prevent breakage
-
4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
-
For added safety, the EVBS-20 Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
-
Standard Equipment
-
Bi-metal blade
-
Work lamp
-
Rip fence
-
Chip Pan
|
Specifications
|
|
Height Capacity (Max.) (In.)
|
13
|
|
Throat Capacity (In.)
|
20
|
|
Blade Length (In.)
|
1/4 x .025 x 151-1/2
|
|
Blade Width (Min.-Max.) (In.)
|
1/8 - 1
|
|
Blade Speeds (SFPM)
|
Variable 50-5000
|
|
Table Size (L x W) (In.)
|
24 x 22
|
|
Table Height (In.)
|
39-3/8
|
|
Table Tilt (Deg.)
|
10 L & 45 R
|
|
Motor (HP)
|
2 HP, 230V, 3Ph
|
|
Ampearge Draw @ 230V 3Ph
|
18
|
|
Welding voltage (V)
|
4.2 KVA Bi-Metal Welder
|
|
Overall Dimensions (L x W x H) (In.)
|
40 x 29 x 77-1/2
|
|
Weight (Lbs.)
|
1102
|
|
Height
|
0.0000
|
|
Length
|
0.0000
|
|
Weight
|
1400.0000
|
|
Width
|
0.0000
|
EVBS-26, 26 inch Vertical Bandsaw has a 3 Year Elite warranty
-
Variable speed drivetrain allows operators to fine tune the blade speed fast and easily
-
Precision balanced cast-iron blade wheels transmit speed and torque to the blade
-
Precisely ground, articulating table with 10 deg left and 45 deg right movement for contour cutting at any angle
-
Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
-
Easily adjustable blade guard for increased safety
-
Heavy-duty conpletely enclosed steel frame provides strength and rigidity
-
Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extendes blade life
-
Handwheel with blade tensioning gauge acurately measures blade pressure to prevent breakage
-
4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
-
For added safety, the EVBS-26 Bandsaw follows strict guidelines and electrical requirements to be certified by CSA Group
-
Standard Equipment
-
Bi-metal blade
-
Protractor
-
Work lamp
-
Rip fence
-
Chip Pan
|
Specifications
|
|
Height Capacity (Max.) (In.)
|
14
|
|
Throat Capacity (In.)
|
26
|
|
Blade Length (In.)
|
1/4 x .025 x 185-1/2
|
|
Blade Width (Min.-Max.) (In.)
|
1/8 - 1
|
|
Blade Speeds (SFPM)
|
Variable 50-5000
|
|
Table Size (L x W) (In.)
|
27-1/2 x 23-1/2
|
|
Table Height (In.)
|
39-3/8
|
|
Table Tilt (Deg.)
|
10 L & 45 R
|
|
Motor (HP)
|
3 HP, 230/460V, 3Ph
|
|
Ampearge Draw @ 230V 3Ph
|
18
|
|
Amperage Draw @ 460V 3Ph
|
9
|
|
Welding voltage (V)
|
4.2 KVA Bi-Metal Welder
|
|
Overall Dimensions (L x W x H) (In.)
|
51 x 32 x 83-1/2
|
|
Weight (Lbs.)
|
1433
|
|
Height
|
0.0000
|
|
Length
|
0.0000
|
|
Weight
|
1741.0000
|
|
Width
|
0.0000
|
