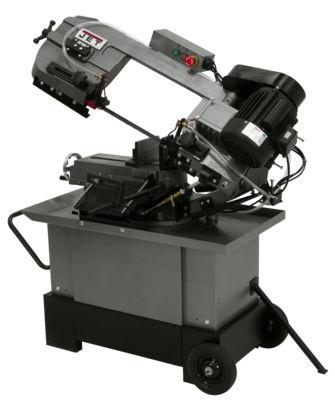

HVBS-710S, 7 x 10-1/2 inch Horizontal/Vertical Mitering Bandsaw has a 2 Year warranty
-
UL Listed Motor
-
Mitering head swivels to cut any angle 0 - 45 degree while the work piece remains secured
-
Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
-
Fully adjustable hydraulic downfeed system
-
Heavy-duty cast iron saw bow and bed
-
Large 8 inch wheels and handle for easy movement
-
Quick-positioning vise with fully adjustable jaws
-
Built-in, self propelled blade brush extends blade life
-
Vertical work table
-
Coolant system
-
Adjustable material stop
-
3/4 inch Bi-Metal blade
|
Detailed Specifications
|
|
Part Number
|
413451
|
|
Cutting Capacity (W x D) (In.)
|
7 x 10-1/2
|
|
Round at 90 Degrees (In.)
|
7
|
|
Round at 45 Degrees (In.)
|
4
|
|
Rectangle at 90 Degrees (In.)
|
7 x 10-1/2
|
|
Rectangle at 45 Degrees (In.)
|
4-3/4 x 4
|
|
Vise Swivels (Deg.)
|
45ð
|
|
Head Movement (Deg.)
|
45ð
|
|
Blade Size (In.)
|
3/4 x .035 x 93
|
|
Blade Length (In.)
|
93-5/8
|
|
Blade Wheel Diameter (In.)
|
11-3/4
|
|
Blade Speed (SFPM)
|
86, 131, 182, 260
|
|
Bed Height (In.)
|
23
|
|
Motor (HP)
|
1 HP, 115/230V, 1Ph
|
|
Drive
|
Belt Drive
|
|
Overall Dimensions (L x W x H) (In.)
|
51 x 22-1/2 x 41
|
|
Weight (Lbs.)
|
394
|
|
Height
|
44.0000
|
|
Length
|
51.0000
|
|
Weight
|
463.0000
|
|
Width
|
22.5000
|
HVBS-710G, 7 x 10-1/2 inch Horizontal/Vertical Mitering Geared Head Bandsaw
has a 2 Year warranty
-
UL Listed Motor
-
Mitering head swivels to cut any angle 0 - 45 degree while the work piece remains secured
-
Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
-
Fully adjustable hydraulic downfeed system
-
Heavy-duty cast iron saw bow and bed
-
Large 8 inch wheels and handle for easy movement
-
Quick-positioning vise with fully adjustable jaws
-
Built-in, self propelled blade brush extends blade life
-
Vertical work table
-
Coolant system
-
Adjustable material stop
-
3/4 inch Bi-Metal blade
|
Detailed Specifications
|
|
Part Number
|
413452
|
|
Cutting Capacity (W x D) (In.)
|
7 x 10-1/2
|
|
Round at 90 Degrees (In.)
|
7
|
|
Round at 45 Degrees (In.)
|
4
|
|
Rectangle at 90 Degrees (In.)
|
7 x 10-1/2
|
|
Rectangle at 45 Degrees (In.)
|
4-3/4 x 4
|
|
Vise Swivels (Deg.)
|
45 degree
|
|
Head Movement (Deg.)
|
45 degree
|
|
Blade Size (In.)
|
3/4 x .035 x 93
|
|
Blade Length (In.)
|
93-5/8
|
|
Blade Wheel Diameter (In.)
|
11-3/4
|
|
Blade Speed (SFPM)
|
145, 200, 245
|
|
Bed Height (In.)
|
23
|
|
Motor (HP)
|
1 HP, 115/230V, 1Ph
|
|
Drive
|
Geared Head
|
|
Overall Dimensions (L x W x H) (In.)
|
51 x 22-1/2 x 41
|
|
Weight (Lbs.)
|
401
|
|
Height
|
43.0000
|
|
Length
|
51.0000
|
|
Weight
|
462.0000
|
|
Width
|
22.5000
|
