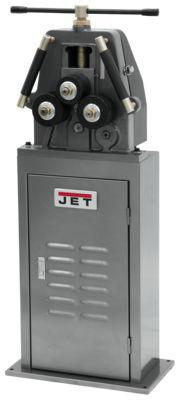

MPR-10V 3 Roll Pyramid Style bender
DURABILITY
-
Heavy duty cast iron construction machined to strict tolerances with maintain tolerances and accuracy
-
Hardened rolling shafts with bronze bushings ensures the machine will last for years of operation
EASE OF USE
-
Tool less angle stop
-
Soft touch handle grips
-
With all fingers installed it can be used as a full-length nose bar, turning the machine into a straight bending brake
-
Wide assortment of finger widths allows greater versatility in the shop
-
Repeat bends are easy with a quick turn of the stop collar on the stop rod
-
Counter weights can be moved up or down to provide leverage
|
Specifications
|
|
STOCK NO.
|
754430K
|
|
Model Number
|
MPR-10HV
|
|
Type
|
3 Roll Pyramid Style
|
|
Operating Positions
|
Vertical
|
|
Pipe Capacity (In./Schedule 40):
|
|
Size
|
1
|
|
Minimum Diameter
|
28
|
|
Round Tube Capacity (In.):
|
|
Size
|
1-1/4
|
|
Minimum Diameter
|
31-1/2
|
|
Square Tube Capacity (In.)
|
|
Size
|
1-1/4
|
|
Minimum Diameter
|
35
|
|
Solid Round Capacity (In.)
|
|
Size
|
7/8
|
|
Minimum Diameter
|
20
|
|
Flat Bar Easy Way (In.)
|
|
Size
|
2
|
|
Minimum Diameter
|
15-3/4
|
|
Flat Bar Hard Way (In.)
|
|
Size
|
3/4
|
|
Minimum Diameter
|
6-1/2
|
|
Angle Iron Capacity (In.)
|
|
Size
|
1-1/4
|
|
Minimum Diameter
|
30
|
|
Shaft Center Distance (In.)
|
1.18
|
|
Lower Roll Diameter (In.)
|
4.65
|
|
Pinch
|
Single
|
|
Overall Dimensions (LxWxH) (In.)
|
57-7/8 x 22-53/64 x 21-21/32
|
|
Net Weight (Lbs.)
|
408
|
|
Gross Weight (Lbs.)
|
435
|
|
2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the
United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform
routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
|
At JET not only do we warranty every product we develop, but we ensure that our after sale service and support is number 1. Our customer rated 9 out of 10 Customer
Service, Technical Support, 40,000 plus unique parts in stock, and leading warranties guarantee we have the industrys most dependable service and support program.
If a JET tool needs service or repair, one of our 750 Authorized Service Centers located in all 50 states can assist you. In most cases Authorized Service Centers can
perform a warranty repair, assist in obtaining replacement parts, perform routine maintenance, and perform a major repair on your JET Tool. For the name and locationof an Authorized Service Center
in your area call 1 (800) 274-6848.
From here forward, look for our JET RED Assurance stamp. Whenyou see this logo you can rest assured that behind every product isdecades of Reliability, Expertise, and
Dependability.
