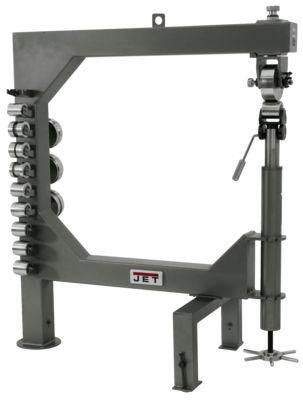

JET WH-45 English Wheel

jet 2 year warranty logo



The JET WH-45 5 in English Wheel rolls beads and forms mild steel up to 16 gauge. It comes stock with 10 anvils, 4 rolling wheels, a heavy duty frame, and storage brackets

WH-45T, 45" Professional English Wheel has a 2 Year warranty

  • Rolls beads and forms mild steel sheet metal up to 16 gauge
  • Rolls beads and forms aluminum and copper up top 1/8"thick
  • Machine supplied with 10 anvils and 4 rolling wheels
  • Three sets of popular fender groove shaping wheels
  • Throat 45"
  • Quick cam handle releases the work piece
  • Both wheels swivel 90°
  • Quick wheel change without using any tooling
  • Polished wheels supplied with sealed bearings for smooth operation
  • Rolling wheels 6" diameter
  • Storage brackets for rolling and anvil wheels
  • Screw lift assembly designed for comfortability and precise pressure setup
  • Heavy duty frame
  • Retractable wheels make moving this machine around the shop simple
Detailed Specifications
Part numbers 756151
Frame Tube Sizes (In.) 4 x 4
Throat (In.) 45
Head Opening (In.)
Head and Anvil Sit Swivel (Deg.) 90
Rolling Wheels Diameter (In.)
Overall Dimensions (L x W xH) (In.) 64 x 31 x 58
Weight (Lbs) 575
Height 64.0000
Length 58.0000
Weight 575.0000
Width 31.0000



jet 2 year warranty logo 2 YEAR WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.



JT9-756151
WH-45T, 45 PROFESSIONAL ENGLISH WHEEL, SHIPS LTL TRUCK FREIGHT, MADE IN CHINA, WGT = 575 LBS

CALL 800-458-3687 OR ADD TO CART FOR THE BEST BROTHER-IN-LAW DEAL ON THIS ITEM ** FREE FREIGHT & FREE RESIDENTIAL, LIFTAGTE & DELIVERY APPOINTMENT WHEN REQUESTED: NO HANDLING FEES
Mfg. item #: JT9-756151
WMH756151
lease to own for as little as:$65 per month!
Free freight for Jet-Powermatic-Wilton orders over $1,500. ALWAYS FREE Residential and Liftgate when Requested.1057
$3,269.00
