Laguna ENDURO Series Compact Metal Wide Belt Sande



SPS-9 Metal Sander	ENDURO Compact Metal Wide Belt Sanders	ENDURO Pro Metal Wide Belt Sanders

Click here for classic woodworking laguna Sanders

models
metal
Compact
pro

Models and Accessories
MSAN9X5-1K-5-0197	SPS-9 Metal Sander
MSANWB25X60-1K-7.5-0197-1	MW25C ENDURO Compact Wide Belt Metal Sander
MSANWB37X60-1K-10-0197-1	MW37C ENDURO Compact Wide Belt Metal Sander
MSANWB37X75-1K-20-0197-1	MW37 Pro ENDURO Pro Metal Wide Belt Sander
MSANWB51X75-1K-30-0197-1	MW51 Pro ENDURO Pro Metal Wide Belt Sander
MSANWB51X75-2RK-30-0197-1	MWW51 Pro ENDURO Pro Metal Wide Belt Sander

Compact Vs. Pro	Compact	Pro
Belt Length (inch)	60	75
Control Panel	Standard	Programable
Stock Depth Measuring	Manual	Integrated Feature
Motor Arrangement	Single Motor For All Processes	Single Motor For All Processes
Variable 1	Sanding Width
Variable 2	Belt Arrangement

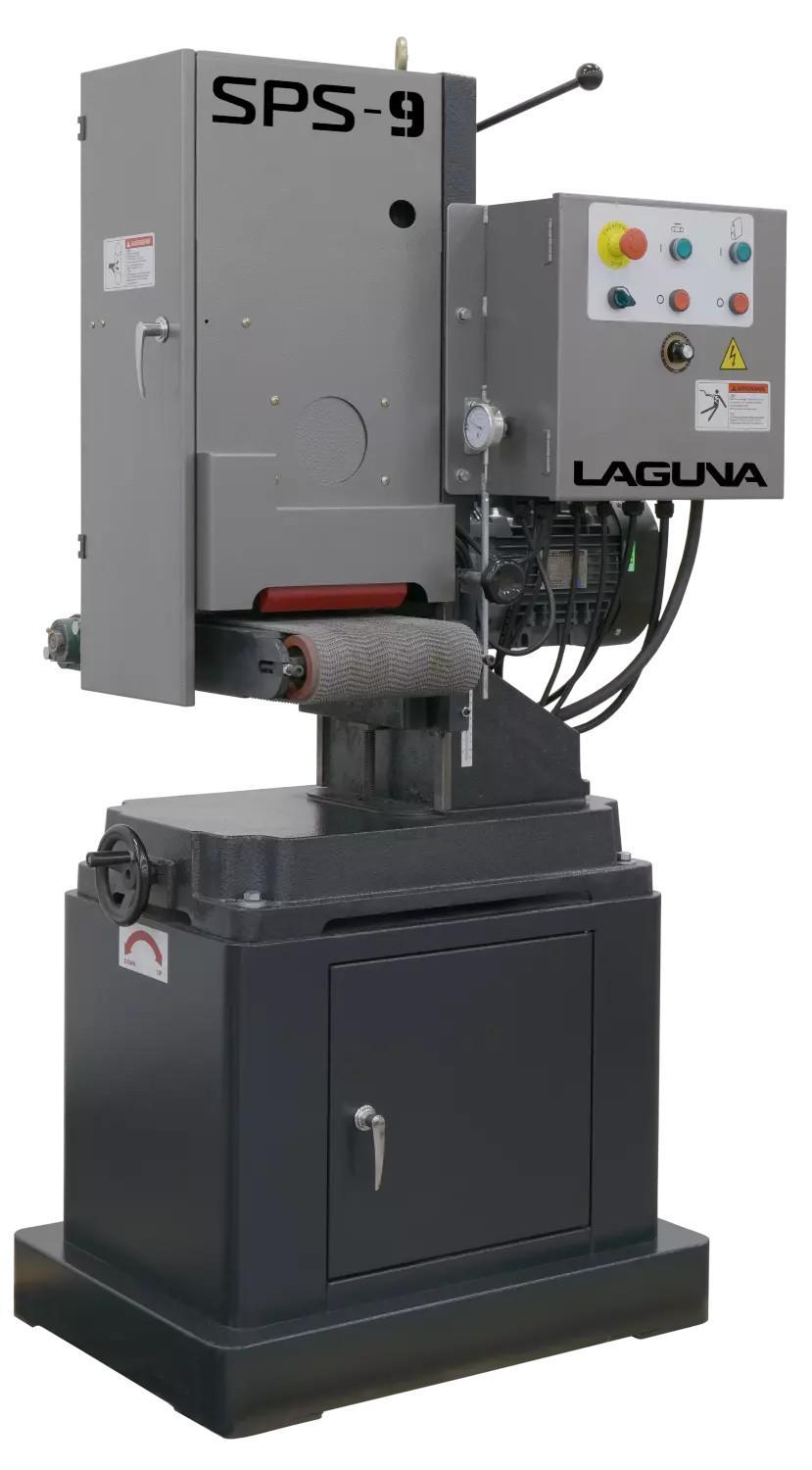

SPS-9 Metal Sander

This sander is perfect for the removal of slag, mill scale, burrs, dross, and sharp edges on small metal parts. The SPS-9 creates a pleasing, straight-line graining finish detail. This sander excels at surface conditioning square tubing of any length (down to 5 inches), and has a compact footprint appreciated by custom shops, especially those running high volume small metal parts.

Features:

5HP, 3 Phase, 220V Main Motor
1/4HP Conveyor Motor
3.3 - 19.7ft/min Conveyor Speed

Specifciations
Main Motor:	5HP, 3 Phase, 220V
Conveyor Motor:	1/4HP
Conveyor Speed:	3.3 â 19.7ft/min
Maximum Material Width: (in)	9
Maximum Material Thickness: (in)	4
Minimum Material Thickness: (in)	1/16
Minimum Material Length: (in)	5
Dust/Chip Collection Port: (in)	4

MW25C ENDURO Compact Metal Wide Belt Sander

ENDURO Series Compact Metal Wide Belt Sanders

Offering metal deburring, sanding, and texturing, the Compact Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 7.5 to 10 hp motor (Single Phase), 25 to 37 inch machine widths, electronic table elevation control, you can get the exact finish you need.

Features:

Single Belt
7.5-10HP Main Motor (Single Phase) Options
1HP Feed Speed
Auto-Thickness Adjustment Sensor
Electronic Table Elevation Control
Main Motor Load Meter
Quick Release Sanding Belt
25 and 37 inch Machine Widths
60 inch Abrasive Belt Length

MW25C Featuring

Single Sanding Belt
7.5hp Main Motor (Single Phase)/1HP Feed Speed
Belt Size: 25 x 60 inch
Sanding Max Width: 24 3/4 inch
Sanding Drum Diameter: 8 inch
Dust Port Size: 5 inch x 2

MW37C Featuring

Single Belt
10hp Main Motor (Single Phase)/1HP Feed Speed
Belt Size: 37 x 60 inch
Sanding Max Width: 36.5 inch
Sanding Drum Diameter: 8 inch
Dust port size: 4 inch x 3

ENDURO Series Compact Metal Wide Belt Sanders
Model	MW25C	MW37C
Part Number	MSANWB25X60-1K-7.5-0197-1	MSANWB37X60-1K-10-0197-1
Main Motor:	7.5HP (Single)	10HP (Single)
Feed Speed:	1HP (Single)	1HP (Single)
Table Lifting Motor:	0.33 (Single)	0.33 (Single)
Programmable Logic Control:	YES (Digital Readout)	YES (Digital Readout)
Automatic Thickness Control:	YES (Thicknessor)	YES (Thicknessor)
Max Sanding Height:	6 inch	6 inch
Min Sanding Height:	26 Gauge	26 Gauge
Max Sanding Width:	25 inch	37 inch
Sanding Belt Size:	60 inch	60 inch
Diameter of Sanding Drum:	8 inch	8 inch
Length of Sanding Drum:	24.4 inch	36.5 inch
Sanding Drum RPM:	1720	1720
2 Speed Settings (Low/High):	20fpm / 30fpm	20fpm / 30fpm
Dust Port Size:	5 inch	4 inch
Number of Dust Ports:	2	3
Foot Print:	39-3/8 x 19-5/16 inch	19 x 51-1/2 inch
Conveyor Height At Lowest Setting:	31.9 inch (Table Height 37.4 inch)	31.9 inch (Table Height 37.4 inch)
Cabinet: Steel	YES	YES
Operating Air Pressure:	60PSI	60PSI
Sanding Belt Oscillation:	YES	YES
Sanding Belt Motor Break:	YES	YES
CSA: Fully	YES	YES
Net Weight:	1344lbs	1609lbs
Ship Weight:	1565lbs	1829lbs

ENDURO Series Pro Metal Wide Belt Sanders

Offering metal deburring, sanding, and texturing, the Pro Line of Metal Wide Belt Sanders from LAGUNA gives a new level of production perfection. With a 20 to 30 hp motor, 37 to 51 inch wide work table and an auto-height adjustment sensor, you can get the exact finish you need.

Features:

Single or Double Belt Options
Digital Readout Control Panel
20-30HP Main Motor Options
1-2HP Variable Speed Conveyor
Auto-Thickness Adjustment Sensor
Electronic Table Elevation Control
Main Motor Load Meter
Quick Release Sanding Belt
Double Infeed and Outfeed Hold Down Rollers
37 to 51 inch Wide Work Table

MW37 Pro Featuring

Single Drum Sanding Head
20hp Main Motor / 1HP Conveyor Motor
Belt Size: 37 x 75 inch
Digital Control Panel With Logic
Variable 12 - 60 feet/min Conveyor
Speed Sanding Drum Diameter: 8 inch
Dust Port Size: 4 inch x 3

MW51 Pro Featuring

Single Sanding Belt
30hp Main Motor / 2hp Conveyor Motor
Belt Size: 51 x 75 inch
Digital Control Panel With Logic
Variable 12 - 60 feet/min Conveyor
Speed Sanding Drum Diameter: 8 inch
Dust Port Size: 4 inch x 3

MWW51 Pro Featuring

Double Drum Sanding Head
30hp Main Motor / 2HP Conveyor Motor
Belt Size: 51 x 75 inch
Digital Control Panel With Logic
Variable 12 - 60 feet/min Conveyor Speed
Sanding Drum Diameter: 8 inch
Dust port size: 4 inch x 3

ENDURO Pro Metal Wide Belt Sanders
Model	MW37 Pro	MW51 Pro	MWW51 Pro
Part Number	MSANWB37X75-1K-20-0197-1	MSANWB51X75-1K-30-0197-1	MSANWB51X75-2RK-30-0197-1
Main Motor:	20HP	30HP	30HP
Feed Speed:	1HP	2HP	2HP
Table Lifting Motor:	1/4HP	1/4HP	1/4HP
Programmable Logic Control:	YES (Digital Readout)	YES (Digital Readout)	YES (Digital Readout)
Automatic Thickness Control:	YES (Thicknessor)	YES (Thicknessor)	YES (Thicknessor)
Max Sanding Height:	6 inch	6 inch	6 inch
Min Sanding Height:	26 Gauge	26 Gauge	26 Gauge
Max Sanding Width:	36.5 inch	51 inch	51 inch
Sanding Belt Size:	75 inch	75 inch	75 inch
Diameter of Sanding Drum:	8 inch	8 inch	8 inch
Length of Sanding Drum:	37.9 inch	52.1 inch	52.1 inch
Sanding Drum RPM:	1720	1720	1720
2 Speed Settings (Low/High):	14 - 60 fpm	14 - 60 fpm	14 - 60 fpm
Dust Port Size:	4 inch	4 inch	4 inch
Number of Dust Ports:	3	3	3
Foot Print:	19 x 52-1/2 inch	68 x 20-1/2 inch	68 x 20-1/2 inch
Conveyor Height At Lowest Setting:	31.9 inch (Table Height 37.4 inch)	31.9 inch (Table Height 37.4 inch)	31.9 inch (Table Height 37.4 inch)
Cabinet: Steel	YES	YES	YES
Operating Air Pressure:	60PSI	60PSI	60PSI
Sanding Belt Oscillation:	YES	YES	YES
Sanding Belt Motor Break:	YES	YES	YES
CSA: Fully	YES	YES	YES
Net Weight: lbs	1675	2976	2976
Ship Weight: lbs	2006	3527	3527

Call for price. LAGMSAN9X5-1K-5-0197

Compare

25_ MWC 1K WIDEBELT SANDER (LAGUNA INDUSTRIAL) SHIP WEIGHT: 1560 LBS, MADE IN TAIWAN

Mfg. item #: MSANWB25X60-1K-7.5-0197-1

LAGMSANWB25X{00

lease to own for as little as:$300 per month!

Free LTL Freight, Free Residential, Lift-gate & Call Ahead Appointment Service. Plus free shipping on all accessories added to the order.¹⁰⁴⁶

$14,999.00

296

Compare

37 MWC 1K WIDEBELT SANDER (LAGUNA INDUSTRIAL) SHIP WEIGHT: 1850 LBS, MADE IN TAIWAN
ADD TO CART OR CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DEAL ON THIS LAGUNA INDUSTRIAL PRODUCT

Mfg. item #: MSANWB37X60-1K-10-0197-1

LAGMSANWB37X{00

lease to own for as little as:$354 per month!

Free LTL Freight, Free Residential, Lift-gate & Call Ahead Appointment Service. Plus free shipping on all accessories added to the order.¹⁰⁴⁶

$17,999.00

296

Compare

37_ MWP WIDEBELT SANDER (LAGUNA INDUSTRIAL) SHIP WEIGHT: 2137 LBS, MADE IN TAIWAN
ADD TO CART OR CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DEAL ON THIS LAGUNA INDUSTRIAL PRODUCT

Mfg. item #: MSANWB37X75-1K-

LAGMSANWB37X{01

lease to own for as little as:$429 per month!

Free LTL Freight, Free Residential, Lift-gate & Call Ahead Appointment Service. Plus free shipping on all accessories added to the order.¹⁰⁴⁶

$21,999.00

36821

Compare

51 MWP 30HP220V 3PH (LAGUNA INDUSTRIAL) SHIP WEIGHT: 3630 LBS, MADE IN TAIWAN
ADD TO CART OR CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DEAL ON THIS LAGUNA INDUSTRIAL PRODUCT

Mfg. item #: MSANWB51X75-1K-30-0197-1

LAGMSANWB51X{01

lease to own for as little as:$736 per month!

Free LTL Freight, Free Residential, Lift-gate & Call Ahead Appointment Service. Plus free shipping on all accessories added to the order.¹⁰⁴⁶

$37,999.00

296

Compare

51 MWWP 2RK 30HP220V 3PH (LAGUNA INDUSTRIAL) SHIP WEIGHT: 3630 LBS, MADE IN TAIWAN
ADD TO CART OR CALL 800-458-3687 X1 FOR THE BEST BROTHER-IN-LAW DEAL ON THIS LAGUNA INDUSTRIAL PRODUCT

Mfg. item #: MSANWB51X75-2RK-30-0197-1

LAGMSANWB51X{00

lease to own for as little as:$868 per month!

Free LTL Freight, Free Residential, Lift-gate & Call Ahead Appointment Service. Plus free shipping on all accessories added to the order.¹⁰⁴⁶

$44,999.00

296
