Mi-T-M CW Series Gas Pressure Washers

models
CW-2505-4MGH
CW-3004-4MGH
CW-3504-5MGH
CW-4004-5MV0
CW-4004-5MGH
CW-3004-4ME1
CW-3004-4ME3
CW-3005-0ME1
CW-3005-0ME3
CW-4004-1ME3
CW-5004-0ME3
CW-3004-0MKD
CW-1003-SME1
CW-2004-SME1
CW-2004-SME3
CW-3004-SME3

Models and Accessories
CW-2505-4MGM	COLD WATER BELT DRIVE
CW-3004-4MGM	COLD WATER BELT DRIVE
CW-2505-4MGK	COLD WATER BELT DRIVE
CW-3004-4MGK	COLD WATER BELT DRIVE
CW-2505-4MGH	COLD WATER BELT DRIVE
CW-3004-4MGH	COLD WATER BELT DRIVE
CW-3504-5MGM	COLD WATER BELT DRIVE
CW-3504-5MGK	COLD WATER BELT DRIVE
CW-3504-5MGH	COLD WATER BELT DRIVE
CW-1003-SME1	ELEC CW STATIONARY SS
CW-4004-5MGH	COLD WATER BELT DRIVE
CW-2405-4ME3	COLD WATER BELT DRIVE ELECTRIC
CW-3004-4ME3	COLD WATER BELT DRIVE ELECTRIC
CW-2405-4ME1	COLD WATER BELT DRIVE ELECTRIC
CW-3004-4ME1	COLD WATER BELT DRIVE ELECTRIC
CW-3004-SME3	ELEC CW STATIONARY SS
CW-2004-SME1	ELEC CW STATIONARY SS
CW-2004-SME3	ELEC CW STATIONARY SS
CW-3005-0ME1	COLD WATER BELTDRIVE
CW-3005-0ME3	COLD WATER BELT DRIVE
CW-4004-5MV0	COLD WATER BELT DRIVE
CW-3004-0MKD	COLD WATER BELT DRIVE DIESEL
CW-4004-1ME3	COLD WATER BELT DRIVE ELECTRIC
CW-5004-0ME3	COLD WATER BELT DRIVE-ELECTRIC
Options
50-0161	High pressure detergent injector (fits All models)
851-0317	50-ft. x 3⁄8-in. non-marking high pressure hose (fits CW-5004-0ME3)
851-0338	50-ft. x 3⁄8-in. non-marking high pressure hose (fits 2400 to 4000-PSI models)
AW-8400-0021	Low pressure detergent injector (fits All models)
CX-0003	460V on 8.0-HP, 3-phase models ( fits CW-2405-4ME3 and CW-3004-4ME3)
CX-0005	36-in. insulated dual lance (fits 2400 to 3000-PSI models)
CX-0057	460V on 15.0-HP, 3-phase models ( fits CW-4004-1ME3 and CW-5004-0ME3)
CX-0062	460V on 10.0-HP, 3-phase model (fits CW-3005-0ME3)
CX-0093	Stationary option (fits CW-2405 and CW-3004 models)
CX-0094	Stationary option (fits CW-3005, CW-4004 and CW-5004 models)

PRESSURE WASHER ACCESSORIES
AW-7500-0035	ROTATING NOZZLES 3.5 ORIFICE 5000 PSI MAX
AW-7020-8001	ROTARY SURFACE CLEANER - 28" HEAD
AW-7015-2400	24' TELESCOPIC EXTENTION POLES
AW-3000-0000	WET SANDBLASTER ATTACHMENT
851-0338	4000 PSI HOSE WITH Q/C
851-0095	GUN & WAND ASSEMBLY
AW-4018-0026	ALL PURPOSE CLEANER (4 GALLON PER CASE)
AW-4034-0026	HOUSE & DECK WASH (4 GALLON PER CASE)
AW-4059-0026	HEAVY DUTY DEGREASER(4 GALLON PER CASE)
AW-4085-0016	PUMP OIL(12 PINTS PER CASE)

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system allows more water into system to protect from heat build-up
Engine: Performance-proven Honda OHV engine with low-oil protection
Frame: 1 1/4-inch powder coated steel tube handles, Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Dual rubber isolators, Powder coated 1/4-inch steel base plate, Pneumatic mag tires with tubes for longer life and solid steel threaded axle
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-2505-4MGH
PSI	2500
GPM	4.4
Displacement/Engine	389cc Honda OHV
Net Weight	216 lbs.
Shipping Weight	290 lbs.
Length	45.5 in.
Width	28 in.
Height	26 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system allows more water into system to protect from heat build-up
Engine: Performance-proven Honda OHV engine with low-oil protection
Frame: 1 1/4-inch powder coated steel tube handles, Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Dual rubber isolators, Powder coated 1/4-inch steel base plate, Pneumatic mag tires with tubes for longer life and solid steel threaded axle
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-3004-4MGH
PSI	3000
GPM	3.5
Displacement/Engine	389cc Honda OHV
Net Weight	216 lbs.
Shipping Weight	290 lbs.
Length	45.5 in.
Width	28 in.
Height	26 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system allows more water into system to protect from heat build-up
Engine: Performance-proven Honda OHV engine with low-oil protection
Frame: 1 1/4-inch powder coated steel tube handles, Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Dual rubber isolators, Powder coated 1/4-inch steel base plate, Pneumatic mag tires with tubes for longer life and solid steel threaded axle
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model	CW-3504-5MGH
PSI	3500
GPM	3.7
Displacement/Engine	389cc Honda OHV
Net Weight	216 lbs.
Shipping Weight	290 lbs.
Length	46 in.
Width	28 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Nickel plated brass, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system allows more water into system to protect from heat build-up
Engine: Performance-proven Vanguard OHV engine with low-oil protection with electric start (battery included)
Frame: 1 1/4-inch powder coated steel tube handles, Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Dual rubber isolators, Powder coated 1/4-inch steel base plate, Pneumatic mag tires with tubes for longer life and solid steel threaded axle
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model	CW-4004-5MV0
PSI	4000
GPM	4.0
Displacement/Engine	480cc Vanguard OHV
Net Weight	256 lbs.
Shipping Weight	330 lbs.
Length	46 in.
Width	28 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader ÃÂ· Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system allows more water into system to protect from heat build-up
Engine: Performance-proven Honda OHV engine with low-oil protection
Frame: 1 1/4-inch powder coated steel tube handles, Two-piece belt guard with 1/4-turn release for quick access to belts, Convenient gun/wand holder and hose wrap, Dual rubber isolators, Powder coated 1/4-inch steel base plate, Pneumatic mag tires with tubes for longer life and solid steel threaded axle
Component: Dual cogged belt drive system for increased belt life
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree), 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model	CW-4004-5MGH
PSI	4000
GPM	3.5
Displacement/Engine	389cc Honda OHV
Net Weight	216 lbs.
Shipping Weight	290 lbs.
Length	46 in.
Width	28 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection, 10-foot power cord
Frame: Powder coated steel tube handles, Powder coated steel base plate, Convenient gun/wand holder and hose wrap, Solid steel threaded axle, Pneumatic tires with tubes for longer life, Dual rubber isolators, Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-3004-4ME1
PSI	3000
GPM	3.5
HP/Motor	7.5/230V, 1ph, 35.0A
Plug Type	NEMA 6-50P
Net Weight	338 lbs.
Shipping Weight	350 lbs.
Length	46 in.
Width	28 in.
Height	30 in.

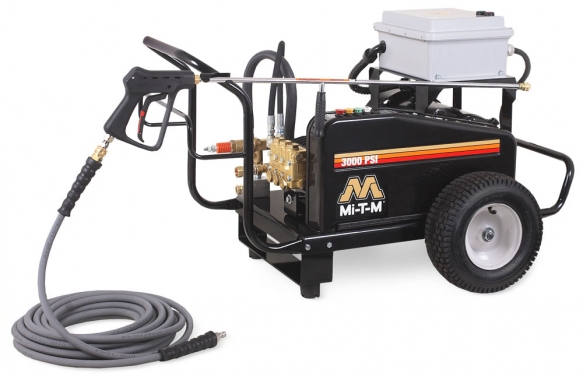

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection, 10-foot power cord
Frame: Powder coated steel tube handles, Powder coated steel base plate, Convenient gun/wand holder and hose wrap, Solid steel threaded axle, Pneumatic tires with tubes for longer life, Dual rubber isolators, Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-3004-4ME3
PSI	3000
GPM	3.5
HP/Motor	8.0/230V, 3ph, 23.0A
Plug Type	NEMA L15-30P
Net Weight	318 lbs.
Shipping Weight	330 lbs.
Length	46 in.
Width	28 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection, 10-foot power cord
Frame: Powder coated steel tube handles, Powder coated steel base plate, Convenient gun/wand holder and hose wrap, Solid steel threaded axle, Pneumatic tires with tubes for longer life, Dual rubber isolators, Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-3005-0ME1
PSI	3000
GPM	4.8
HP/Motor	10.0/230V, 1ph, 37.5A
Plug Type	NEMA 6-50P
Net Weight	396 lbs.
Shipping Weight	470 lbs.
Length	45.5 in.
Width	32.5 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection, 10-foot power cord
Frame: Powder coated steel tube handles, Powder coated steel base plate, Convenient gun/wand holder and hose wrap, Solid steel threaded axle, Pneumatic tires with tubes for longer life, Dual rubber isolators, Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-3005-0ME3
PSI	3000
GPM	4.8
HP/Motor	10.0/230V, 3ph, 25.6A
Plug Type	NEMA 15-50P
Net Weight	376 lbs.
Shipping Weight	450 lbs.
Length	45.5 in.
Width	32.5 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection, 10-foot power cord
Frame: Powder coated steel tube handles, Powder coated steel base plate, Convenient gun/wand holder and hose wrap, Solid steel threaded axle, Pneumatic tires with tubes for longer life, Dual rubber isolators, Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model	CW-4004-1ME3
PSI	4000
GPM	3.9
HP/Motor	15.0/230V, 3ph, 40.0A
Plug Type	NEMA 15-50P
Net Weight	431 lbs.
Shipping Weight	505 lbs.
Length	45.5 in.
Width	32.5 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, Water filter with clear sleeve for screen inspection, External bypass system creates less heat build-up
Motor: Totally enclosed fan-cooled electric motor with thermal overload protection, 10-foot power cord
Frame: Powder coated steel tube handles, Powder coated steel base plate, Convenient gun/wand holder and hose wrap, Solid steel threaded axle, Pneumatic tires with tubes for longer life, Dual rubber isolators, Totally enclosed powder coated steel belt guard
Component: Heavy-duty dual cogged belt system and cast-iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 48-inch lance with rubber grip

Specifications
Model	CW-5004-0ME3
PSI	5000
GPM	4.0
HP/Motor	15.0/230V, 3ph, 40.0A
Plug Type	NEMA 15-50P
Net Weight	431 lbs.
Shipping Weight	505 lbs.
Length	45.5 in.
Width	32.5 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader with fixed pressure, Forged brass manifold, Thermal relief valve, Water filter with clear screen for screen inspection
Engine: Professional Yanmar diesel engine
Frame: Powder coated steel tube handles, base plate and enclosed belt guard, Hose wrap and gun/wand holder, Solid steel threaded axle, Pneumatic tures with tubes, Rubber isolators
Component: Dual cogged belt drive system and cast iron pulleys
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch non-marking hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, 36-inch lance with rubber grip

Specifications
Model	CW-3004-0MKD
PSI	3000
GPM	3.5
HP/Engine	9.0 Yanmar
Fuel Tank Capacity	0.95 gallon
Net Weight	245 lbs.
Shipping Weight	321 lbs.
Length	46 in.
Width	28 in.
Height	30 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, In-line water strainer, Quick connect low pressure detergent injection, Bypass system, Pump accepts incoming water up to 175 F
Motor: Open drip-proof motor. 4-foot electrical cord with ground fault circuit interrupter and NEMA 5-20P, 20-amp plug
Frame: Easy-to-access cabinet design, Four rubber isolators, Removable panel for pump access Â· Stainless-steel base and frame
Component: Dual cogged belt drive system, Conveniently located on/off switch, Time delay shutdown will shut unit off automatically when trigger gun is released and timer reaches setting
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance

Specifications
Model	CW-1003-SME1
PSI	1000
GPM	2.5
HP/Motor	2.0/120V, 1ph, 18.8A
Plug Type	NEMA 5-20P
Net Weight	172 lbs.
Shipping Weight	222 lbs.
Length	29.5 in.
Width	20.5 in.
Height	15 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, In-line water strainer, Quick connect low pressure detergent injection, Bypass system, Pump accepts incoming water up to 175 F
Motor: Totally enclosed fan-cooled electric motor with manual thermal overload protection, 4-foot electrical cord with ground fault circuit interrupter
Frame: Easy-to-access cabinet design, Four rubber isolators, Removable panel for pump access, Stainless-steel base and frame
Component: Dual cogged belt drive system, Conveniently located on/off switch, Time delay shutdown will shut unit off automatically when trigger gun is released and timer reaches setting
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance

Specifications
Model	CW-2004-SME1
PSI	2000
GPM	3.9
HP/Motor	6.0/230V, 1ph, 24.1A
Plug Type	NEMA 6-30P
Net Weight	214 lbs.
Shipping Weight	272 lbs.
Length	29.5 in.
Width	20.5 in.
Height	15 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, In-line water strainer, Quick connect low pressure detergent injection, Bypass system, Pump accepts incoming water up to 175 F
Motor: Totally enclosed fan-cooled electric motor wiht manual thermal overload protection, 4-foot electrical cord with ground fault circuit interrupter
Frame: Easy-to-access cabinet design, Four rubber isolators, Removable panel for pump access, Stainless-steel base and frame
Component: Dual cogged belt drive system, Conveniently located on/off switch, Time delay shutdown will shut unit off automatically when trigger gun is released and timer reaches setting
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree) 50-foot x 3/8-inch hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance

Specifications
Model	CW-2004-SME3
PSI	2000
GPM	3.9
HP/Motor	6.0/230V, 3ph, 15.0A
Plug Type	NEMA L15-20P
Net Weight	204 lbs.
Shipping Weight	262 lbs.
Length	29.5 in.
Width	20.5 in.
Height	15 in.

View Product Sheet

Pump: Belt drive triplex piston General pump with ceramic plungers, Stainless-steel and brass unloader, Forged brass manifold, Thermal relief valve, In-line water strainer, Quick connect low pressure detergent injection, Bypass system, Pump accepts incoming water up to 175 F
Motor: Open drip-proof motor, 4-foot electrical cord with ground fault circuit interrupter
Frame: Easy-to-access cabinet design, Four rubber isolators, Removable panel for pump access, Stainless-steel base and frame
Component: Dual cogged belt drive system, Conveniently located on/off switch, Time delay shutdown will shut unit off automatically when trigger gun is released and timer reaches setting
Unit Includes: Quick connect nozzles (0, 15, 25 and 40 degree), 50-foot x 3/8-inch hose with quick connects, swivel and bend restrictors, Professional-grade insulated trigger gun with safety lock-off, Adjustable pressure insulated dual lance

Specifications
Model	CW-3004-SME3
PSI	3000
GPM	3.5
HP/Motor	8.0/230V, 3ph, 20.0A
Plug Type	NEMA L15-30P
Net Weight	234 lbs.
Shipping Weight	292 lbs.
Length	29.5 in.
Width	20.5 in.
Height	15 in.
