Mi-T-M Portable Gasoline Air Compressors



AM1-HH04-05M and AM1-HM04-05M 5-Gallon Single Stage Gasoline	AM1-PH65-08M 8-Gallon Single Stage Gasoline	AM1-PK07-08M 8-Gallon Single Stage Gasoline	AM2-PH09-08M 8-Gallon Two Stage Gasoline

AM1-PE02-08M 8-Gallon Single Stage Electric	AM1-PH65-20M 20-Gallon Single Stage Gasoline	AM2-PH09-20M 20-Gallon Two Stage Gasoline

models
AM1-HH04-05M
AM1-PH65-08M
AM1-PK07-08M
AM2-PH09-08M
AM2-PK95-08M
AM1-PH65-20M
AM2-PH09-20M
Accessories

Models
AM1-HH04-05M	5-Gallon Single Stage Gasoline
AM1-HM04-05M	5-Gallon Single Stage Gasoline
AM1-PH65-08M	8-Gallon Single Stage Gasoline
AM1-PK07-08M	8-Gallon Single Stage Gasoline
AM2-PH09-08M	8-Gallon Two Stage Gasoline
AM2-PK95-08M	8-Gallon Two Stage Gasoline
AM1-PH65-20M	20-Gallon Single Stage Gasoline
AM2-PH09-20M	20-Gallon Two Stage Gasoline
Options
AW-6000-1002	Equipment cover (fits All models)
AX-0002	Auto drain/regulator/plastic bowl (fits All models)
AX-0003	Manual drain/regulator/metal bowl (fits All models)
AX-0008	Dual control â continuous run and auto start/stop (fits All models)
AX-0027	Stationary kit (fits All models)
AX-0003	Manual drain/regulator/metal bowl
AX-0015	Electric start (battery and cables not included)
IX-0055	Remote start/choke - you will also need to order AX-0015
AX-0003	Manual drain/regulator/metal bowl
AX-0027	Stationary kit
AX-0076	Skid Feet
AX-0078	Stationary option

AM1-HH04-05M 5-Gallon Single Stage Gasoline

AM1-HM04-05M 5-Gallon Single Stage Gasoline

5-Gallon Single Stage Gasoline - AM1-HH04-05M and AM1-HM04-05M

This little powerhouse is ready to tackle even the most demanding jobs. Its portability makes it a great choice for remote jobsites. Use the hand-carry 5-gallon air compressor to get jobs done around your home and workshop.

Compressor Pump:

Quality single stage compressor
Stainless-steel braided discharge hose
Oil lubricated aluminum crankcase
Aluminum head for heat dissipation
Cast iron cylinder
Cartridge air filter

Engine:

Honda GX120 OHV engine

Frame:

Compact and portable twin tank design
Powder coated steel frame design
5-gallon powder coated tank assembly
Roll cage design
Rubber isolators
Double-handle carrying capability

Components

Regulator and two gauges for tank and outlet pressure
Drain valves and pressure relief valve
Pneumatic throttle control

Limited Warranties:

1 Year Compressor Pump Warranty
1 year Mi-T-M engine
3 Year Honda Engine

Specifications
CFM at 90 PSI	4.8
Displacement/ Engine	118cc Honda GX120 OHV
Compressor	Single stage
Cylinder	Cast iron
Tank Size	5-gallon
Engine Idle Control	Pneumatic
Net Weight	77 lbs.
Shipping Weight	85 lbs.
Length	21 in.
Width	17.5 in.
Height	22.25 in.

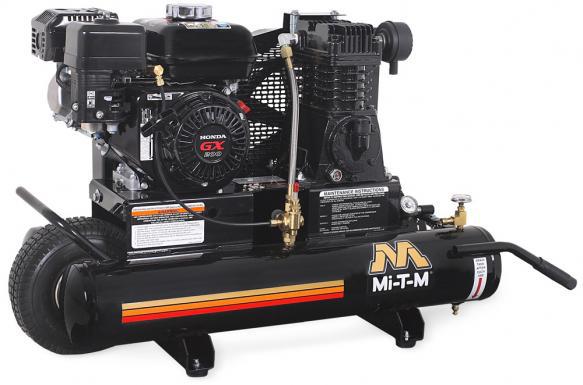

AM1-PH65-08M 8-Gallon Single Stage Gasoline

AM1-PH65-08M 8-Gallon Single Stage Gasoline

Contractors love the portability of this wheelbarrow style 8-gallon air compressor. It is designed for maximum efficiency to provide essential air power for multiple tools around most construction sites.

Compressor Pump:

Quality cast iron single stage compressor
Splash lubricated cast iron crankcase to extend the hours of performance
Cast iron head for heat dissipation
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Engine:

Industrial Honda GX200 OHV engine
Pneumatic idle control to conserve fuel

Frame:

Powder coated 8-gallon twin tank receivers
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Convenient lifting handles
10-inch flat-free tire

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
Belt tightening system pulls engine straight to ensure constant belt alignment
12-inch fly wheel for extra cooling and longer life
Quality pilot valve unloader

Specifications
Model	AM1-PH65-08M
CFM at 90 PSI	13.9
Displacement/ Engine	196cc Honda GX200 OHV
Compressor	Single stage, cast iron
Tank Size	8-gallon
Engine Idle Control	Pneumatic
Net Weight	175 lbs.
Shipping Weight	200 lbs.
Length	44.5 in.
Width	18.5 in.
Height	27 in.

8-Gallon Single Stage Electric

AM1-PK07-08M 8-Gallon Single Stage Gasoline

Compressor Pump:

Splash lubricated
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Frame:

Powder coated 8-gallon twin tank receivers
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard
10-inch flat-free tire

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
12-inch fly wheel
Quality pilot valve unloader

Specifications
Model	AM1-PK07-08M
CFM at 90 PSI	13.9
Displacement/ Engine	208cc Kohler CH270 OHV
Compressor	Single stage, cast iron
Tank Size	8-gallon
Engine Idle Control	Cable throttle
Net Weight	175 lbs.
Shipping Weight	200 lbs.
Length	44.5 in.
Width	18.5 in.
Height	27 in.

Options
AX-0078	Stationary option
AX-0003	Manual drain/regulator/metal bowl

AM2-PH09-08M 8-Gallon Two Stage Gasoline

AM2-PH09-08M 8-Gallon Two Stage Gasoline

The two stage wheelbarrow style 8-gallon air compressor is ideal for both contractors and remodelers where a higher CFM and air pressure is a must. Use it to power a multitude of air tools such as air hammers and impact wrenches.

Compressor Pump:

Splash lubricated
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Frame:

Powder coated 8-gallon twin tank receivers
3/16-inch base plate to reduce vibration
14-gauge powder coated two-piece belt guard
10-inch flat-free tires

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
16-1/2-inch fly
Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator

Specifications
Model	AM2-PH09-08M
CFM at 175 PSI	17.2
Displacement/ Engine	270cc Honda GX270 OHV
Compressor	Two stage, cast iron
Tank Size	8-gallon
Engine Idle Control	Pneumatic
Net Weight	260 lbs.
Shipping Weight	330 lbs.
Length	44 in.
Width	26 in.
Height	31 in.

AM2-PK95-08M 8-Gallon Two Stage Gasoline

Compressor Pump:

Quality cast iron two stage compressor with venting system for reduced crankcase temperature and pressure
Stainless-steel braided discharge hose
Splash lubricated cast iron crankcase to extend the hours of performance
Cast iron head and cylinder for extended durability
Large canister intake filter
Oil level sight indicator

Engine:

Industrial Kohler CH395 OHV engine
Cable throttle control to conserve fuel
Engine oil drain

Frame:

Powder coated 8-gallon twin tank receivers
3/16-inch base plate to reduce vibration
14-gauge powder coated two-piece belt guard with 1/4-turn release for quick access to belts
Convenient lifting handles
10-inch flat-free tires

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
16.5-inch flywheel for extra cooling and longer life
Quality pilot valve unloader
Belt tightening system pulls engine straight to ensure constant belt alignment

Equipped with 150-PSI maximum rated regulator.

Specifications
Model	AM2-PK95-08M
CFM at 90 PSI	17.2
Displacement/ Engine	277cc Kohler CH395 OHV
Compressor	Single stage, cast iron
Tank Size	8-gallon
Engine Idle Control	Cable throttle
Net Weight	175 lbs.
Shipping Weight	200 lbs.
Length	44.5 in.
Width	18.5 in.
Height	27 in.

Options
AX-0078	Stationary option
AX-0003	Manual drain/regulator/metal bowl

AM1-PH65-20M 20-Gallon Single Stage Gasoline

If you need a lot of air capacity on the go, this machine is for you. This model features a powerful single stage compressor that is designed for maximum productivity. It is the ideal tool for large construction sites.

Compressor Pump:

Splash lubricated
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Frame:

Powder coated ASME coded 20-gallon receiver tank
3/16-inch base plate to reduce vibration
16-gauge powder coated two-piece belt guard
10-inch flat-free tires

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
12-inch fly wheel
Quality pilot valve unloader

Specifications
Model Number	AM1-PH65-20M
CFM at 90 PSI	13.9
Displacement/ Engine	196cc Honda GX200 OHV
Compressor	Single stage, cast iron
Tank Size	20-gallon
Engine Idle Control	Pneumatic
Net Weight	212 lbs.
Shipping Weight	272 lbs.
Length	37 in
Width	23.5 in
Height	33 in

Options
AX-0003	Manual drain/regulator/metal bowl
AX-0027	Stationary kit

AM2-PH09-20M 20-Gallon Two Stage Gasoline

This model features a powerful and efficient two stage compressor designed to maximize productivity. The versatility of the 20-gallon air compressor offers extra air storage and comes in stationary or portable models.

Compressor Pump:

Splash lubricated
Stainless-steel braided discharge hose
Large canister intake filter
Oil level sight indicator

Frame:

Powder coated ASME coded 20-gallon receiver tank
3/16-inch base plate to reduce vibration
14-gauge powder coated two-piece belt guard
13-inch flat-free tires

Components:

Regulator and two gauges for tank and outlet pressure
Manual drain valves for proper maintenance
16 1/2-inch fly wheel
Quality pilot valve unloader

*Equipped with 150-PSI maximum rated regulator

Specifications
Model Number	AM2-PH09-20M
CFM at 175 PSI	17.2
Displacement/ Engine	270cc Honda GX270 OHV
Compressor	Two stage, cast iron
Tank Size	20-gallon
Engine Idle Control	Pneumatic
Net Weight	306 lbs
Shipping Weight	356 lbs
Length	46 in
Width	26 in
Height	39.5 in.

Options
AX-0015	Electric start (battery and cables not included)
IX-0055	Remote start/choke - you will also need to order AX-0015
AX-0003	Manual drain/regulator/metal bowl
AX-0017	Electric start (battery and cables included)

Plugs-and-Couplers

Blow-Guns_-Air-Hoses_-Oil-Drains

Accessories
17-0053	AIR QC PLUG-1/4 IIS-1/4 FPT
17-0049	AIR QC PLUG-1/4 IIS-1/4 MPT
17-0050	AIR QC PLUG-1/4 AS-1/4 MPT
17-0054	AIR QC PLUG-1/4 AS-1/4 FPT
17-0052	AIR QC PLUG-1/4 ARO-1/4 MPT
17-0056	AIR QC PLUG-1/4 ARO-1/4 FPT
23-0017	BUSHING 1/4F X 3/8M HEX BRASS
23-0069	BARB 1/4MP X 3/8 HOSE-BRASS
17-0051	AIR QC PLUG-1/4 LS-1/4 MPT
17-0055	AIR QC PLUG-1/4 LS-1/4 FPT
23-0051	BARB 1/4MPX1/4 HOSE STD BRASS
23-0052	BARB 3/8MP X1/4 HOSE STD-BRASS
24-0010	NIPPLE 3/8" HEX - STEEL
24-0146	HEX NIPPLE 1/4M X 3/8M
17-0061	AIR QC PLUG-3/8 IIS-3/8 MPT
23-0073	BARB 3/8MP X 3/8 HOSE - BRASS
23-0103	NIPPLE 1/4M X 1/4M HEX-BRASS
24-0031	NIPPLE 1/2M X 1/2M HEX - STEEL
24-0145	HEX NIPPLE 1/4 MNPT X 1/4 MNPT
17-0062	AIR QC PLUG-3/8 IIS-3/8 FPT
23-0002	COUPLER 1/4F X 1/4F HEX-BRASS
23-0415	AIR HOSE SPLICER 1/4" BARBED
23-0416	AIR HOSE SPLICER 3/8" BARBED
24-0265	NIPPLE 1/2M X 1/4M HEX-STEEL
17-0044	AIR QC SOCKET-1/4 AS-1/4 MPT
24-0024	NIPPLE 1/2MPX3/8MP HEX - STEEL
AT-3002	AIR CHUCK-BALL FOOT
17-0043	AIR QC SOCKET-1/4 IIS-1/4 MPT
17-0045	AIR QC SOCKET-1/4 IIS-1/4 FPT
17-0048	AIR QC SOCKET-1/4 ARO-1/4 FPT
23-0050	ELBOW 3/8MX1/2"HOSE BARB-BRASS
19-0215	PLASTIC AIR FILTER COMPLETE
19-0226	AIR FILTER REPLACEMENT
17-0068	AIR QC SOCKET-1/4 IIS-3/8 MPT
19-0218	2" PAPER FILTER ELEMENT
19-0082	FILTER ELEMENT
AT-4008-M	AIR FILTER
17-0046	AIR QC SOCKET-1/4 AS-1/4 FPT
17-0067	AIR QC SOCKET-1/4 IIS-3/8 FPT
AW-0017-0045K	AIR QC SET-IIS-1/4F SOC 1/4MP
19-0220	PAPER FILTER ELEMENT
17-0047	AIR QC SOCKET-1/4 LS-1/4 FPT
19-0217	AIR FILTER ASSY 2.5"DIA-3/8MPT
AW-0017-0046K	AIR QC SET-AS-1/4F SOC 1/4 MP
AT-3004	AIR BLOWGUN-STANDARD
AT-3005	AIR BLOWGUN-SAFETY
AT-4007-M	AIR FILTER
17-0060	AIR QC SOCKET-3/8 IIS-3/8 FPT
17-0059	AIR QC SOCKET-3/8 IIS-3/8 MPT
22-0271	GAUGE 300PSI 1.5DIA-1/8NPTBKMT
22-0446	GAUGE 250PSI 40MM DIA-1/8NPT
AT-3001	AIR CHUCK-DUAL FOOT DIRECT
22-0326	REGULATOR - 1/4" NPT 250 PSI
19-0219	AIR FILTER ASSY 4.25"DIA-1"MPT
23-0414	AIR/WATER ADAPTER
19-0083	AIR FILTER ASSY 3.25"DIA-1/2MP
17-4952	COUPLER TEST BAR - AIR
15-0231	AIR HOSE-3/8"X25' PVC
AT-3007	AIR BLOWGUN 1 FT RUBBER TIP
70-0357	KIT-ENG OIL DRAIN
AT-3008	AIR BLOWGUN 2 FT RUBBER TIP
15-0230	AIR HOSE-3/8"X50' PVC
70-0358	KIT-ENGINE OIL DRAIN GX240-390
70-0380	KIT-ENGINE OIL DRAIN EX13-27
19-0240	AIR FILTER ASSY 4 X 1/2" NPT
AT-3009	AIR BLOWGUN 4 FT RUBBER TIP
854-0085	AIR HOSE ASSY-50' PVC W/QC'S
15-0327	AIR HOSE 3/8"X25' 1/4MNPT
19-0225	AIR FILTER ASSY 6"DIA X 3/4MPT
AT-3003	AIR INFLATOR-DELUXE
22-0231	REGULATOR
AT-4004-M	AIR FILTER-1/4" POLY BOWL
AT-4006-M	AIR FILTER-3/8" POLY BOWL
AW-9301-AT02	AIR COMPRESSOR ACCESSORY KIT
15-0328	AIR HOSE 3/8"X50' 1/4MNPT
AT-4005-M	AIR FILTER-1/2" METAL BOWL
AT-4009-M	LUBRICATOR-1/4" POLY BOWL
AT-4010-M	LUBRICATOR-3/8" POLY BOWL
AT-4011-M	FILTER/REGULATOR-3/8"
22-0358	REGULATOR 1/2"
AT-4012-M	DRAIN-1/4" AUTO ELECTRIC
