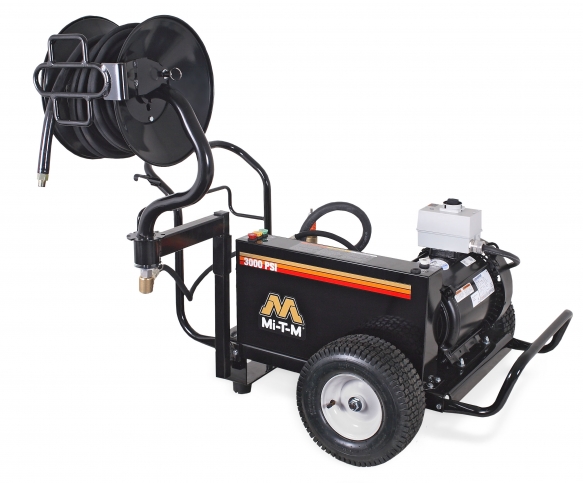

Hose reels are convenient for the storage of hoses.
Reel capacities based on R1 Mi-T-M hoses.
-Frame mount
-360° pivoting action on 50-0136 & 50-0137 hose reels
-Non-pivoting action on 50-0164 & 50-0165 hose reels
-Easy mount bracket design
-Clean hands hose guide
-Live system
50-0195 (13-inch swivel hose reel)
50-0137 (16-inch reel, 200-foot maximum hose length)
*50-0164 (13-inch reel without swivel, 100-foot maximum hose length)
*50-0165 (16-inch reel without swivel, 200-foot maximum hose length)
*Note: Hose reels 50-0164 & 50-0165 must be mounted with 50-0172 (45° bracket). Also, 23-0307 (elbow) and 23-0243 (reducer) are required for jumper hose
mounting.
Brackets
AW-0050-0138 : Universal mount (HS Series)
13-0207A01 : Wall mount (HG Series)
50-0140 : Bar 29-inch (CWC Series)
13-0175A01 : Cold water base mount (JCW & CW Series)
13-0208A01 : 45° for mounting reels without swivel
13-0210A01 : 90° for mounting reels without swivel
Elbow - 23-0307
Reducer - 23-0243
Jumper Hoses
852-0138 : Screw connect, 40-inch (HSP & Large HSE Series)
852-0139 : Quick connect, 40-inch (Cold Water)
852-0161 : Screw connect, 57-inch (Small HSE Series)
850-0278 : Quick connect, 85-inch (HS Series)
