Job Site and Construction Water Pumps

CALL 1-800-458-3687 FOR FREE FREIGHT
Some conditions may apply but never surprise handling charges when ordering
TP-2PTR, TP-3PTR & TP-4PTR pto - TRASH PUMPS
TP-2PTR, TP-3PTR & TP-4PTR pto - TRASH PUMPS
2", 3" & 4" PTO - Trash Pumps

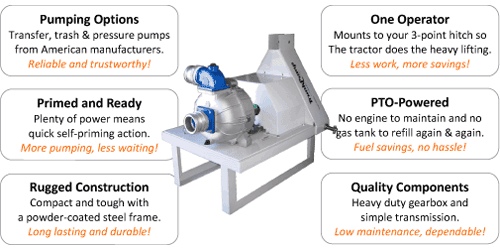

Trunk Pump Water and Trash Pump

Choosing The Right Pump

Application Centrifugal Diaphragm Trash Submersible
Clear Water X     X
Slimy Water X X X X
Muck Water X X X X
Mud Water X X X
Silt Water X X X
Abrasive Water X X X X
High Solid Content Water   X X
Slow Seepage Ditch Water   X   X
Fast Seepage Ditch Water X   X X
Septic Tank   X X
Manholes X X X X

PTO-POWER PUMPS AT A GLANCE

MODEL FLOW PRESSURE SOLIDS
TP-2PTP
2" Pressure		 135gpm
8,100gph		 88psi
205' head		 NO
TP-2PTR
2" Trash		 220gpm
13,200gph		 49psi
115' head		 1 inch
TP-3PTR
3" Trash		 320gpm
19,200gph		 45psi
105' head		 1.25 inch
TP-4PTR
4" Trash		 520gpm
31,200gph		 52psi
120' head		 2 inch
TP-3PT
3" Dewatering		 440gpm
26,400gph		 52psi
120' head		 Dirty
Water
TP-3VS
3" Dewatering		 310gpm
18,600gph		 37psi
85' head		 Dirty
Water

HYDRAULIC PUMPS AT A GLANCE

MODEL FLOW PRESSURE SOLIDS
TP-HYD2
2" Dewatering		 240gpm
14,400gph		 37psi
85' head		 Dirty Water
TP-HYD3
3" Dewatering		 280gpm
16,800gph		 37psi
85' head		 Dirty Water

Pumps require 9-20gpm hydraulic flow.

Trunk Pump Water and Trash Pump
There are no further details.
There are no further specifications.
There is no further information.
There are no listed accessories.
