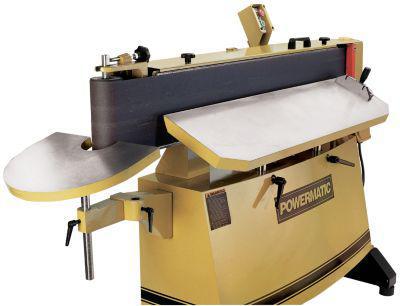

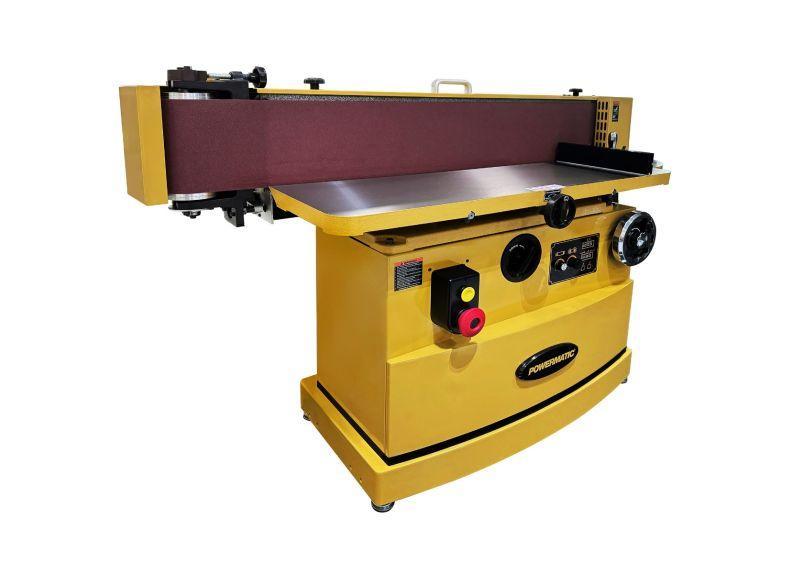

The large 11-3/4 x 48 inch table on the OES9138 oscillating edge sander travels a full 8 inch in vertical height to accommodate most woodworking pieces. It will also tilt negative
5 degree and out to positive 45 degree. The cast iron platen is a generous 48 x 9-1/2 inch and covered with graphite for production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can
use the entire belt face without burning. A 3HP motor powers the belt and runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball
bearings for trouble-free performance. Dual dust collection ports keep the work area clean and extend the life of your abrasive belt.
OES9138 Sander, 3HP 1PH 230V has a 5 Year warranty
-
3HP motor with 9 x 138-3/4 inch abrasive belt handles large workpieces
-
Oscillates 24 cycles per minute for better finish and longer belt life
-
9-1/2 x 48 inch platen with graphite pad offers largest work surface in its class
-
Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
-
Pedestal control switch for easy access
-
Large 11-3/4 x 48 inch front worktable with 8 inch vertical travel tilts and 45 degree tilt, includes miter head for angle work
-
Precision balanced 9 inch diameter drive drum and 4 inch diameter rubber coated idler pulley for positive drive and rigid tracking
-
Large radius end table has 6 inch vertical travel and 45 degree tilt for any angle and working height needed
-
Heavy duty oscillating gearbox and shaft for long maintenance free use
-
Hinged guard opens for infinite length sanding
-
Dual dust collection ports keep work area clean and extend abrasive belt life
-
Standard Equipment:
-
Two 4 inch dust ports
-
Tilting main and end tables
-
Platen with graphite pad
-
Cast iron table bed
|
Detailed Specifications
|
|
Part Number
|
1791282
|
|
Style (Type)
|
Horizontal/Vertical Oscillating Edge
|
|
Sanding Belt Size (L x W) (In.)
|
9 x 138-3/4
|
|
Belt Speed (FPM)
|
3542
|
|
Drum Diameter (In.)
|
4 Outboard, 9 Drive
|
|
Platen Size (In.)
|
9-1/2 x 48
|
|
Oscillations Per Minute
|
24
|
|
Main Table Size (L x W) (In.)
|
48 x 11-3/4
|
|
Main Table Tilt (Deg.)
|
5 In, 45 Out
|
|
Table Height from Floor (In.)
|
34-1/2 - 40-3/4
|
|
End Table Size (In.)
|
18
|
|
End Table Tilt (Deg.)
|
40 In, 45 Out
|
|
Electrical Controls
|
Magnetic Starter
|
|
Dust Collection Minimum CFM Required (CFM)
|
1,100
|
|
Dust Port Outside Diameter (In.)
|
4
|
|
Motor Power (HP)
|
3
|
|
Motor Phase
|
1
|
|
Motor Voltage (V.)
|
230 only
|
|
Recommended Circuit Size (Amps.)
|
30
|
|
Height
|
50.0000
|
|
Length
|
83.0000
|
|
Weight
|
870.0000
|
|
Width
|
32.0000
|
Click Here to Download Manual
The large 11-3/4 x 48 inch table on the OES9138 oscillating edge sander travels a full 8 inch in vertical height
to accommodate most woodworking pieces. It will also tilt negative 5 degree and out to positive 45 degree. The cast iron platen is a generous 48 x 9-1/2 inch and covered with graphite for
production sanding, offering super support and cooler running to extend belt life. With 24 oscillations per minute you can use the entire belt face without burning. A 3HP motor powers the belt and
runs a large gearbox to provide the oscillating action. The entire head pivots on a massive shaft with two sealed ball bearings for trouble-free performance. Dual dust collection ports keep the
work area clean and extend the life of your abrasive belt.
OES9138 Sander, 3HP 3PH 230/460V has a 5 Year warranty
-
3HP motor with 9 x 138-3/4 inch abrasive belt handles large workpieces
-
Oscillates 24 cycles per minute for better finish and longer belt life
-
9-1/2 x 48 inch platen with graphite pad offers largest work surface in its class
-
Rugged bearing-assisted tensioning device for fast belt changes and quick adjust tracking
-
Pedestal control switch for easy access
-
Large 11-3/4 x 48 inch front worktable with 8 inch vertical travel and 45 degree tilt, includes miter head for angle work
-
Precision balanced 9 inch diameter drive drum and 4 inch diameter rubber coated idler pulley for positive drive and rigid tracking
-
Large radius end table has 6 inch vertical travel and 45 degree tilt for any angle and working height needed
-
Heavy duty oscillating gearbox and shaft for long maintenance-free use
-
Hinged guard opens for infinite length sanding
-
Dual dust collection ports keep work area clean and extend abrasive belt life
-
Standard Equipment:
-
Two 4 inch dust ports
-
Tilting main and end tables
-
Platen with graphite pad
-
Cast iron table bed
-
460V operation requires an additional 460V magnetic switch, part OES-002E
|
Detailed Specifications
|
|
Part Number
|
1791293
|
|
Style (Type)
|
Horizontal/Vertical Oscillating Edge
|
|
Sanding Belt Size (L x W) (In.)
|
9 x 138-3/4
|
|
Belt Speed (FPM)
|
3542
|
|
Drum Diameter (In.)
|
4 Outboard, 9 Drive
|
|
Platen Size (In.)
|
9-1/2 x 48
|
|
Oscillations Per Minute
|
24
|
|
Main Table Size (L x W) (In.)
|
48 x 11-3/4
|
|
Main Table Tilt (Deg.)
|
5 In, 45 Out
|
|
Table Height from Floor (In.)
|
34-1/2 - 40-3/4
|
|
End Table Size (In.)
|
18
|
|
End Table Tilt (Deg.)
|
40 In, 45 Out
|
|
Electrical Controls
|
Magnetic Starter
|
|
Dust Collection Minimum CFM Required (CFM)
|
1,100
|
|
Dust Port Outside Diameter (In.)
|
4
|
|
Motor Power (HP)
|
3
|
|
Motor Phase
|
3
|
|
Motor Voltage (V.)
|
230/460
|
|
Prewired Voltage (V.)
|
230
|
|
Recommended Circuit Size (Amps.)
|
15/10
|
|
Height
|
50.0000
|
|
Length
|
83.0000
|
|
Weight
|
870.0000
|
|
Width
|
32.0000
|
|
Models
|
|
1791282
|
OES9138 Oscillating Edge Sander, 3HP, 1PH, 230V
|
|
1791293
|
OES9138 Oscillating Edge Sander, 3HP, 3Ph, 230V/460V
|
Call 800-458-3687 for edge sanding belts
