Powermatic ArmorGlide Jointers

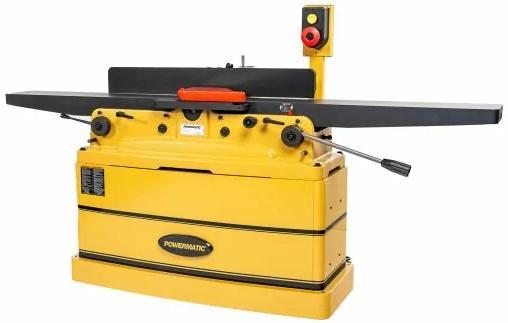

Now featuring ArmorGlide Technology that is low friction and rust resistant, the Powermatic PJ882T 8-Inch Parallelogram Jointer offers performance and value in a machine loaded with features. Each machine has an extra-long 82-inch bed length for better work support, and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.This design also ensures the table remains perfectly parallel, even after years of tough duty. The 1/8-inch depth limiter control knob gives you quick adjustment ability and safety. A simple twist of the knob will disable this feature. This jointer features a Powermatic controlled chip three-knife cutterhead for a safe, smooth cut every time. The powerful 2-HP motor is totally enclosed in a heavily-constructed steel stand, providing plenty of power for the most demanding jobs.

Features:

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ-882HHT 8-Inch Parallelogram Jointer offers performance and value in a machine loaded with features. The cutterhead is a helical design with 54 four-sided knife inserts. These inserts produce a superior finish and much quieter operation than conventional cutterheads, and the inserts do not require adjustment once installed.The jointer has an extra long 82-inch bed for better work support and is equipped with an innovative single handwheel design that tilts the fence in and out with positive stops at +/-45 and 90 degrees. A non-mar insert in the fence contacts the table to avoid scratching the surface during adjustments. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the table remains perfectly parallel, even after years of heavy use. The 2-HP motor is totally enclosed in a heavy steel stand, providing plenty of power and stability for the most demanding jobs.

Features:

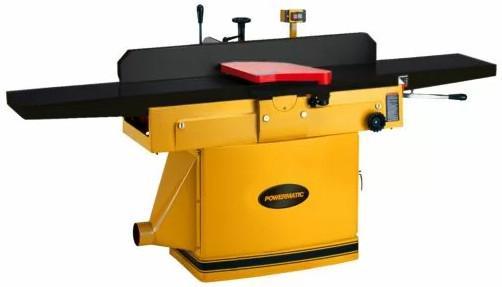

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic 1285T 12-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large center-mounted fence assembly adjusts easily by a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45° in and out, and a positive stop for perfect 90° angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. This model features a straight knife cutterhead.

Features:

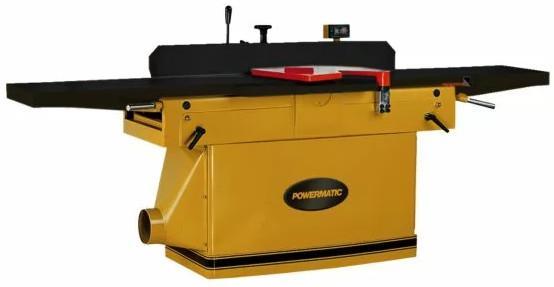

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the Powermatic PJ1696T, 16-Inch Jointer offers big capacity and performance in a machine that is loaded with features. A large, center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set up at 45 degrees in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish, and allows for a fast depth of cut adjustment.This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially-designed solid steel helical cutterhead consists of six rows of precision-ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2-HP motor delivers all the power you need for even the biggest jobs.

• Features:
