Powermatic ArmorGlide Tablesaws


At Powermatic, we believe that ambition is the fuel that drives progress. Every product we engineer is born out of the same idea: How can we empower woodworkers to do more? In shops across the world, craftsmen are continually pushing the limits of their creativity, and in turn, challenging us to provide the best tools for the job. When we reimagined our line of bandsaws, we not only set out to meet their ambitions, but to exceed them. Larger projects and larger workpieces call for more power, more resaw capacity and more cast iron. This bandsaw also features the legendary quality, precision and attention to detail that has been helping woodworkers expand their ambition for more than ninety years


PM1000T, 10-Inch Table Saw with ArmorGlide 30 and 50in rip 1-3/4HP 1PH 115/230V	PM2000BT, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip 3HP 220 V only	PM2000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Extension Table 5HP, 220v OR 440v 1 or 3 phase	PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table 5HP, 220v OR 440v 1 or 3 phase

PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Router Lift 5HP, 220v OR 440v 1 or 3 phase	PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, workbench 5HP, 220v OR 440v 1 or 3 phase	PM3000T, 14-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 7-1/2 HP, 3Ph 230

power matic armor glide logo

models
PM1000T
PM2000BT
PM2000T
PM3000T
Warranty

Models
PM1000T
1791000KT	PM1000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Accu-Fence System, 1Ph 115/230V
1791001KT	PM1000T, 10-Inch Table Saw with ArmorGlide, 52-Inch Rip, Extension Table, 1Ph 115/230V
PM2000BT
PM23130KT	PM2000BT, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Accu-Fence System, 3 HP, 1Ph 230V Only
PM2000
PM23130K	PM2000, 10 inch Table Saw, 3HP 1PH 230V, 30 inch Accu-Fence System
PM23150K	PM2000, 10 inch Table Saw, 3HP 1PH 230V, 50 inch Accu-Fence System
PM23150RK	PM2000, 10 inch Table Saw, 3HP 1PH 230V, 50 inch Accu-Fence System, Router Lift
PM23150WK	PM2000, 10 inch Table Saw, 3HP 1PH 230V, 50 inch Accu-Fence System, Workbench
PM25130K	PM2000, 10 inch Table Saw, 5HP 1PH 230V, 30 inch Accu-Fence System
PM25150K	PM2000, 10 inch Table Saw, 5HP 1PH 230V, 50 inch Accu-Fence System
PM25150RK	PM2000, 10 inch Table Saw, 5HP 1PH 230V, 50 inch Accu-Fence System, Router Lift
PM25150WK	PM2000, 10 inch Table Saw, 5HP 1PH 230V, 50 inch Accu-Fence System, Workbench
PM25330K	PM2000, 10 inch Table Saw, 5HP 3PH 230/460V, 30 inch Accu-Fence System
PM25350K	PM2000, 10 inch Table Saw, 5HP 3PH 230/460V, 50 inch Accu-Fence System
PM25350RK	PM2000, 10 inch Table Saw, 5HP 3PH 230/460V, 50 inch Accu-Fence System, Router Lift
PM25350WK	PM2000, 10 inch Table Saw, 5HP 3PH 230/460V, 50 inch Accu-Fence System, Workbench
PM2000T
PM23150KT	PM2000T 10 inch Table Saw with ArmorGlide, 3HP 1PH 230V, 50 inch RIP

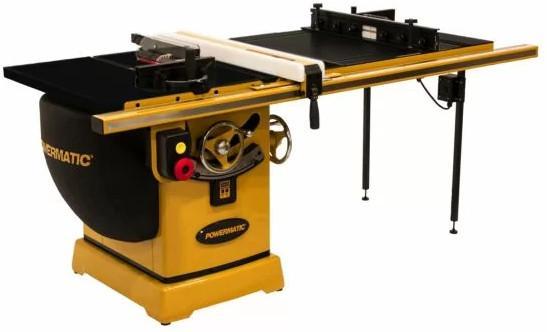

PM23150RKT	PM2000T 10 inch Table Saw with ArmorGlide, 3HP 1PH 230V, 50 inch RIP

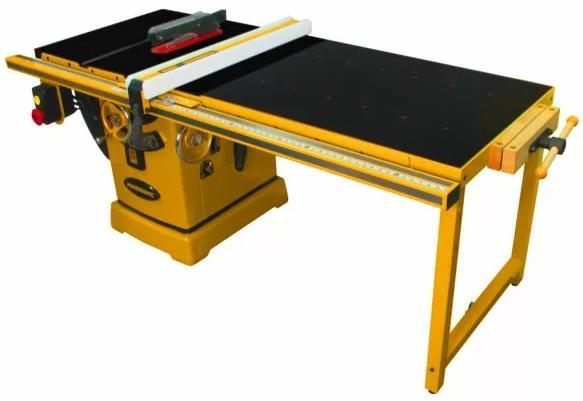

PM23150WKT	PM2000T 10 inch Table Saw with ArmorGlide, 3HP 1PH 230V, 50 inch RIP

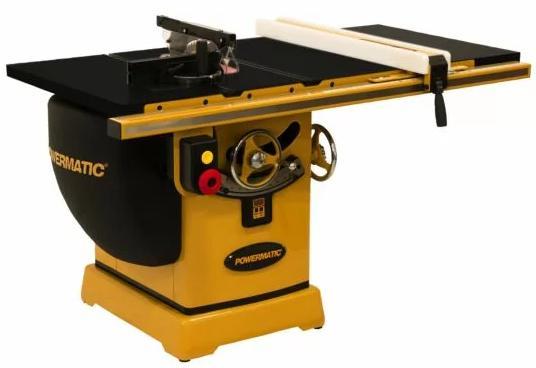

PM25130KT	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 1PH 230V, 30 inch RIP
PM25150KT	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 1PH 230V, 50 inch RIP
PM25150RKT	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 1PH 230V, 50 inch RIP
PM25150WKT	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 1PH 230V, 50 inch RIP
PM25330KT	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 3PH 230V, 30 inch RIP
PM23130KT	PM2000T 10 inch Table Saw with ArmorGlide, 3HP 1PH 230V, 30 inch RIP
PM25330KT-4	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 3PH 460V 30 inch RIP
PM25350KT	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 3PH 230V 50 inch RIP

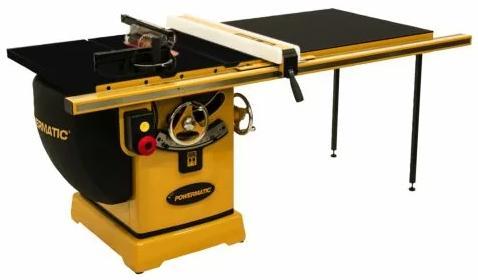

PM25350KT-4	PM2000T 10 inch Table Saw with ArmorGlide, 5HP 3PH 460V 50 inch RIP
PM25350RKT	PM2000T 10 inch Table Saw with ArmorGlide, 5H 3PH 230V 50 inch RIP
PM25350RKT-4	PM2000T 10 inch Table Saw with ArmorGlide, 5H 3PH 460V 50 inch RIP
PM25350WKT	PM2000T 10 inch Table Saw with ArmorGlide, 5H 3PH 230V 50 inch RIP
PM25350WKT-4	PM2000T 10 inch Table Saw with ArmorGlide, 5H 3PH 460V 50 inch RIP
PM3000
PM375350K	PM3000, 14 inch Table Saw, 7.5HP 3PH 230/460V, 50 inch Accu-Fence

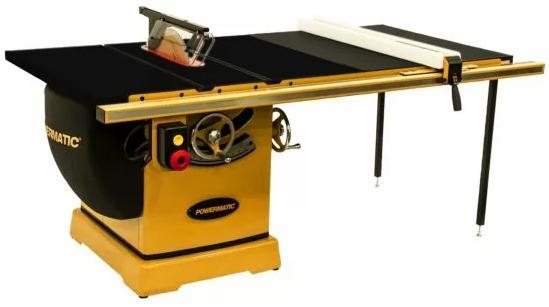

PM375350KT	PM3000T 10 inch Table Saw with ArmorGlide, 7.5HP 3PH 230V 50 inch RIP

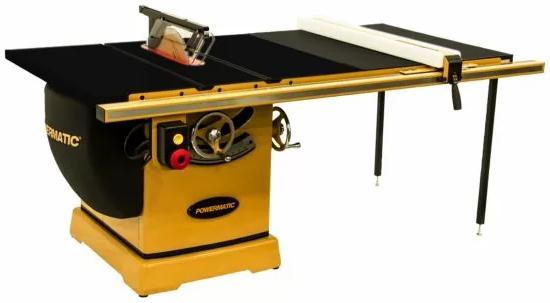

PM375350KT-4	PM3000T 10 inch Table Saw with ArmorGlide, 7.5HP 3PH 460V 50 inch RIP

ArmorGlide_Features

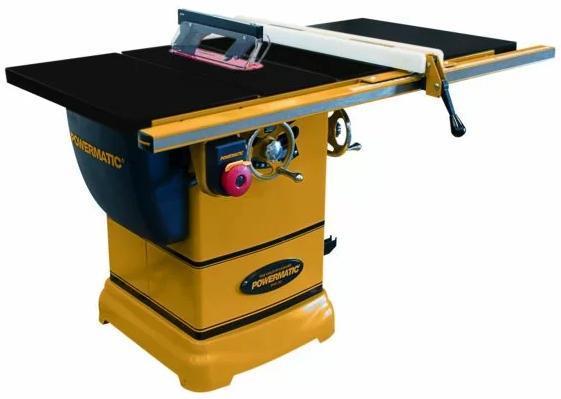

PM1000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Accu-Fence System, 1Ph 115/230V

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000T redefines the limits of design, innovation, and durability.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Blade surround and collection hose provides an unobstructed path, maximizing dust collection
Arbor lock allows for one handed blade changes with minimal tools
Conveniently located hands free power switch
Ergonomically designed 7â handwheels provide momentum, making blade height and bevel adjustments easy
Exclusive Accu-Fence provides rigidity and precision
Precision-ground cast iron work surface features a beveled edge for smoother operation
Requires only 115V connection for easy installation
Poly-V belt drive system reduces vibration and maximizes efficiency

Specifications
Stock Number	PM1-1791000KT
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4200
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	289
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	12
Maximum Rip Right of Blade (In.)	30
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM1000T
Motor Power (HP)	1-3/4
Motor Voltage (V.)	115/230
Net Weight (Lbs.)	289
Overall Dimensions (L x W x H) (In.)	43 x 61 x 44
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20
Style (Type)	Cabinet
Table Height from Floor (In.)	34-1/4
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Table Size (L x W) (In.)	20 x 27
Table Type	Cast Iron

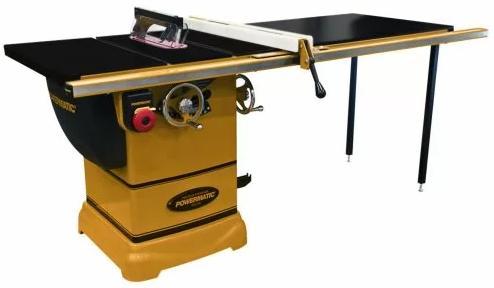

PM1000T, 10-Inch Table Saw with ArmorGlide, 52-Inch Rip, Extension Table, 1Ph 115/230V

Evolution represents a process that is never fully complete. For a woodworker, inspirations evolve as life experiences shape our creativity. Skills evolve as we share tips and techniques with friends and mentors. And our workshops evolve as we refine our skills. The PM1000 cabinet table saw is an example of this. Now featuring our ArmorGlide Technology that is low-friction and rust-resistant, the PM1000 redefines the limits of design, innovation, and durability.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Blade surround and collection hose provide an unobstructed path, maximizing dust collection
Arbor lock allows for one handed blade changes with minimal tools
Conveniently located hands free power switch
Ergonomically designed 7â handwheels provide momentum, making blade height and bevel adjustments easy
Exclusive Accu-Fence provides rigidity and precision
Precision ground cast iron work surface features a beveled edge for smoother operation
Requires only 115V connection for easy installation
The poly-V belt drive system reduces vibration and maximizes efficiency

Specifications
Stock Number	PM1-1791001KT
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4200
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	350
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	289
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	12
Maximum Rip Right of Blade (In.)	52
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM1000T
Motor Power (HP)	1-3/4
Motor Voltage (V.)	115/230
Net Weight (Lbs.)	289
Overall Dimensions (L x W x H) (In.)	43 x 83 x 44
Prewired Voltage (V.)	115
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20
Style (Type)	Cabinet
Table Height from Floor (In.)	34-1/4
Table in Front of Saw Blade at Maximum Depth of Cut (In.)	10
Table Size (L x W) (In.)	20 x 27
Table Type	Cast Iron

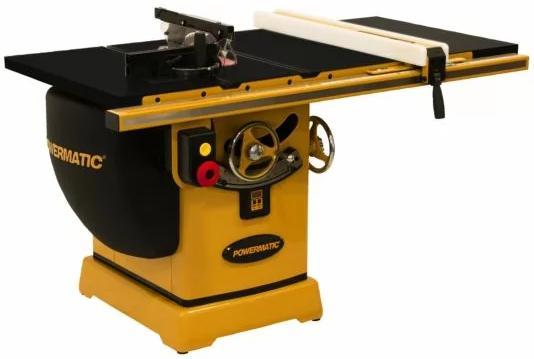

PM2000BT, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Accu-Fence System, 1Ph 230V

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.The redesigned integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple clean-up. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Arbor lock for quick and easy blade changes
Integrated digital read out for precise bevel cuts
Integrated dust collection
Integrated hydraulic caster system for ease of movement around the shop
Matching beveled edge between table and extension wings
One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
Precision-ground, high luster cast iron tabletops with front and rear edge bevel

Specifications
Stock Number	PM1-PM23130KT
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4500
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	535
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	13-1/2
Maximum Rip Right of Blade (In.)	30
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM2000BT
Motor Amps	4.9
Motor Power (HP)	3
Motor Voltage (V.)	230
Net Weight (Lbs.)	385
Overall Dimensions (L x W x H) (In.)	66-3/4 x 39-1/8 x 40-3/8
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20
Style (Type)	Cabinet
Table Height from Floor (In.)	35
Table Size (L x W) (In.)	30-1/2 x 22
Table Type	Cast Iron

PM2000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Extension Table, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Extension Table, 5 HP, 3Ph 230
PM2000T, 10-Inch Table Saw with ArmorGlide, 30-Inch Rip, Extension Table, 5 HP, 3Ph 460V

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple cleanup. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Arbor lock for quick and easy blade changes
Integrated digital read out ensures precise bevel cuts
Improved dust collection port provides convenient access to the inside of the saw cabinet for simple cleanup
Hydraulic caster system allows for ease of movement around the shop
Matching beveled edge between table and extension wings
One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
Precision-ground, high-luster cast iron tabletops feature front and rear edge bevels

Specifications 30 inch rip With Extension Table
Stock Number	PM25130KT	PM25330KT	PM25330KT-4
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4500
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	555	548
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	13-1/2
Maximum Rip Right of Blade (In.)	30
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM2000T
Motor Amps	4.8	6.5
Motor Power (HP)	5
Motor Voltage (V.)	230		460
Net Weight (Lbs.)	405	398
Overall Dimensions (L x W x H) (In.)	66-3/4 x 39-1/8 x 40-3/8
Prewired Voltage (V.)	230		460
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30	20
Style (Type)	Cabinet
Table Height from Floor (In.)	35
Table Size (L x W) (In.)	30-1/2 x 22
Table Type	Cast Iron

PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 5 HP, 3Ph 460V

PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 5 HP, 3Ph 230/460V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 5 HP, 3Ph 460V

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple cleanup. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Arbor lock for quick and easy blade changes
Integrated digital read out ensures precise bevel cuts
Improved dust collection port provides convenient access to the inside of the saw cabinet for simple cleanup
Hydraulic caster system allows for ease of movement around the shop
Matching beveled edge between table and extension wings
One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
Precision-ground, high-luster cast iron tabletops feature front and rear edge bevels

Specifications 50 inch rip with Extension Table
Stock Number	PM23150KT	PM25150KT	PM25350KT	PM25350KT-4
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4500
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	535	555	548
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	13-1/2
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM2000T
Motor Amps	4.9	4.8	6.5
Motor Power (HP)	3	5
Motor Voltage (V.)	230			460
Net Weight (Lbs.)	385	405	398
Overall Dimensions (L x W x H) (In.)	84-3/4 x 39-1/8 x 40-3/8
Prewired Voltage (V.)	230			460
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20	30	20
Style (Type)	Cabinet
Table Height from Floor (In.)	35
Table Size (L x W) (In.)	30-1/2 x 22
Table Type	Cast Iron

PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Router Lift, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Router Lift, 5 HP, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Router Lift, 5 HP, 3Ph 230
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Router Lift, 5 HP, 3Ph 460V

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple cleanup. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Arbor lock for quick and easy blade changes
Integrated digital read out ensures precise bevel cuts
Improved dust collection port provides convenient access to the inside of the saw cabinet for simple cleanup
Hydraulic caster system allows for ease of movement around the shop
Matching beveled edge between table and extension wings
One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
Precision-ground, high-luster cast iron tabletops feature front and rear edge bevels

Specifications 50 inch rip with Router Lift
Stock Number	PM23150RKT	PM25150RKT	PM25350RKT	PM25350RKT-4
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4500
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	535	555	548
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	13-1/2
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM2000T
Motor Amps	4.9	4.8	6.5
Motor Power (HP)	3	5
Motor Voltage (V.)	230		460
Net Weight (Lbs.)	385	405	398
Overall Dimensions (L x W x H) (In.)	84-3/4 x 39-1/8 x 40-3/8
Prewired Voltage (V.)	230		460
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20	30	20
Style (Type)	Cabinet
Table Height from Floor (In.)	35
Table Size (L x W) (In.)	30-1/2 x 22
Table Type	Cast Iron

PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Workbench Table, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Workbench, 5 HP, 1Ph 230V
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Workbench, 5 HP, 3Ph 230
PM2000T, 10-Inch Table Saw with ArmorGlide, 50-Inch Rip, Workbench, 5 HP, 3Ph 460V

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the award-winning PM2000T table saw sets a new standard for innovation with an array of patented features and massive body design. The ArmorGlide coated cast iron tables are oversized, and the newly designed arbor lock lever is accessible from above the table top to eliminate the need for dual arbor wrenches. The quick-release riving knife design helps reduce the chance of kickback. The blade tilt scale features an integrated digital readout as well as adjustable angle indicators for repetitive bevel cuts.The newly designed integrated retractable hydraulic caster system lifts your table saw much higher than the previous model to assist when moving over thresholds. A wide stance, heavy-duty box trunnion and concave teeth on the trunnion gears promote easier raising and tilting of saw blade. Poly-V drive belt system results in quieter, more efficient power transfer from the motor to the arbor with virtually no vibration and less heat build-up. Improved built-in dust collection port with convenient access to the inside of the saw cabinet for simple cleanup. The saw has a proprietary safety switch with magnetic interlock and the stop button can be knee activated.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control
Miter gauge is built with robust materials with many positive stops for the most commonly used angles
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Arbor lock for quick and easy blade changes
Integrated digital read out ensures precise bevel cuts
Improved dust collection port provides convenient access to the inside of the saw cabinet for simple cleanup
Hydraulic caster system allows for ease of movement around the shop
Matching beveled edge between table and extension wings
One-piece cast iron box trunnion provides the strongest stability of any Powermatic table saw
Precision-ground, high-luster cast iron tabletops feature front and rear edge bevels

Specifications 50 inch rip with Workbench
Stock Number	PM23150WKT	PM25150KT	PM25350KT	PM25350KT-4
Arbor Diameter (In.)	5/8
Arbor Speed (RPM)	4500
Blade Diameter (In.)	10
Dust Collection Minimum CFM Required (CFM)	400
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	535	555	548
Maximum Depth of Cut at 45 Degrees (In.)	2-1/8
Maximum Depth of Cut (In.)	2-1/8 or 3-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	13-1/2
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM2000T
Motor Amps	4.9	4.8	6.5
Motor Power (HP)	3	5
Motor Voltage (V.)	230			460
Net Weight (Lbs.)	385	405	398
Overall Dimensions (L x W x H) (In.)	84-3/4 x 39-1/8 x 40-3/8
Prewired Voltage (V.)	230			460
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	20	30	20
Style (Type)	Cabinet
Table Height from Floor (In.)	35
Table Size (L x W) (In.)	30-1/2 x 22
Table Type	Cast Iron

PM3000T, 14-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 7-1/2 HP, 3Ph 230

Now featuring ArmorGlide Technology that is low-friction and rust-resistant, the PM3000B brings heavyweight performance and patented innovations to the 14-inch table saw arena. The riving knife rises and lowers with the blade, substantially reducing kickback risk; and both the riving knife and blade guard each have a quick-release, so mounting and removing them is fast and tool-free. A wide-stance trunnion and concave teeth on the trunnion gears promote smooth blade raising/tilting.The Poly-V drive belt system results in quieter, more efficient power transfer with virtually no vibration and less heat buildup. A redesigned push button arbor lock is accessible from above the table top and eliminates the need for dual arbor wrenches. Additional features include a sloped cabinet floor, dust shroud around the blade, and built-in port for dust extraction.

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
Miter guage is built with robust materials with many positive stops for the most commonly used angles.
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Adjustable miter gauge
Arbor lock for rapid blade change
Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
Poly-V drive belt system delivers efficient, quiet operation

Specifications
Stock Number	PM1-PM375350KT
Arbor Diameter (In.)	1
Arbor Speed (RPM)	4500
Blade Diameter (In.)	14
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	600
Maximum Depth of Cut at 45 Degrees (In.)	3-1/2
Maximum Depth of Cut (In.)	3-1/2 or 5-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	14
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM3000T
Motor Amps	6.7
Motor Power (HP)	7.5
Motor Voltage (V.)	230
Net Weight (Lbs.)	467
Overall Dimensions (L x W x H) (In.)	84-11/16 x 46-1/2 x 42-7/8
Prewired Voltage (V.)	230
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30
Style (Type)	Cabinet
Table Height from Floor (In.)	35-1/4
Table Size (L x W) (In.)	26 x 38
Table Type	Cast Iron

PM3000T, 14-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 7-1/2 HP, 3Ph 460V

PM3000T, 14-Inch Table Saw with ArmorGlide, 50-Inch Rip, Extension Table, 7-1/2 HP, 3Ph 230

Features:

ArmorGlide Technology gives you a low-friction, industrial-grade coating on the work surface that is rust resistant, requires less maintenance, and gives you more control.
Miter guage is built with robust materials with many positive stops for the most commonly used angles.
Adjustable angle indicators on the blade bevel scale for repeatable bevel cuts
Adjustable miter gauge
Arbor lock for rapid blade change
Heavy-duty micro adjustable miter gauge with aluminum extruded fence, for good workpiece and fine angle adjustments
Industrial magnetic switch has an easy-to-access, large ON/OFF switch with a built-in power indicator light and a removable magnetic safety key
Industrial-duty Accu-Fence System ensures accurate cuts and increased safety
One piece, cast iron trunnion provides the strongest stability of any Powermatic table saw.
Poly-V drive belt system delivers efficient, quiet operation

Specifications
Stock Number	PM9-PM375350KT-4
Arbor Diameter (In.)	1
Arbor Speed (RPM)	4500
Blade Diameter (In.)	14
Dust Collection Minimum CFM Required (CFM)	600
Dust Port Outside Diameter (In.)	4
Gross Weight (Lbs)	600
Maximum Depth of Cut at 45 Degrees (In.)	3-1/2
Maximum Depth of Cut (In.)	3-1/2 or 5-1/8
Maximum Diameter of Dado (In.)	8
Maximum Rip Left of Blade (In.)	14
Maximum Rip Right of Blade (In.)	50
Maximum Width of Dado (In.)	13/16
Miter Gauge Type	T-Slot with Stops
Model Number	PM3000T
Motor Amps	6.7
Motor Power (HP)	7.5
Motor Voltage (V.)	460
Net Weight (Lbs.)	467
Overall Dimensions (L x W x H) (In.)	84-11/16 x 46-1/2 x 42-7/8
Prop 65	Cancer and Reproductive Harm
Recommended Circuit Size (Amps.)	30
Style (Type)	Cabinet
Table Height from Floor (In.)	35-1/4
Table Size (L x W) (In.)	26 x 38
Table Type	Cast Iron

WARRANTY AND SERVICE

WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your POWERMATIC tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
