The FH-series, a line of fire hose testers, hydrostatic test pumps, offering flow rates up to 26 GPM, and pressures up to 1000 PSI. Designed to safely test fire hose
up to 6â³ in diameter, the FH-series hose testers meet or exceed test standards set forth by the NFPA (1962) and the RMA. Equipped with a large 2 & 1/2â³ swivel inlet providing the ability to
quickly fill and bleed the fire hoses through the 1 & 1/2â³ heavy duty manifold, with independently controlled stainless steel ball valves. Triplex ceramic plunger pumps with an inner oil bath,
ensuring long life and increased stability. Units are available in gas, diesel, electric or pneumatic air driven power sources. Various configurations available in voltage, phase, explosion proof,
and hertz specifications. âBuilt to Suitâ special order and custom options are available to fit your specific testing needs.
|
Fire Hose Testers
|
|

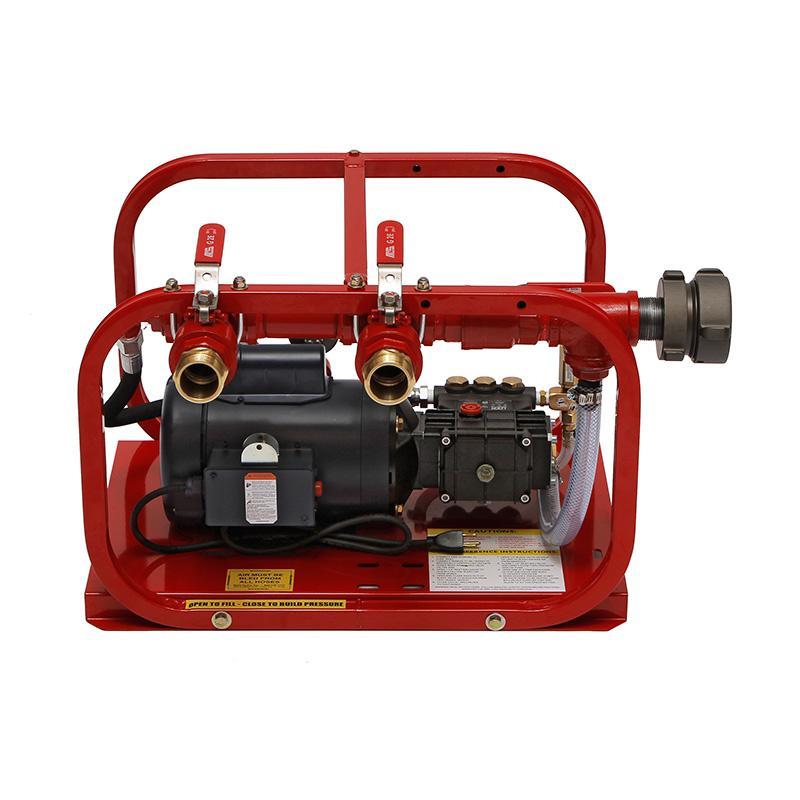

EL-FHT
|
3 GPM 500 PSI, 2 outlet, Plunger Pump, Electric 1 HP 50/60 HZ, 110/220 Volt
|
|

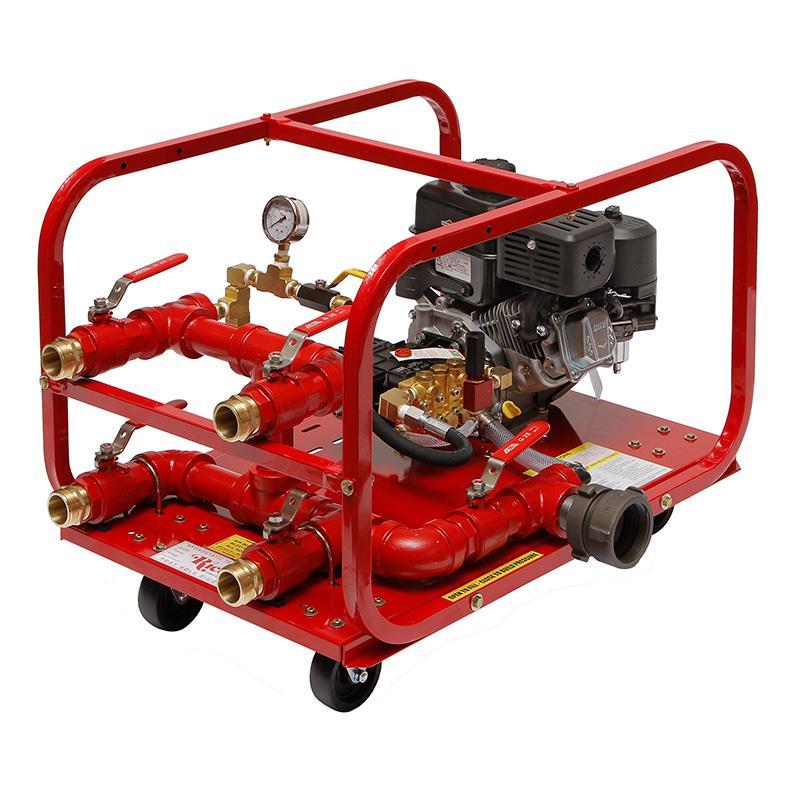

FH2-B
|
3.5 GPM 1000 PSI, 4 outlet, Plunger Pump, Briggs engine
|
|

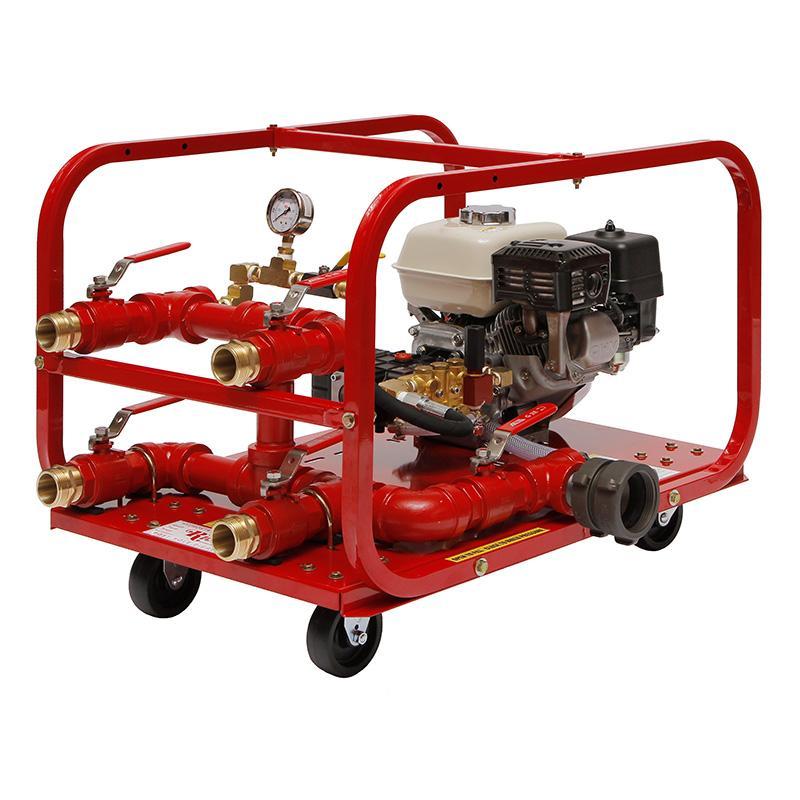

FH2-H
|
3.5 GPM 1000 PSI, 4 outlet, Plunger Pump, Honda engine
|
|

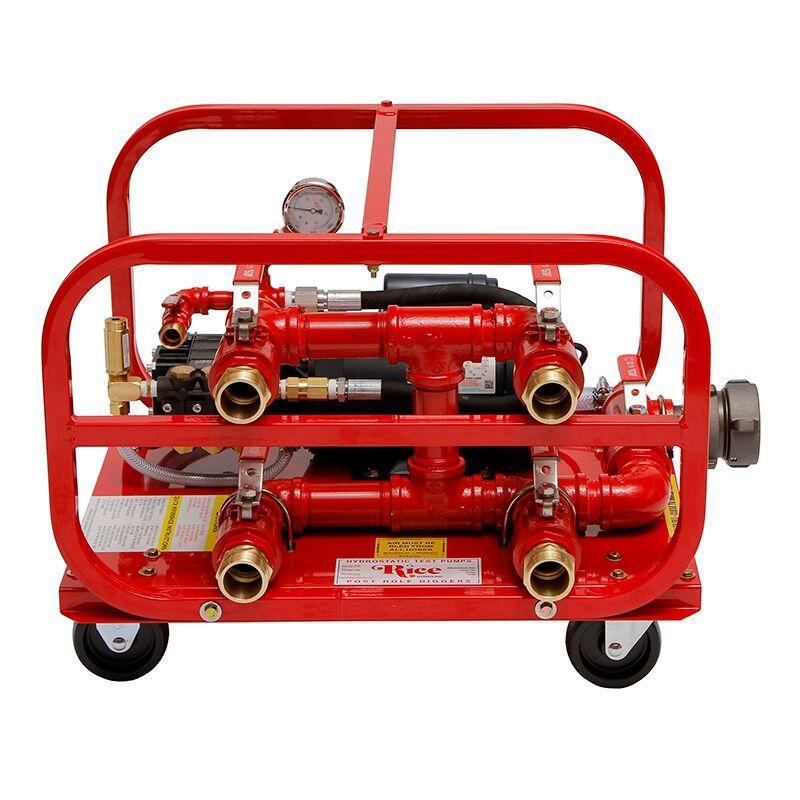

FH-3
|
3 GPM 500 PSI, 4 outlet, Plunger Pump, Electric 1 HP 50/60 HZ, 110/220 Volt
|
|

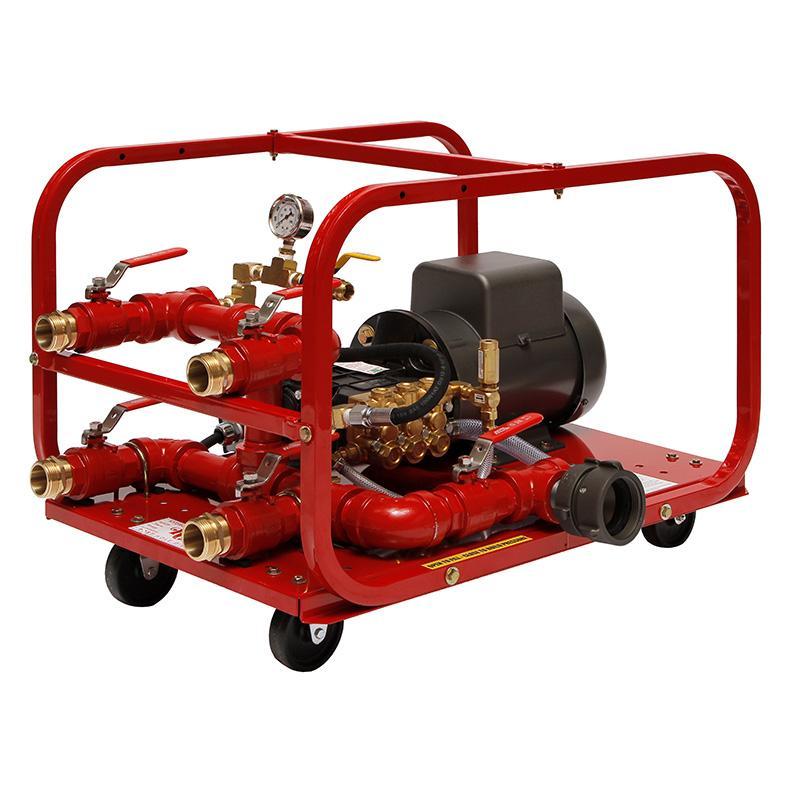

FH5-E
|
5 GPM, 800 PSI, 4 OUTLET, PLUNGER PUMP, 220 VOLT
|
|
FH-12.5/500
|
12.5 GPM 500 PSI, 4 outlet, Plunger Pump, Honda engine
|
|
Fire Hose Tester Accessories
|
|
FHWA1
|
Fire Hose Tester Pressure Wand Accessory
|
|
LINECAGE-1
|
Fire Hose Restraint
|
|
Custom Options:
|
|
FHP-6/500
|
6 GPM, 500 PSI, 4 outlet, Pneumatic
|
|
FH-12.5/500-6OLT
|
12.5 GPM, 500 PSI, 6 outlet, Plunger Pump, Honda engine
|
|
FH4E
|
4 GPM, 1000 PSI, 4 outlet, Plunger Pump, 220 volt
|
|
FH3-6OLT
|
3 GPM, 500 PSI, 6 outlet, Plunger Pump, Electric
|
|
FH3-L4
|
3 GPM, 500 PSI, Plunger Pump, with 4 layflat outlets
|
|
Click here to download manual
Click here to download parts breakdown
Click here to download schematics
FH12.5/500 Fire Hose Tester 12.5 GPM up to 500 PSI
The FH12.5/500 fire hose tester, a gas powered hydrostatic test pump offering 12.5 GPM up to 500 PSI. Heavy duty manifold with FOUR independently controlled stainless
steel ballvalves. NO WILD LINES – unique to the RICE Hydro line of fire hose testers, a ballvalve strategically placed on the inlet piping allows the user to fill with
“LARGE VOLUME at LOW PRESSURE” and test with “LOW VOLUME at HIGH PRESSURE”, eliminating the elements that may cause wild lines. Virtually indestructible,
enclosed in a rugged roll cage of welded heavy gauge steel. “Built to Suit” special order and custom options are available to fit your specific testing needs.
-
12.5 GPM up to 500 PSI
-
270 CC 9 HP, Honda Engine
-
Triplex Plunger Pump
-
Inlet 2-1/2 inch Female Swivel
-
Outlet 4 each 1 and 1/2 inch male NST independently controlled ballvalves
All RICE units can be "Built to Suit", contact the factory for special order options at 800-458-3687 OR sales@southern-tool.com
|

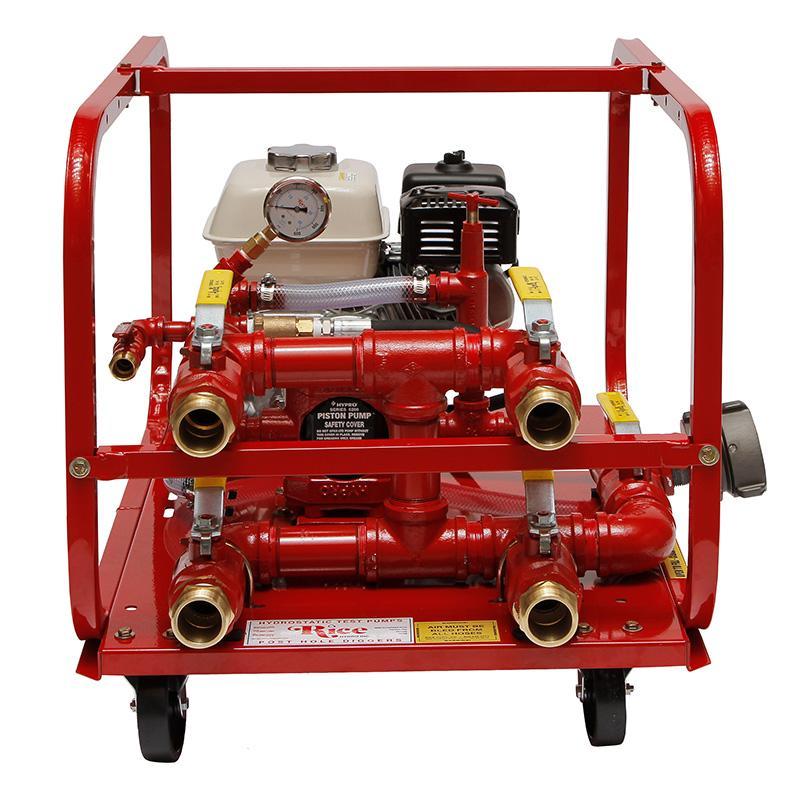

Model FH10-H has been discontinued, our nearest equivalent model is the FH-12.5-500
