11-600S: 10 inch Portable Table Saw with Stand | Model 10-205: 10 inch Contractor Saw |
Models and Accessories | |
---|---|
11-600S | 10 inch Portable Table Saw with Stand |
10-205 | 10 inch Contractor Saw |
C10-100 | Push Stick |
Accessories for model 11-600S portable table saw | |
13-600 | Zero Clearance Table Insert |
23-901 | Flexible/Expandable Roller Stand |
Accessories for model 10-205 contractor table saw | |
13-500 | Dado Insert for 10-205 |
Model 11-600S: 10 inch Portable Table Saw with Stand 10 inch PORTABLE TABLE SAW WITH STAND #11-600S is a must-have for homeowners, small shops, and contractors. This portable saw has a powerful 2HP, 15A, 110V variable speed motor that has the strength to tackle any project. Selecting the proper blade speed allows the user to dial in precision, and performance for each type of material to be cut. This technology retains torque throughout the cut which will prevent burning of material and premature dulling of blades. This portable saw has all the features of a large shop saw including a quick-release blade guard, riving knife for through cuts and the capability of cutting 13/16 inch dados. Rack and pinion gearing for rapid blade elevation and lowering. Includes portable, foldable stand for easy transport and storage. Features:
|
Motor | |
---|---|
Horsepower | 2 HP |
Amps | 15 |
Volts, Hz | 120V, 60Hz |
RPM | 20,000 |
Cutting capacity | |
---|---|
Max Depth of Cut at 90 deg | 3-1/8 inch |
Max Depth of Cut at 45 deg | 2-1/4 inch |
Max Width of Dado | 13/16 inch |
Max Rip to the Right of Blade | 28 inch |
Table in Front of Blade | 7-1/2 inch |
Blade | |
---|---|
Diameter | 10 inch |
Teeth | 40 ATB, Carbide |
Arbor | 5/8 inch |
Speed | 2,000 to 4,200 RPM |
Tilt | Left |
Table | |
---|---|
Size | 22-7/16 x 25-3/16 inch |
Miter Gauge T Slot (2) | 3/4 x 3/8 inch |
Height from Floor | 34 inch |
Overall | |
---|---|
Height | 41 inch |
Width | 41-1/2 inch |
Depth | 37-1/2 inch |
Dust Port | 1at2-1/2 inch |
Net Weight | 96 lbs. |
Shipping Weight | 106 lbs. |
Shipping Carton | 31 x 30 x 24 inch |
Warranty | |
Warranty | 5 years |

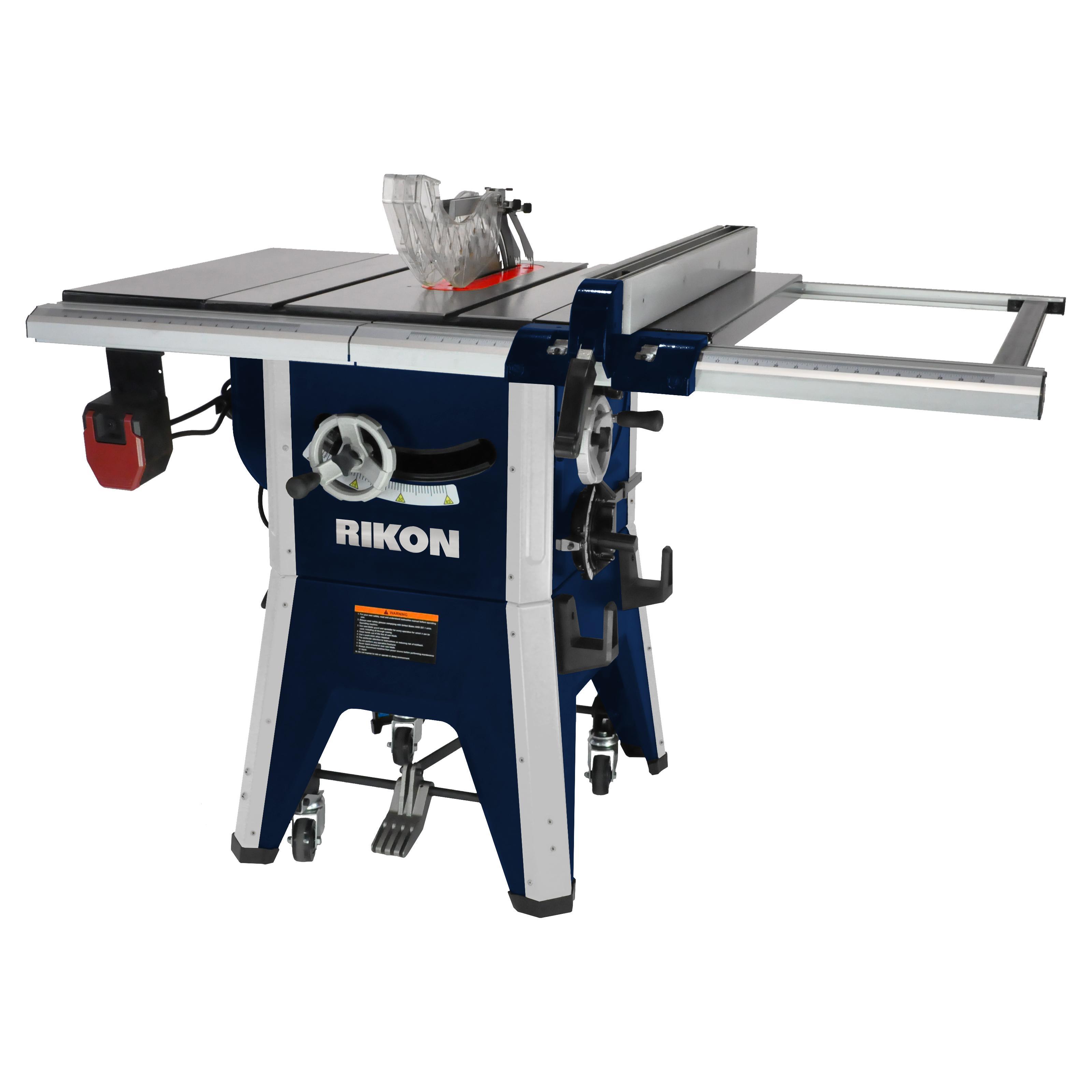

Model 10-205: 10 inch Contractor Saw 10 inch Left Tilt Contractor Table Saw 10-205 is a no-nonsense machine whose simplicity is the strength behind its popularity with home craftspeople and professional workshops. Operating this table saw is straight forward blade controls are large and easy to access, box-type rip fence sets accurately, Dual table T slots give great options for use of miter gauges and other jigs, blade changes are easy, blade guards and control switch with large off paddle add excellent safety measures to the user, and the built-in mobile base allows moving the saw around the shop easy. Wired for use with 3-wire 120V receptacles. Features:
|
Motor | |
---|---|
Horsepower | 1-3/4 HP |
Amps | 15/7.5 |
Volts | 120/240V, 60 Hz |
RPM | 3,450 |
Blade | |
---|---|
Diameter | 10 inch |
Teeth | 40 ATB, Carbide |
Arbor | 5/8 inch |
Speed | 3,450 |
Tilt | Left |
Cutting Capacity | |
---|---|
Maximum Depth of Cut at 90 deg | 3-1/8 inch |
Maximum Depth of Cut at 45 deg | 2-3/16 inch |
Maximum Width of Dado | 3/4 inch |
Maximum Rip to the Right of Blade | 29-1/2 inch |
Maximum Rip to the Left of Blade | 14-1/2 inch |
Table in Front of Blade | 11-3/8 inch |
Table | |
---|---|
Size | 27 x 40 inch |
Miter Gauge T Slot (2) | 3/4 x 3/8 inch |
Height from Floor | 31-3/8 inch |
Table Size without Wings | 20-1/8 x 27 inch |
Left Wing Dimension | 9-7/8 x 27 inch |
Right Wing Dimension | 9-7/8 x 27 inch |
Overall | |
---|---|
Height | 45.5 inch |
Width | 52 inch |
Depth | 39 inch |
Dust Port | 1 at 4 inch |
Net Weight | 260 lbs. |
Shipping Weight | 273 lbs. |
Shipping Carton | 45-1/2 x 30-3/4 x 23 inch |
Warranty | 5 Years |
RIKON Power Tools Inc. (Seller) warrants to only the original retail consumer/ purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.
This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This five-year warranty does not cover products used for commercial, industrial or educational purposes. The warranty term for these claims will be limited to a two-year period.
This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, guide bearings or belts and other related items.
Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.
To take advantage of this warranty proof of purchase documentation, which includes date of purchase and an explanation of the complaint, must be provided.
The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.
To ensure you get the best service possible, please register your product online.
