SLT-1100
|
SLT-330F / SLT-660F / SLT-1650
|
DSLT-770
|

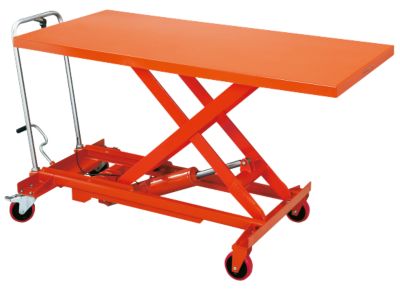

The Jet SLT-1100, Jumbo Table, Quick-Lift Pump, 1,100-lb. Capacity
has a 5 Year warranty
-
Lift, position and transport heavy loads with ease
-
Heavy-duty steel frame and extra large table surface
-
Easy-to-use hydraulic foot pump Feature safety overload and top-of-stroke bypass protection
-
Quick lifting action with no load
-
Convenient patent pending pump release handle
-
Easy rolling poly over nylon casters, two swivel and two fixed
-
Foot operated parking brake prevents movement
Detailed Specifications
|
Part Number
|
140780
|
Brand
|
Jet
|
Capacity
|
1100 Lbs
|
Handle Height
|
37 in
|
Height
|
12 inch
|
Length
|
62.5 inch
|
Maximum Height
|
35 7/16 in
|
Minimum Height
|
11 5/8 in
|
Model Number
|
SLT-1100
|
Net Weight
|
295 pound
|
Number of strokes to reach Max Height
|
16
|
Overall Length
|
73 1/2 in
|
Table Length
|
63 in
|
Table Width
|
31 1/2 in
|
Width
|
32.75 inch
|

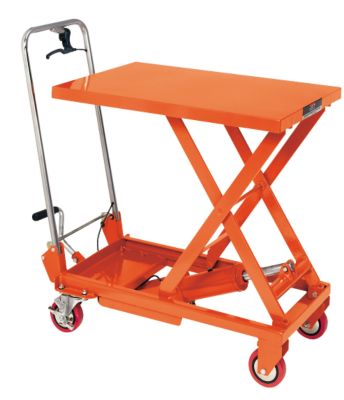

The Jet SLT-330F, Folding Handle, 330-lb. Capacity
The Jet SLT-660F, Folding Handle, Quick-Lift Pump, 660-lb. Capacity
The Jet SLT-1650, Quick-Lift Pump, 1,650-lb. Capacity
has a 5 Year warranty
-
Ideal for lifting, positioing and transporting heavy materials around the shop, factory, warehouse or office
-
Ergonomic answer to preventing back injuries
-
Heavy-duty steel frame and table
-
Smooth rolling poly over nylon casters, two swicel and two fixed with parking brake
-
Easy-to-use hydraulic foot pump raises table to multiple heights
-
Quick lifting action with no load
-
Safety overload and top-of-stroke bypass system provides maximum pump protection
-
SLT-330F abd SLT-660F models feature fold-down handles
-
SLT-1650 model Featurerugged poly over stell casters
Detailed Specifications
|
Part Number
|
140771
|
140777
|
140779
|
Brand
|
Jet
|
Jet
|
Jet
|
Capacity
|
330 Lbs
|
660 Lbs
|
1650 Lbs
|
Handle Height
|
34 1/8 in
|
39 in
|
38 1/8 in
|
Height
|
11 inch
|
16 inch
|
16 inch
|
Length
|
32 inch
|
37 inch
|
46 inch
|
Maximum Height
|
28 3/4 in
|
35 7/16 in
|
39 3/8 in
|
Minimum Height
|
8 5/8 in
|
10 5/8 in
|
16 1/8 in
|
Model Number
|
SLT-330F
|
SLT-660F
|
SLT-1650
|
Net Weight
|
91.3 pound
|
165 pound
|
259.5 pound
|
Number of strokes to reach Max Height
|
16
|
13
|
17
|
Overall Length
|
36 in
|
42 1/8 in
|
46 in
|
Table Length
|
27 1/2 in
|
32 1/4 in
|
39 3/8 in
|
Table Width
|
17 3/4 in
|
19 5/8 in
|
20 1/8 in
|
Width
|
19 inch
|
21 inch
|
24 inch
|

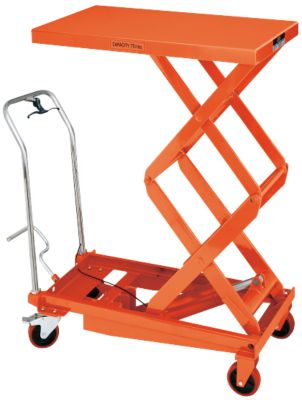

The Jet DSLT-770, Double Scissors, 51-1/8 in Max Ht, Quick-Lift Pump, 770-lb. Capacity
has a 5 Year warranty
-
Ergonomic answer to preventing back injuries
-
Heavy-duty steel frame and table
-
Smooth rolling poly over nylon casters, two swivel and two fixed, with parking brake
-
Easy-to-use hydraulic foot pump raises table to multiple heights
-
Quick lifting action with no load
-
Safety overload and top-of-stroke bypass system provides maximum pump protection
Detailed Specifications
|
Part Number
|
140778
|
Brand
|
Jet
|
Capacity
|
770 Lbs
|
Handle Height
|
37 1/4 in
|
Height
|
13.5 inch
|
Length
|
46 inch
|
Maximum Height
|
51 1/8 in
|
Minimum Height
|
13 9/16 in
|
Model Number
|
DSLT-770
|
Net Weight
|
235 pound
|
Number of strokes to reach Max Height
|
21
|
Overall Length
|
45 3/4 in
|
Table Length
|
35 5/8 in
|
Table Width
|
20 1/8 in
|
Width
|
21 inch
|
|
WARRANTY AND SERVICE
WMH Tool Group, Inc., warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Service Centers located throughout the United States can give you
quick service. In most cases, any of these WMH Tool Group Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major
repair on your Jet tools. For the name of an Authorized Service Center in your area call 1-800-274-6848.
|
