SitePro DT05 5-SEC Digital Transit / The
Features:
-
Incremental encoding detection system with dual digital displays for easy to read precise readouts
-
30-power telescope provides a bright wide field of view and the built-in 3x optical plummet enables quick and easy setups
-
5-second precise vertical and horizontal accuracy and readout with available 1-second display option
-
Simple push button functions provide all the information in degrees or percentage
-
Automatic power shut-off
-
Optical plummet for centering of point
-
Coaxial tangent and clamp screws provide ease of use in sighting and alignment functions
-
Built-in battery pack can be attached and detached by a single action
-
Water resistant, sealed construction
|
Specifications
|
|
Magnification
|
30X
|
|
Resolving Power
|
3.5 inch
|
|
Field of View
|
1 degree 30 ft
|
|
Minimum Focus
|
4.27-ft (1.3m)
|
|
Angular Accuracy
|
5 Sec.
|
|
Minimum Reading
|
1 inch / 5 inch switchable
|
|
Minimum Focus
|
1.3m or 4.26ft
|
|
Stadia Ratio
|
1:100
|
|
Tilt Sensor
|
Yes, +/- 3 ft
|
|
Models and Accessories
|
|
Model
|
Description
|
|
26-DT05
|
DT05 5-sec Digital Theodolite
Includes: Digital Transit, Sunshade, Tool Kit, Rain Cover, Drying Cloth, Plumb Bob, Carrying Case, Rechargeable Battery Pack/Charger, Alkaline Battery Tray, User Manual
|

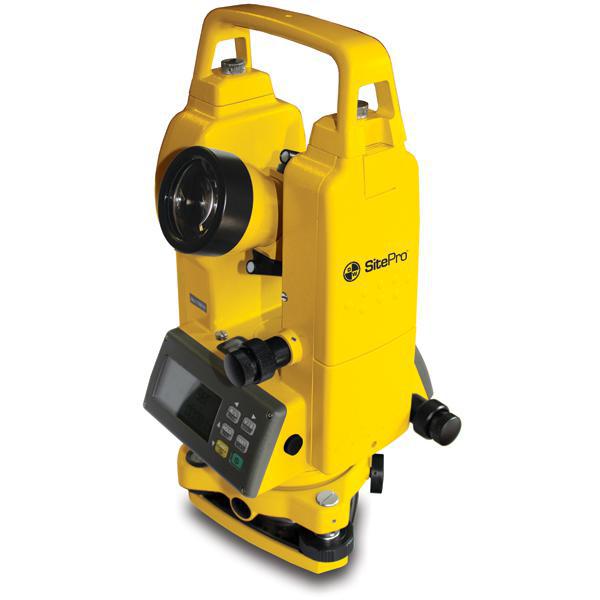

DT05 5-SEC DIGITAL THEODOLITE
Mfg. item #: 26-DT05
SIT26-DT05
Ships FREE via UPS to lower 48 states.5
