Thern Personal Air Winches for up to 10,




All Thern winches and cranes are sold without wire rope.

Rugged Air Winches
for Heavy-Duty Industrial Applications.

We Suggest you download the following Cut Sheet for Additional Information
THERN Air Winch Brochure

Feel Free to email your us your application for a Quote

Neither blistering heat, nor frigid cold, nor blowing sand, nor salty air keeps these workhorses from doing the toughest jobs under the harshest conditions. Rugged, reliable and featuring solid welded steel construction, Thern Big Red Utility-Rated and Big Red Rider TA Personnel-Rated series air winches work hard in the kinds of trying environments other winches dont dare.

Whether hoisting material pallets up to the platform for oil and gas drilling operations, positioning pipes, hoisting heavy motor blocks as part of utility operations or lifting carriages carrying inspection personnel on construction job sites, Thern TA series air winches have the capacity for lifting/pulling up to 37,000 lbs. of equipment or 6,900 lbs. of personnel.

Then Big Red air winches are built to suit your specific task and delivered in about the same amount of time as our off-the-shelf winches and cranes. Contact Us today and let us help you build the right tool for the job.

For more information on other options available for an industrial, heavy-duty power winch, contact Us  today.

Start building your heavy duty power winch today. Call 800-458-3687 for more information on available options.

We Suggest you download the following Cut Sheet for Additional Information
THERN Air Winch Brochure

Feel Free to email your us your application for a Quote

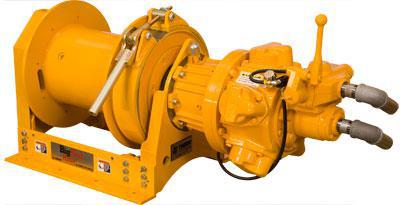

Big Red TA Series
Personal Rated Air Winches for Up to 6,900 lbs.


Safe and dependable, Thern Big Red TA series personnel rated air winches are designed to move your most valuable cargo while withstanding the harshest conditions. With the capacity to lift up to 6,900 lbs. of personnel or 11,500 lbs of equipment, these personnel rated air winches are built to suit your specific task. Each winch is so customizable it’s like ordering a custom winch without the additional cost or lead times.

Our personnel rated air winches do everything from lift carriages carrying inspection personnel on construction job sites to pulling material pallets up to the platform for oil drilling operations. We also offer utility rated air winches to move up to 37,000 lbs of equipment.

Built to the highest quality and safety standards, Thern Big Red TA personnel rated air winches feature:

  • Radial piston motors for reliable, long-lasting service.
  • Precise control valves provide smooth, variable speed control of precision spotting and long lifts.
  • Manual band brakes for dependable holding capacity.
  • Welded steel frame captures both drum ends for optimal strength and security.
  • Planetary gears with a compact design and high efficiency gearing reduce power loss and heat generation while increasing service life. Gears operate in oil bath. Double lip seals keep oil in and contaminants out.
  • Marine grade epoxy applied with zinc primer for ultimate protection in harsh environments.
  • Wire rope assemblies are sold separately.
  • Meets ASME 30.7 requirements.

Easily customize a Big Red TA series personnel rated air winch to suit your specific needs with a variety of options and accessories, including automatic disk brakes or band brakes, mufflers, control options, drum guard, line guide and more.

With a dual rating for both personnel and utility operation, Big Red TA series personnel rated winches are designed in accordance with ABS CDS 2006 guide.

Click on the Part Number Below for Pricing or Call 800-458-3687

Big Red TA10 Man - Personal Rated Air Powered Winches
TA2P-16MK1  up to 4500 lb, 46 to 70 fpm, 6.8 hp air winch with 16 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA2P-24MK1  up to 4500 lb, 46 to 70 fpm, 6.8 hp air winch with 24 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA2P-16AK1  up to 4500 lb, 46 to 70 fpm, 6.8 hp air winch with 16 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA2P-24AK1  up to 4500 lb, 46 to 70 fpm, 6.8 hp air winch with 24 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA2HP-16MK1  up to 3600 lb, 61 to 94 fpm, 7.1 hp air winch with 16 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA2HP-24MK1  up to 3600 lb, 61 to 94 fpm, 7.1 hp air winch with 24 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA2HP-16AK1  up to 3600 lb, 61 to 94 fpm, 7.1 hp air winch with 16 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA2HP-24AK1  up to 3600 lb, 61 to 94 fpm, 7.1 hp air winch with 24 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA2.5P-16MK1  up to 4500 lb, 112 to 162 fpm, 6.2 hp air winch with 16 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA2.5P-24MK1  up to 4500 lb, 112 to 162 fpm, 6.2 hp air winch with 24 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA2.5P-16AK1  up to 4500 lb, 112 to 162 fpm, 6.2 hp air winch with 16 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA2.5P-24AK1  up to 4500 lb, 112 to 162 fpm, 6.2 hp air winch with 24 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA5P-16MK1  up to 10,700 lb, 47 to 74 fpm, 16.7 hp air winch with 16 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA5P-24MK1  up to 10,700 lb, 47 to 74 fpm, 16.7 hp air winch with 24 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA5P-30MK1  up to 10,700 lb, 47 to 74 fpm, 16.7 hp air winch with 30 inch  drum, manual band brake, auto disc brake, ABS Type Approved
TA5P-16AK1  up to 10,700 lb, 47 to 74 fpm, 16.7 hp air winch with 16 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA5P-24AK1  up to 10,700 lb, 47 to 74 fpm, 16.7 hp air winch with 24 inch  drum, auto band brake, auto disc brake, ABS Type Approved
TA5P-30AK1  up to 10,700 lb, 47 to 74 fpm, 16.7 hp air winch with 30 inch  drum, auto band brake, auto disc brake, ABS Type Approved

All Thern Power Winches are sold without Electronic Controls
All Thern Winches are sold without wire rope assemblies

Personal Air Hoist Accessories
EPOXY (TA2, TA2P, TA2H, TA2PH, TA2.5, TA2.5P)  3 part marine epoxy with zinc primer - colors: red, pearl grey, offshore yellow
EPOXY (TA5-16, TA-5-24, TA5P-16, TA5P-24)  3 part marine epoxy with zinc primer - colors: red, pearl grey, offshore yellow
EPOXY (TA5-30, TA5P-30)  3 part marine epoxy with zinc primer - colors: red, pearl grey, offshore yellow
3 remote pendant control valve – specify length when ordering, 50ft max., For TA2.5, TA5 and TA7 Series: B3478 Valve Pendant, B4581 Remote 510 Motor Valve, For TA2 Series: B3478 Valve Pendant, B4580 Remote 310 Motor Valve, replaces ‘1’ in base model number string
TA-FRL filter, lubricator and regulator pkg  – not mounted  – all models
TA-MF1 two piece muffler kit – TA2 series
