Thern Wire Rope Assemblies

s-h alt      s-h alt



MADE TO ORDER FOR YOUR WINCH OR CRANE

Click here to download Wire Rope Primer

Click here to download Wire Rope Assemblies

Thern winches and cranes are sold without wire rope. However, we carry standard wire rope assemblies specifically designed for use with our winches and cranes. We also offer a wide variety of hooks and special end fittings, which allow us to customize a wire rope assembly to suit your application.

Whether you need winch ropes or crane rope, galvanized stainless steel or synthetic rope, our sales team can help you select the right wire rope assembly for your needs.

thern-wirerope-primer

Breaking Strenght of New Wire Rope (lb)
Wire Rope
Diameter 		7 x 19
Galvanized
Aircraft Cable 		7 x 19
304 Stainless
Steel 		7 x 19
316 Stainless
Steel
1/8 in (0.13) 2,000 1,760 1,300
3/16 in (0.19)  4,200  3,700 2,900
1/4 in (0.25)  7,000 6,400 4,900
5/16 in (0.31)  9,800 9,000 7,600
3/8 in (0.38)  14,400  12,000 11,000
Wire Rope
Diameter 		6 x 37 IWRC IPS
Improved Plow Steel 		6 x 37 IWRC EIPS
Extra Improved Plow Steel
3/8 in (.38) 13,120 15,100
7/16 in (0.44) 17,780 20,400
1/2 in (0.50) 23,000 26,600
9/16 in (0.56) 29,000 33,600
5/8 in (0.63) 35,800 41,200
3/4 in (0.75) 51,200 58,800
7/8 in (0.88) 69,200 79,600
1 in (1.00) 89,800 103,400
1-1/8 in (1.13) 113,000 130,000
1-1/4 in (1.25) 138,800 159,800
1-1/2 in (1.50) 197,800 228,000



wire rope assemblies

Wire Rope Assemblies

How to Order Wire Rope Thern winches are sold without wire rope. Order wire rope separately from the factory or a reputable supplier. The breaking strength of new wire rope should be 5 times the size of the largest load for lifting applications, and 3 times the size of the largest load for pulling applications. Contact a reputable wire rope supplier for more information.

Breaking Strength of New Wire Rope (lb)
Wire Rope Dia 7 x 19 Galvanized Aircraft Cable 7 x 19 304 Stainless Steel
1/8 in (0.13) 2,000 1,760
3/16 in (0.19) 4,200 3,700
1/4 in (0.25) 7,000 6,400
5/16 in (0.31) 9,800 9,000
3/8 in (0.38) 14,400 12,000
Wire Rope Dia 6 x 37 IWRC IPS
(improved plow steel wire rope) 		6 x 37 IWRC EIPS
(extra improved plow steel wire rope)
3/8 in (0.38) 12,400 15,100
7/16 in (0.44) 16,500 20,400
1/2 in (0.50) 23,000 26,600
9/16 in (0.56) 29,000 33,600
5/8 in (0.63) 35,800 41,200
3/4 in (0.75) 51,200 58,800
7/8 in (0.88) 69,200 79,600
1 in (1.00) 89,800 103,400
1-1/8 in (1.13) 113,000 130,000
1-1/4 in (1.25) 138,800 159,800
1-1/2 in (1.50) 197,800 228,000
Values shown are for reference only. When selecting a wire rope, use the breaking strength specified by the rope manufacturer.

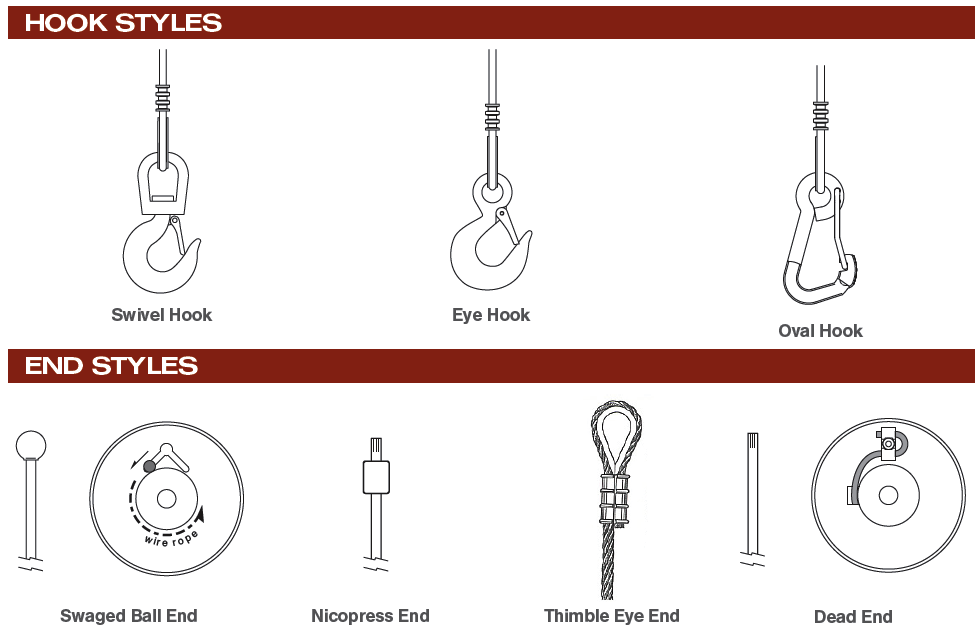

Wire Rope Assemblies - Section 9
Model Number Wire Rope diameter x length Approx ship weight

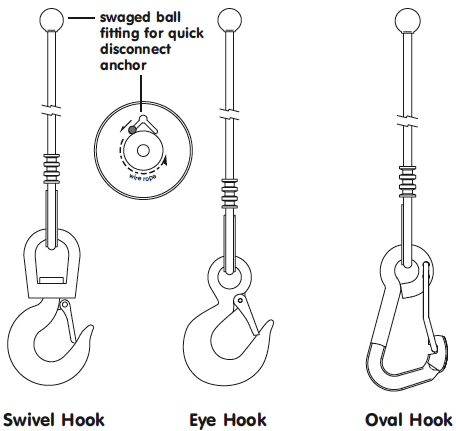

galvanized aircraft cable with swivel hook and swaged ball fitting
WA19-20NS 3/16 in x 20 ft 3 lb
WA19-28NS 3/16 in x 28 ft 4 lb
WA19-36NS 3/16 in x 36 ft 4 lb
WA19-45NS 3/16 in x 45 ft 7 lb
WA25-20NS 1/4 in x 20 ft 4 lb
WA25-28NS 1/4 in x 28 ft 5 lb
WA25-36NS 1/4 in x 36 ft 6 lb
WA25-45NS 1/4 in x 45 ft 7 lb
WA25-60NS 1/4 in x 60 ft 9 lb
WA25-75NS 1/4 in x 75 ft 11 lb
galvanized aircraft cable with swivel hook and unfinished end
WA31-20DS 5/16 in x 20 ft 6 lb
WA31-28DS 5/16 in x 28 ft 7 lb
WA31-36DS 5/16 in x 36 ft 8 lb
WA31-45DS 5/16 in x 45 ft 10 lb
WA31-60DS 5/16 in x 60 ft 12 lb
WA31-75DS 5/16 in x 75 ft 15 lb
304 stainless steel wire rope with SS oval hook and swaged ball fitting
swivel hook also available please call factory
WS19-20NO 3/16 in x 20 ft 3 lb
WS19-28NO 3/16 in x 28 ft 3 lb
WS19-36NO 3/16 in x 36 ft 4 lb
WS19-45NO 3/16 in x 45 ft 7 lb
WS19-60NO 3/16 in x 60 ft 9 lb
WS19-75NO 3/16 in x 75 ft 11 lb
304 stainless steel wire rope with SS eye hook and swaged ball fitting
swivel hook also available please call factory
WS25-20NE 1/4 in x 20 ft 5 lb
WS25-28NE 1/4 in x 28 ft 5 lb
WS25-36NE 1/4 in x 36 ft 6 lb
WS25-45NE 1/4 in x 45 ft 7 lb
WS25-60NE 1/4 in x 60 ft 9 lb
WS25-75NE 1/4 in x 75 ft 11 lb
304 stainless steel wire rope with SS eye hook and unfinished end
swivel hook also available please call factory
WS31-20DE 5/16 in x 20 ft 6 lb
WS31-28DE 5/16 in x 28 ft 7 lb
WS31-36DE 5/16 in x 36 ft 9 lb
WS31-45DE 5/16 in x 45 ft 11 lb
WS31-60DE 5/16 in x 60 ft 14 lb
WS31-75DE 5/16 in x 75 ft 17 lb
Please contact factory or nearest Thern Distributor for firm fixed price and delivery



Call for Custom Application Pricing

WA19-20NS 3/16 in x 20 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 3 lbs
WA19-28NS 3/16 in x 28 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 4 lbs
WA19-36NS 3/16 in x 36 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 4 lbs
WA19-45NS 3/16 in x 45 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 7 lbs
WA25-20NS 1/4 in x 20 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 4 lbs
WA25-28NS 1/4 in x 28 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 5 lbs
WA25-36NS 1/4 in x 36 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 6 lbs
WA25-45NS 1/4 in x 45 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 7 lbs
WA25-60NS 1/4 in x 60 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 9 lbs
WA25-75NS 1/4 in x 75 ft – galvanized aircraft cable with swivel hook and swaged ball fitting - Wgt = 11 lbs
WA31-20DS 5/16 in x 20 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 6 lbs
WA31-28DS 5/16 in x 28 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 7 lbs
WA31-36DS 5/16 in x 36 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 8 lbs
WA31-45DS 5/16 in x 45 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 10 lbs
WA31-60DS 5/16 in x 60 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 12 lbs
WA31-75DS 5/16 in x 75 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 15 lbs
WA38-28DS 3/8 in x 28 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 8 lbs
WA38-36DS 3/8 in x 36 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 10 lbs
WA38-45DS 3/8 in x 45 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 11 lbs
WA38-60DS 3/8 in x 60 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 14 lbs
WA38-75DS 3/8 in x 75 ft – galvanized aircraft cable with swivel hook and unfinished end - Wgt = 17 lbs
WS19-20NS 3/16 in x 20 ft – 304 stainless steel wire rope with SS oval hook and swaged ball fitting - Wgt = 3 lbs
WS19-28NS 3/16 in x 28 ft – 304 stainless steel wire rope with SS oval hook and swaged ball fitting - Wgt = 3 lbs
WS19-36NS 3/16 in x 36 ft – 304 stainless steel wire rope with SS oval hook and swaged ball fitting - Wgt = 4 lbs
WS19-45NS 3/16 in x 45 ft – 304 stainless steel wire rope with SS oval hook and swaged ball fitting - Wgt = 7 lbs
WS19-60NS 3/16 in x 60 ft – 304 stainless steel wire rope with SS oval hook and swaged ball fitting - Wgt = 9 lbs
WS19-75NS 3/16 in x 75 ft – 304 stainless steel wire rope with SS oval hook and swaged ball fitting - Wgt = 11 lbs
WS38-28DS 3/8 in x 28 ft – 304 stainless steel wire rope with SS swivel hook and unfinished end - Wgt = 8 lbs
WS38-36DS 3/8 in x 36 ft – 304 stainless steel wire rope with SS swivel hook and unfinished end - Wgt = 10 lbs
WS38-45DS 3/8 in x 45 ft – 304 stainless steel wire rope with SS swivel hook and unfinished end - Wgt = 12 lbs
WS38-60DS 3/8 in x 60 ft – 304 stainless steel wire rope with SS swivel hook and unfinished end - Wgt = 15 lbs
WS38-75DS 3/8 in x 75 ft – 304 stainless steel wire rope with SS swivel hook and unfinished end - Wgt = 18 lbs



WA19-20NS
3/16 IN X 20 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 3 LBS
Mfg. item #: WA19-20NS
THEWA19-20NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$122.50

181
WA19-28NS
3/16 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 4 LBS
Mfg. item #: WA19-28NS
THEWA19-28NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$128.63

181
WA19-36NS
3/16 IN X 36 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 4 LBS
Mfg. item #: WA19-36NS
THEWA19-36NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$133.00

181
WA19-45NS
3/16 IN X 45 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 7 LBS
Mfg. item #: WA19-45NS
THEWA19-45NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$154.00

181
WA25-20NS
1/4 IN X 20 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 4 LBS
Mfg. item #: WA25-20NS
THEWA25-20NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$133.00

181
WA25-28NS
1/4 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 5 LBS
Mfg. item #: WA25-28NS
THEWA25-28NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$137.38

181
WA25-36NS
1/4 IN X 36 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 6 LBS
Mfg. item #: WA25-36NS
THEWA25-36NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$147.88

181
WA25-45NS
1/4 IN X 45 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 7 LBS
Mfg. item #: WA25-45NS
THEWA25-45NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$168.88

181
WA25-60NS
1/4 IN X 60 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 9 LBS
Mfg. item #: WA25-60NS
THEWA25-60NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$189.00

181
WA25-75NS
1/4 IN X 75 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 11 LBS
Mfg. item #: WA25-75NS
THEWA25-75NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$218.75

181
WA31-20DS
5/16 IN X 20 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 6 LBS
Mfg. item #: WA31-20DS
THEWA31-20DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$162.75

181
WA31-28DS
5/16 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 7 LBS
Mfg. item #: WA31-28DS
THEWA31-28DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$189.00

181
WA31-36DS
5/16 IN X 36 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 8 LBS
Mfg. item #: WA31-36DS
THEWA31-36DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$198.63

181
WA31-45DS
5/16 IN X 45 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 10 LBS
Mfg. item #: WA31-45DS
THEWA31-45DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$214.38

181
WA31-60DS
5/16 IN X 60 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 12 LBS
Mfg. item #: WA31-60DS
THEWA31-60DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$224.00

181
WA31-75DS
5/16 IN X 75 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 15 LBS
Mfg. item #: WA31-75DS
THEWA31-75DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$238.88

181
WA38-28DS
3/8 IN X 28 FT - GALVANIZED AIRCRAFT CABLE WITH SWIVEL HOOK AND UNFINISHED END **WEIGHT = 8 LBS
Mfg. item #: WA38-28DS
THEWA38-28DS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$406.00

181
WA38-36DS
3/8 IN X 36 FT GALVANIZED AIRCRAFT
Mfg. item #: WA38-36DS
THEWA38-36DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WA38-45DS
3/8 IN X 45 FT GALVANIZED AIRCRAFT
Mfg. item #: WA38-45DS
THEWA38-45DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WA38-60DS
3/8 IN X 60 FT GALVANIZED AIRCRAFT
Mfg. item #: WA38-60DS
THEWA38-60DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WA38-75DS
3/8 IN X 75 FT GALVANIZED AIRCRAFT
Mfg. item #: WA38-75DS
THEWA38-75DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WS19-20NS
3/16 IN X 20 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 3 LBS
Mfg. item #: WS19-20NS
THEWS19-20NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$209.13

181
WS19-28NS
3/16 IN X 28 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 3 LBS
Mfg. item #: WS19-28NS
THEWS19-28NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$218.75

181
WS19-36NS
3/16 IN X 36 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 4 LBS
Mfg. item #: WS19-36NS
THEWS19-36NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$233.63

181
WS19-45NS
3/16 IN X 45 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 7 LBS
Mfg. item #: WS19-45NS
THEWS19-45NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$250.25

181
WS19-60NS
3/16 IN X 60 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 9 LBS
Mfg. item #: WS19-60NS
THEWS19-60NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$280.00

181
WS19-75NS
3/16 IN X 75 FT - 304 STAINLESS STEEL WIRE ROPE WITH SS SWIVEL HOOK AND SWAGED BALL FITTING **WEIGHT = 11 LBS
Mfg. item #: WS19-75NS
THEWS19-75NS
FREE shipping ONLY when ordered with a machine from this manufacturer otherwise Ground UPS Will Be Added at Order Entry.20
$315.00

181
WS38-28DS
3/8 IN X 28 FT 304 STAINLESS STEEL
Mfg. item #: WS38-28DS
THEWS38-28DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WS38-36DS
3/8 IN X 36 FT 304 STAINLESS STEEL
Mfg. item #: WS38-36DS
THEWS38-36DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WS38-45DS
3/8 IN X 45 FT 304 STAINLESS STEEL
Mfg. item #: WS38-45DS
THEWS38-45DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WS38-60DS
3/8 IN X 60 FT 304 STAINLESS STEEL
Mfg. item #: WS38-60DS
THEWS38-60DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
WS38-75DS
3/8 IN X 75 FT 304 STAINLESS STEEL
Mfg. item #: WS38-75DS
THEWS38-75DS
Call for freight quote on this item or we will confirm freight charges before shipping.1
Call for Price

181
Copyright © 2024 Smith-Hamilton, Inc
0.026 230912 07:10
